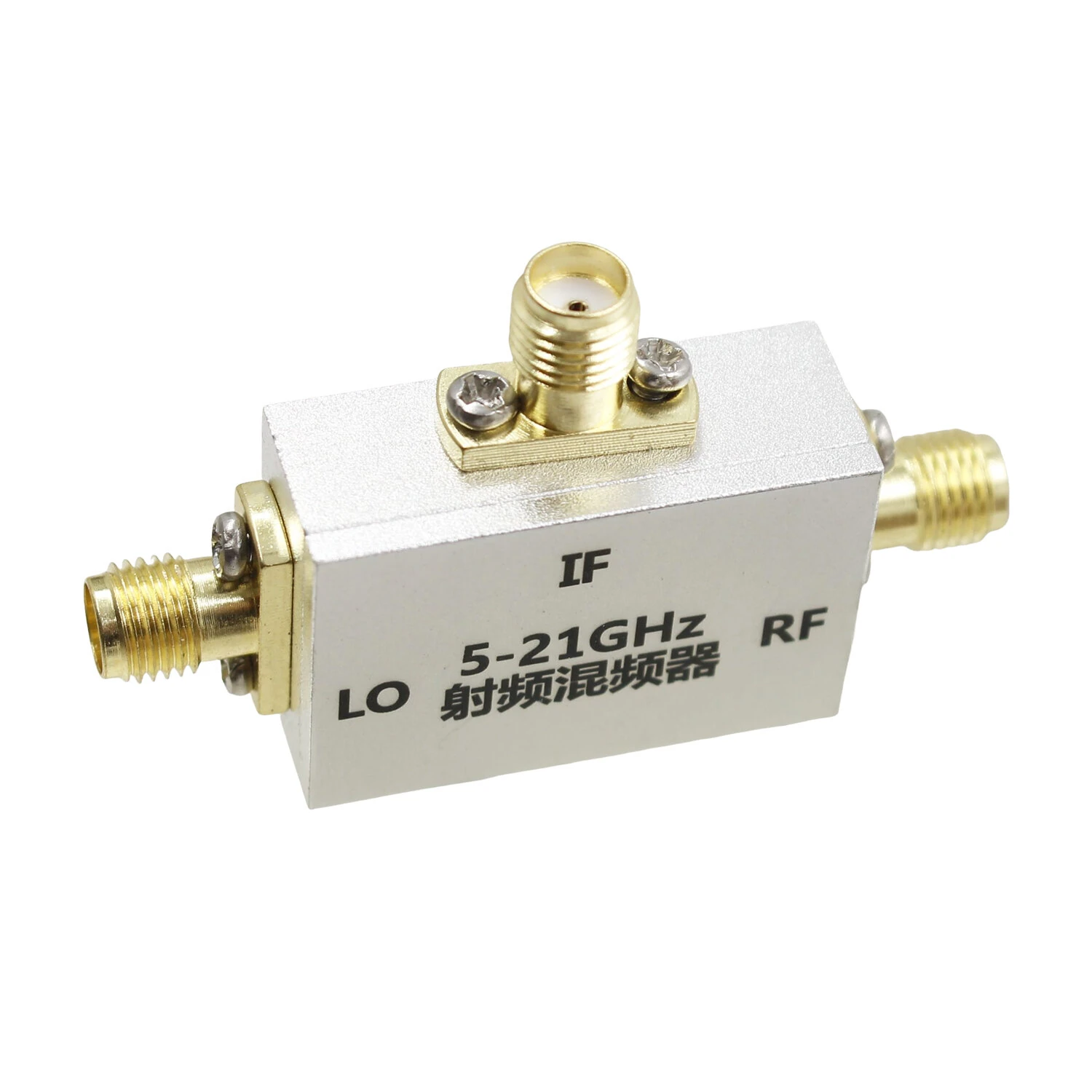

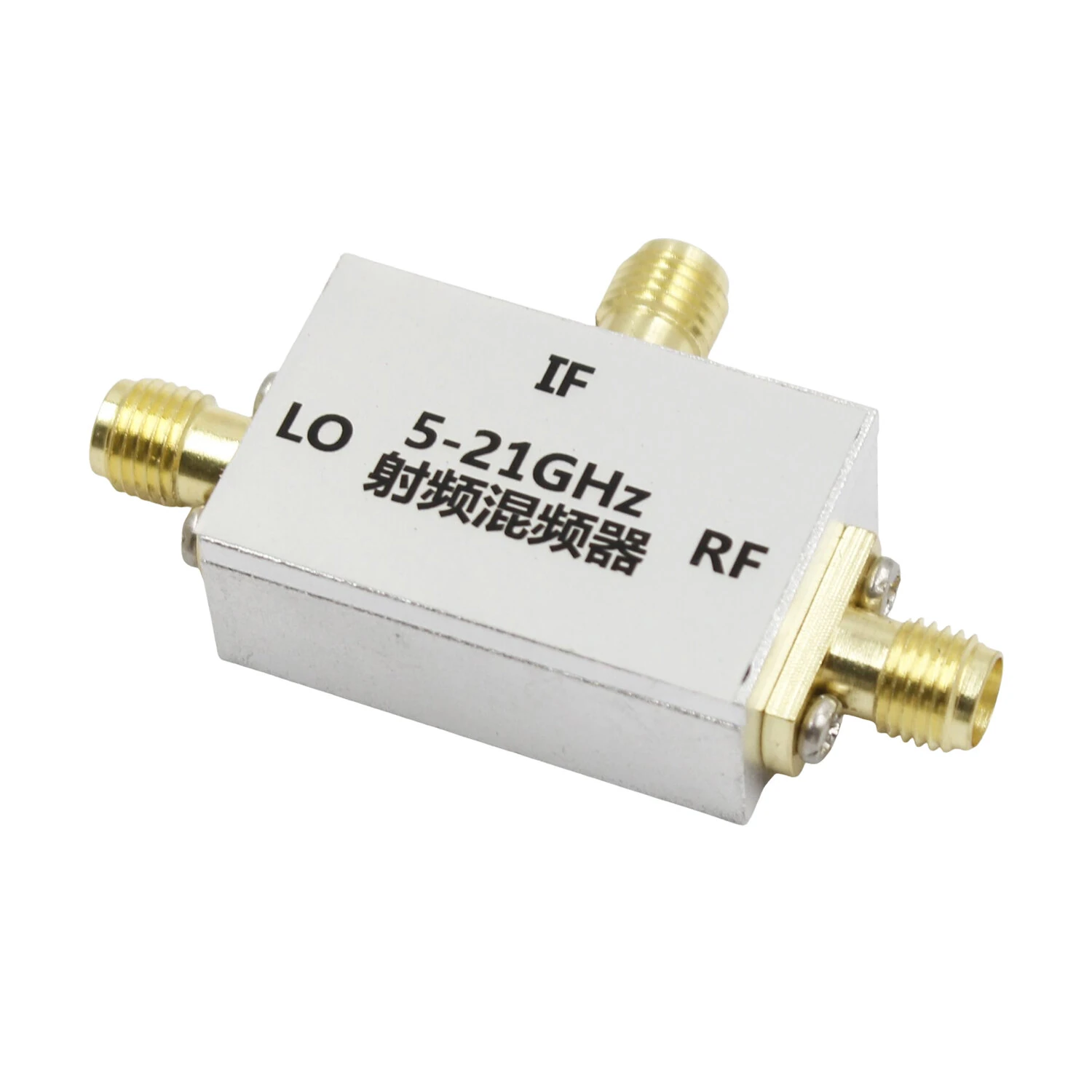

QM-MIX0521S RF Up/Down Converter Mixer Module 5-21GHz RF/LO DC-5000MHz IF 8-12dB Loss 29dB Isolation +15dBm LO SMA-K CNC Shielded Housing C/X/Ku Band

Name: QM-MIX0521S RF Up/Down Converter Mixer Module 5-21GHz RF/LO DC-5000MHz IF 8-12dB Loss 29dB Isolation +15dBm LO SMA-K CNC Shielded Housing C/X/Ku Band
Brand: Pricio
SKU: 2050679
Price: 6183 INR
Availability: InStock

35+ bought in past month

AI Summary

product for premium buyers

The QM-MIX0521S RF Up/Down Converter Mixer Module 5-21GHz RF/LO DC-5000MHz IF 8-12dB Loss 29dB Isolation +15dBm LO SMA-K CNC Shielded Housing C/X/Ku Band is a premium product designed for premium buyers.

₹6,183-27%

MRP:₹8,459Save ₹2,276

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

27% Off — you save ₹2,276 on this product!

Color: Silver

Silver

Quantity

Total: ₹6,183

Buying tip: A quality investment for dependable performance and premium build quality.

Estimated delivery: 23 Aug – 6 Sept

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience

SKU: bg-2050679

About This Product

The QM-MIX0521S RF Up/Down Converter Mixer Module 5-21GHz RF/LO DC-5000MHz IF 8-12dB Loss 29dB Isolation +15dBm LO SMA-K CNC Shielded Housing C/X/Ku Band is a premium designed for premium buyers. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:

Model: QM-MIX0521S

RF/LO frequency range: 5-21 GHz

IF frequency range: DC-5000 MHz

Conversion loss: 8-12 dB

Isolation (LO-RF): 29 dB typical

LO drive: +15 dBm

Interfaces: SMA-K

Housing: CNC structure with electromagnetic shielding

PCB: High-frequency, low insertion loss

Dimensions: 29 x 19 x 11 mm (excluding connectors)

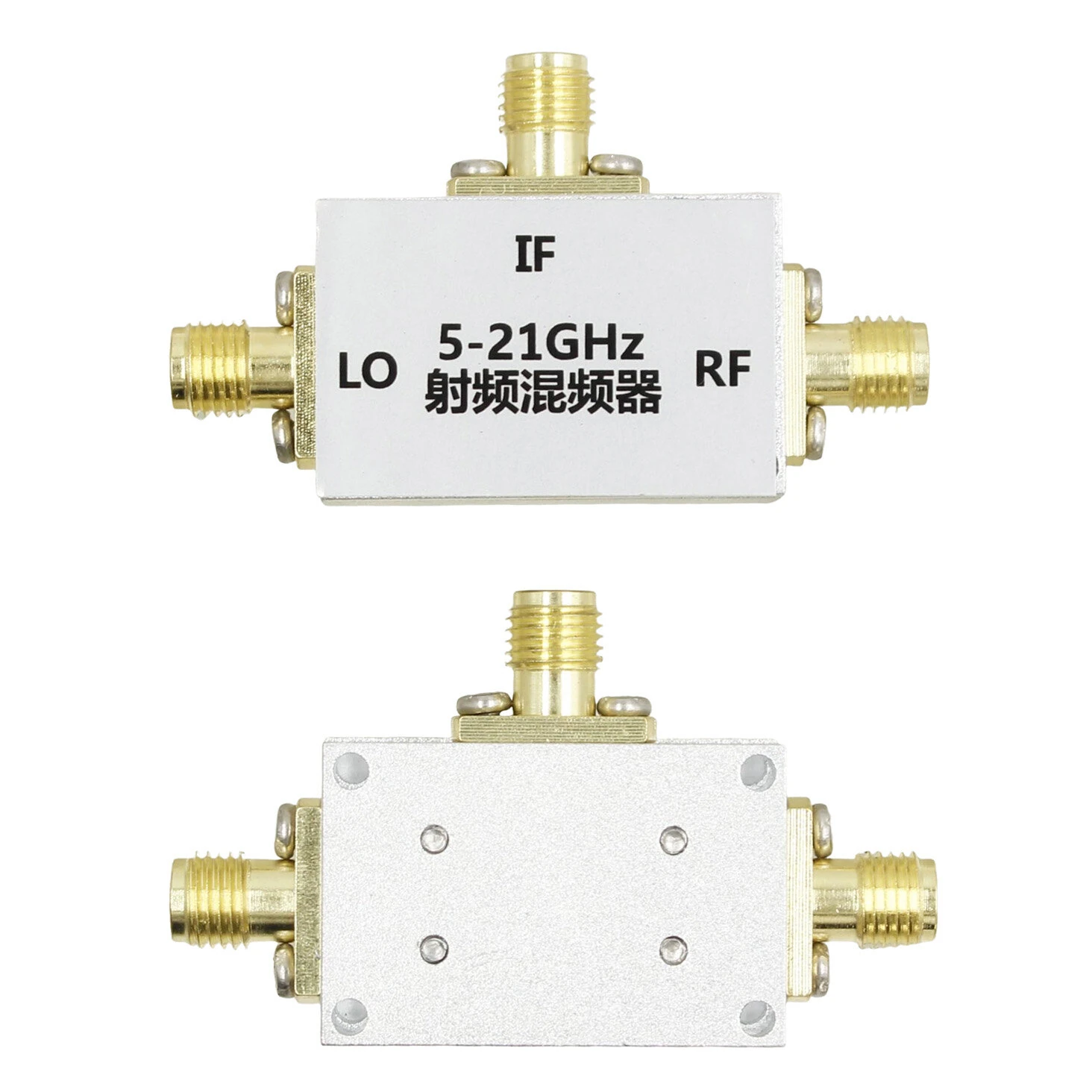

Ports: RF input (RF), LO input (LO), IF output (IF)

Note: Ensure LO drive power does not exceed +15 dBm

Features:

1. Wideband 5-21 GHz RF/LO and DC-5000 MHz IF, covering C/X/Ku bands.

2. Supports upconversion and downconversion at 5.8G, 8G, 12G, 18G.

3. Low conversion loss of 8-12 dB.

4. CNC shielded enclosure and high-frequency low insertion loss PCB; SMA-K connectors.

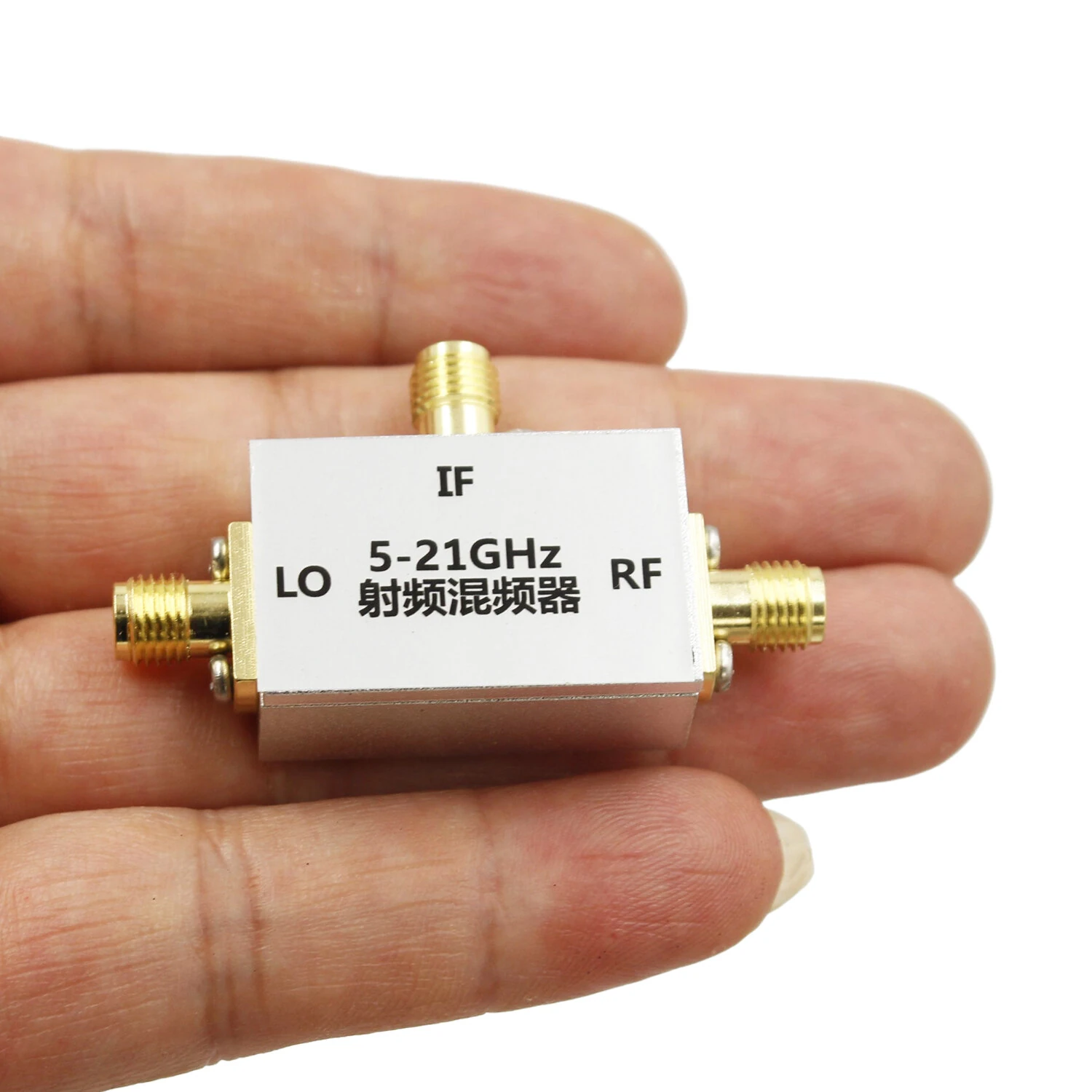

5. Compact 29 x 19 x 11 mm; LO-RF isolation 29 dB typical; LO drive +15 dBm.

Package included:

1 x QM-MIX0521S Mixer Module
