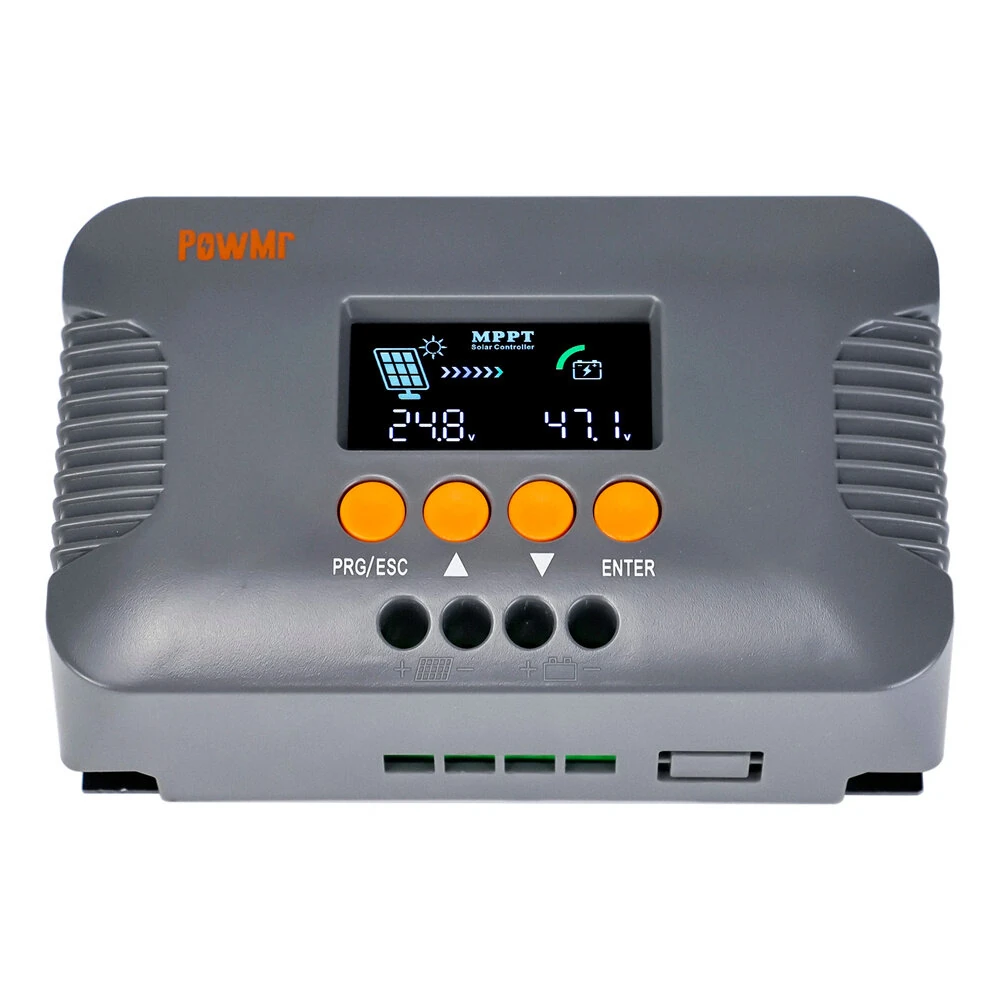

PowMr MPPT Boost Voltage Charge Controller 10A 24V 36V 48V 60V 72V for LiFePO4 Gel Flooded Lead-Acid Battery Max PV 400W

Model: POW-Boost 10A

PV Input:

PV Input Voltage: 15~25V (≤150W), 25~48V (≤250W), 48~60V (≤400W)

System Voltage: 24/36/48/60/72V (48/60/72V)

Charging Mode:

Charging Technology: MPPT (Maximum Point Tracking)

Charge Algorithm: 3-Stage

Self-consumption: <2W

Nominal System Voltage: 24V/36V/48V/60V/72V

Battery Voltage Range: 20~88V

Environment:

Operating Temperature Range: -35°C~+65°C

Humidity Range: ≤95%

General Specification:

Protection Class: IP32

Dimension: 1408550mm

Net Weight: 305g

Features:

1. Innovative Voltage Boosting Technology: The PowMr MPPT Boost Voltage Charge Controller is designed to effectively elevate the photovoltaic input voltage to match and optimize the battery's charging requirements. This is particularly advantageous in scenarios where the solar panel’s output voltage is lower than the required battery voltage, ensuring efficient and reliable charging even with limited photovoltaic input.

2. High Efficiency of Energy Transfer: Equipped with up to 99% tracking efficiency and a peak conversion efficiency of 98%, this controller ensures that solar energy is utilized at its maximum potential. By precisely adjusting the voltage, the controller captures every available watt of solar power, maximizing energy transfer and enhancing overall system performance.

3. Versatile Battery Compatibility: Supporting a variety of battery types including LiFePO4, Gel, Flooded, and Lead-Acid, the PowMr Boost Charge Controller provides flexible integration with different energy storage solution. Its sophisticated MPPT algorithm adapts to the unique charging requirements of each battery type, promoting optimal battery health and longevity.

4. Robust and Reliable Design: With IP32 protection and a long-lasting build that operates efficiently in temperatures ranging from -35°C to +65°C, the PowMr Boost Charge Controller is suitable for diverse environmental conditions. Its low self-consumption (<2W) and reliable performance ensure long-term stability and energy savings, making it ideal for both residential and commercial applications.

5. User-Friendly Interface and Versatility: The intuitive LCD display and control buttons allow for easy monitoring and configuration of the charging system. Its compact design with dimensions of 1408550mm and a lightweight of 305g make it easy to install and integrate into various setups. This user-friendly interface ensures hassle-free operation and maintenance.

Package Included:

1 x POW-Boost 10A MPPT Boost Voltage Charge Controller
