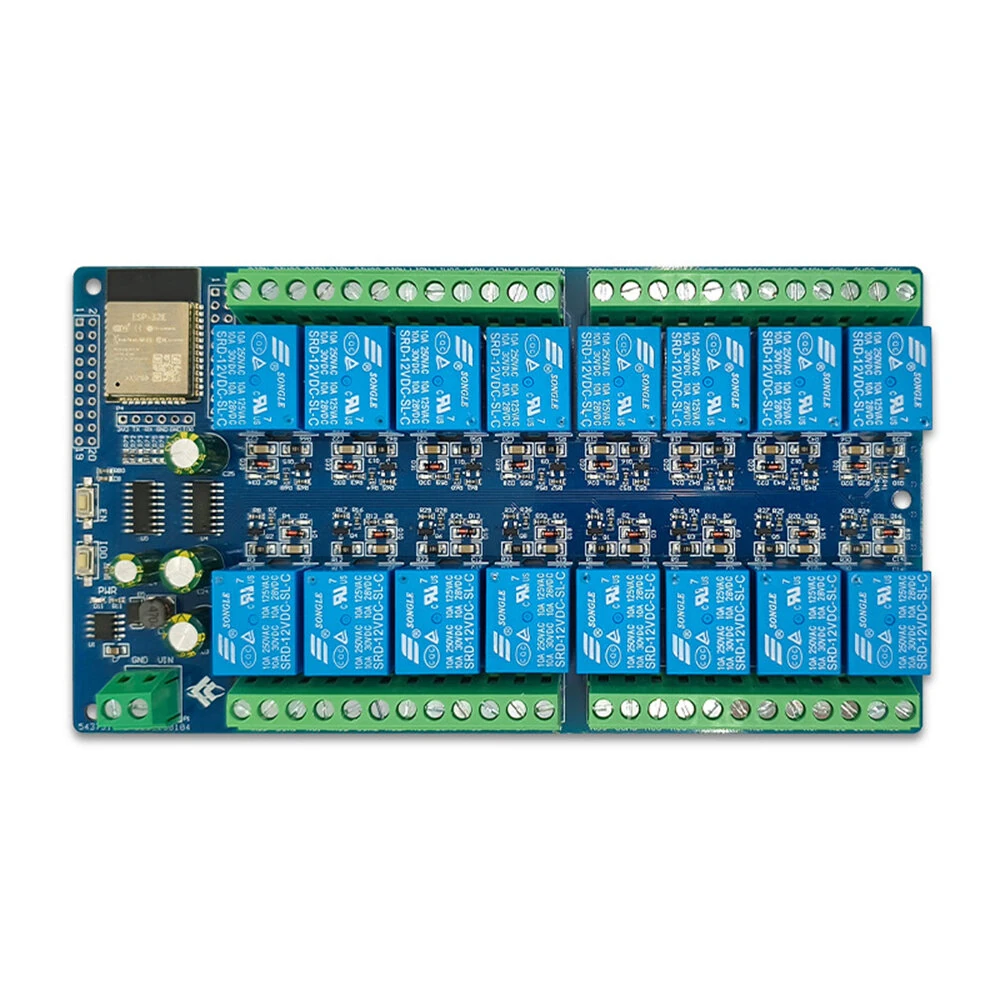

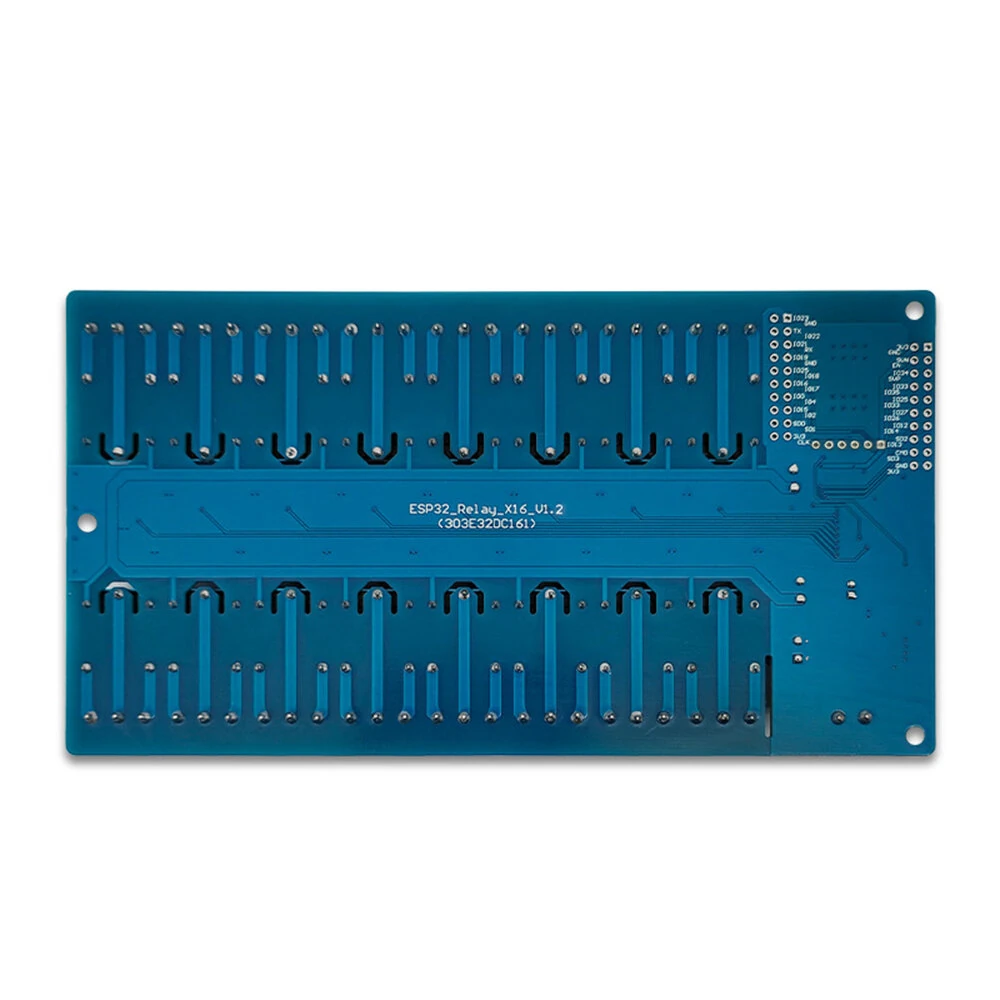

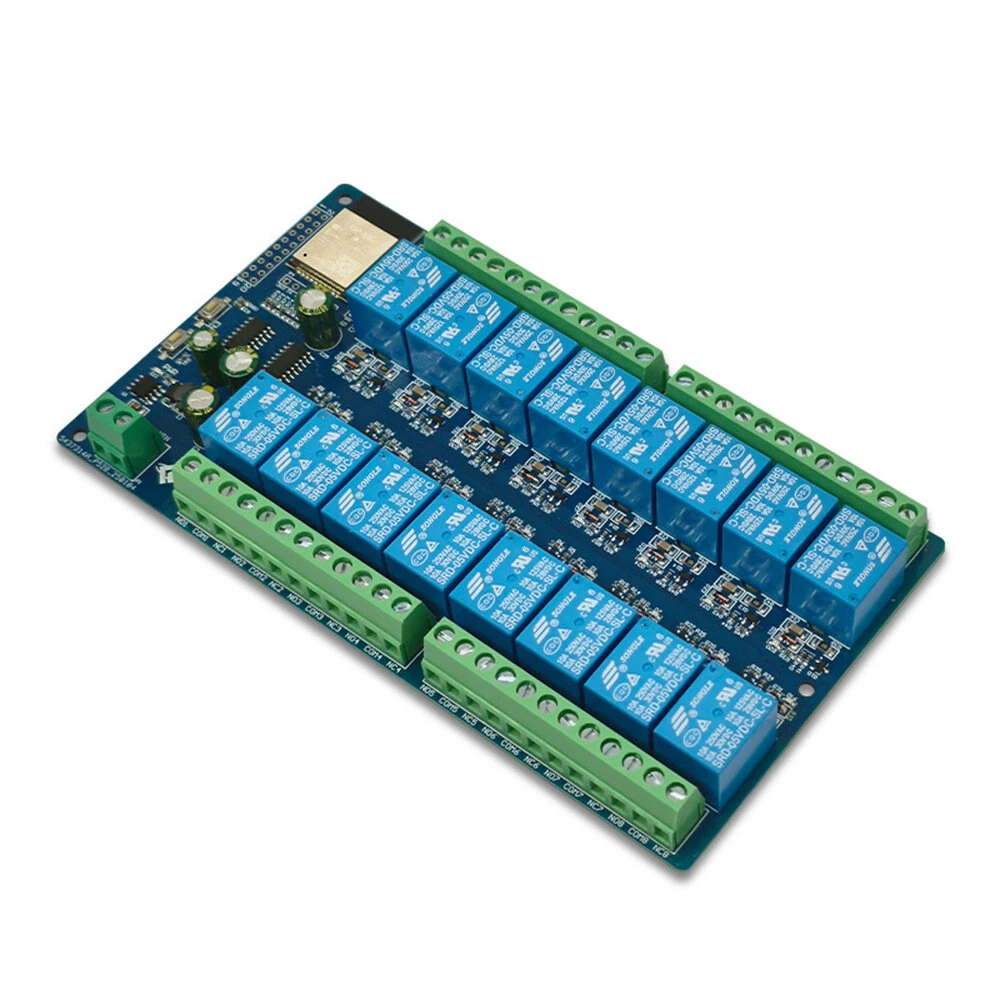

Power Supply ESP32 16 Channel Relay Module Development Board ESP32-WROOM Secondary Development DC5V/12V/24V
5.01 ratingThe Power Supply ESP32 16 Channel Relay Module Development Board ESP32-WROOM Secondary Development DC5V/12V/24V is a mid-range motherboard & development board designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
23% Off — you save ₹741 on this product!
Price: ₹2,501
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The Power Supply ESP32 16 Channel Relay Module Development Board ESP32-WROOM Secondary Development DC5V/12V/24V is a mid-range motherboard & development board designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specifications:
Voltage Type: 5V, 12V, 24V (optional)
Supply Voltage: 3.3-5V
Relay Channels: 16
Board Size: 165 * 90mm
Positioning Hole Diameter: 3mm
Weight: 244g
Features:
1. Onboard mature and stable ESP32-WROOM-32E module, large capacity 4M Byte Flash
2. ESP32 module I/O port and UART program download port are all drawn out to facilitate secondary development
3. The onboard DC-12V to 3.3V power supply circuit supports DC-12V
4. Onboard RST reset button and IO0 programmable button
5. ESP32 supports Arduinno IDE compilation tools and provides reference programs under Arduinno development environment
6. 16 on-board 5V relay, output switching signal, suitable for control of the control voltage of AC250V/DC30V within the load
Package Includes:
1 x Relay Module
2 x Pin
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1mm-1cm differences due to manual measurement.
