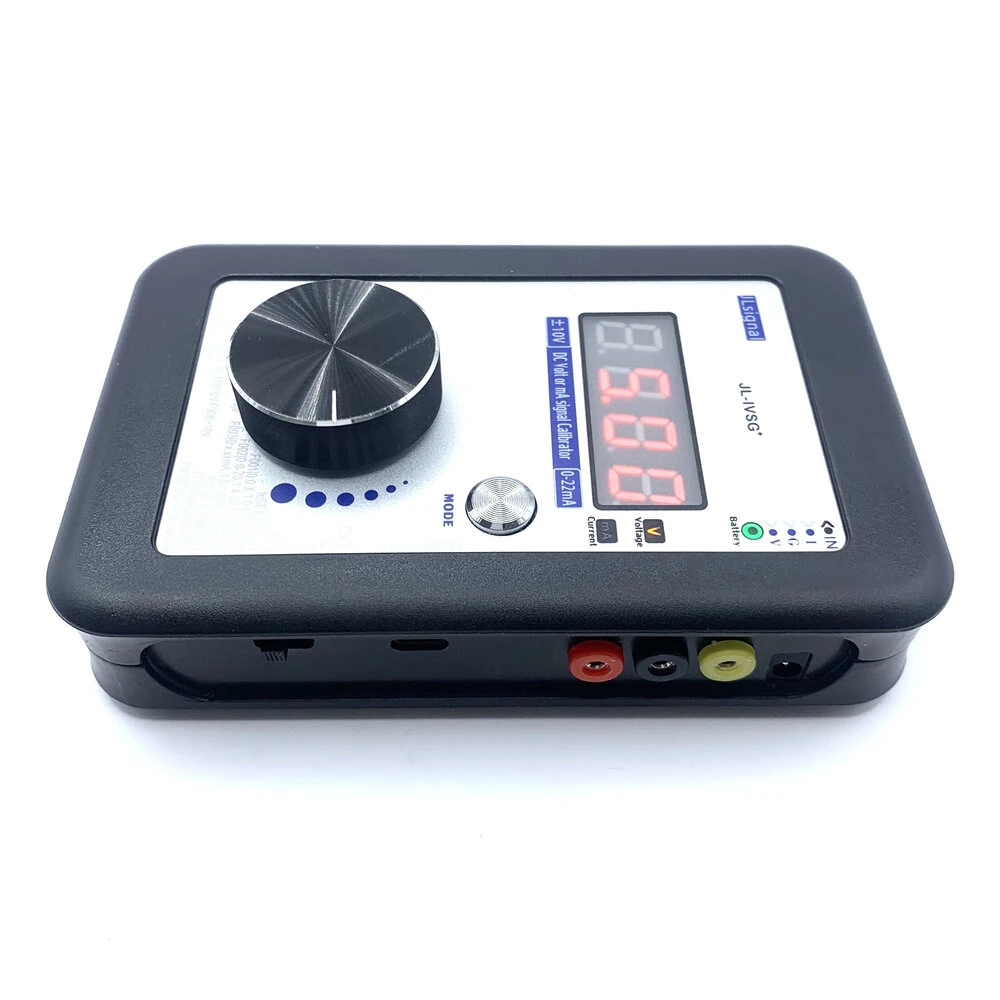

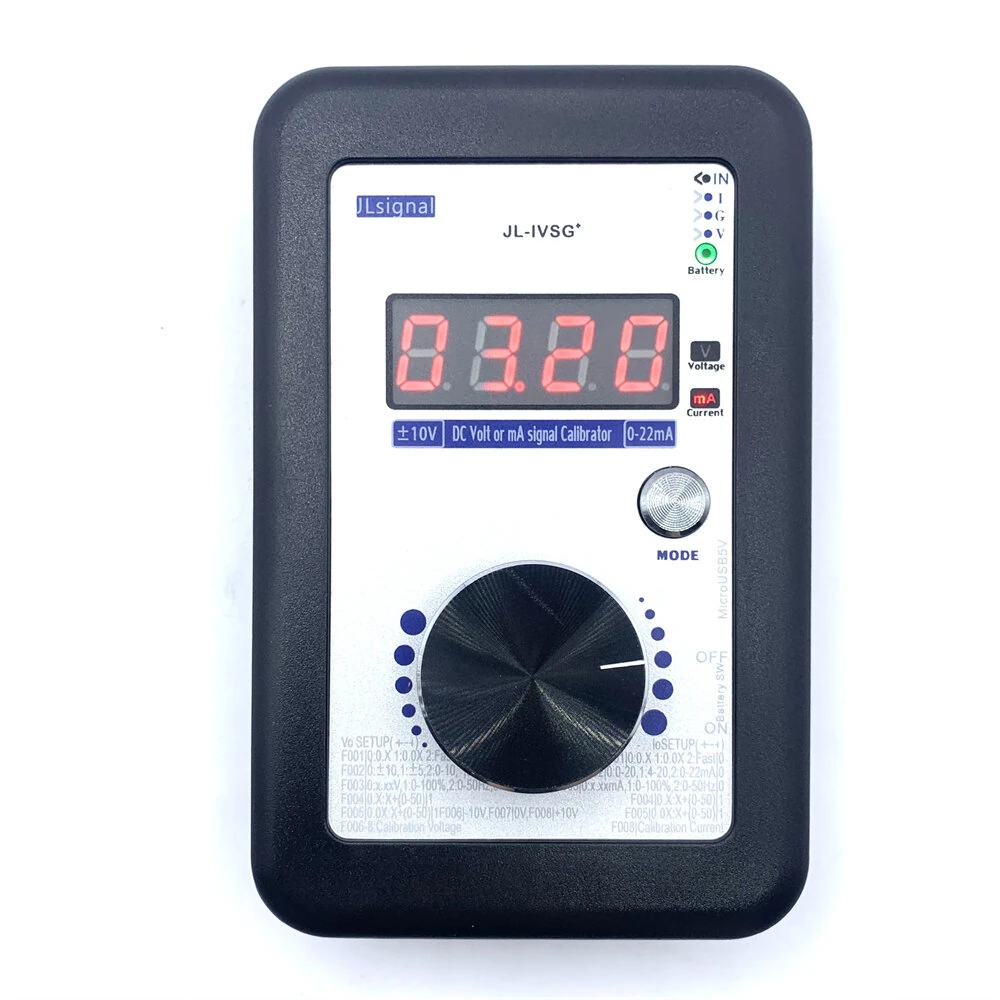

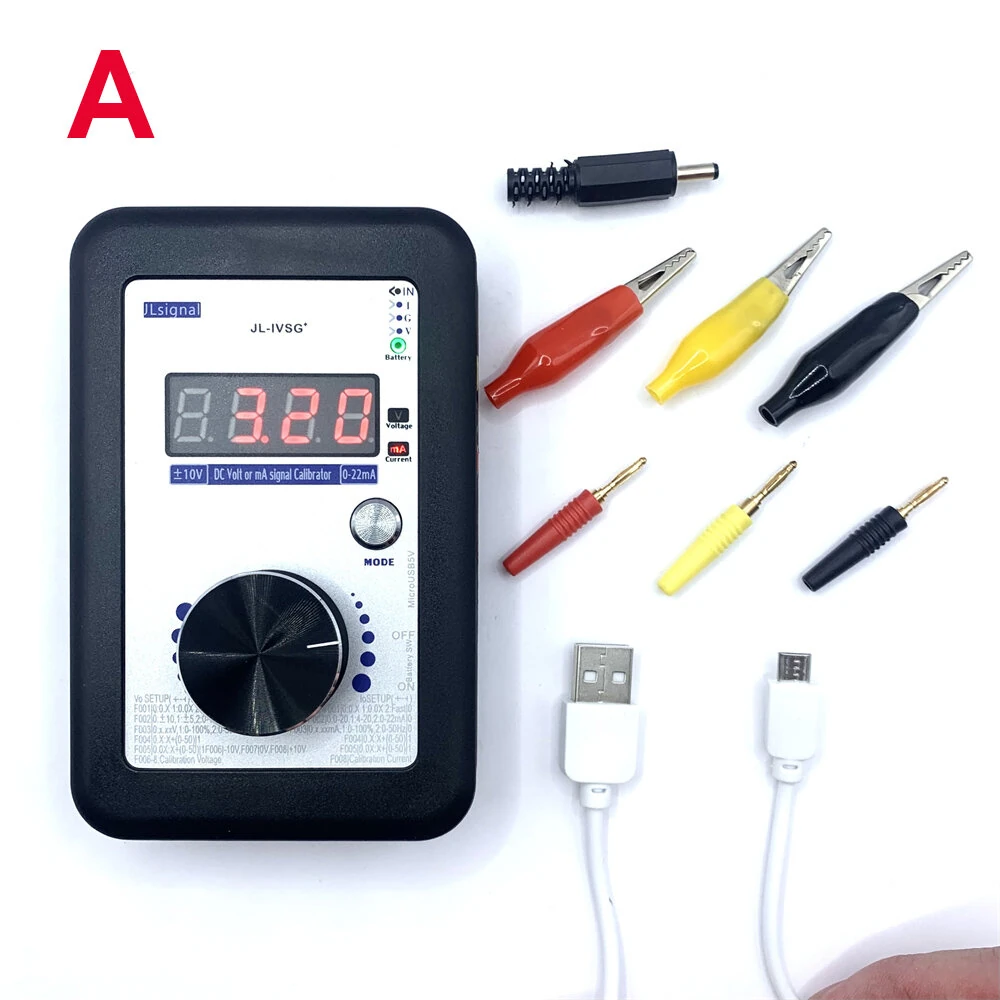

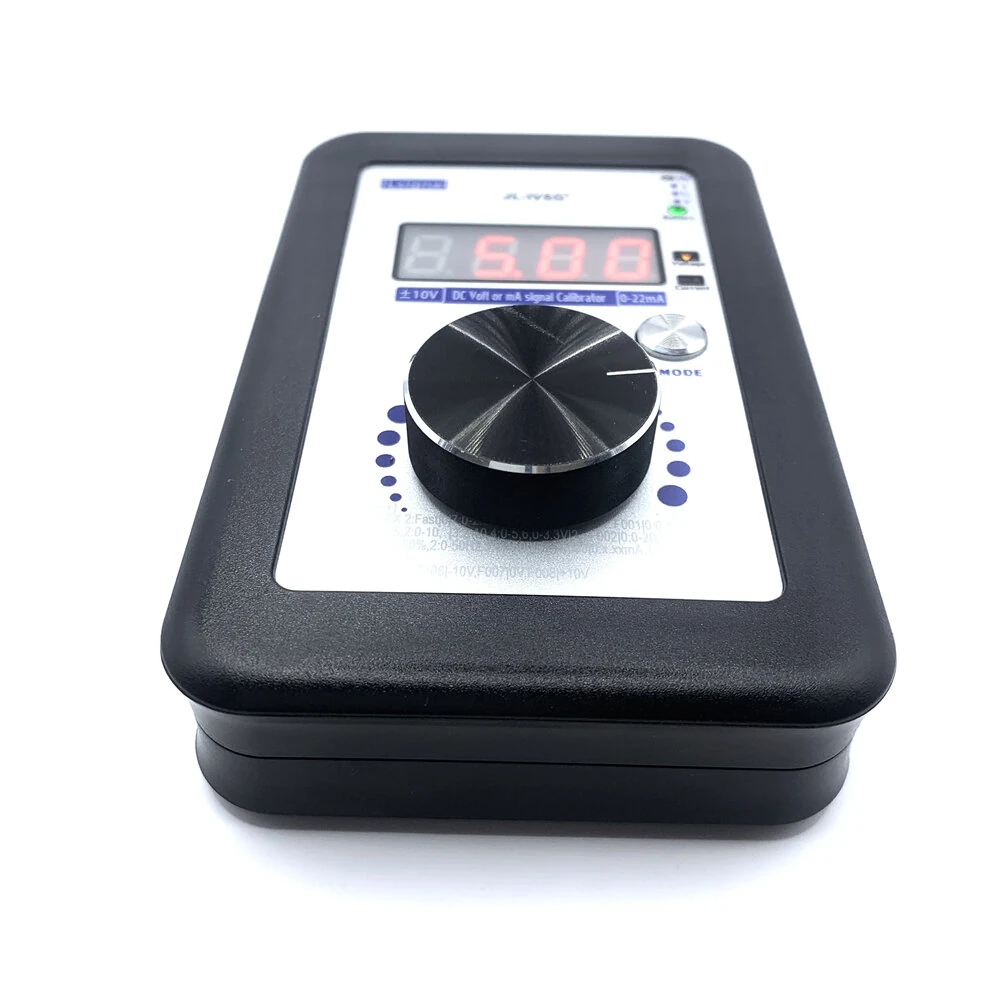

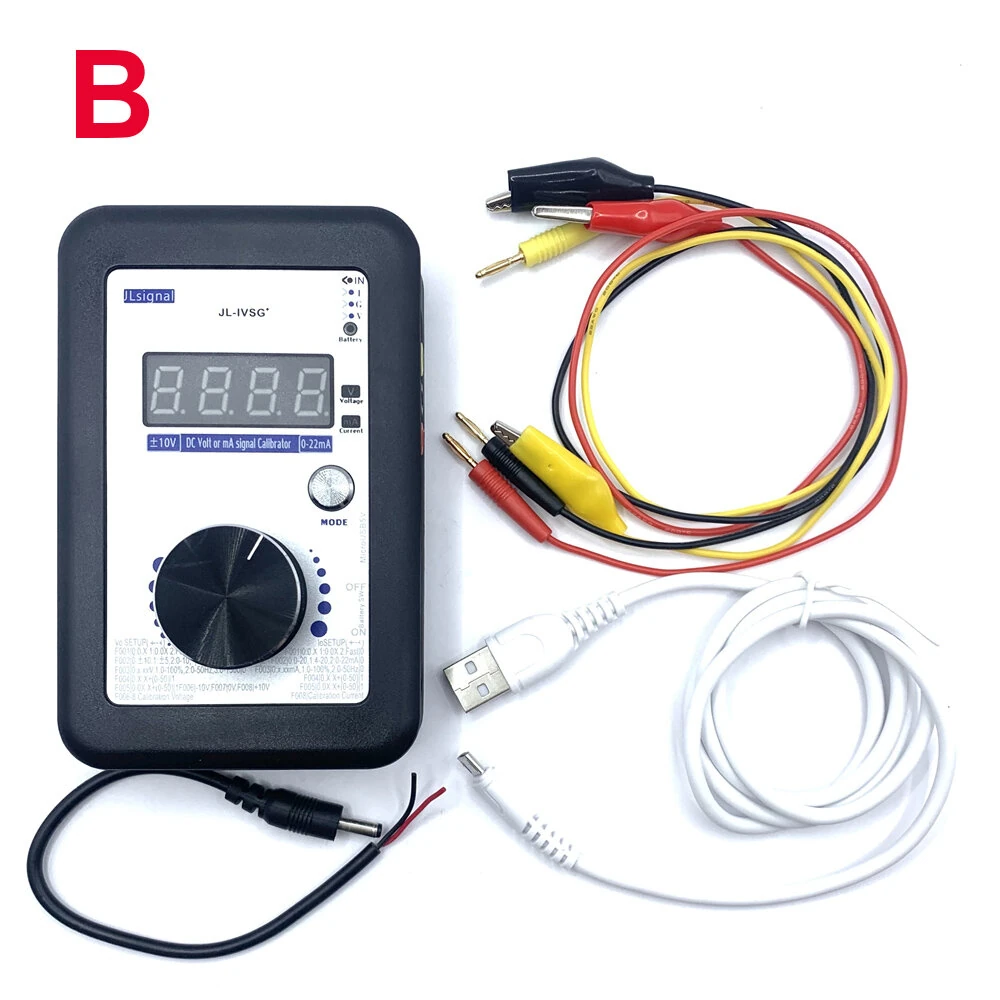

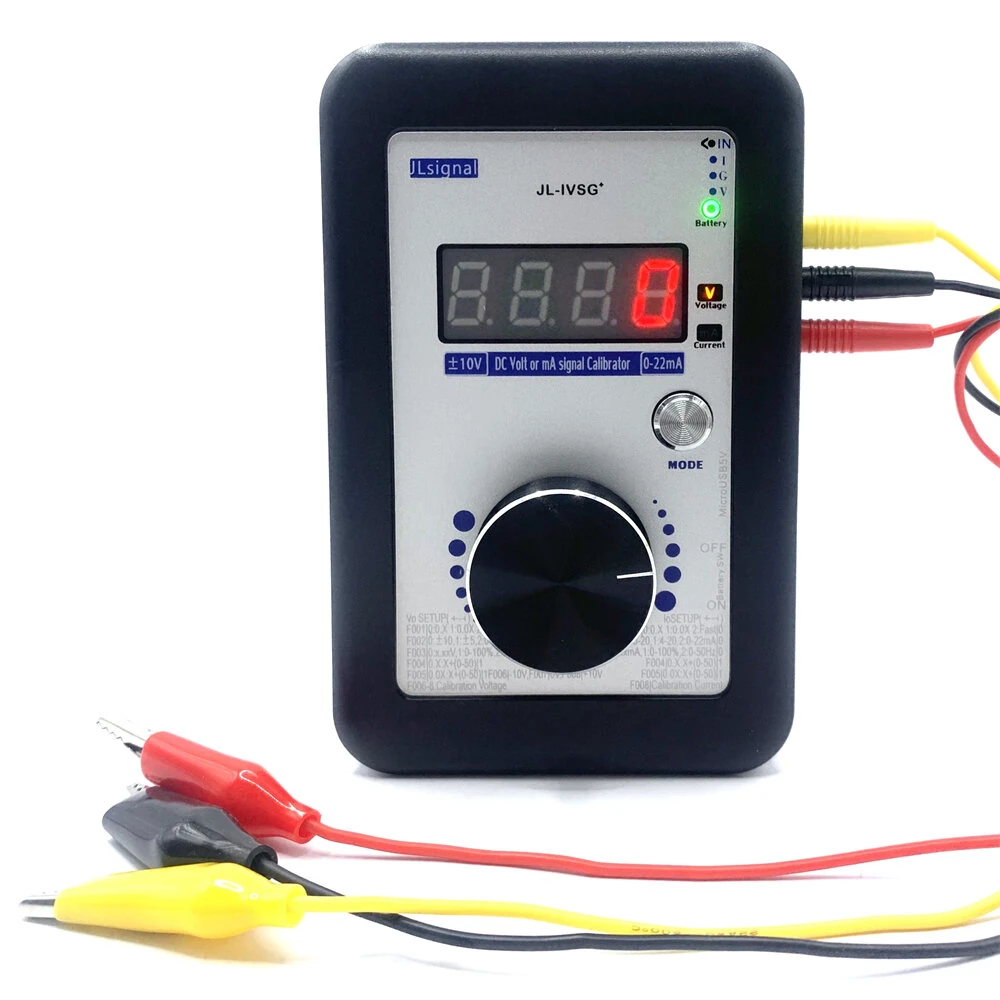

Portable Voltage Current Signal Generator 10V 22mA Output for PLC & Instrument Calibration

38+ bought in past month
AI Summary
Test & Measuring Module for everyday users

The Portable Voltage Current Signal Generator 10V 22mA Output for PLC & Instrument Calibration is a mid-range test & measuring module designed for everyday users.

✓ compact and portable
₹2,305-30%
MRP:₹3,313Save ₹1,008
Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

30% Off — you save ₹1,008 on this product!

Price: ₹2,305

Total: ₹2,305
Buying tip: A well-rounded choice at a fair price. Recommended for most buyers.
Estimated delivery: 21 Aug – 4 Sept
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Electronics projectsArduino / Raspberry Pi buildsPrototyping
Share:
SKU: bg-2042424Category: Test & Measuring Module

About This Product

The Portable Voltage Current Signal Generator 10V 22mA Output for PLC & Instrument Calibration is a mid-range test & measuring module designed for everyday users. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Features:
- Power supply: External DC15-30V, USB-5V, with emergency AC transformer [AC12-24V] support.  (Only version B is equipped with a rechargeable lithium battery)
- One-key switching between voltage and current regulation modes with independent wiring and simultaneous output capability.
- Current output supports 2, 3, 4-wire systems, fully compatible with active devices.
- Short-circuit protection on outputs, non-polarized power supply connection, and DC bridge isolation protection.
- Multiple output ranges: ±10V/±5V/0-10V/2-10V/0-5V/1-5V/0-3.3V/0-2.5V/0-1V/-10V-0V for voltage; 0-20mA/0-22mA/4-20mA for current.
- Multiple display modes: actual value, percentage (0-100.0%), and frequency (50Hz, 1-1500Hz).
- Dual adjustment modes: coarse and fine tuning with configurable step values.
- Lithium battery protection: overcurrent protection during charge/discharge, automatic charging management, power indicator, and voltage display.
- 360-degree encoder knob for stepless adjustment, long-lasting and unaffected by temperature/humidity.
- High-brightness 4-digit display with two decimal places, output calibration capability.
- High-grade aluminum alloy knob, plated buttons, aesthetic shell, comfortable grip.
- 2mm banana jacks for easy installation, compact and portable design.

Specification:
- Working Voltage: DC24V (Range: DC15V-30V)
- Working Current: 1W
- USB Input: microUSB 5V, 0.2A (not charging) / 1A (charging)
- Voltage Output: 0-10V adjustable, accuracy ±0.01V, max current 20mA, short-circuit protection
- Current Output: 0-22mA adjustable, accuracy ±0.01mA, sampling resistor 10-500Ω, short-circuit protection
- Display: 4-digit with two decimal places
- Encoder: 20 pulses per rotation
- Operating Temperature: 0°C to 50°C
- Operating Humidity: 0 to 95% RH
- Storage Temperature: -40°C to 85°C

Package Included:
1 x Unit
1 x Set of Accessories
