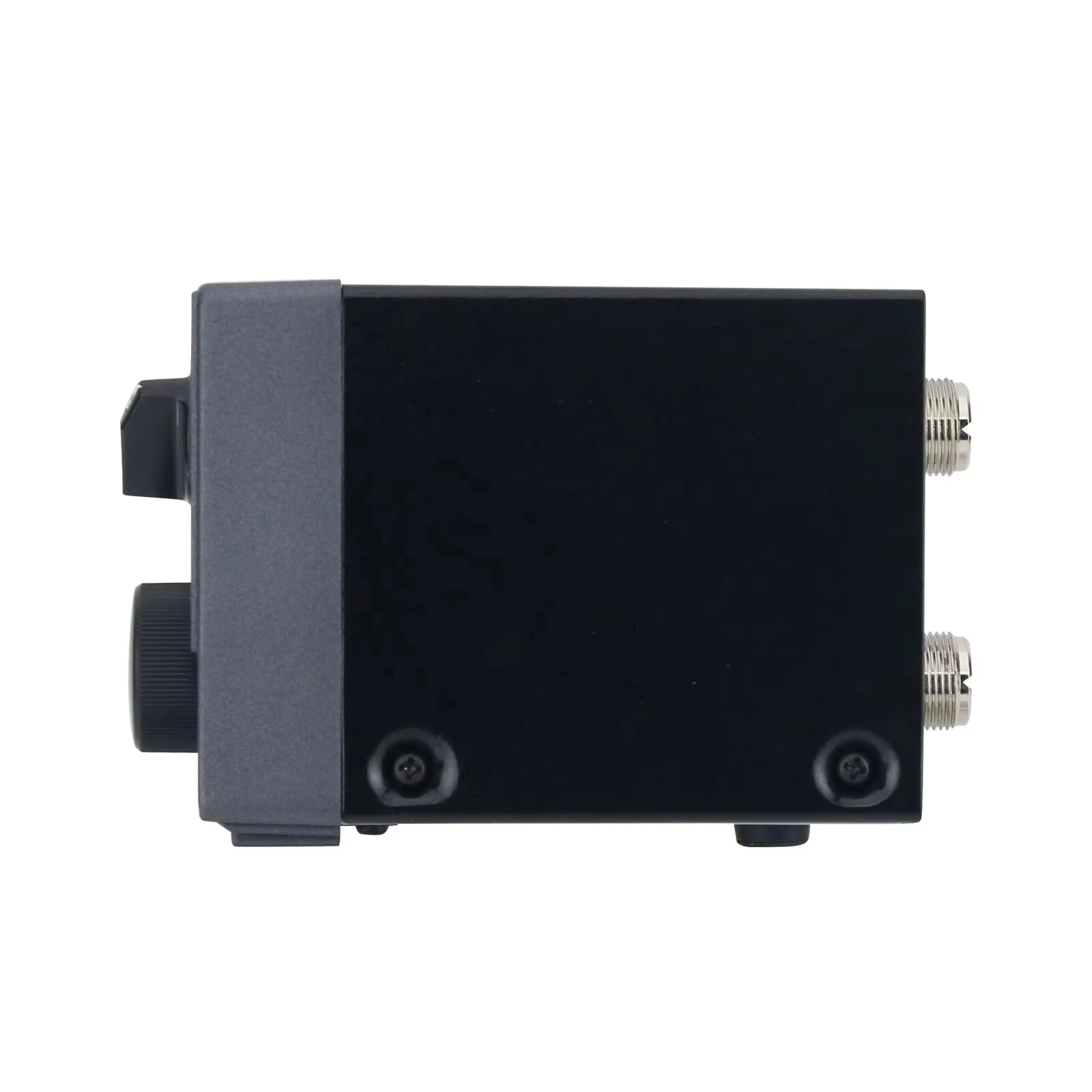

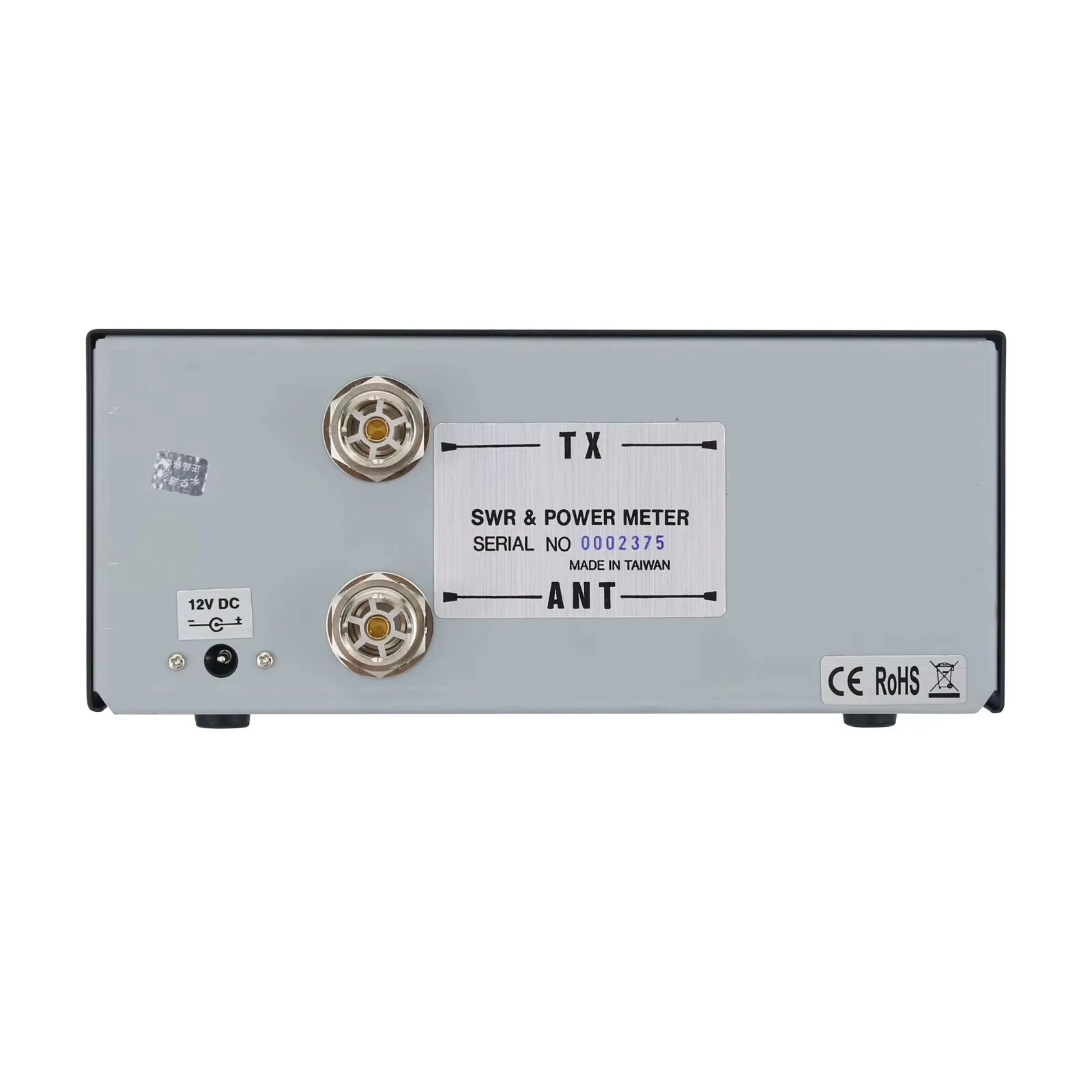

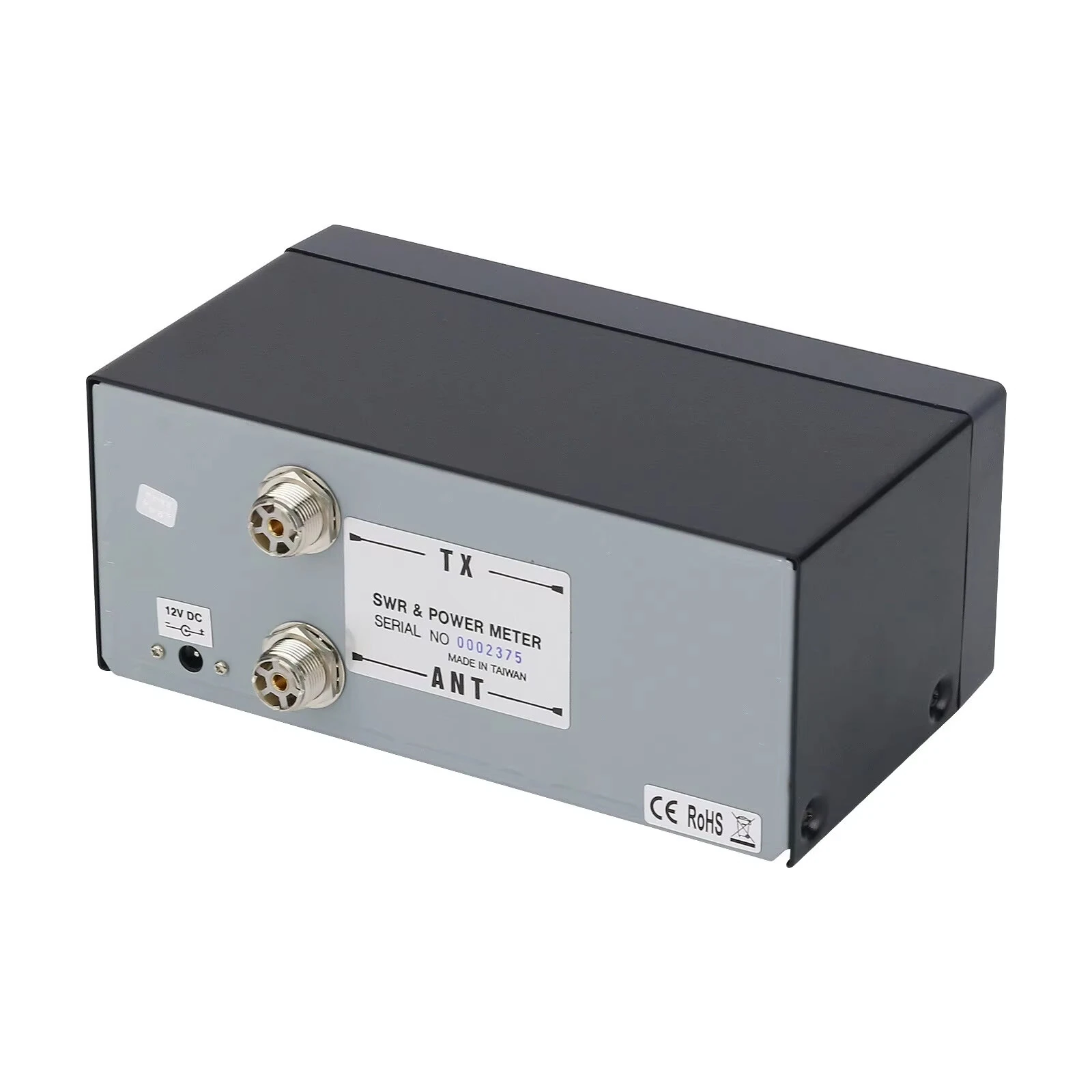

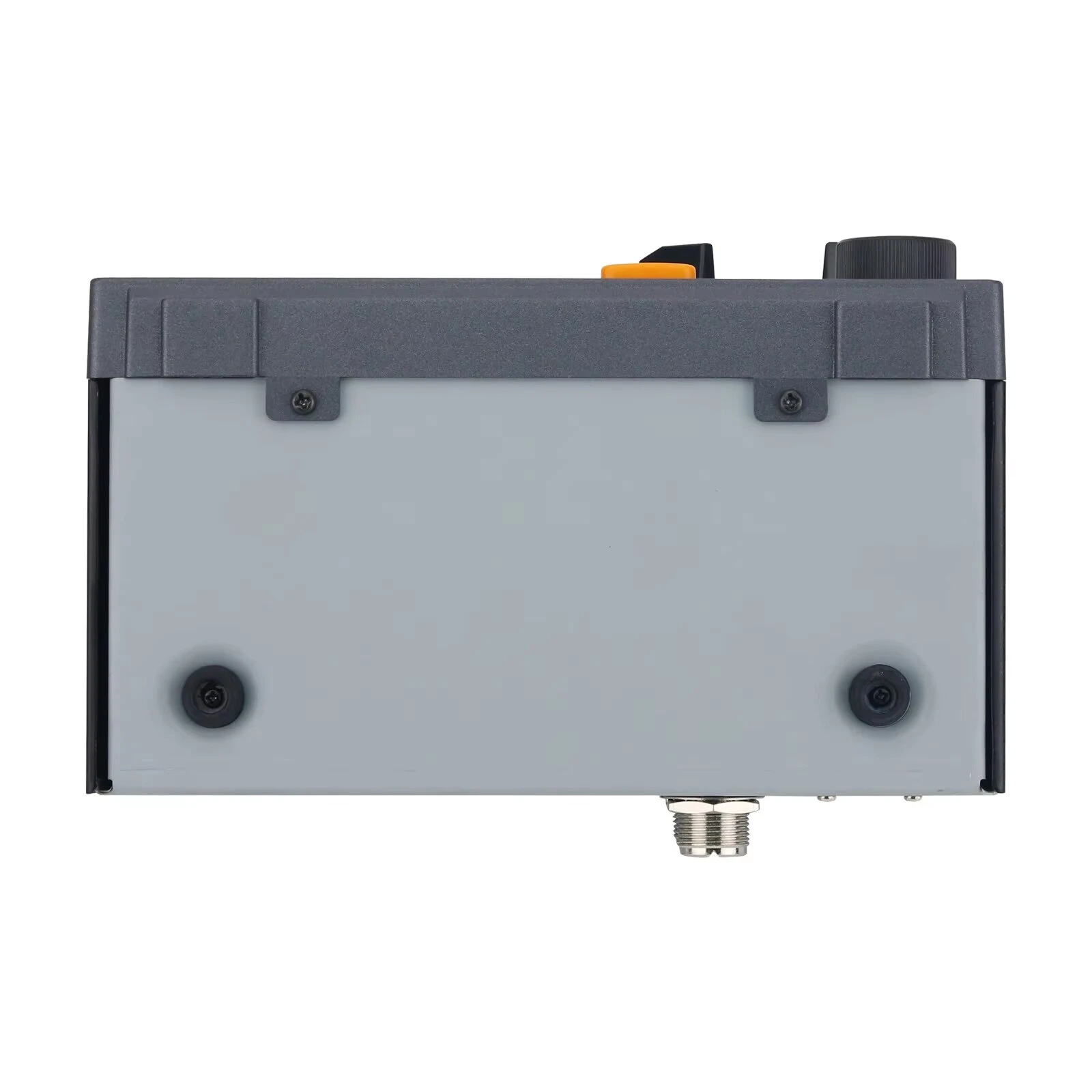

NISSEI RS-101 SWR Power Meter 1.8-60MHz Frequency Range 0-3KW Adjustable Power LED Backlight SO-239 Connectors 50 Ohm Low Loss Radio Accessories

Model: RS-101

Frequency Range: 1.8–60MHz

Power Measuring Range: 0–3KW

Impedance: 50 Ohm

Loss: ≤ 0.1dB

Connectors: SO-239 (M female)

Product Dimensions: 190 x 80 x 105mm

Product Weight: 630g

Features:

1. Wide Frequency Range: Capable of measuring frequencies from 1.8MHz to 60MHz, catering to a broad spectrum of short-wave radio applications and operational needs.

2. High Power Capability: Designed to measure power outputs up to 3KW across its adjustable ranges, ensuring compatibility with both low and high-power radio systems.

3. Minimal Transmission Loss: With a loss rating of ≤ 0.1dB, this meter maintains signal integrity during measurement, enhancing the efficiency of your radio station's transmission.

4. Adjustable Power Ranges: Includes selectable ranges for 30W, 300W, and 3KW to ensure accurate power measurements tailored to different transmission setups.

5. Integrated LED Backlight: Features a bright LED-backlit display for easy visibility in low-light environments, ensuring convenience during nighttime and indoor operations.

Package Included:

1 x SWR Power Meter

1 x Power Cable

1 x User Manual
