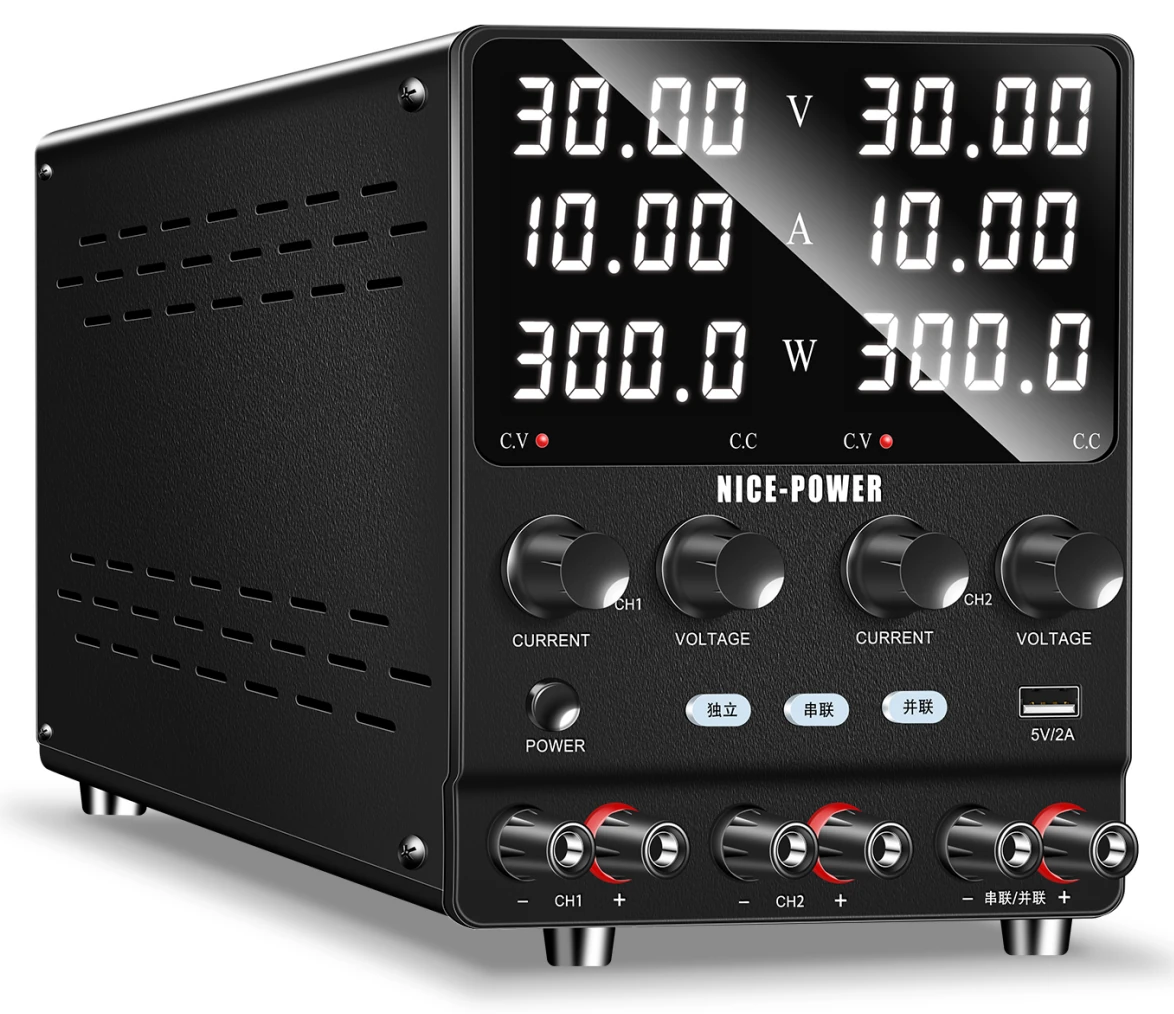

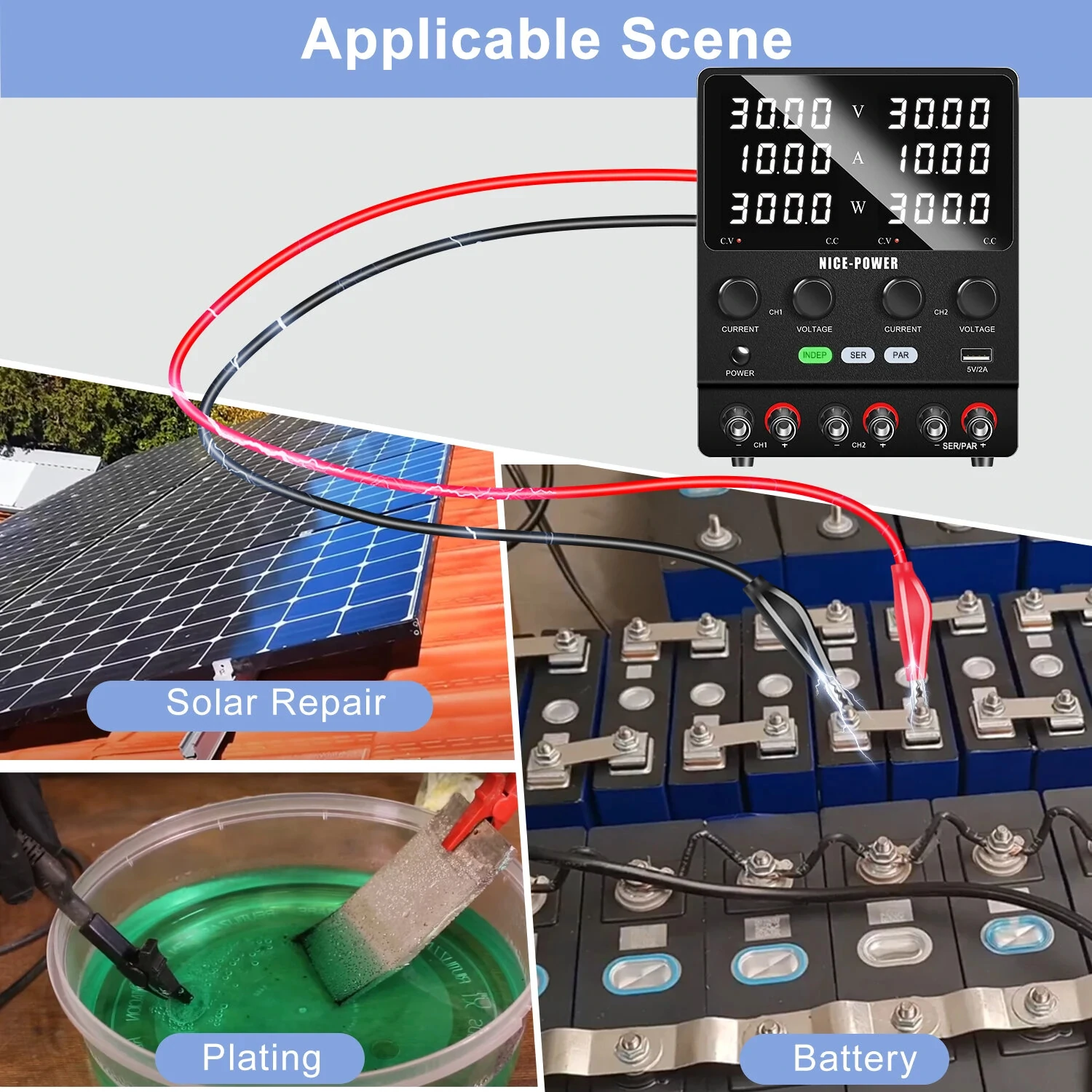

NICE-POWER SPS-2KD Dual-Channel DC Power Supply Series Parallel Independent Triple Output Function Bench Power 120V 60V 30V
5.023 ratingsThe NICE-POWER SPS-2KD Dual-Channel DC Power Supply Series Parallel Independent Triple Output Function Bench Power 120V 60V 30V is a premium power supply designed for premium buyers. Customers praise its excellent build quality and fast and responsive.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Price: ₹17,886
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The NICE-POWER SPS-2KD Dual-Channel DC Power Supply Series Parallel Independent Triple Output Function Bench Power 120V 60V 30V is a premium power supply designed for premium buyers. Customers highlight its excellent build quality and fast and responsive.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Features:

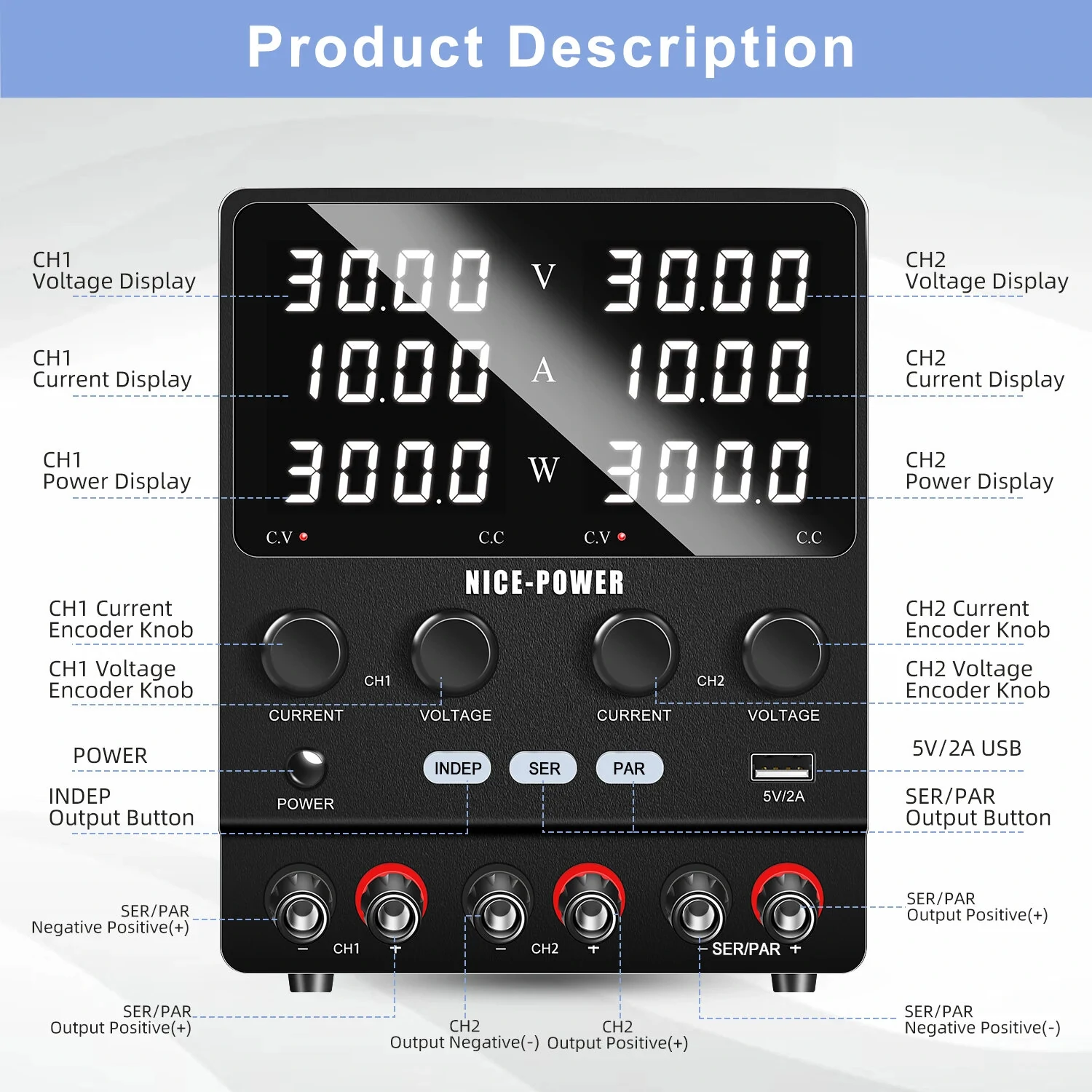

1. Dual Channel Power Supply: This device has an independent dual-channel that supports automatic conversion between constant voltage and current, giving you convenience in various applications. The two adjustable channels can operate independently or in automatic series and parallel, also featuring master-slave automatic tracking and adjustment functionalities.
2. Multiple Output Modes: With three output modes, it supports independent, series, and parallel modes—allowing flexible and customizable power supply based on your needs.
3. Series and Parallel Connection Modes: In series connection mode, the device can form positive and negative power outputs, which is perfect for symmetrical and adjustable bipolar power supplies. In parallel connection mode, it allows double current expansion output.
4. One-Key Switch for Convenience: With "SER/PAR" switch, you can easily shift between series and parallel connections, abandoning the need for complex wiring and settings.

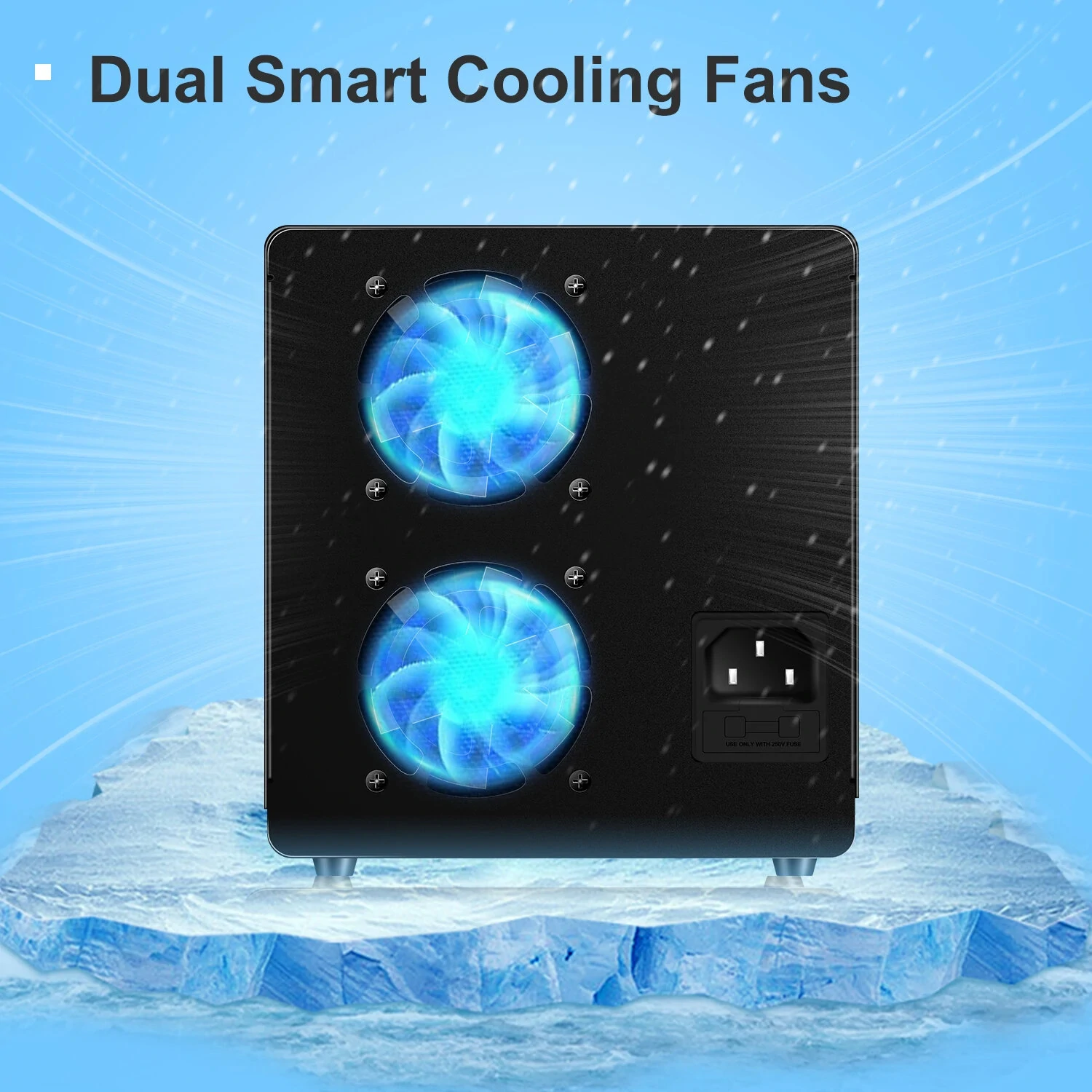

5. Multi-Protection and High-Quality Materials: The charge battery power supply is installed with several protective features like overheat, overvoltage, overcurrent, and short circuit protection. With high-quality components, it provides safe, stable, and efficient performance.
Brand: KUAIQU/NICE POWER
Optional Model: D305/D3010/D605/D1203
Input Voltage: 220V 50Hz
Max Output Voltage: DC 0-240V
Max Output Current: DC 0-20A
Display Accuracy: 1% 1 word (voltage resolution 0.1V, current resolution 0.1A)
Voltage Stability: ≤0.05% + 1mV
Current Stability: ≤0.1% + 10mA
Load Stability: CV≤0.05% + 1mV, CC≤0.05% + 10mA
Ripple and Noise: CV≤10mV，CC≤20mA (RMS)
Overall Efficiency: ≥80% (under full load test)
Working Environment: -10 - +40 Relative humidity 20% -80% (non-condensing)
SPS305-2KD 30V 5A:
In Series Connection, Up To 60V 5A
In Parallel Connection,Up To 30V 10A

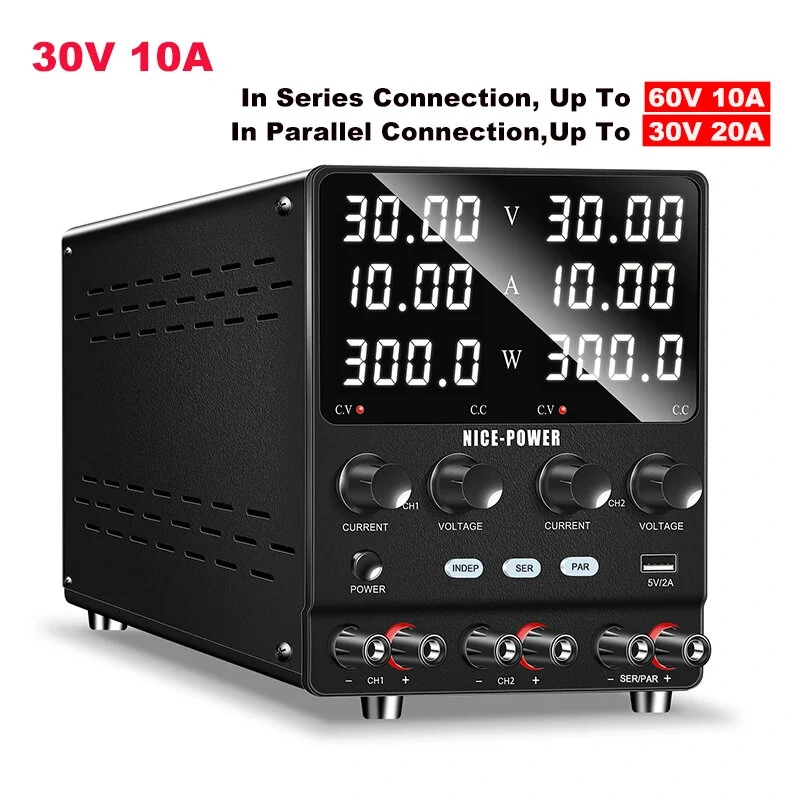

SPS3010-2KD 30V 10A:
In Series Connection, Up To60V 10A
In Parallel Connection,Up To30V 20A

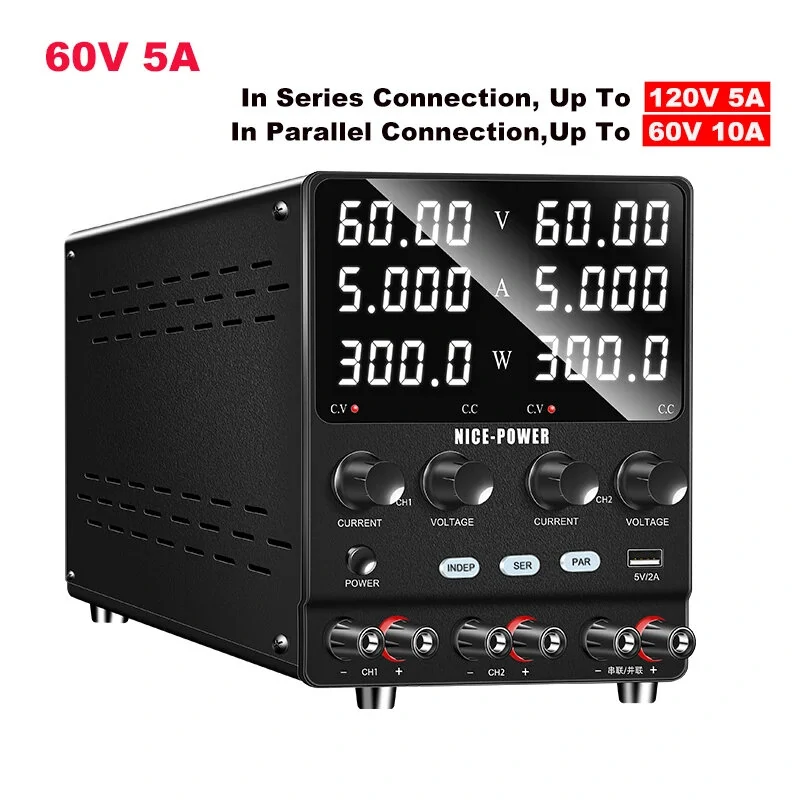

SPS605-2KD 60V 5A:
In Series Connection, Up To120V 5A
In Parallel Connection,Up To60V 10A

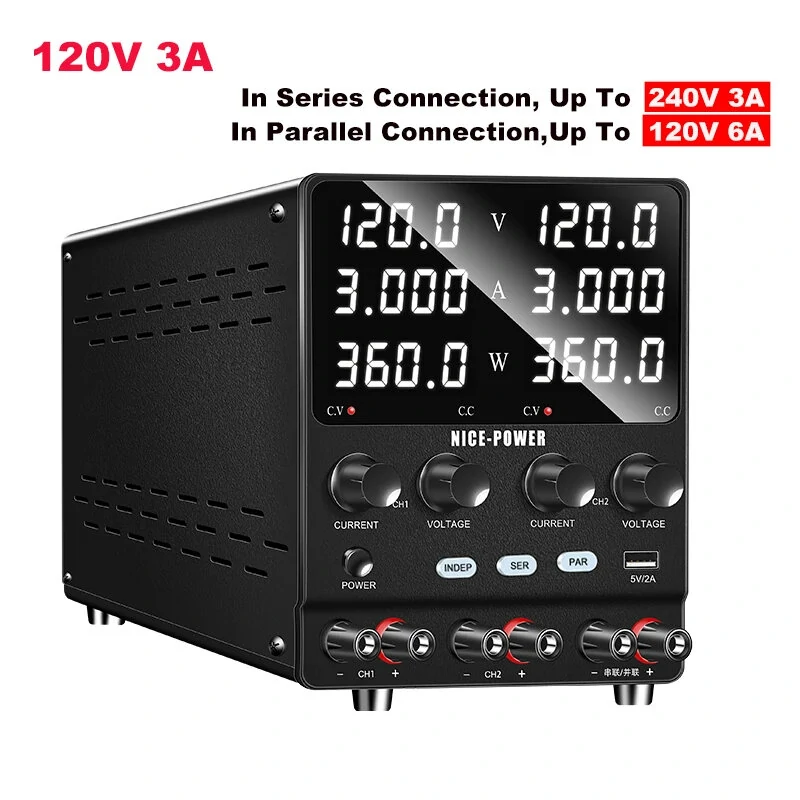

SPS1203-2KD 120V 3A:
In Series Connection, Up To240V 3A
In Parallel Connection,Up To120V 6A

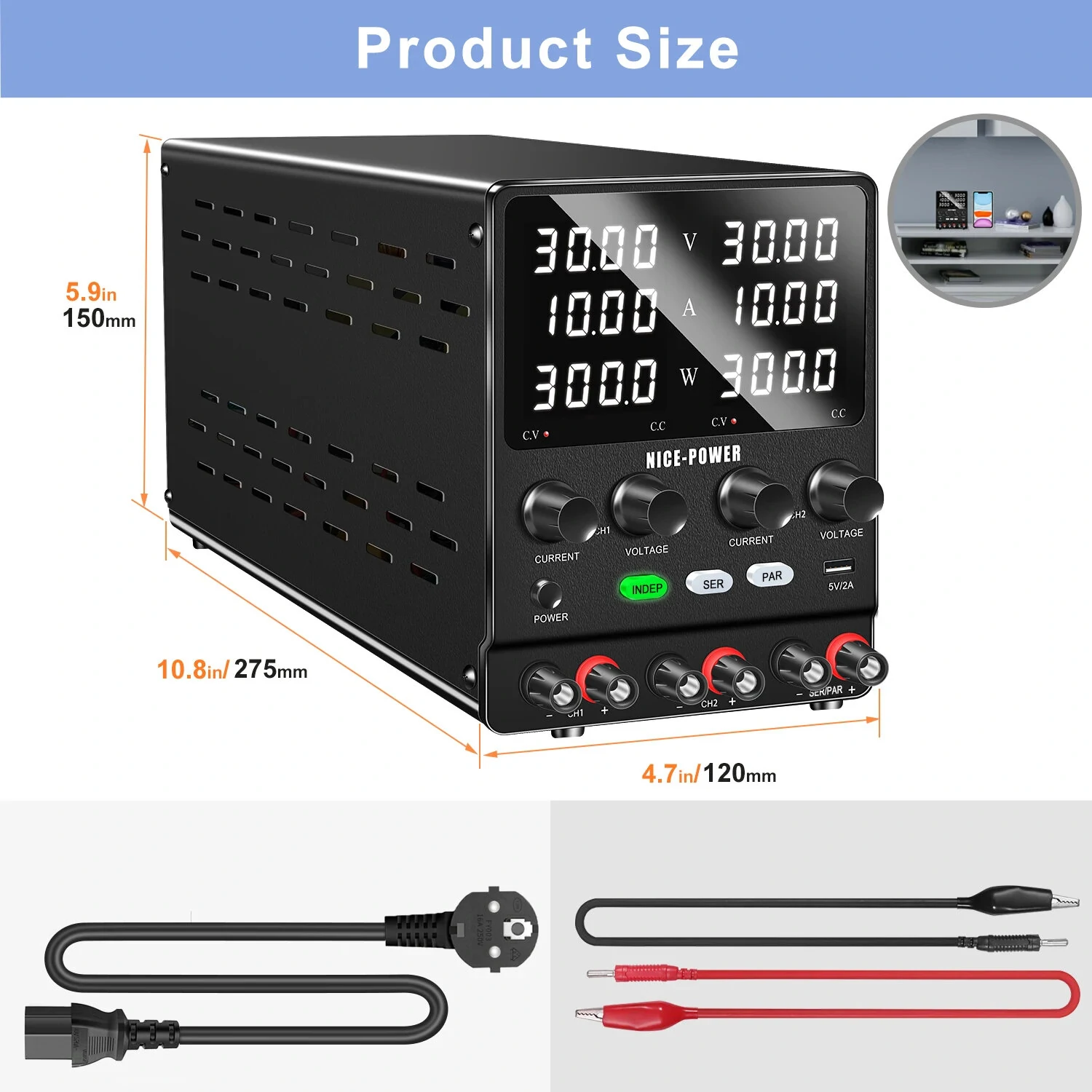

Package Included:
1 x Power Supply (Model as your choice)
1 x Power Cord
2 x Output Load Cord
1 x User's Manual
