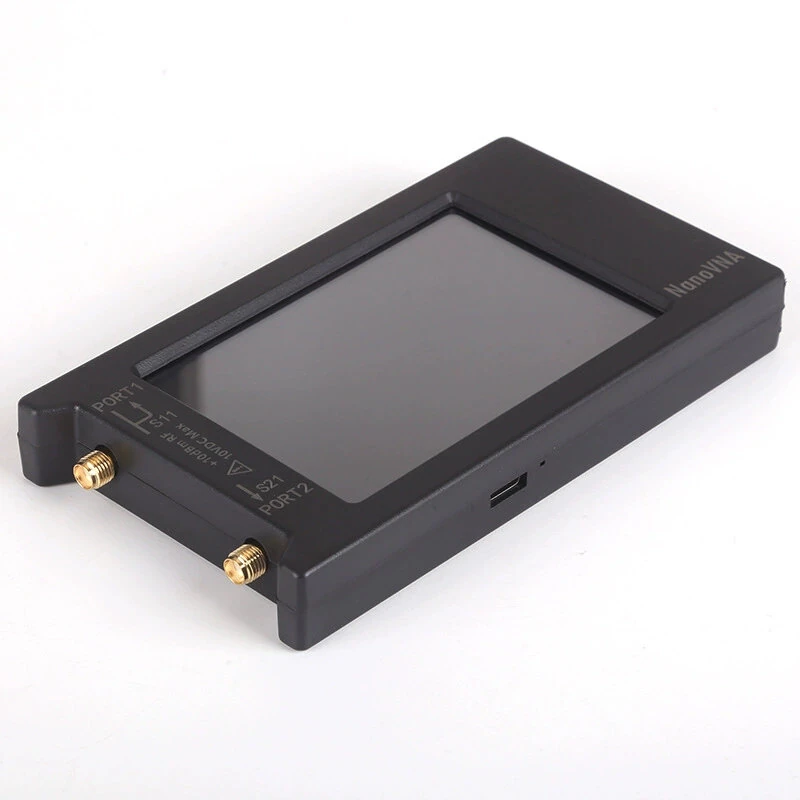

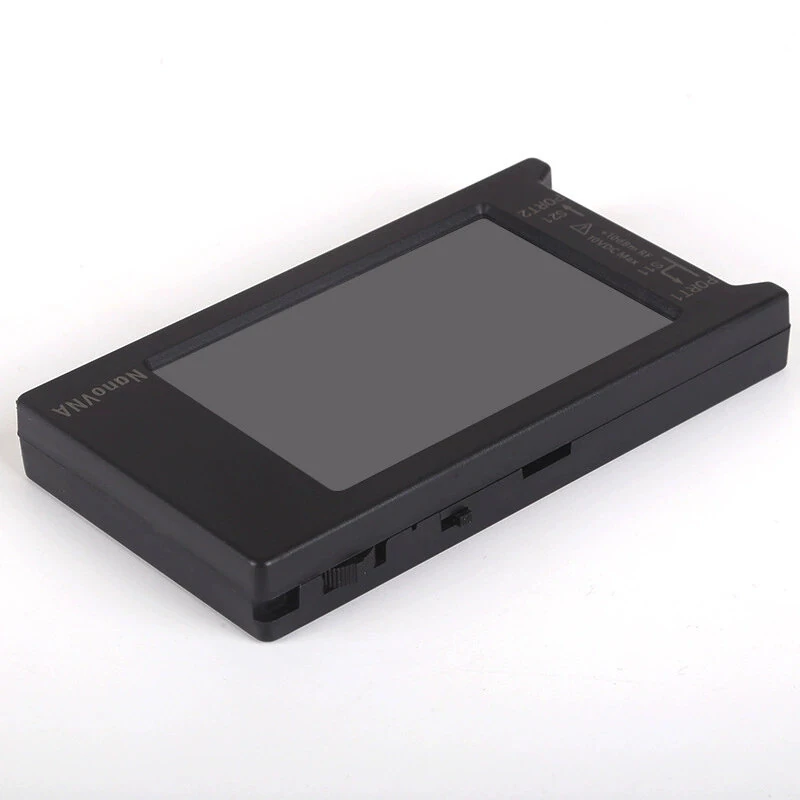

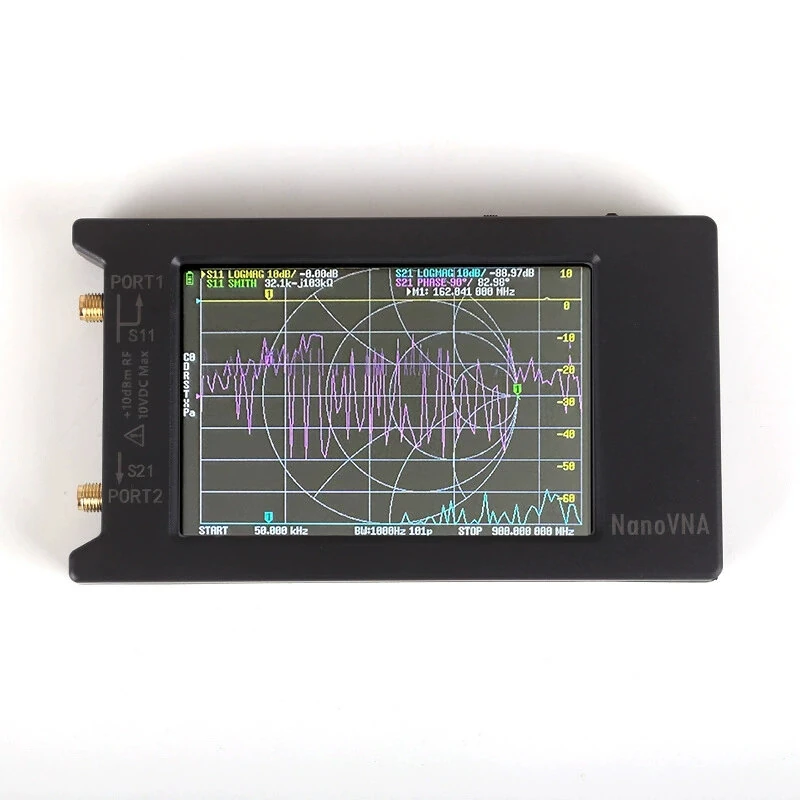

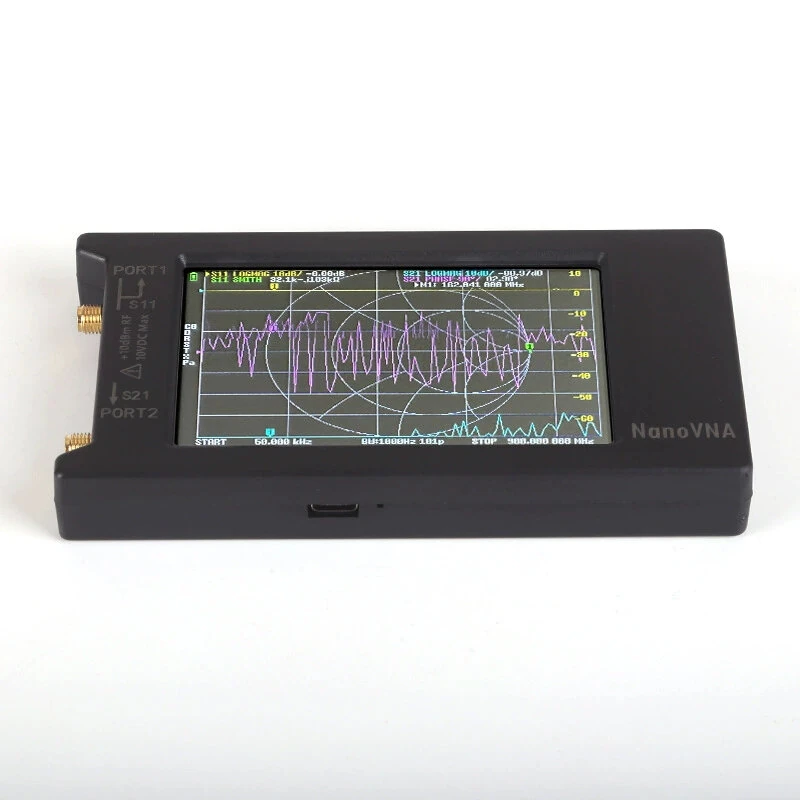

NanoVNA-H4 Vector Network Analyzer Shortwave Antenna Analyzer 10 kHz-1.5 GHz 3.95 Inch TFT USB Type-C HF VHF UHF MF
The NanoVNA-H4 Vector Network Analyzer Shortwave Antenna Analyzer 10 kHz-1.5 GHz 3.95 Inch TFT USB Type-C HF VHF UHF MF is a premium product designed for premium buyers.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
26% Off — you save ₹2,730 on this product!
Color: Black
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The NanoVNA-H4 Vector Network Analyzer Shortwave Antenna Analyzer 10 kHz-1.5 GHz 3.95 Inch TFT USB Type-C HF VHF UHF MF is a premium designed for premium buyers. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification
Screen Size: 3.95 in TFT
Resolution: 320 x 480
Housing Material: ABS
Dimensions: 75 mm x 133 mm x 18 mm (excluding protrusions)
Measurement Frequency: 10 kHz - 1.5 GHz
RF Output: 0 dBm (±2 dB, fundamental wave)
Frequency Accuracy: < 2 ppm
Frequency Stability: < 0.5 ppm
Measurement Range: 70 dB (50 kHz - 300 MHz), 60 dB (300 MHz - 900 MHz), 40 dB (0.9 GHz - 1.5 GHz)
Port SWR: < 1.1
USB Interface: USB Type-C
Communication Mode: CDC (serial)
Power Supply: USB 5 V 220 mA
Battery: Built-in 2000 mAh battery
Maximum Charging Current: 1 A
Calibration Points: Up to 401 (optional), unlimited when connected to PC
Scan Points: Up to 401 (optional), unlimited when connected to PC
Scan Speed: > 600 p/s (RBW = 4000 Hz)
Display Traces: 4
Markers: 8
Save Settings: 7
Functions: Measure S parameters, voltage standing wave ratio, phase, delay, Smith chart, time-domain analysis
Features
1) Wide measurement frequency range from 10 kHz to 1.5 GHz.
2) 3.95 in TFT screen with 320 x 480 resolution for clear display.
3) Supports S parameters, VSWR, phase, delay, Smith chart, and time-domain analysis.
4) Up to 401 calibration and scan points, unlimited when connected to PC.
5) Built-in 2000 mAh battery with USB Type-C communication and power supply.

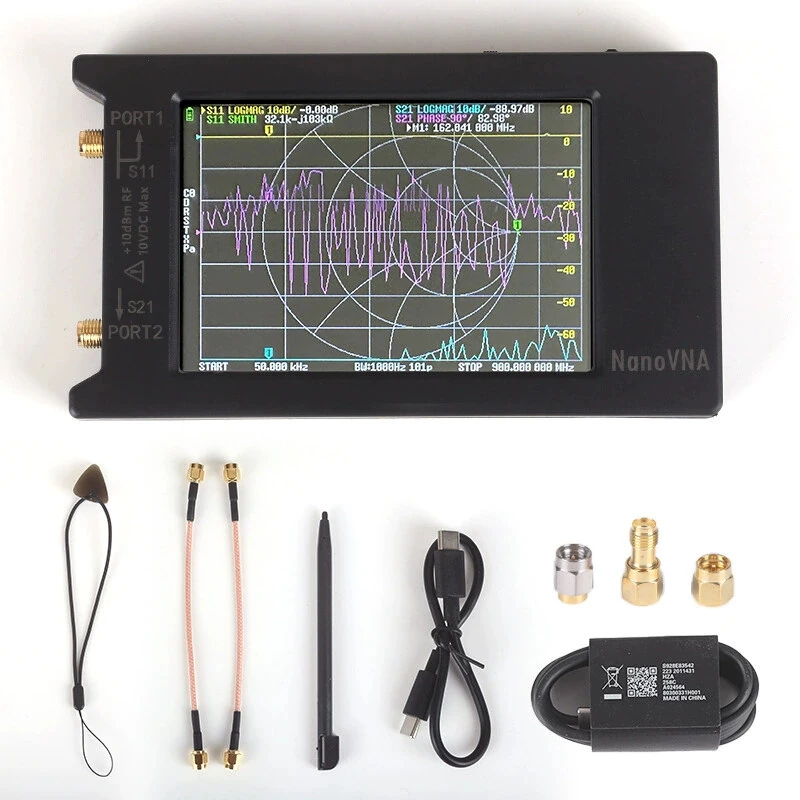

Package Included
1x NanoVNA-H4 main unit (with built-in 2000 mAh battery)
1x USB Type-C data cable
1x 25 cm USB Type-C to Type-C cable
2x 15 cm SMA male to male RG316 RF cable
1x SMA calibration kit (O/S/L, default male)
1x SMA female to female connector
1x Touch screen pick
1x Lanyard
