MT100 Automatic Antenna Tuner 1.8-50MHz 100W 7L7C L-Network HF Auto Tuner For HAM Antenna
The MT100 Automatic Antenna Tuner 1.8-50MHz 100W 7L7C L-Network HF Auto Tuner For HAM Antenna is a premium product designed for premium buyers.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
31% Off — you save ₹4,420 on this product!
Color: Black
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The MT100 Automatic Antenna Tuner 1.8-50MHz 100W 7L7C L-Network HF Auto Tuner For HAM Antenna is a premium designed for premium buyers. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification:
Product Model: MT100
Product Type: Automatic Antenna Tuner
Frequency: 1.8 - 50 MHz
Maximum Power: 100W PEP
Tuning Power: 1 - 15W
Impedance: 50 ohm
Matching Range: ~20 - 1000 ohm (all bands)
Matching Network: 7L7C L-network, L_max = 18.48uH, C_max = 2369pF
Tuning Time: ~2 - 5 seconds
Battery: Built-in 18650 lithium battery
Charging: USB 5V 1A
SWR Alarm: 3.5mm jack, HIGH/LOW/GND

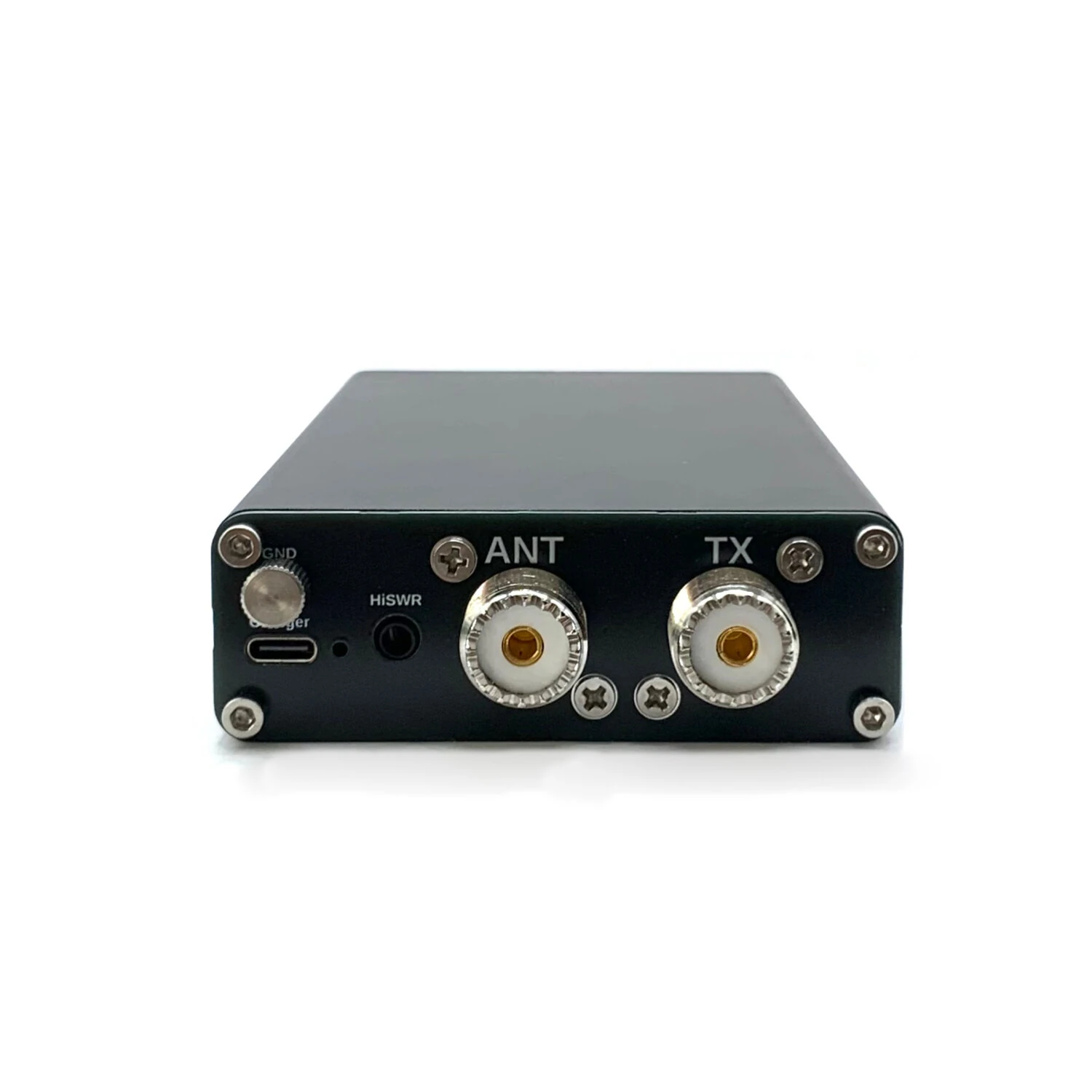

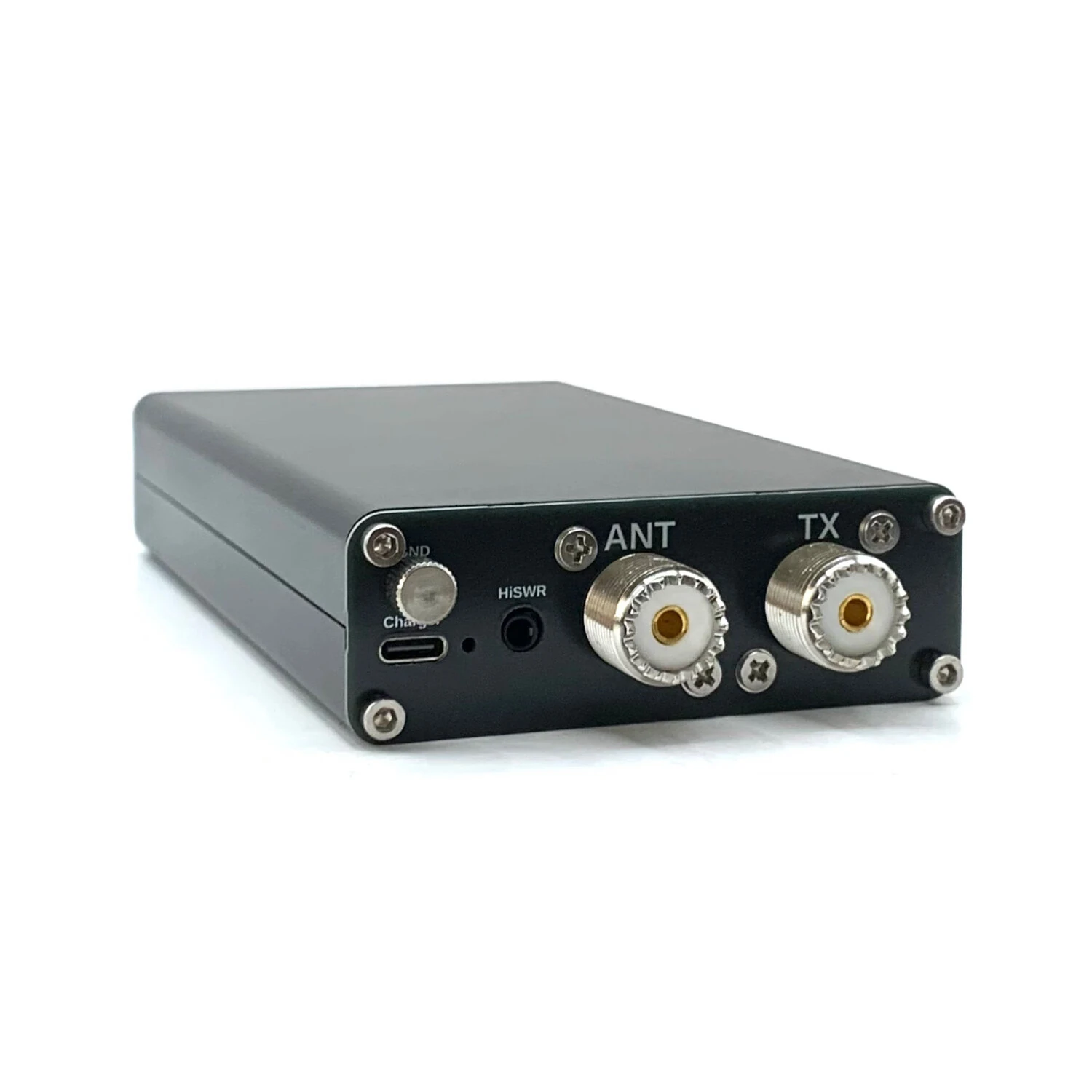

Connectors: SO-239 x 2 (TX / ANT)
Dimensions: ≈15.2 x 8.7 x 3.1 cm
Weight: 394g
Compatible antennas:
Common HF antennas such as dipole, vertical, end-fed, and long-line antennas, with an original VSWR of 5:1 or less, can be matched.
Features:
1) Covers 1.8-50MHz HAM bands with up to 100W PEP power handling.
2) 7L7C L-network with 128 inductor steps and 128 capacitor steps for fast tuning in 2-5 seconds.
3) Default auto mode tunes on transmit and automatically rematches after frequency changes.
4) One-button control supports tuning, mode switching, and power on or off.

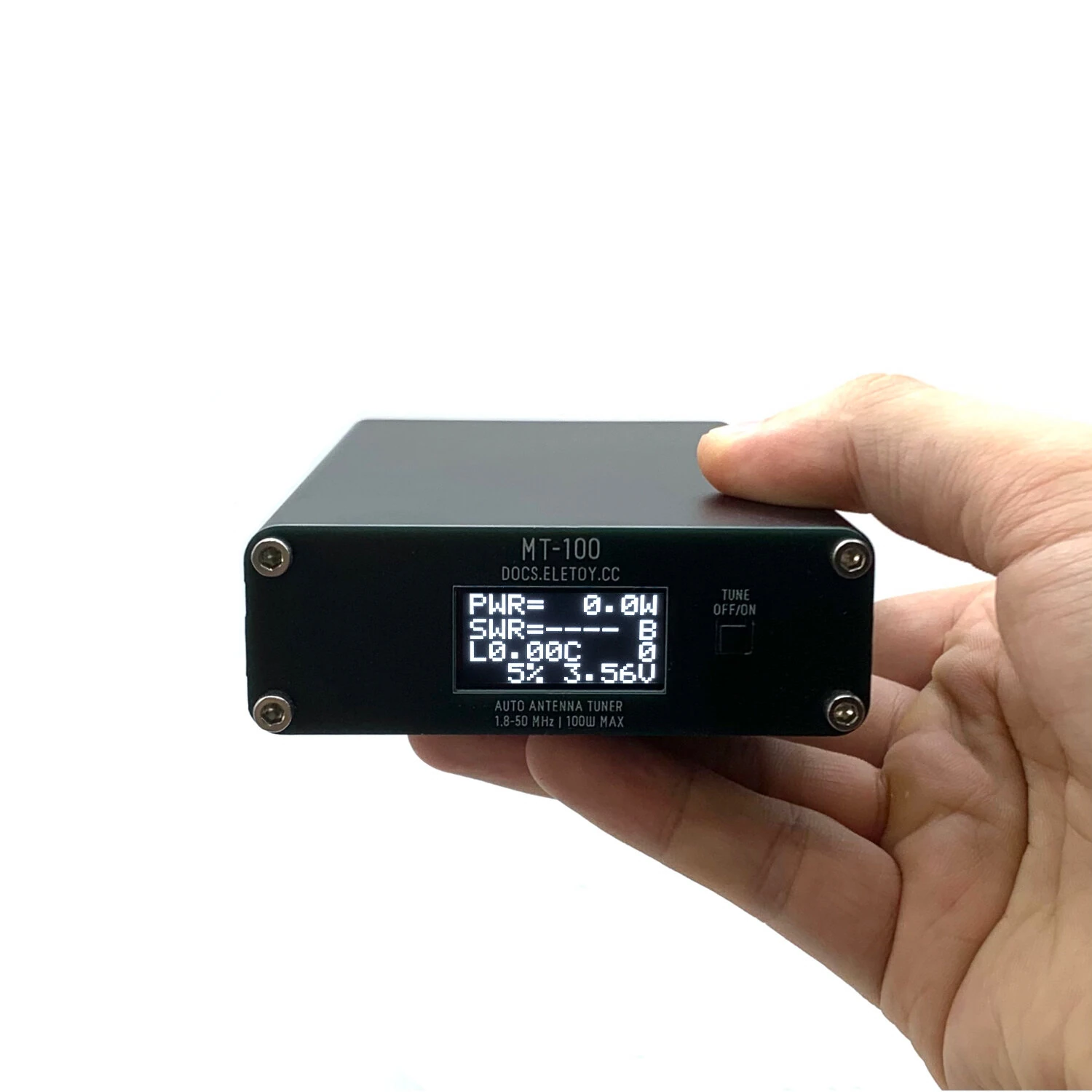

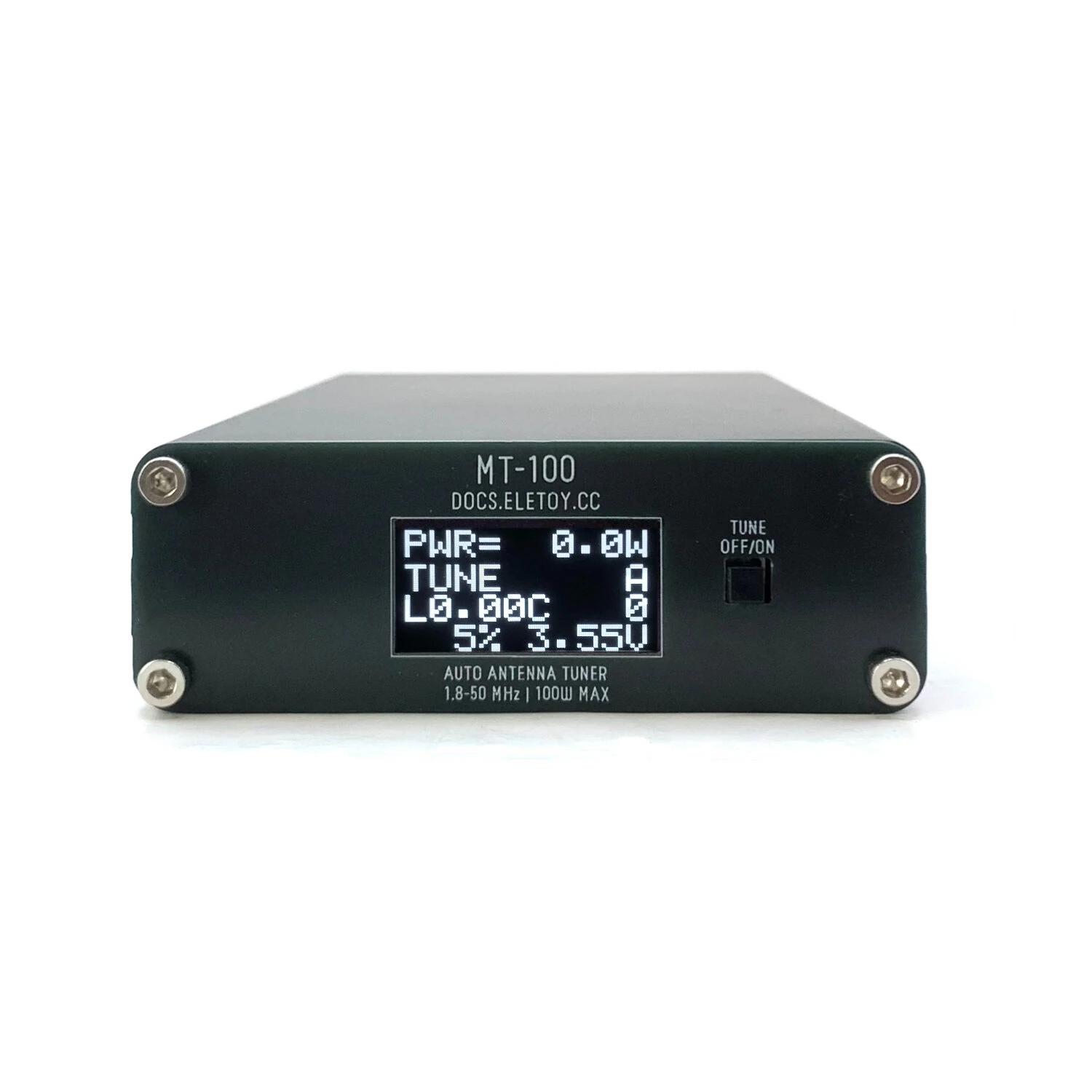

5) OLED screen shows power, SWR, inductance, capacitance, and battery status in real time.
Package Included:
1 x MT100 Main Unit
1 x Type-C Charging Cable
