MSK-12 M10 Thread Antenna Base Aluminum Alloy for JPC12 PAC12 Shortwave Antennas
5.01 ratingThe MSK-12 M10 Thread Antenna Base Aluminum Alloy for JPC12 PAC12 Shortwave Antennas is a mid-range product designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
29% Off — you save ₹1,328 on this product!
Color: Silver
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The MSK-12 M10 Thread Antenna Base Aluminum Alloy for JPC12 PAC12 Shortwave Antennas is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Parameters:
Model: MSK-12

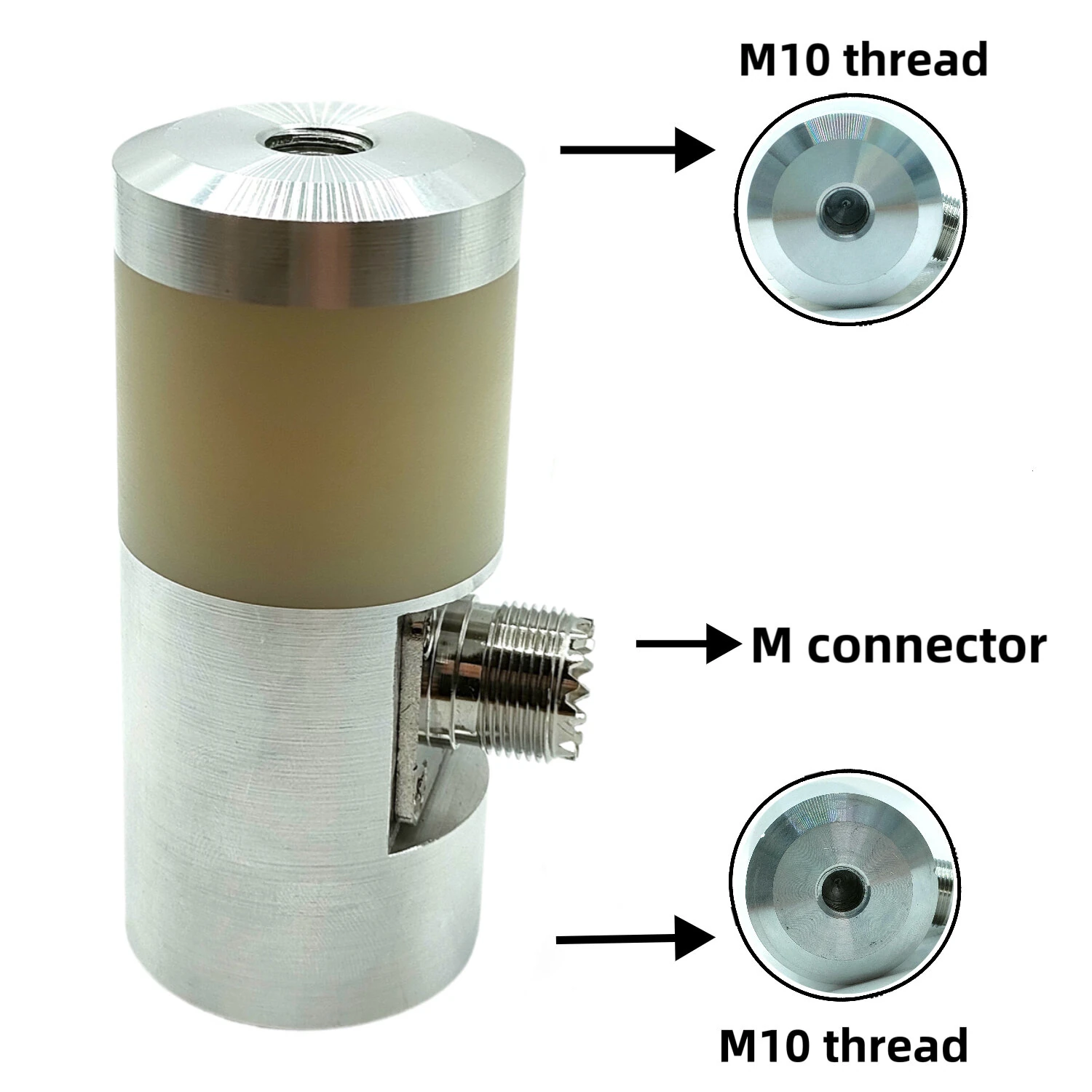

Pull rod interface: M10 thread
Feeder interface: M socket
Ground plug interface: M10 thread
Material: Aluminum alloy
Standing wave: <1.5 (ground installation matches the ground grid)
Power tolerance: 200 watts (FT8 100 watts)
Weight: base about 220g,
Height: about 90mm
Diameter: about 39mm (excluding M female socket)
How to use:
1: The base can be used with a 5.6-meter pull rod antenna (not included in the delivery list), and can be switched between 14MHz-50MHz by adjusting the length of the pull rod.
2: The standard ground grid (not included in the delivery list) recommends using 4 3.5-meter 0.5-2.5 square soft wires, and the enhanced ground grid can be matched according to the 1/4 wavelength of the used band.
Connection method:
ANT end connects to M10 5.6m telescopic antenna, put the ground net on the GND end and screw on the ground plug, after inserting it into the ground, lay the ground net in 4 directions, use the M male feeder to connect the base, adjust the length of the telescopic antenna according to the band used, and pay attention to the radio station standing wave meter when using it (standing wave should be <1.8 as much as possible)
Package includes:
1 x M10 antenna base
