MSK-04 M10 Thread Antenna Base Aluminum Alloy for Vehicle Antennas
5.01 ratingThe MSK-04 M10 Thread Antenna Base Aluminum Alloy for Vehicle Antennas is a mid-range product designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
31% Off — you save ₹1,386 on this product!
Color: Silver
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The MSK-04 M10 Thread Antenna Base Aluminum Alloy for Vehicle Antennas is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

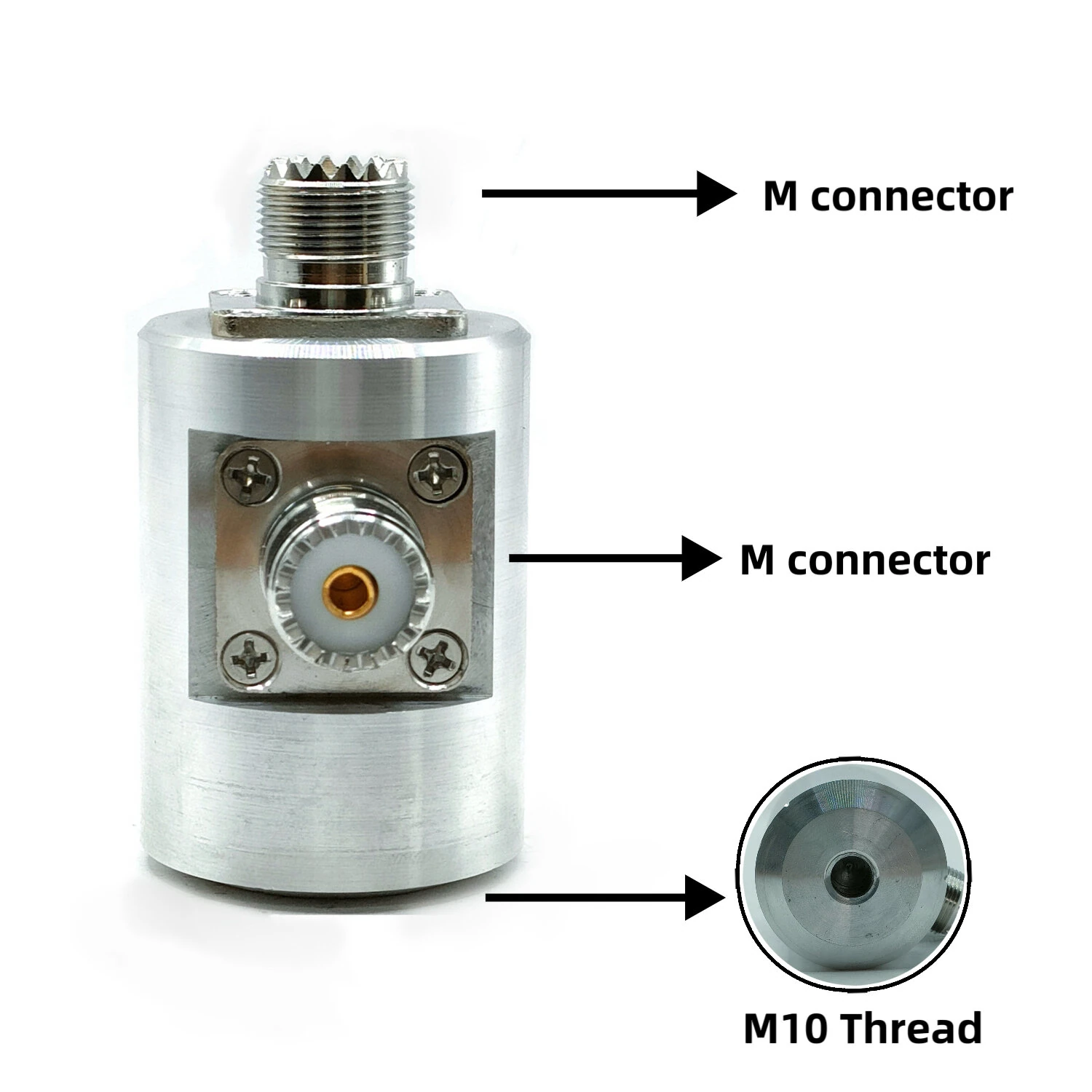

Parameters:
Model: MSK-04
Antenna interface: M female socket
Feeder interface: M female socket
Ground plug interface: M10 thread
Material: Aluminum alloy
Standing wave: <1.5 (ground installation matches the ground grid)
Power tolerance: 200 watts (FT8 100 watts)
Weight: base about 165g,
Height: about 73mm (including M seat height)
Diameter: about 39mm (excluding M female seat)
Precautions for use:
1: The base is used to set up the vehicle antenna outdoors
2: The standard ground network recommends the use of 4 3.5-meter 0.5-2.5 square soft wires, and the enhanced ground network can be matched according to the 1/4 wavelength of the used band (not included in the delivery list)
Connection method:
ANT end connects to the vehicle antenna, GND end is covered with ground network and then screwed on the ground plug, after plugging into the ground, the ground network is laid flat in 4 directions, and the M male feeder is used to connect the base. Please pay attention to the radio station standing wave meter when using it (standing wave is as much as possible <1.8)
Package includes:
1 x MSK-04 antenna base (only includes antenna base, other accessories are not included)
