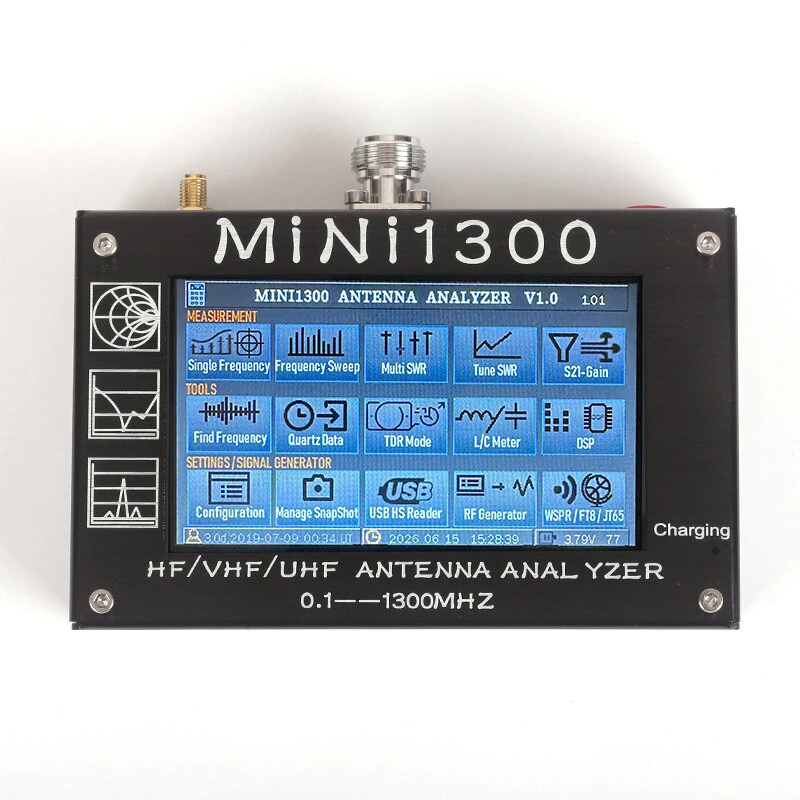

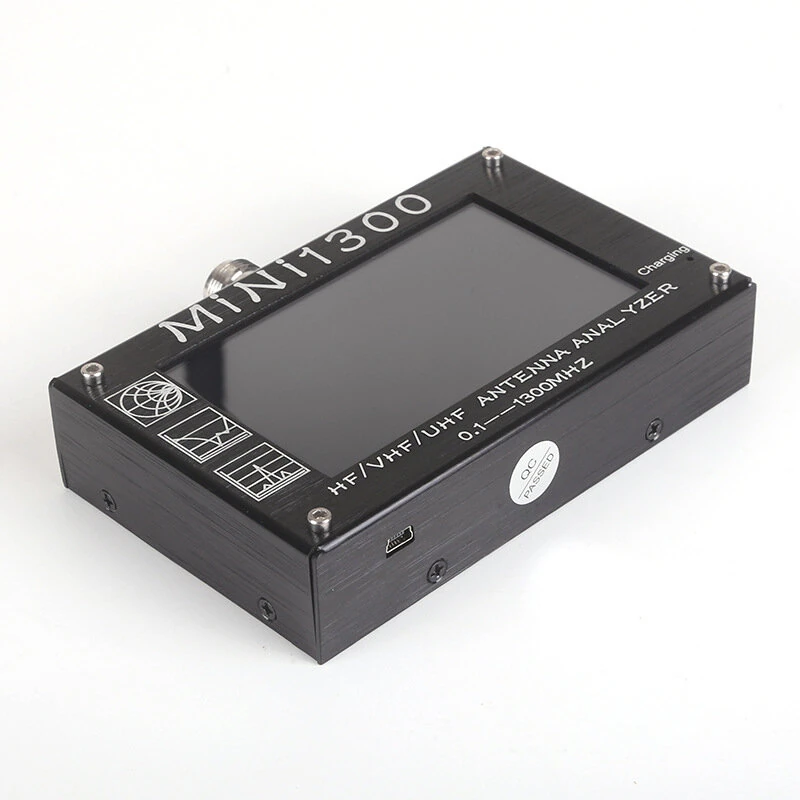

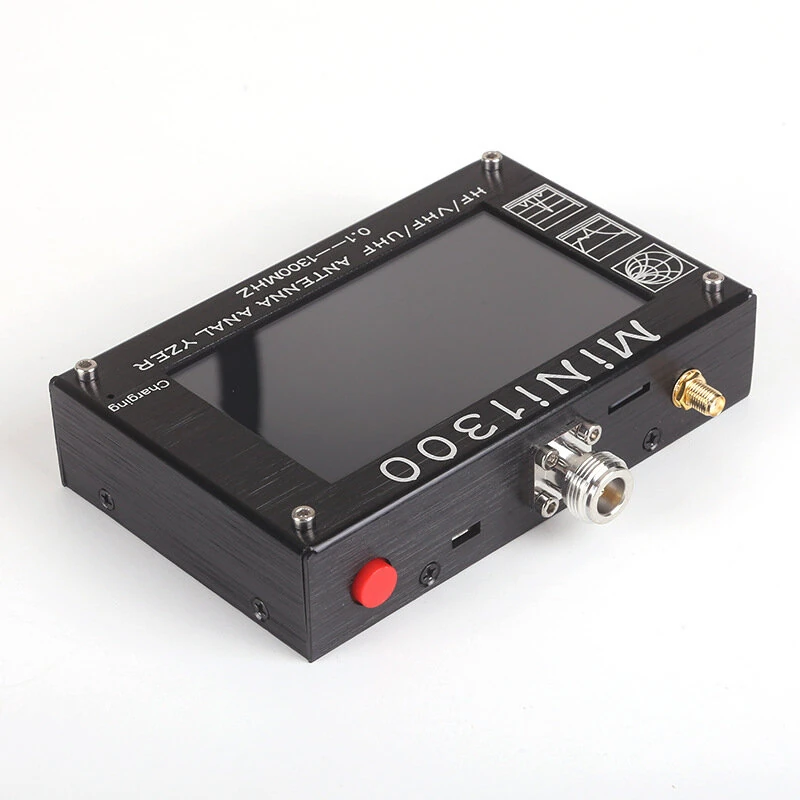

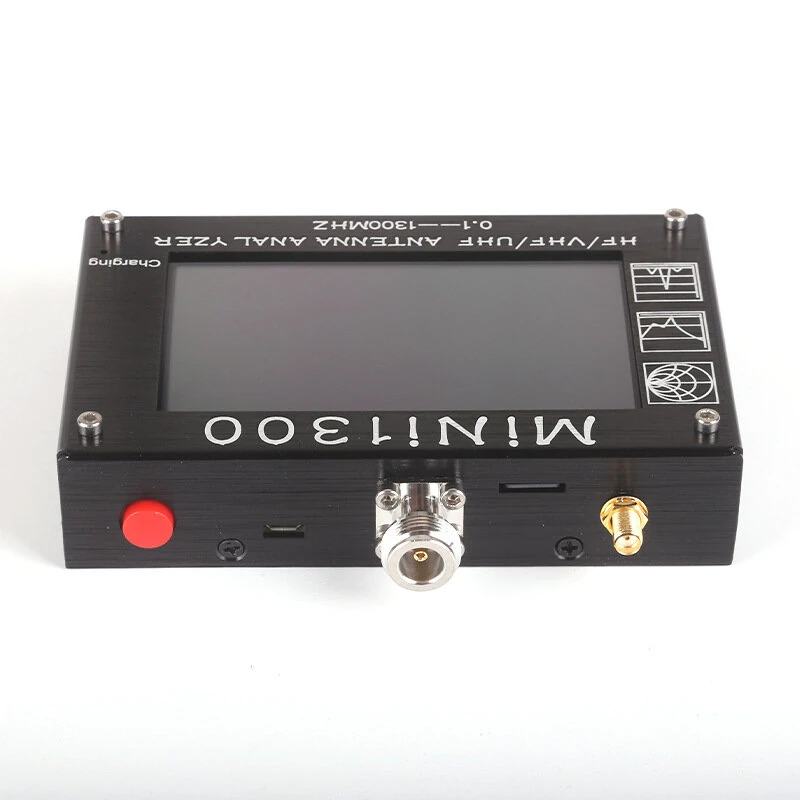

Mini 1300 Portable Antenna Analyzer 0.1-1300MHz SWR Meter Frequency Scan S21 Spectrum Analyzer TDR LC Meter Signal Generator USB Rechargeable VNA
The Mini 1300 Portable Antenna Analyzer 0.1-1300MHz SWR Meter Frequency Scan S21 Spectrum Analyzer TDR LC Meter Signal Generator USB Rechargeable VNA is a premium test & measuring module designed for premium buyers.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
20% Off — you save ₹4,393 on this product!
Color: Black
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The Mini 1300 Portable Antenna Analyzer 0.1-1300MHz SWR Meter Frequency Scan S21 Spectrum Analyzer TDR LC Meter Signal Generator USB Rechargeable VNA is a premium test & measuring module designed for premium buyers. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification
Product Name: MINI 1300 Portable Antenna Analyzer
Frequency Range: 0.1 - 1300 MHz
Input/Output Impedance: 50Ω
Measurement Parameters: SWR, R, +Jx, -Jx, Z, Return Loss
Measurement Modes: Single Point Measurement, Scan (Frequency Scan), TDR
SWR Measurement Range: Single Point Mode: 1.0 - 1999
SWR Measurement Range: Scan Mode: 1.0 - 20.0
Display Modes: Numeric Display, Curve Display, Analog Graph
Connector Type: UHF N Type / SMA (VNA)
Display Screen: 4.3 inch TFT LCD, 480x272, Capacitive Touch
Power Supply: USB or Built-in Li-ion Battery
Charging Current: Max 5V / 1.5A
External Storage: TF Card
Dimensions: 133 x 85 x 29 mm (excluding protruding ports)
Weight: 550 g
Features
1) Wide 0.1 - 1300 MHz frequency coverage for HF, VHF, and UHF applications.
2) 14-in-1 multifunction design for antenna analysis, frequency scan, S21 gain test, spectrum analysis, TDR, and signal generation.
3) Supports SWR, R, +Jx, -Jx, Z, and return loss measurement.
4) Offers single point, frequency scan, and TDR modes with numeric, curve, and analog graph display.
5) 4.3 inch capacitive touch screen, USB charging, built-in lithium battery, and TF card support for portable operation.

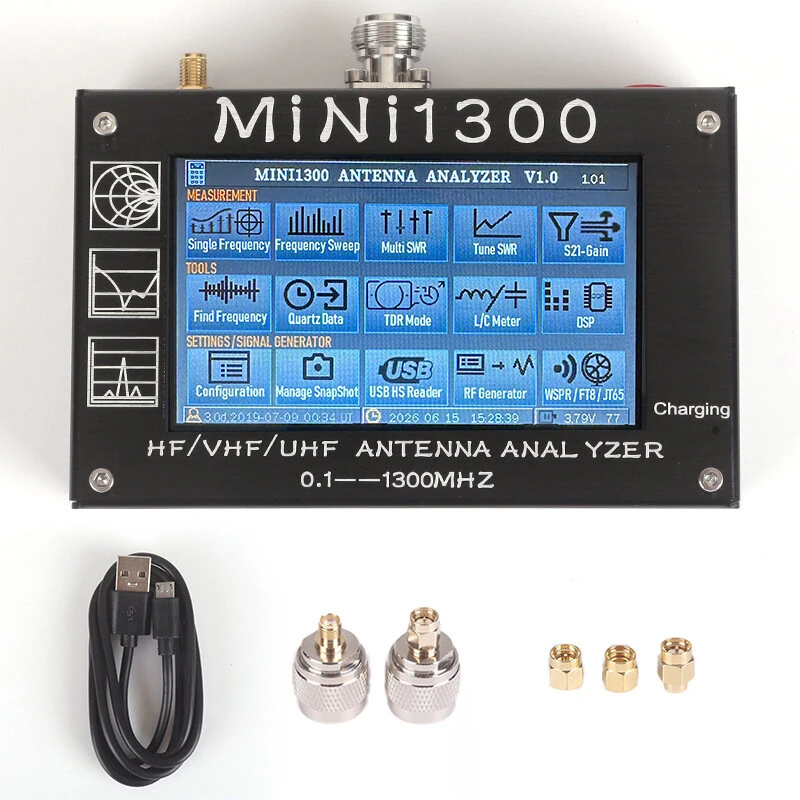

Package Included
1 x MINI 1300 Main Unit
1 x SMA Short-Open-Load Calibration Kit
