Malachite Radio Expansion Board for SDR-PRO/SDR-MAX Malachite SDR Receiver

Name: Malachite Radio Expansion Board for SDR-PRO/SDR-MAX Malachite SDR Receiver
Brand: Pricio
SKU: 2047668
Price: 4649 INR
Availability: InStock

33+ bought in last month

AI Summary

product for everyday users

The Malachite Radio Expansion Board for SDR-PRO/SDR-MAX Malachite SDR Receiver is a mid-range product designed for everyday users.

₹4,649-29%

MRP:₹6,579Save ₹1,930

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

29% Off — you save ₹1,930 on this product!

Quantity

Total: ₹4,649

Buying tip: A quality investment for dependable performance and premium build quality.

Estimated delivery: 26 Aug – 9 Sept

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience

SKU: bg-2047668

About This Product

The Malachite Radio Expansion Board for SDR-PRO/SDR-MAX Malachite SDR Receiver is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:

Length: 97.384mm

Width: 20mm

PCB Layers: 4 layers (Includes independent power supply and ground layer)

Frequency Range: 500kHz to 4.5MHz (Integrated four-stage filter)

Attenuator: PE4312 adjustable via Malachite ATT option

Color: Random color

Features:

1. Enhanced Signal Sensitivity: Optimizes signal matching for better reception, improving short-wave and medium-wave performance.

2. Adjustable Attenuator: Integrated PE4312 attenuator expands receiving dynamic range.

3. Image Interference Reduction: Four-stage filter minimizes frequency distortions between 500kHz and 4.5MHz.

4. Dual Antenna Support: Compatible with 50-ohm systems and Hi-Z high impedance input systems for versatile antenna options.

5. Plug-and-Play Integration: Seamlessly supports SDR-MAX and SDR-PRO without external technical support required.

What is an expansion board?

In the menu HARD-SW antenna, switch the external antenna type

choose 50 ohm system and high impedance Hi-z antenna input system.

Optimum matching of the signals can significantly improve the receiving sensitivity.

For the low frequency receiving image problem, this expansion board adds a four-stage filter between 500KHz-4.5MMHz, which can improve the image problem well.

In addition. the expansion board adds a PE4312 attenuator, which can be adjusted through the malachite ATT option value, which greatly improves the receiving dynamic range of the malachite receiver.

Why choose the expansion board?

The expansion board can improve the sensitivity of the rod antenna,

add attenuators, and reduce image interference.

After installation, when the short-wave medium-wave mode is turned on,

there will be a click of the relay action, and the signal will be significantly enhanced.

You can choose according to your personal needs.

Note:

This expansion board only supports sdr-max and sdr-pro in our store.

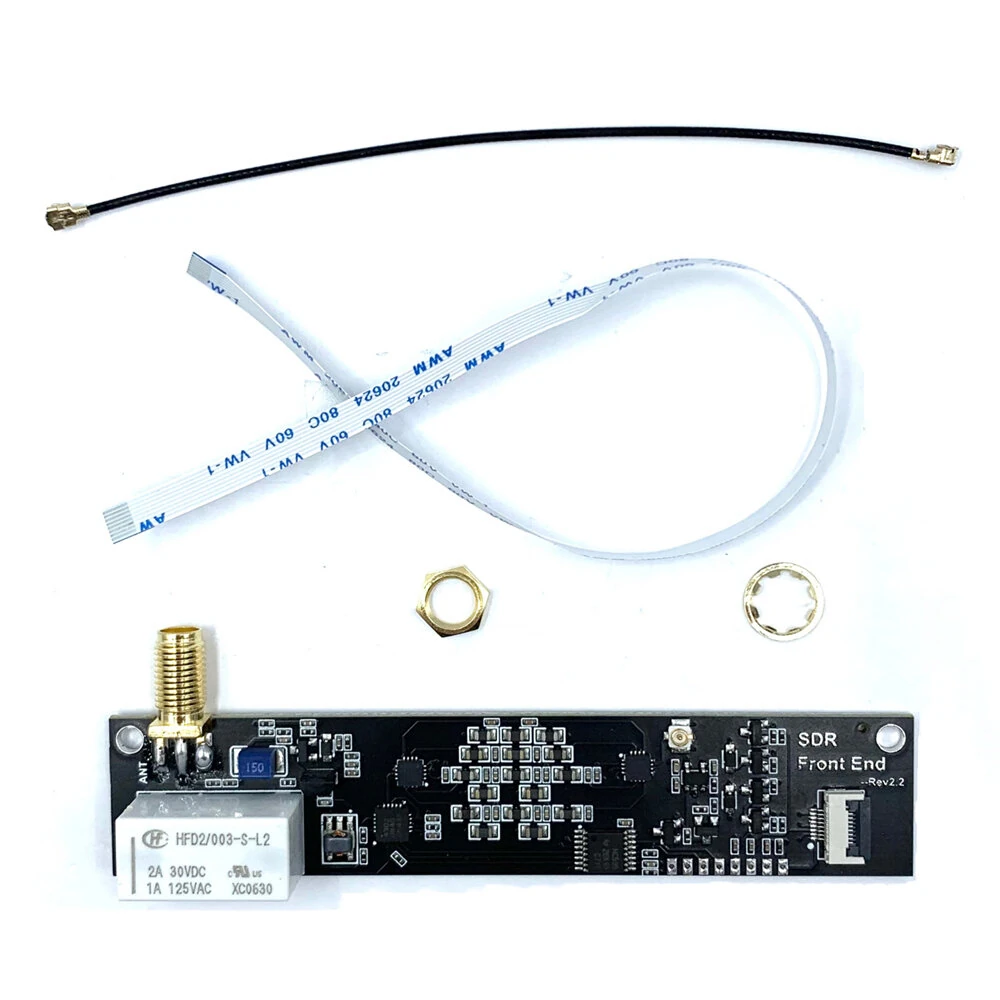

Package Included:

1 x Expansion Board
