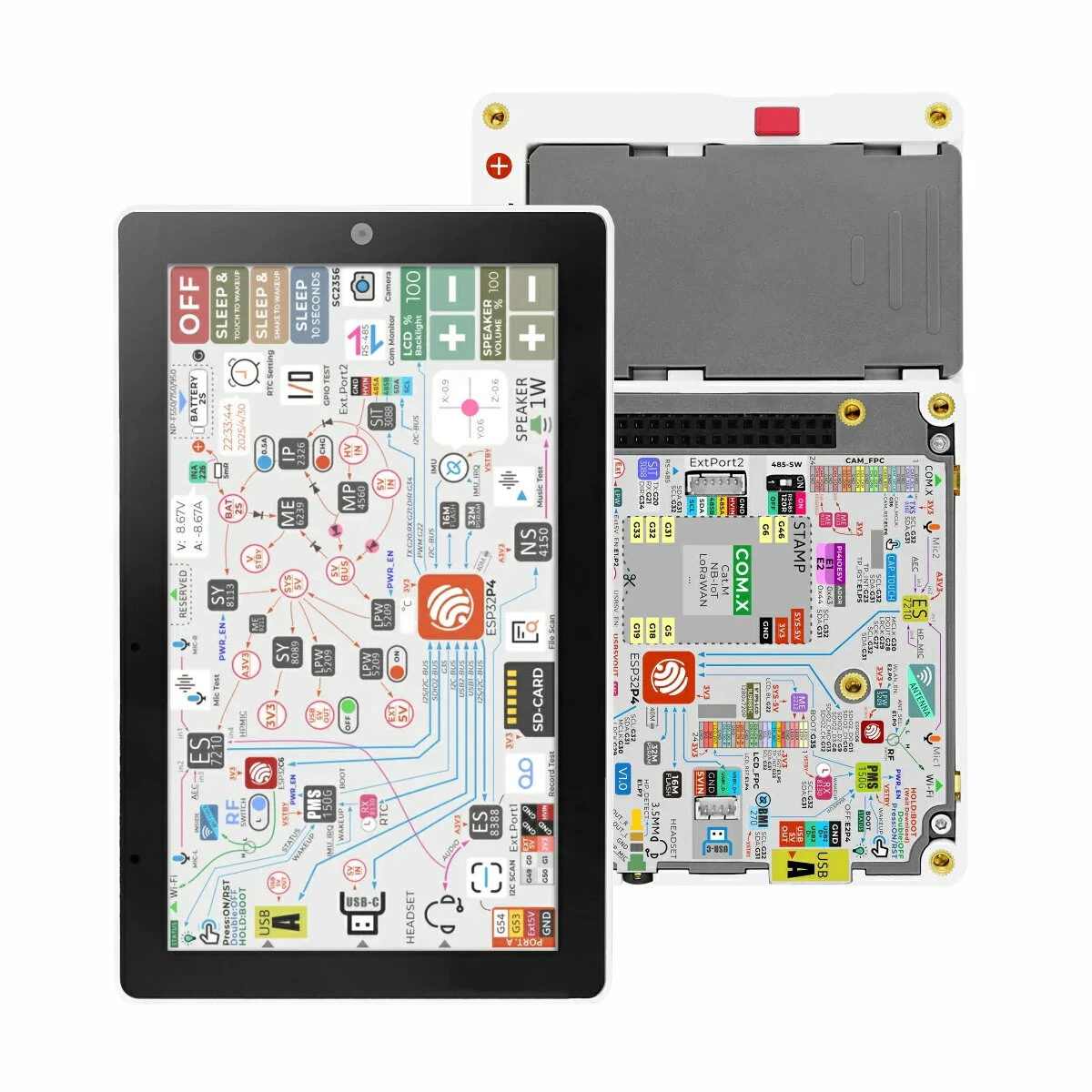

M5Stack TAB5 IoT Development Kit ESP32-P4 1280x720 IPS 5 Inch HD Touchscreen 2MP Camera Audio WIFI I/O Dev Module
The M5Stack TAB5 IoT Development Kit ESP32-P4 1280x720 IPS 5 Inch HD Touchscreen 2MP Camera Audio WIFI I/O Dev Module is a premium product designed for premium buyers. It features Main Controller SoC: ESP32-P4NRW32@RISC-V 32-bit Dual-core 400MHz + LP Single-core 40MHz and Wireless Module SoC: ESP32-C6-MINI-1U.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
27% Off — you save ₹3,759 on this product!
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Quick Specs
Ideal For
About This Product
The M5Stack TAB5 IoT Development Kit ESP32-P4 1280x720 IPS 5 Inch HD Touchscreen 2MP Camera Audio WIFI I/O Dev Module is a premium designed for premium buyers. It delivers reliable performance at an accessible price.
Key Specifications
- Main Controller SoC: ESP32-P4NRW32@RISC-V 32-bit Dual-core 400MHz + LP Single-core 40MHz — smooth, flicker-free operation
- Wireless Module SoC: ESP32-C6-MINI-1U
- Flash: 16MB
- PSRAM: 32MB
- Wi-Fi: 2.4 GHz Wi-Fi 6, Thread, ZigBee1 — fast, stable wireless internet
- Antenna: Built-in 3D antenna & 2 x MMCX external antenna ports — compatible with modern devices
- Display: Uses a 5‑inch IPS TFT display with a resolution of 1280×720 (720P), equipped with an integrated display and touch driver IC: ST7123 / ST7121 — crisp, vibrant visuals in any lighting
- Camera: SC2356 @ 2MP (1600×1200), via MIPI‑CSI interface — captures sharp, detailed images
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification:
Tab5 : Smart IoT Terminal Development Platform
The Tab5 is a highly expandable, portable smart IoT terminal designed for developers, integrating a dual-core architecture and rich hardware resources. It is built around the ESP32-P4 SoC based on the RISC-V architecture, featuring 16MB Flash and 32MB PSRAM for high-performance application development.
1. Dual-SoC Architecture with Wi-Fi 6
Wireless connectivity is powered by the ESP32-C6-MINI-1U, supporting Wi-Fi 6 for high data throughput and low-latency communication. The antenna system supports flexible switching between a built-in 3D antenna and an external MMCX antenna, ensuring reliable performance across diverse deployment environments.
2. HD Touch Display & Camera for Edge AI
The Tab5 features a 5-inch 1280×720 IPS touchscreen with an MIPI-DSI interface, delivering smooth visuals and responsive touch interaction. A built-in SC2356 2MP camera (1600×1200) using an MIPI-CSI interface supports HD video capture, image processing, and edge AI applications such as facial recognition and object tracking.
3. Comprehensive Peripheral & Industrial Interfaces
Rich peripheral connectivity includes USB Type-A (Host) and USB Type-C (USB 2.0 OTG) for keyboards, mice, and external devices. Industrial applications are supported through RS-485 (SIT3088 with switchable 120Ω termination).
Expansion options include HY2.0-4P, M5-Bus, GPIO_EXT headers, a microSD card slot, and reserved STAMP pads for communication modules such as Cat-M, NB-IoT, and LoRaWAN. Dedicated Reset and Boot buttons enable fast system reset and firmware download.
4. High-Fidelity Audio & Motion Sensing
Audio capabilities include an ES8388 audio codec combined with an ES7210 AEC front-end, a dual-microphone array, onboard speaker, and a 3.5mm headphone jack, supporting Hi-Fi audio playback, recording, and accurate voice recognition.
Motion detection is handled by a BMI270 6-axis IMU (accelerometer + gyroscope) with interrupt-based wake-up, allowing the MCU to respond instantly in motion-triggered and low-power scenarios.
5. RTC & Advanced Power Management
The Tab5 integrates an RX8130CE real-time clock (RTC) with timed interrupt wake-up for precise timekeeping. Power is supplied via a removable NP-F550 Li-ion battery, supported by an MP4560 buck-boost converter, IP2326 charging management, and INA226 real-time power monitoring for stable and reliable standalone operation.
6. Flexible Mounting Design
A built-in 1/4″-20 tripod nut on the side allows direct mounting to tripods, brackets, or industrial fixtures, making deployment fast and secure.
7. Application Scenarios
The Tab5 is ideal for smart home control, remote monitoring, industrial automation, IoT prototyping, and education. It provides a full-featured, high-performance, and easily expandable platform for modern IoT and edge computing solution.
Features:
1. Dual‑chip architecture: ESP32‑P4 main controller plus ESP32‑C6 wireless module for complex IoT applications.
2. 5" HD touch screen: 1280 × 720 IPS display with multi‑touch for intuitive human‑machine interaction.
3. Rich wireless protocols: Wi‑Fi 6, Thread and ZigBee1 for smart home, industrial and gateway projects.
4. All‑in‑one I/O panel: USB‑A host, USB‑C OTG, PWR485, SD card, audio, multiple expansion ports and M‑Bus headers.
5. Built‑in camera & audio: 2 MP front camera, dual microphones and 1 W speaker for vision and voice projects.
6. Portable smart terminal: compact body with removable NP‑F550 2000 mAh battery, ideal for field debugging and remote control.
Package Includes:
1 x M5Stack K145 Tab5 IoT Development Kit
