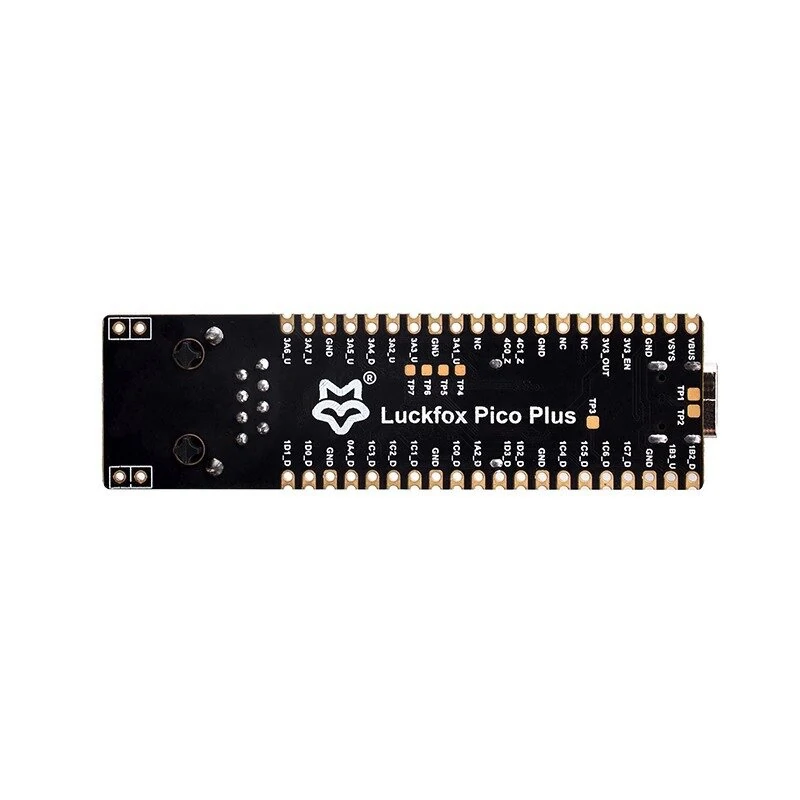

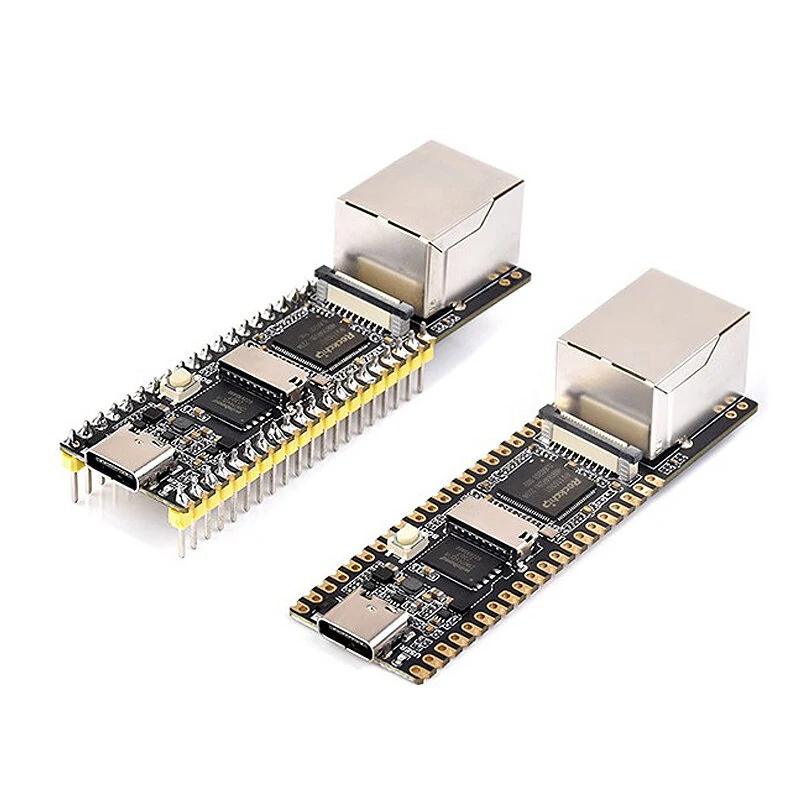

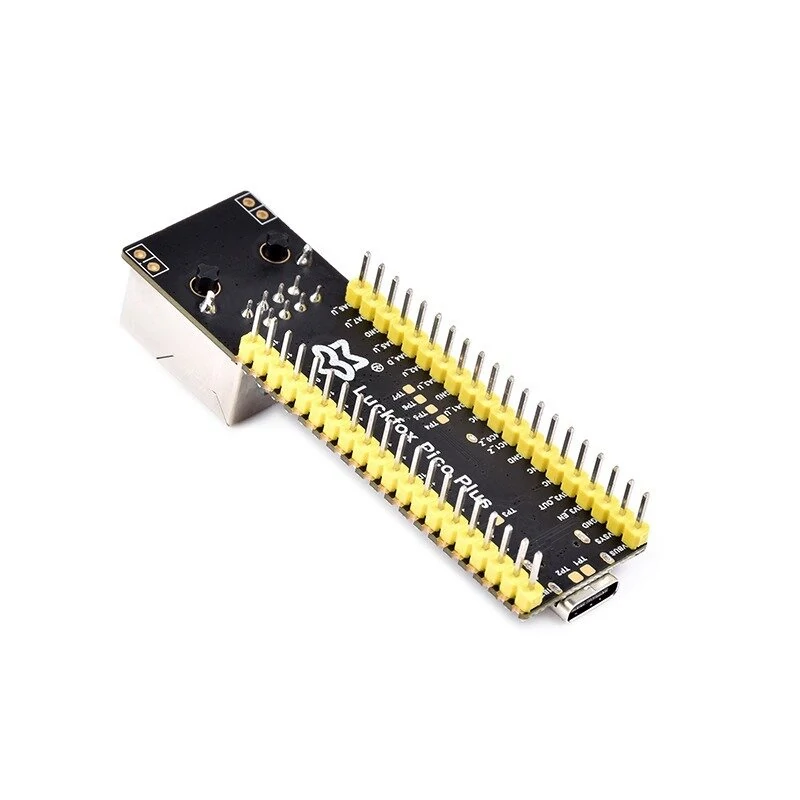

Luckfox Pico Plus RV1103 Linux Micro Development Board Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors with Ethernet Port

Specification:

Processor: Cortex A7 @ 1.2GHz + RISC-V
Neural Network Processor (NPU): 0.5TOPS, supports int4, int8, int16
Image Processor (ISP): Input 4M @ 30fps (Max)
Memory: 64Mb DDR2

W25N01KV: 128MB SLC NAND FLASH
USB: USB 2.0 Host/Device

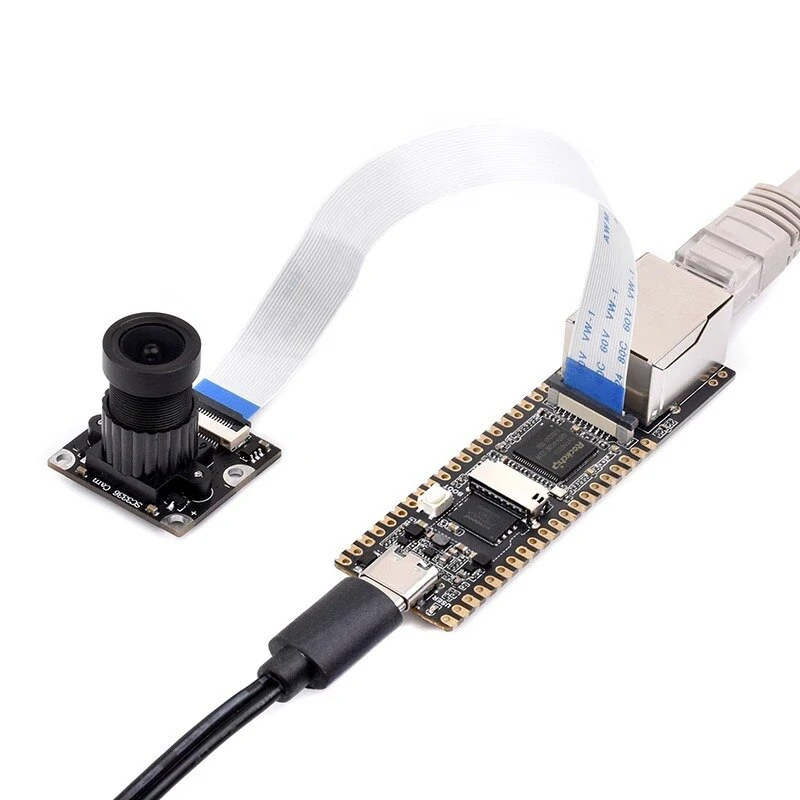

Camera Interface: MIPI CSI 2-lane
GPIO: 25 GPIO pins
Ethernet: 10/100M Ethernet controller and embedded PHY
Default Storage: SPI NAND FLASH
Wiki: wiki.luckfox.com/Luckfox-Pico/Luckfox-Pico-quick-start

Features:

1. Processor: The LuckFox Pico Plus RV1103 features a powerful dual-core processor, with a Cortex A7 core running at 1.2GHz and an RISC-V core. This combination provides processing power for a variety of applications.
2. Neural Network Processing: Equipped with a dedicated Neural Network Processor (NPU) capable of 0.5TOPS performance, this board supports int4, int8, and int16 data types, making it suitable for AI and machine learning projects.
3. High-Resolution Imaging: The integrated Image Processor (ISP) supports input up to 4M @ 30fps, ensuring high-quality imaging and video processing, making it ideal for computer vision and surveillance applications.
4. Versatile Connectivity: The board offers a range of interfaces, including MIPI CSI, GPIO, UART, SPI, I2C, and USB, facilitating rapid development and debugging.
5. Ethernet Connectivity: With a built-in 10/100M Ethernet controller and embedded PHY, this board offers network connectivity for applications requiring internet access or data communication.

Package include:

1x Module Board

(the other items are not includes)

Function:

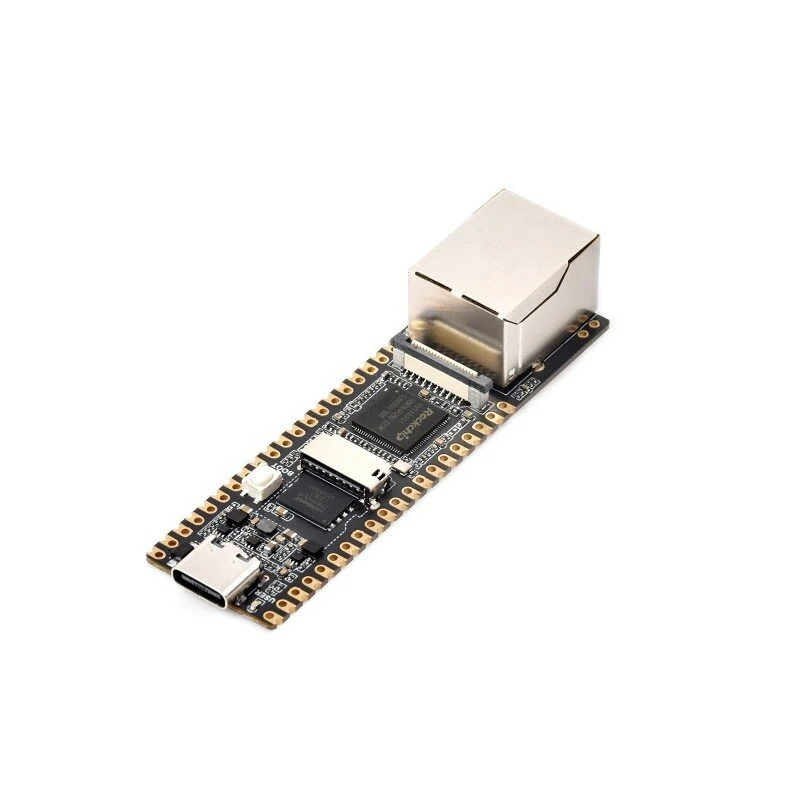

1. USB Type-C connector 2. ACT-LED 3. TF card slot 4. BOOT button: Press it when powering on to enter download mode 5. W25N01KV: SLC NAND FLASH 6. RV1103: Vision processor SoC with built-in ARM Cortex-A7 core 7. CSI camera interface: MIPI CSI 2-lane 8. RJ45 Ethernet port 9. GPIO header 10. USB test pads 11. BOOT test pad 12. Microphone test pads
