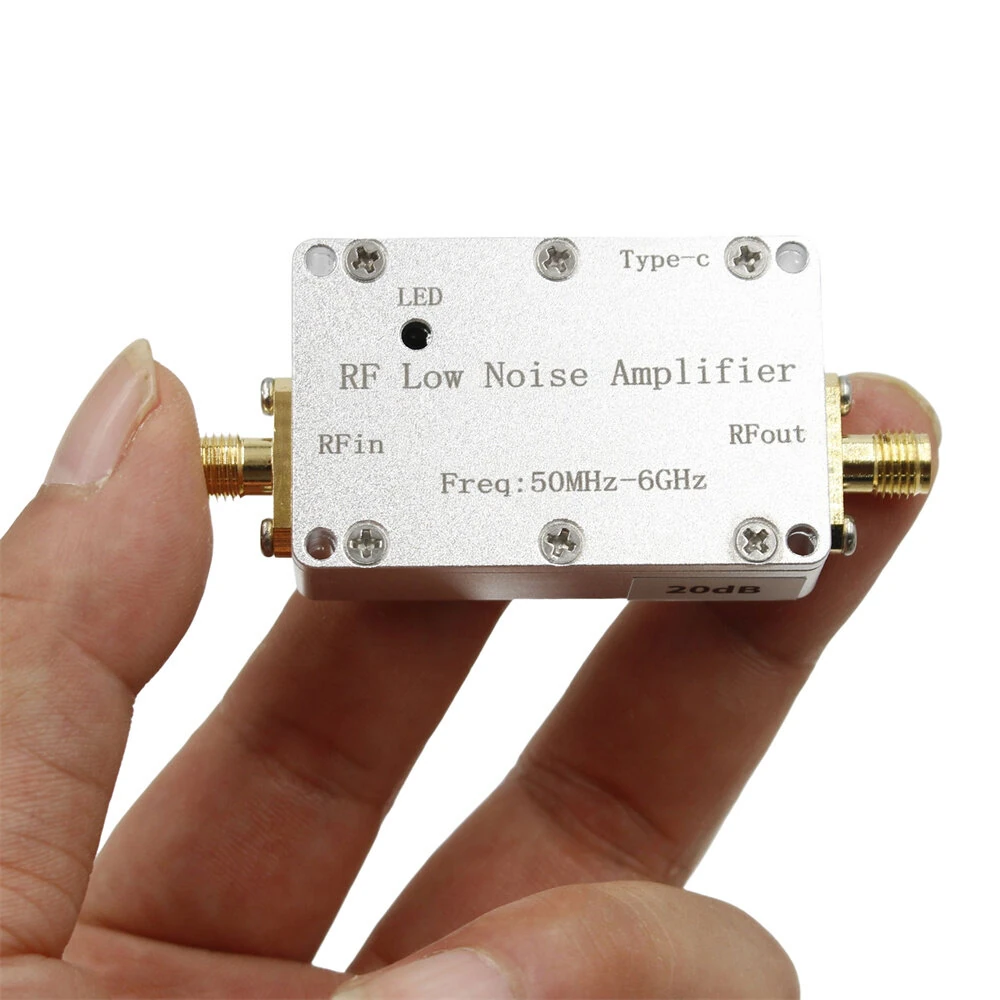

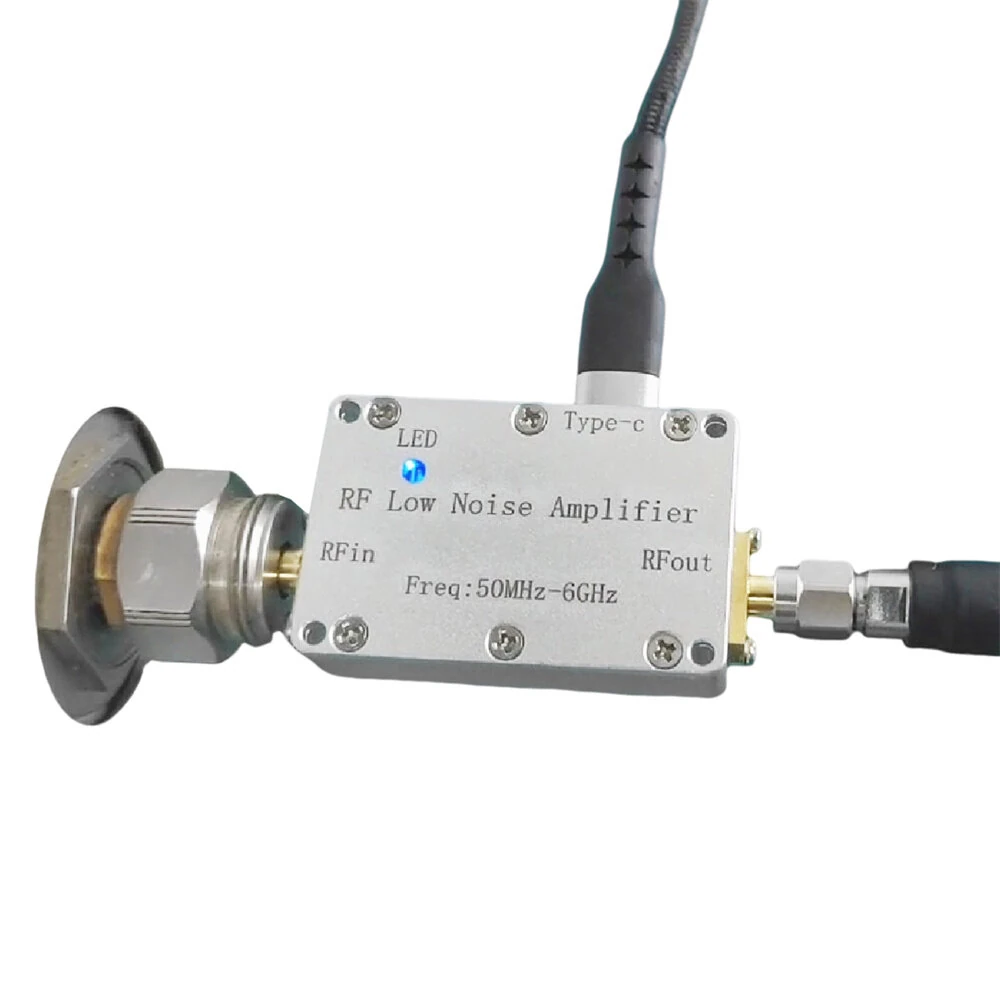

LNA 50M-6GHz RF Low Noise Amplifier 20DB 30DB High Gain Pre-LNA Signal Receiver for Drone Radio FM Hackrf One Image
5.02 ratingsThe LNA 50M-6GHz RF Low Noise Amplifier 20DB 30DB High Gain Pre-LNA Signal Receiver for Drone Radio FM Hackrf One Image is a mid-range rf amplifier designed for everyday users. Customers praise its easy to set up and use.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
35% Off — you save ₹1,128 on this product!
Price: ₹2,067
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The LNA 50M-6GHz RF Low Noise Amplifier 20DB 30DB High Gain Pre-LNA Signal Receiver for Drone Radio FM Hackrf One Image is a mid-range rf amplifier designed for everyday users. Customers highlight its easy to set up and use.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specifications：

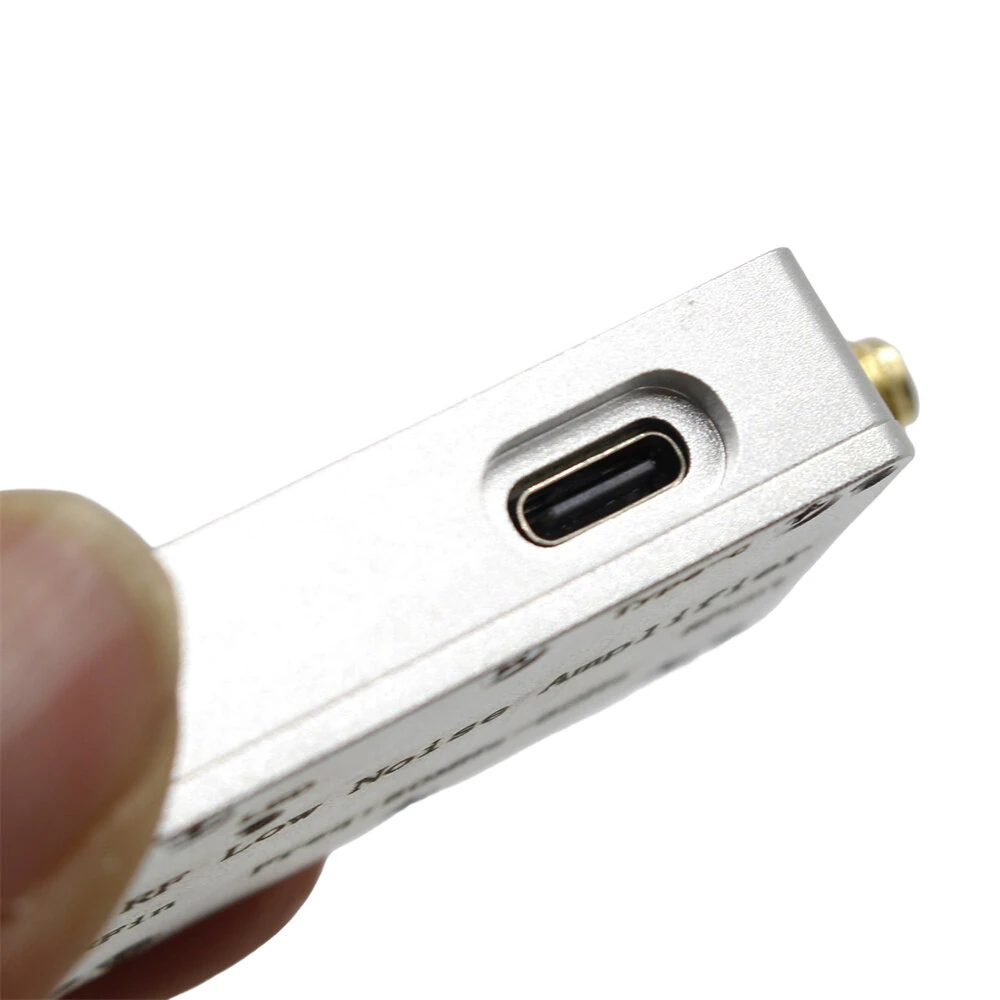

Power Supply: TYPE-C line
Frequency Range: 50MHz-6GHz
Noise Coefficient: NF=4-5dB (refer to measured curve for specific frequencies)
Gain: 20dB-30dB (refer to measured curve for different frequencies)
Dimensions: 4.5 x 3 x 1.4 cm (excluding protruding SMA)
Weight: 66g (including host and TYPE-C cable)
Current Consumption: <100mA
P1dB: 18dBm@2GHz

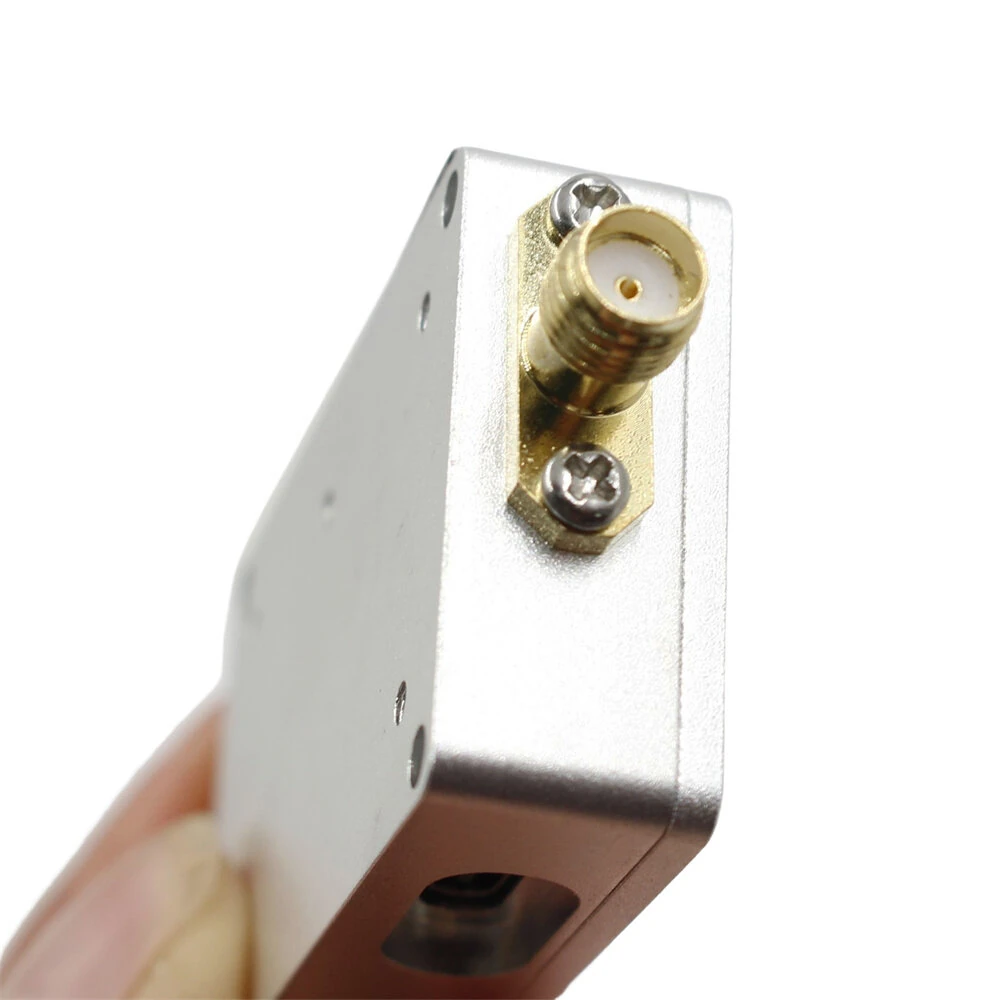

Output Interface: SMA female
Input-Output Impedance: 50 ohms
Features：
1. Wide Frequency Range: Operating within a 50MHz to 6GHz range, this receiver amplifier is ideal for various applications, including Beidou/Global Positioning System, FM radio reception, radar reception, and electromagnetic compatibility systems. It provides robust coverage suitable for multiple uses.
2. High Gain Levels: With selectable gain levels of 20dB and 30dB, this amplifier allows fine-tuning to achieve the desired signal strength. Adjust the gain according to specific needs to ensure superior performance in diverse applications like software radio receivers and intermediate frequency signal amplification.
3. Enhanced Signal Clarity: A low noise figure of 4-5dB guarantees excellent signal amplification with minimal interference. This feature is essential for maintaining high-quality signal reception, making it perfect for sensitive applications requiring precise signal clarity.
4. Compact and Lightweight: The module's compact dimensions of 4.5 x 3 x 1.4 cm and a lightweight design of 66g, including the host and TYPE-C cable, make it highly portable and easy to integrate. Its small size ensures ease of installation without compromising on performance.
5. Robust and Reliable Construction: Encased in an aluminum alloy shell, this amplifier is designed to withstand challenging environments. The SMA female connectors and 50-ohm input-output impedance guarantee secure and stable connections, providing consistent and reliable performance.
Package Included：
1 x Host with Aluminum Alloy Shell
1 x TYPE-C Cable
