LM2596 Switching Power Supply Module 3.3V 5V 12V ADJ Adjustable Voltage Output 3A High Efficiency Low Noise for Industrial LED Automation Control
5.01 ratingThe LM2596 Switching Power Supply Module 3.3V 5V 12V ADJ Adjustable Voltage Output 3A High Efficiency Low Noise for Industrial LED Automation Control is a value-for-money power supply module designed for professionals. It features Parameter name: Parameter value and Module model: Multiple power supply.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
27% Off — you save ₹488 on this product!
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Quick Specs
Ideal For
About This Product
The LM2596 Switching Power Supply Module 3.3V 5V 12V ADJ Adjustable Voltage Output 3A High Efficiency Low Noise for Industrial LED Automation Control is a value-for-money power supply module designed for professionals. It delivers reliable performance at an accessible price.
Key Specifications
- Parameter name: Parameter value
- Module model: Multiple power supply
- Module type: Switching power supply
- Input voltage: 13V-32V — works with standard household power
- The output voltage: Multipath — works with standard household power
- Output current: 3A (MAX)
- Conversion efficiency: 85%
- Output Power: 9.9W
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Product Introduction:

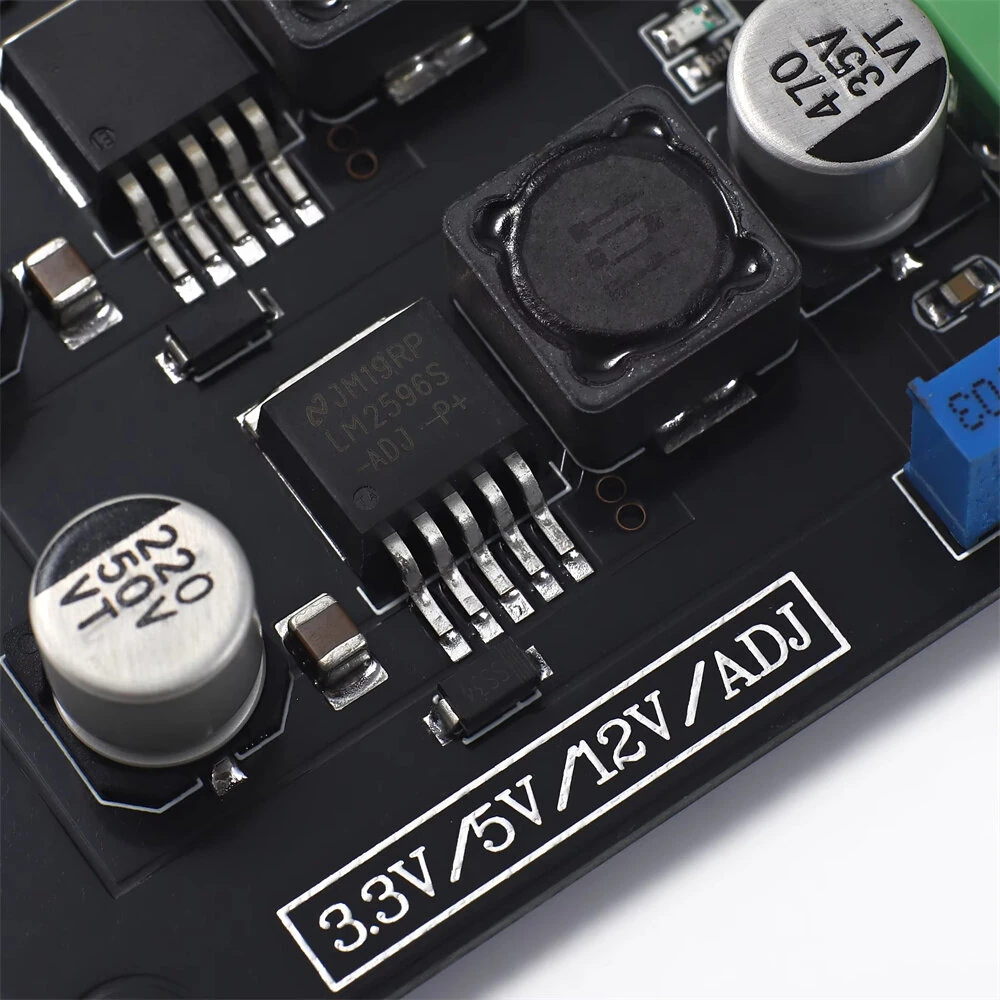

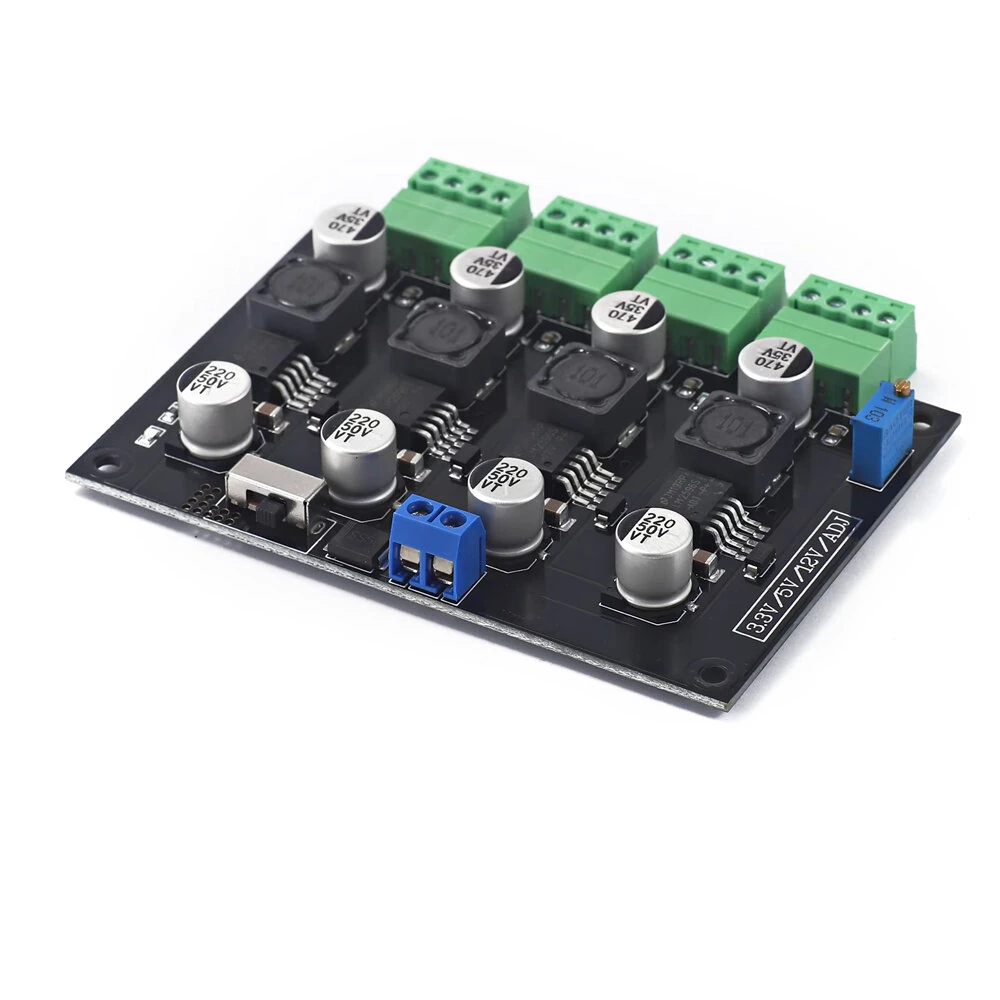

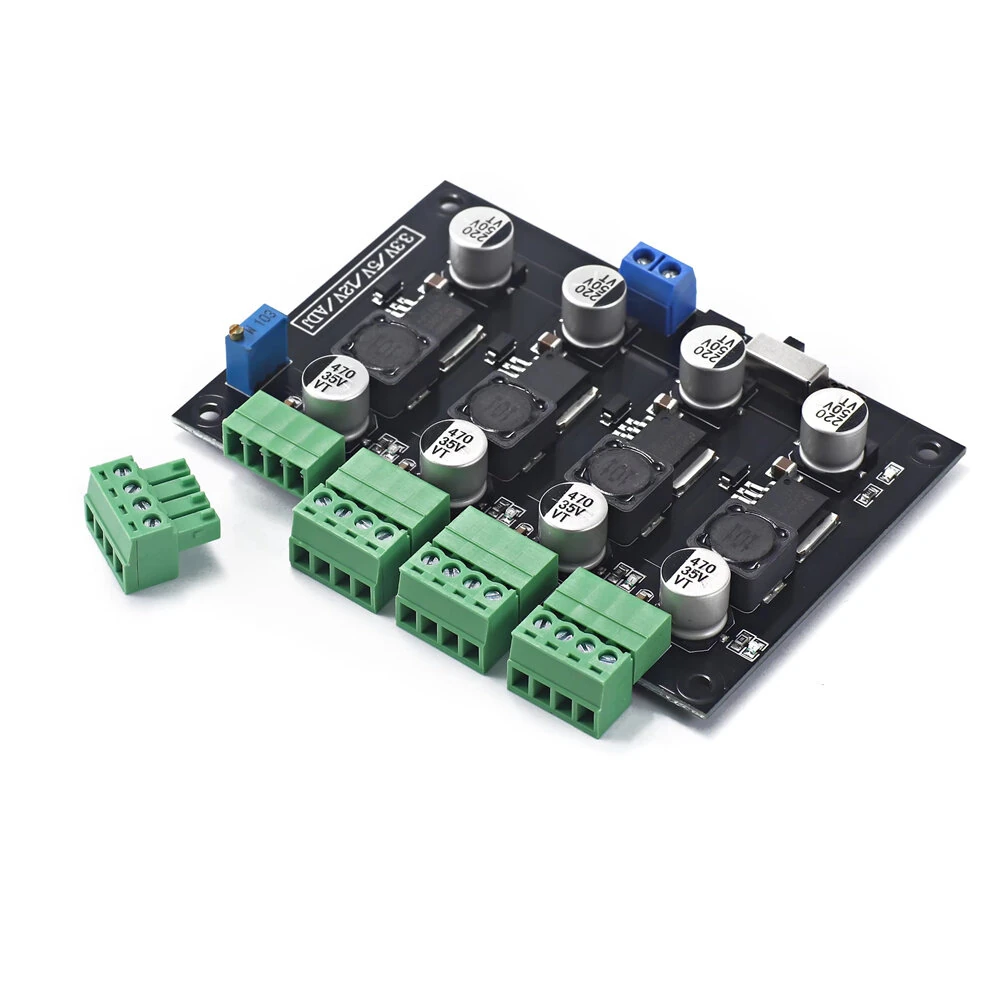

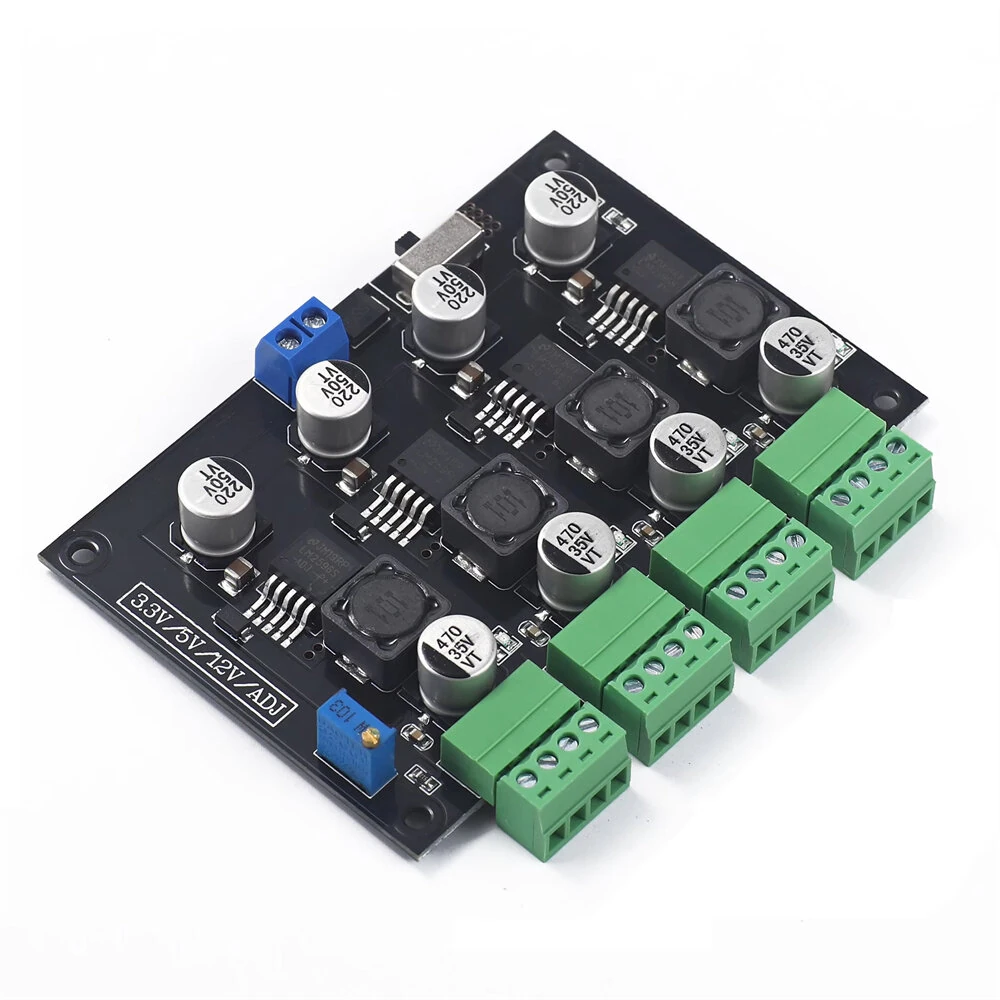

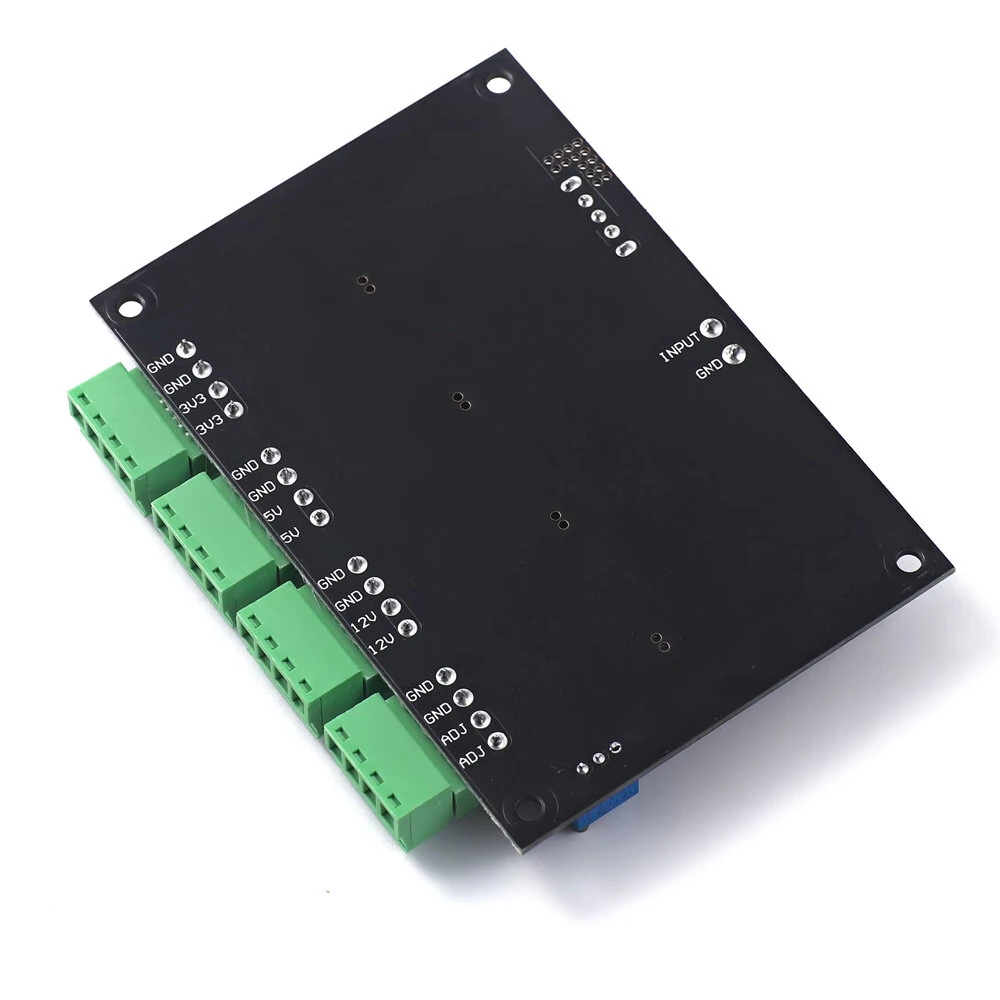

LM2596 is a step-down power management monolithic integrated circuit switching voltage regulator, capable of outputting 3A drive current, while having good linearity and load regulation characteristics. This module integrates 4 LM2596, which can output four sets of power supplies of 3.3V, 5V, 12V and ADJ at the same time. The module is laid out and wired in strict accordance with the design specifications of the power supply circuit the materials are generous, using SMD aluminum electrolytic capacitors, high-Q high-power inductors In order to ensure the stable output voltage, the window treatment on the back of the PCB board is more conducive to the heat dissipation of the LM2596 chip.
It is suitable for the power demand of students in learning competitions and company or personal project development
Precautions for using the module:
(1)The module is a step-down module, and the input voltage needs to be greater than the output 1Vto stabilize the output.
(2)Module heating is mainly determined by the input and output voltage difference and the load current. Please select and use the power module reasonably. Generally, 30% of the margin should be reserved.
(3)The module generates heat during use, please increase the heat dissipation according to the actual situation. When carrying a large load, you can add heat sinks, air cooling, etc appropriately.
(4)When using capacitive or inductive loads, the instantaneous current of the load cannot be too large, otherwise the module may be damaged.
Frequently Asked Questions:
Q: What is the output range of ADJ? What is the output current?
A: The output range of ADJ is 1.2V to Vin-1V. Maximum 3A, when the input and output voltage difference is large, the output current will be less than 3A.
Q: Can module outputs be connected in parallel or in series?
A: When the output voltage is equal, it can be connected in parallel, but not connected in series. Each channel is independent, but it will not be isolated and cannot be connected in series.
Q: Is the mounting hole grounded? Can the module output negative voltage?
A: The mounting hole is not grounded, and the module can only be used for positive and negative voltage output.
Features:
1. Multi-channel Output: The module integrates four LM2596 regulators, offering outputs of 3.3V, 5V, 12V, and an adjustable voltage simultaneously, making it versatile for various electronic projects.
2. High Efficiency: With a conversion efficiency of 85%, this power supply module optimizes energy use while reducing waste heat, ensuring reliable performance in demanding applications.
3. Robust Design: The module includes reverse connection protection and uses high-quality SMD aluminum electrolytic capacitors and high-Q inductors to provide stable output voltage and longevity.
4. Compact and Lightweight: Weighing only 65g and measuring 101mm x 68mm x 12mm, this module is convenient for integration into small projects, without compromising on power delivery.
5. Versatile Applications: Ideal for industrial automation control, LED lighting systems, communication equipment, power equipment, and more, this module meets the needs of various professional and hobbyist applications.
Package Included:
1 x LM2596 Multi Channel Switching Power Supply Module
