Latest version:_Software : v1.3-250822,Hardware : v1.0-241103

Does the black version with external antennas have antennas included? I would like to ask for an answer.

Both the built-in and external antennas are available in black and white; you can select the black external antenna.

LILYGO T-Embed CC1101 Plus ESP32-S3 Development Board Sub-1 GHz RF Transceiver PN532 NFC RFID I2C Module 1.9inch LCD Built-in Battery 1300mAh — image 1

Hover to zoom

1 / 11 · Click to enlarge

LILYGO T-Embed CC1101 Plus ESP32-S3 Development Board Sub-1 GHz RF Transceiver PN532 NFC RFID I2C Module 1.9inch LCD Built-in Battery 1300mAh

Name: LILYGO T-Embed CC1101 Plus ESP32-S3 Development Board Sub-1 GHz RF Transceiver PN532 NFC RFID I2C Module 1.9inch LCD Built-in Battery 1300mAh
Brand: LILYGO
SKU: 2051238
Price: 9488 INR
Availability: InStock
Rating: 5.0 (3 reviews)

5.03 ratings

639+ bought in past month

AI Summary

Motherboard & Development Board for premium buyers

The LILYGO T-Embed CC1101 Plus ESP32-S3 Development Board Sub-1 GHz RF Transceiver PN532 NFC RFID I2C Module 1.9inch LCD Built-in Battery 1300mAh by LILYGO is a premium motherboard & development board designed for premium buyers.

₹9,488-22%

MRP:₹12,219Save ₹2,731

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

22% Off — you save ₹2,731 on this product!

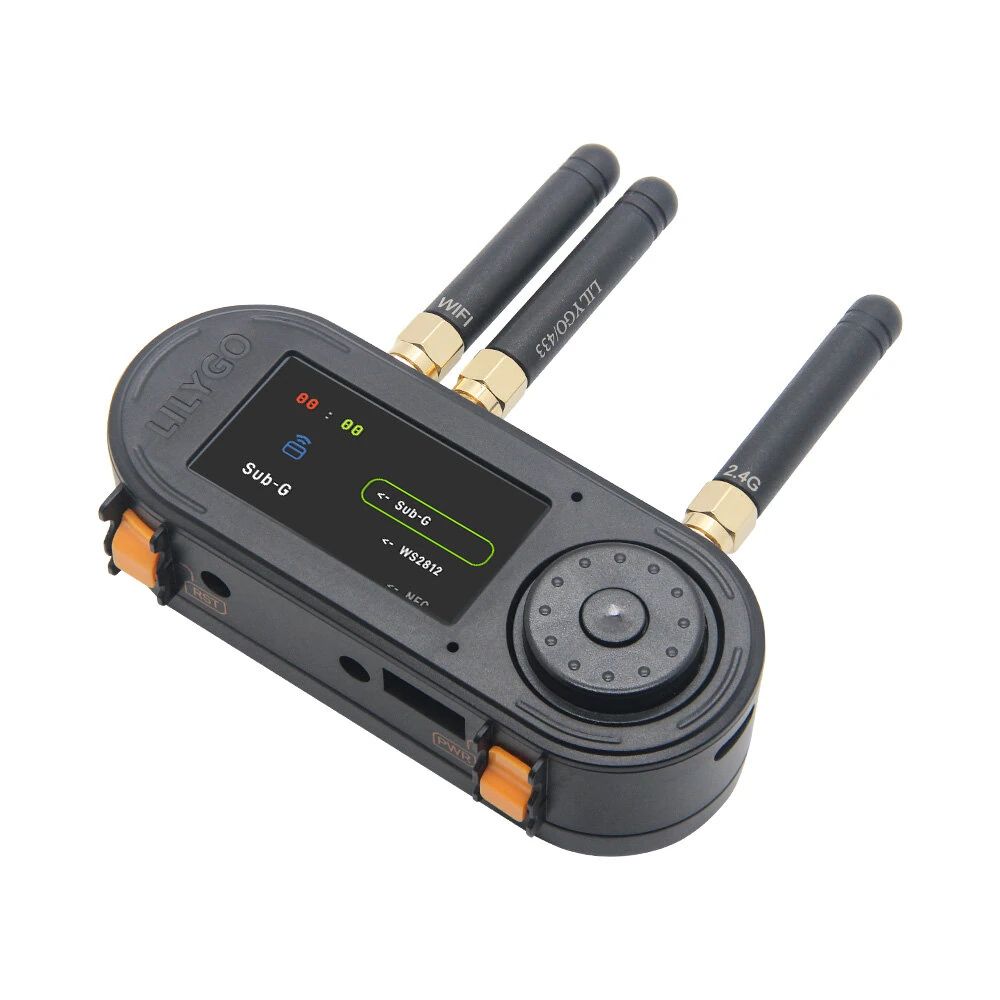

Type: External Antenna

Color: Black

Price: ₹9,488

Quantity

Total: ₹9,488

Buying tip: A top-tier option — the best features and quality available in this category.

Estimated delivery: 17 Aug – 31 Aug

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience

SKU: bg-2051238Category: Motherboard & Development Board

About This Product

The LILYGO T-Embed CC1101 Plus ESP32-S3 Development Board Sub-1 GHz RF Transceiver PN532 NFC RFID I2C Module 1.9inch LCD Built-in Battery 1300mAh by LILYGO is a premium motherboard & development board designed for premium buyers. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

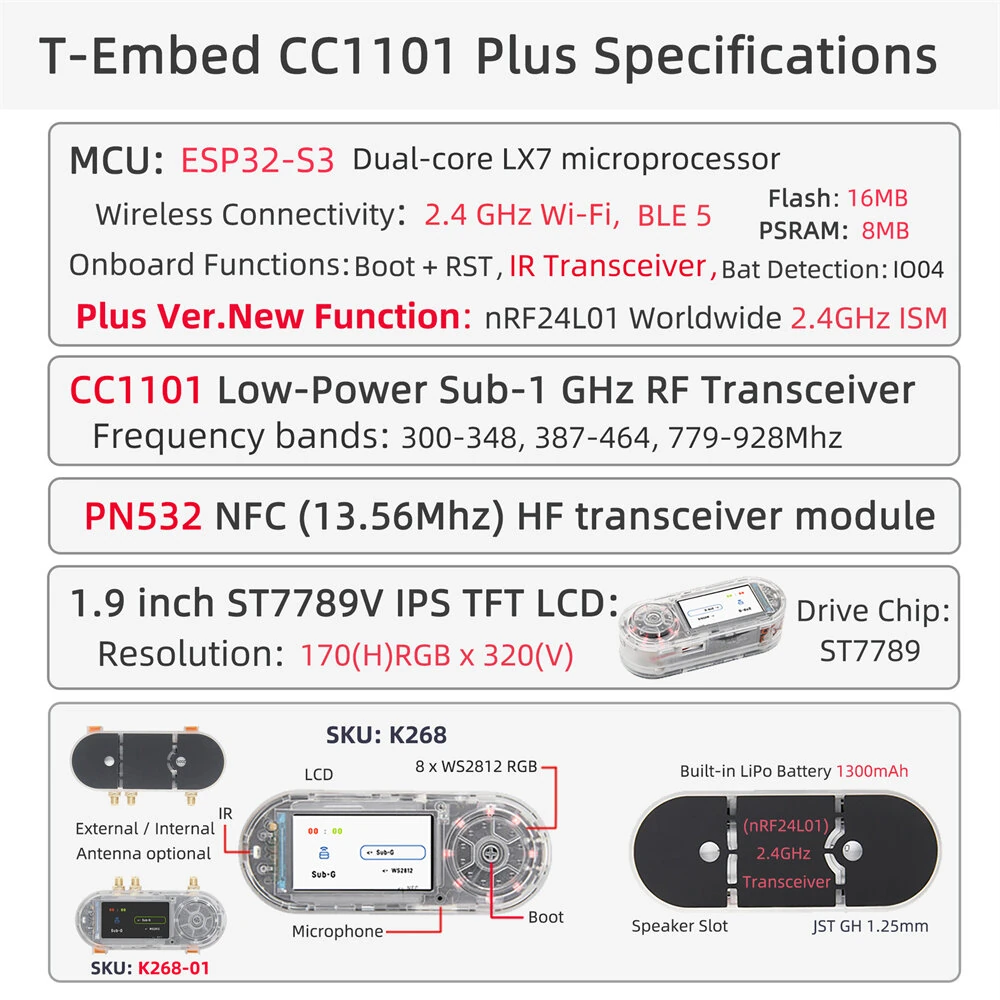

Specifications:

Product Name: LILYGO T-Embed CC1101 Plus

MCU: ESP32-S3 Dual-core LX7 microprocessor

Wireless Connectivity: 2.4 GHz Wi-Fi, BLE 5

Flash: 16MB

PSRAM: 8MB

Onboard Functions: Boot + RST, IR Transceiver, Bat IO04

Plus Version New Function: nRF24L01 Worldwide 2.4GHz ISM

RF Transceiver: CC1101 Low-Power Sub-1 GHz RF Transceiver

Frequency Bands: 300-348MHz, 387-464MHz, 779-928MHz

NFC Module: PN532 NFC 13.56Mhz HF transceiver module

Display: 1.9 inch ST7789V IPS TFT LCD

Resolution: 170(H)RGB x 320(V)

Drive Chip: ST7789

Features:

1. Powered by an ESP32-S3 dual-core LX7 microprocessor with 16MB flash and 8MB PSRAM for advanced embedded development.

2. Supports 2.4 GHz Wi-Fi and BLE 5, providing versatile wireless connectivity for multiple application needs.

3. Integrates CC1101 low-power Sub-1 GHz RF transceiver with frequency bands of 300-348MHz, 387-464MHz, and 779-928MHz.

4. Plus version adds nRF24L01 worldwide 2.4GHz ISM function and includes a PN532 NFC 13.56Mhz HF transceiver module.

5. Features a 1.9 inch ST7789V IPS TFT LCD with 170(H)RGB x 320(V) resolution, along with Boot + RST, IR Transceiver, and Bat IO04.

Package Included:

1 x LILYGO T-Embed CC1101 Plus ESP32-S3 1.9 inch LCD PN532 Module

Product Safety Information

Setup Guide

Identify the pins

Locate VCC (power), GND (ground), and data pins (SDA/SCL for I2C, MOSI/MISO for SPI, or TX/RX for UART). Refer to the pinout diagram on the product page.

Wire to your microcontroller

Connect VCC to 3.3V or 5V (check the module spec), GND to GND, and data pins to the appropriate GPIO pins on your Arduino or Raspberry Pi.

Install libraries

In Arduino IDE, go to Sketch → Include Library → Manage Libraries and search for the sensor library. Install the recommended version.

Upload example sketch

Open File → Examples → [library name] → Basic Example. Upload to your board and open Serial Monitor to view output.

Calibrate if needed

Some sensors (temperature, humidity, distance) may need a short warm-up period or calibration. Run the calibration sketch if provided.
