LILYGO T-Echo Battery Pack 2400mAh Extension Shield With IMU BHI260AP Microphone 10Pin Expansion Port And ABS Case For T-Echo
The LILYGO T-Echo Battery Pack 2400mAh Extension Shield With IMU BHI260AP Microphone 10Pin Expansion Port And ABS Case For T-Echo is a mid-range product designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
33% Off — you save ₹1,566 on this product!
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The LILYGO T-Echo Battery Pack 2400mAh Extension Shield With IMU BHI260AP Microphone 10Pin Expansion Port And ABS Case For T-Echo is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification
Case Material: ABS
Dimensions: 89mm x 53mm x 27mm
Battery Capacity: 2400mAh
Onboard IMU: BHI260AP
Onboard Microphone: Yes
Expansion Port: 10pin (2.54mm pitch)
IMU Interface: SDA (P0.26), SCL (P0.27)
Microphone Interface: Data (P0.6), Clk (P0.8), LR sel (P0.15)
Features
1. Extended Power Supply: Powers your T-Echo for longer durations with a large-capacity, integrated 2400mAh battery.
2. Integrated IMU: Features an onboard BHI260AP Inertial Measurement Unit, enabling advanced motion-based applications and orientation awareness.
3. Built-in Microphone: Equipped with an onboard microphone, perfect for projects that require audio input or voice command functionality.
4. Custom Expansion: A reserved 10-pin expansion port allows for easy integration of custom modules, unlocking unlimited possibilities for your projects.
5. Seamless Integration: Designed as a "backpack" extension, it perfectly fits the T-Echo main board within a compact and protective enclosure.

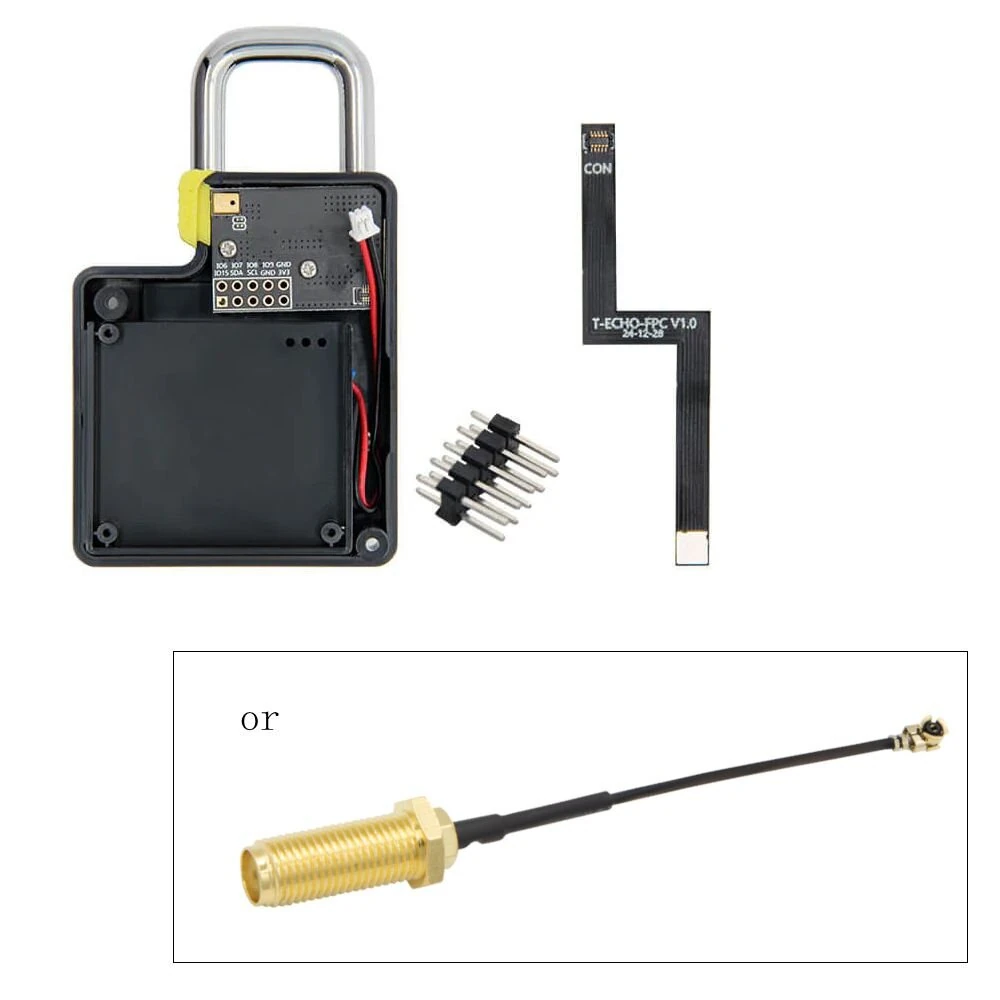

Package Included
Package 1:
1 x T-Echo Battery Pack
1 x Pin
1 x FPC expansion interface cable
or
Package 2:
1 x IPEX to SMA cable only
(The T-Echo and antenna are not includes, for reference only)
