LILYGO T-Display-P4 ESP32 Development Board Dual MCU ESP32-P4 ESP32-C6 AMOLED/TFT Touch Screen GPS WiFi BLE LoRa SX1262 2MP Camera IMU+RTC/TF

Name: LILYGO T-Display-P4 ESP32 Development Board Dual MCU ESP32-P4 ESP32-C6 AMOLED/TFT Touch Screen GPS WiFi BLE LoRa SX1262 2MP Camera IMU+RTC/TF
Brand: LILYGO
SKU: 2049916
Price: 18325 INR
Availability: InStock

37+ bought in past month

AI Summary

Motherboard & Development Board for premium buyers

The LILYGO T-Display-P4 ESP32 Development Board Dual MCU ESP32-P4 ESP32-C6 AMOLED/TFT Touch Screen GPS WiFi BLE LoRa SX1262 2MP Camera IMU+RTC/TF by LILYGO is a premium motherboard & development board designed for premium buyers.

₹18,325-19%

MRP:₹22,559Save ₹4,234

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

19% Off — you save ₹4,234 on this product!

Type: 4.05 inch TFT

Price: ₹18,325

Quantity

Total: ₹18,325

Buying tip: A top-tier option — the best features and quality available in this category.

Estimated delivery: 23 Aug – 6 Sept

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Photography and videographySecurity monitoringLive streaming

SKU: bg-2049916Category: Motherboard & Development Board

About This Product

The LILYGO T-Display-P4 ESP32 Development Board Dual MCU ESP32-P4 ESP32-C6 AMOLED/TFT Touch Screen GPS WiFi BLE LoRa SX1262 2MP Camera IMU+RTC/TF by LILYGO is a premium motherboard & development board designed for premium buyers. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:

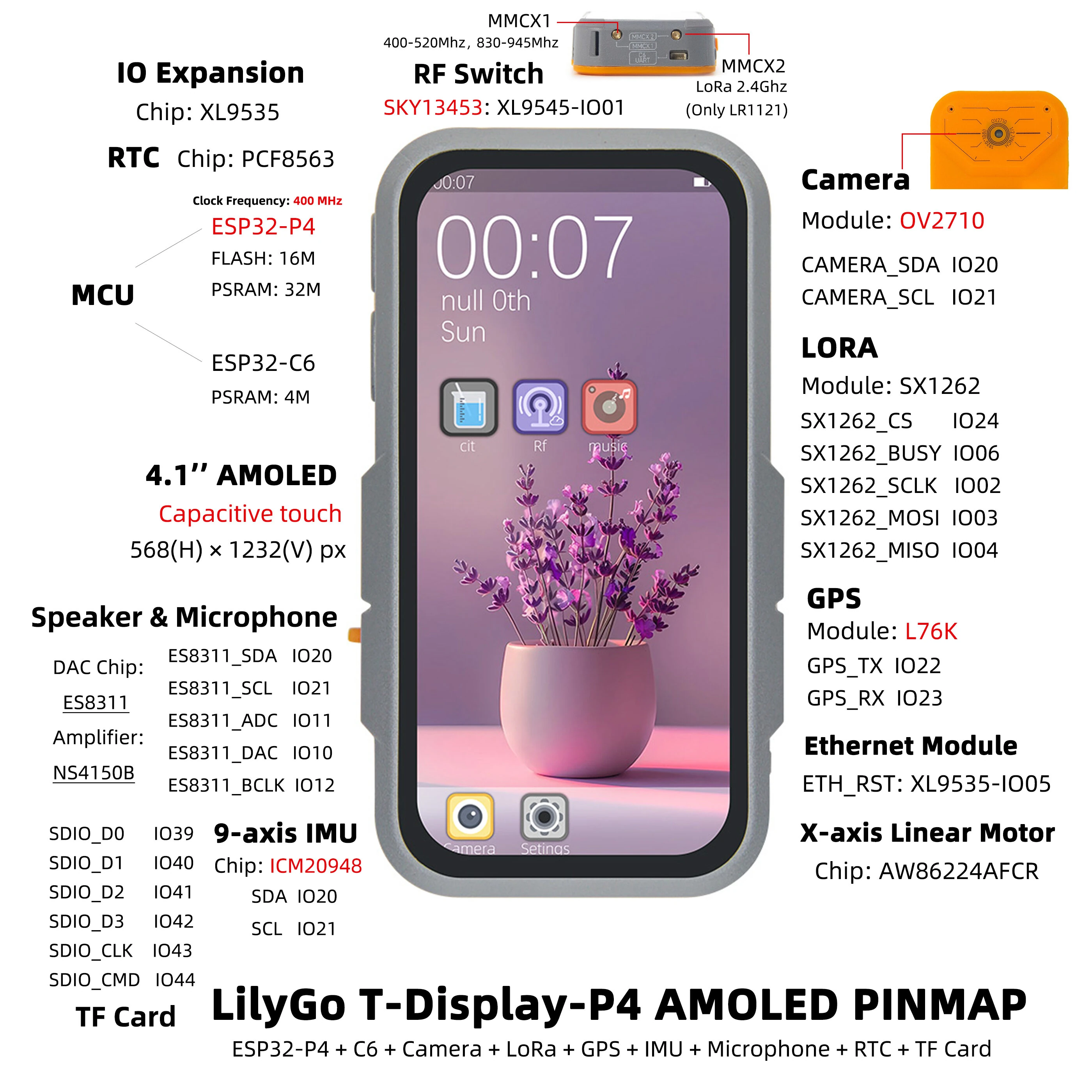

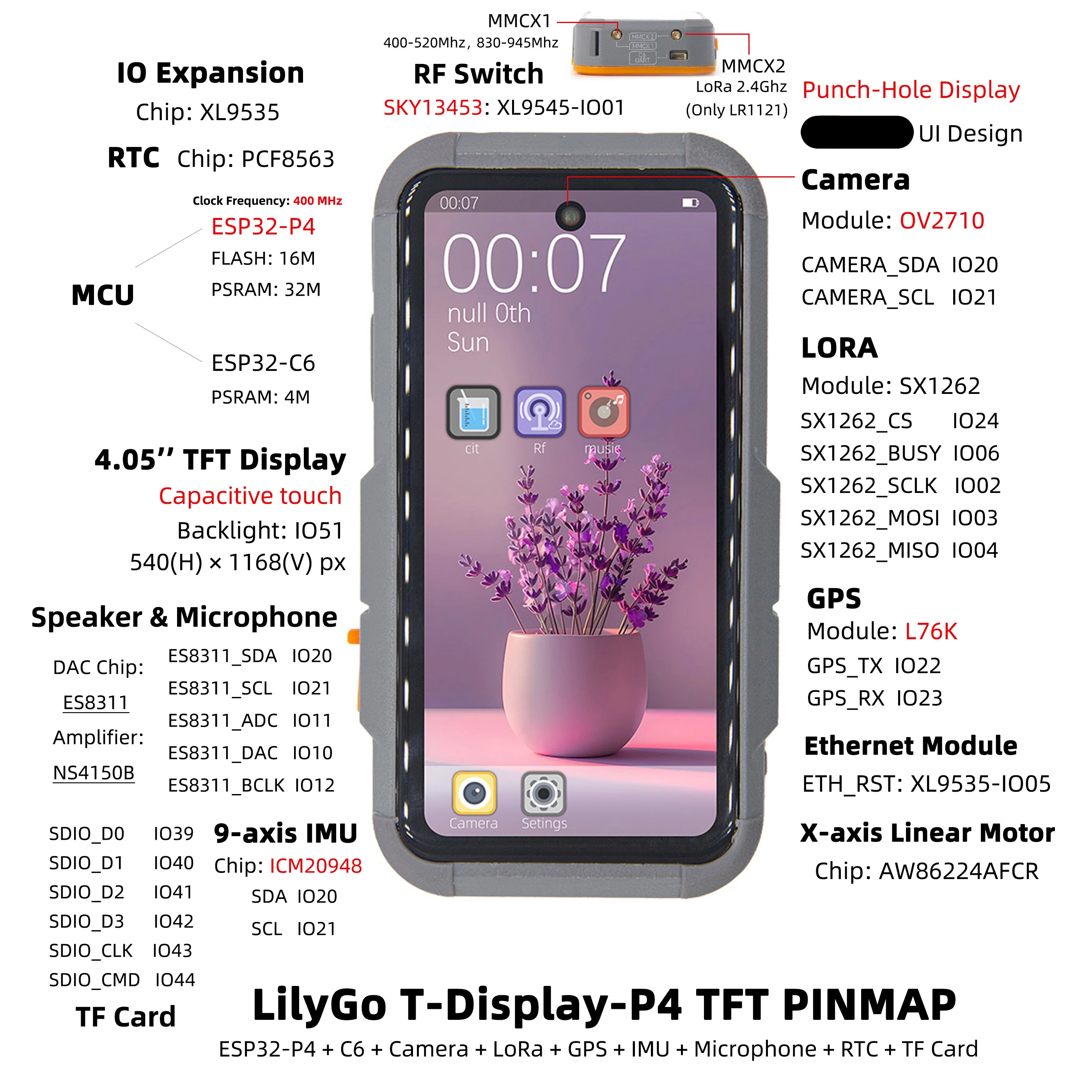

Model: LILYGO T-Display-P4 (two versions: 4.1" AMOLED or 4.05" TFT optional)

Main MCU: ESP32‑P4, RISC‑V dual‑core up to 360 MHz + single 40 MHz

Co‑MCU: ESP32‑C6 with 2.4 GHz Wi‑Fi 6 (802.11ax) and Bluetooth 5 LE

Memory: 16 MB Flash, 32 MB PSRAM

Display: Capacitive touch; AMOLED 4.1" (ultra‑high contrast) or TFT 4.05" punch‑hole

Camera: 2 MP MIPI (OV2710), 1080p@30 fps or 720p@60 fps; AMOLED version uses rear camera, TFT version uses front camera

Media engine: JPEG codec, ISP, PPA, H.264 encoder; MIPI CSI/DSI

Wireless long‑range: LoRa SX1262, bands 400–520 MHz and 830–945 MHz; MMCX antenna port; optional 2.4 GHz LoRa (LR1121)

Audio: I2S speaker and microphone, audio jack

Sensors: 9‑axis IMU (ICM20948) with DMP

I/O & storage: microSD (TF) card slot; SPI and GPIO expansion; XL9535 16‑bit GPIO expander; external keyboard connector

Other onboard: RTC, vibration motor, Ethernet interface, battery switch

Power & charging: USB charging 5 V, 500 mA; charge IC LGS4056H; battery gauge BQ27220

USB & ports: High‑speed USB‑A plus basic USB (dual USB), MMCX antenna connectors

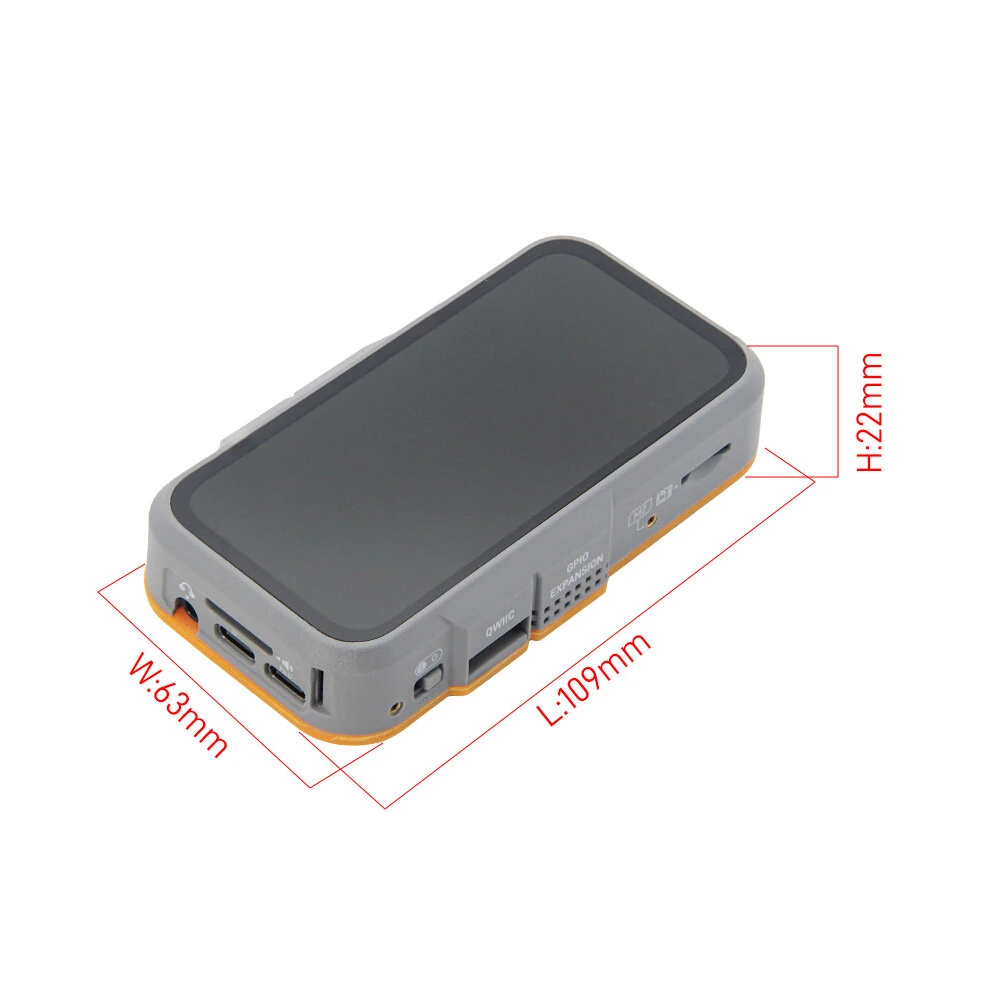

Size: 63 x 109 x 22 mm

Software support: ESP‑IDF, VS Code

Features:

1. Dual‑MCU architecture: ESP32‑P4 for imaging and audio, plus ESP32‑C6 for Wi‑Fi 6 and BLE—built for responsive, connected projects.

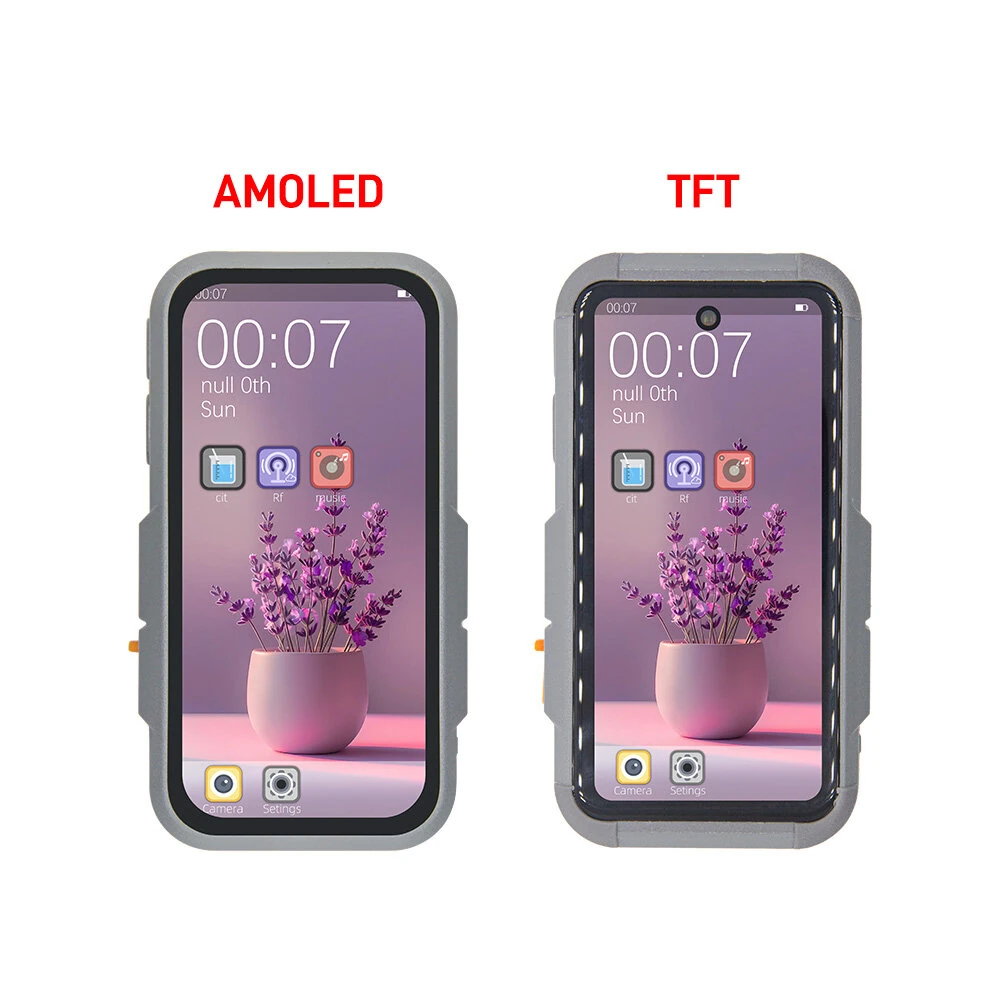

2. Two display choices: 4.1" AMOLED with rear camera or 4.05" punch‑hole TFT with front camera; both are capacitive touch.

3. Video‑ready: OV2710 2 MP MIPI camera, hardware JPEG and H.264 encode, and MIPI CSI/DSI for smooth image and video applications.

4. Connectivity built in: Multi‑band LoRa SX1262, optional 2.4 GHz LoRa, Wi‑Fi 6, BLE, Ethernet, microSD, dual USB, and audio jack.

5. Rich peripherals: I2S speaker/mic, vibration motor, RTC, 9‑axis IMU, XL9535 GPIO expander, and external keyboard header with 16 MB Flash + 32 MB PSRAM.

Package Included:

1 x T-Display-P4

1 x MMCX LoRa Antenna

Product Safety Information

Setup Guide

Identify the pins

Locate VCC (power), GND (ground), and data pins (SDA/SCL for I2C, MOSI/MISO for SPI, or TX/RX for UART). Refer to the pinout diagram on the product page.

Wire to your microcontroller

Connect VCC to 3.3V or 5V (check the module spec), GND to GND, and data pins to the appropriate GPIO pins on your Arduino or Raspberry Pi.

Install libraries

In Arduino IDE, go to Sketch → Include Library → Manage Libraries and search for the sensor library. Install the recommended version.

Upload example sketch

Open File → Examples → [library name] → Basic Example. Upload to your board and open Serial Monitor to view output.

Calibrate if needed

Some sensors (temperature, humidity, distance) may need a short warm-up period or calibration. Run the calibration sketch if provided.
