LILYGO T-Display K230 Development Board 4.1 Inch AMOLED Touchscreen Dual 64-Bit RISC-V CPU 8Gb LPDDR4 2MP 1080P Camera WiFi RJ45 LoRa Communication

Name: LILYGO T-Display K230 Development Board 4.1 Inch AMOLED Touchscreen Dual 64-Bit RISC-V CPU 8Gb LPDDR4 2MP 1080P Camera WiFi RJ45 LoRa Communication
Brand: LILYGO
SKU: 2051239
Price: 14294 INR
Availability: InStock

32+ bought in last month

AI Summary

product for premium buyers

The LILYGO T-Display K230 Development Board 4.1 Inch AMOLED Touchscreen Dual 64-Bit RISC-V CPU 8Gb LPDDR4 2MP 1080P Camera WiFi RJ45 LoRa Communication by LILYGO is a premium product designed for premium buyers.

₹14,294-16%

MRP:₹16,919Save ₹2,625

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

16% Off — you save ₹2,625 on this product!

frequency: SX1262 868MHz

Price: ₹14,294

Quantity

Total: ₹14,294

Buying tip: A top-tier option — the best features and quality available in this category.

Estimated delivery: 27 Aug – 10 Sept

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Photography and videographySecurity monitoringLive streaming

SKU: bg-2051239

About This Product

The LILYGO T-Display K230 Development Board 4.1 Inch AMOLED Touchscreen Dual 64-Bit RISC-V CPU 8Gb LPDDR4 2MP 1080P Camera WiFi RJ45 LoRa Communication by LILYGO is a premium designed for premium buyers. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:

Product Name: LILYGO T-Display K230

SoC: Dual 64-bit RISC-V CPU + KPU + DPU + GPU + VPU

CPU Frequency: CPU1: 1.6GHz; CPU0: 800MHz

AI Support: KPU supports general AI computing framework and complex computing

Graphics/Video: AI 2D engine, 2.5D GPU, 3D DPU + H.264 video decoding

Display Size: 4.1 inch

Display Type: AMOLED

Display Driver Chip: RM69A10

Resolution: RGB 568 x 1232

Camera: 2MP 1080P camera

Camera Module: GC2093

Memory: 32 LPDDR4

Memory Capacity: 8Gb

Wi-Fi Module: RTL8189

Wi-Fi Standard: IEEE 802.11 b/g/n 2.4GHz

Ethernet Module: RC01812

Ethernet Port: RJ45

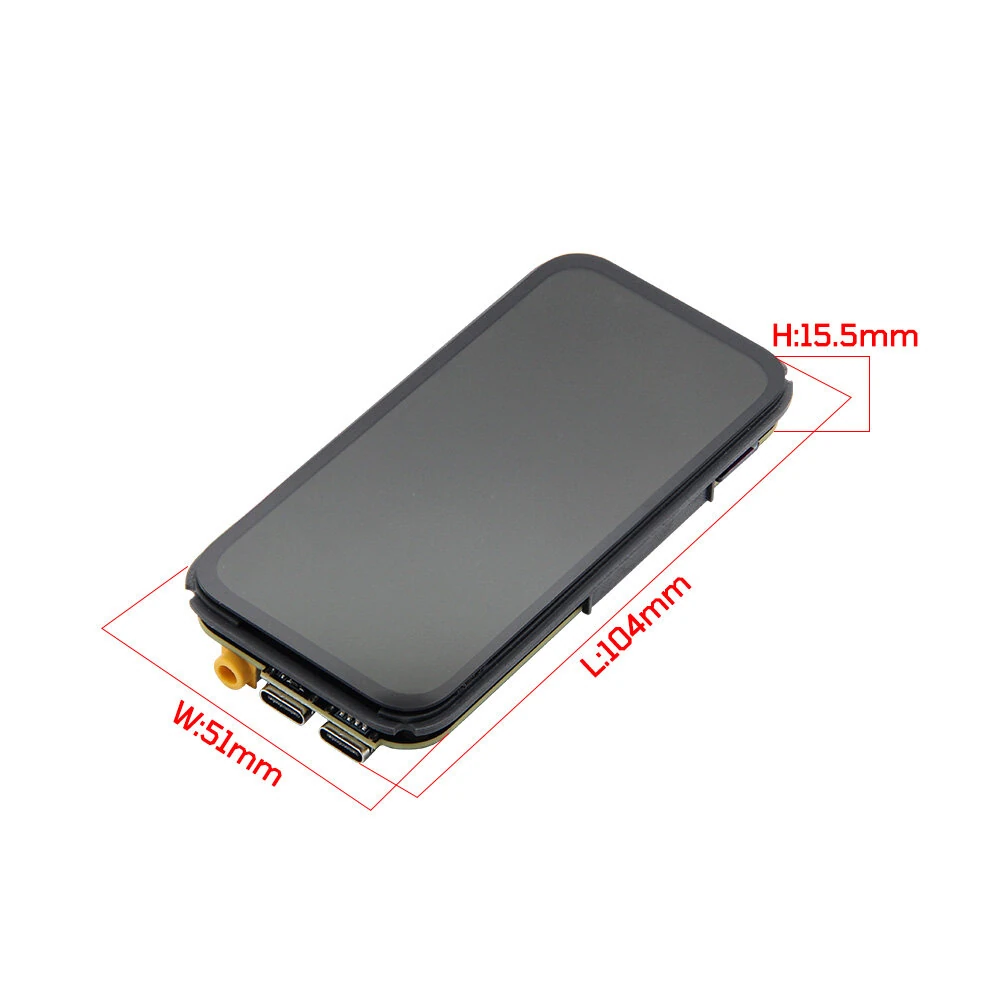

Size: 104 x 51 x 15.5mm

USB Charging: 5V, 500mA

Features:

1. Powered by a dual 64-bit RISC-V CPU with KPU, DPU, GPU, and VPU for advanced computing performance.

2. CPU1 runs at 1.6GHz and CPU0 runs at 800MHz for efficient task handling.

3. Features a 4.1 inch AMOLED display with RM69A10 driver chip and 568 x 1232 resolution.

4. Equipped with a 2MP 1080P camera module GC2093 and 8Gb LPDDR4 memory.

5. Supports IEEE 802.11 b/g/n 2.4GHz Wi-Fi and RJ45 Ethernet connectivity.

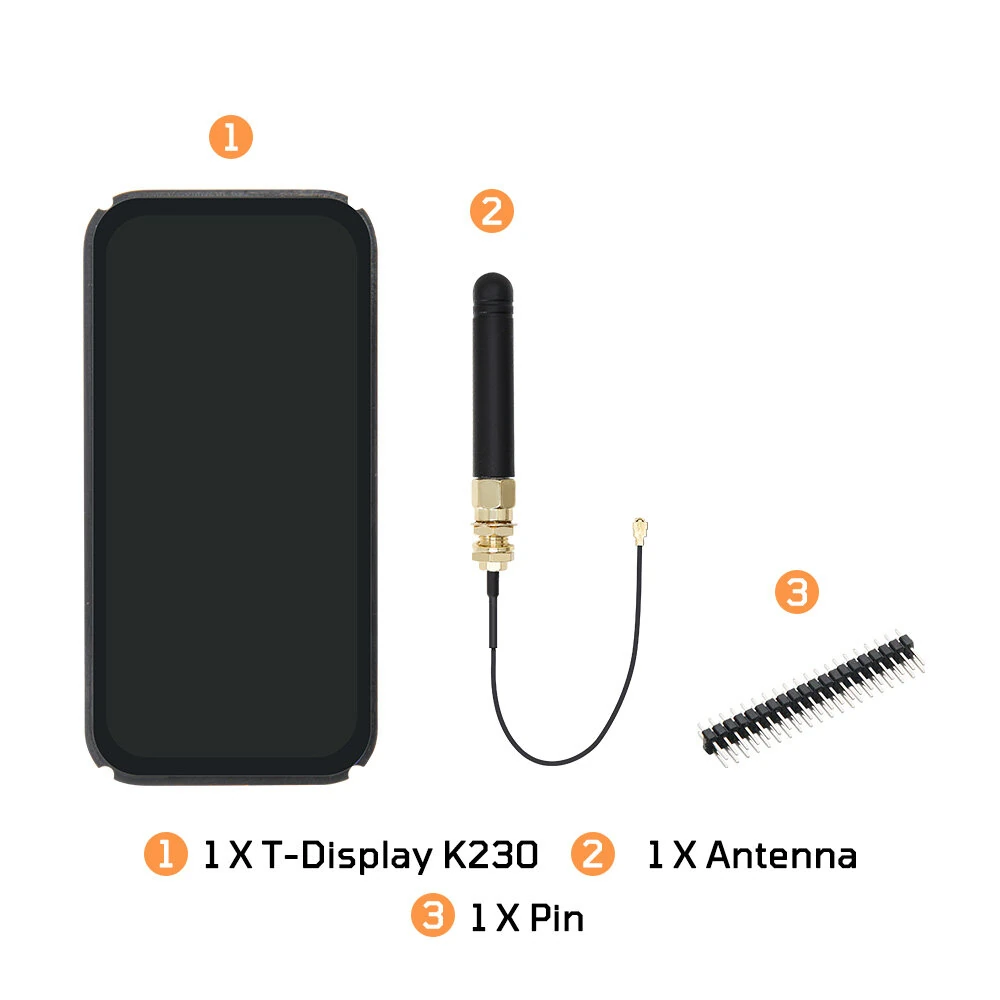

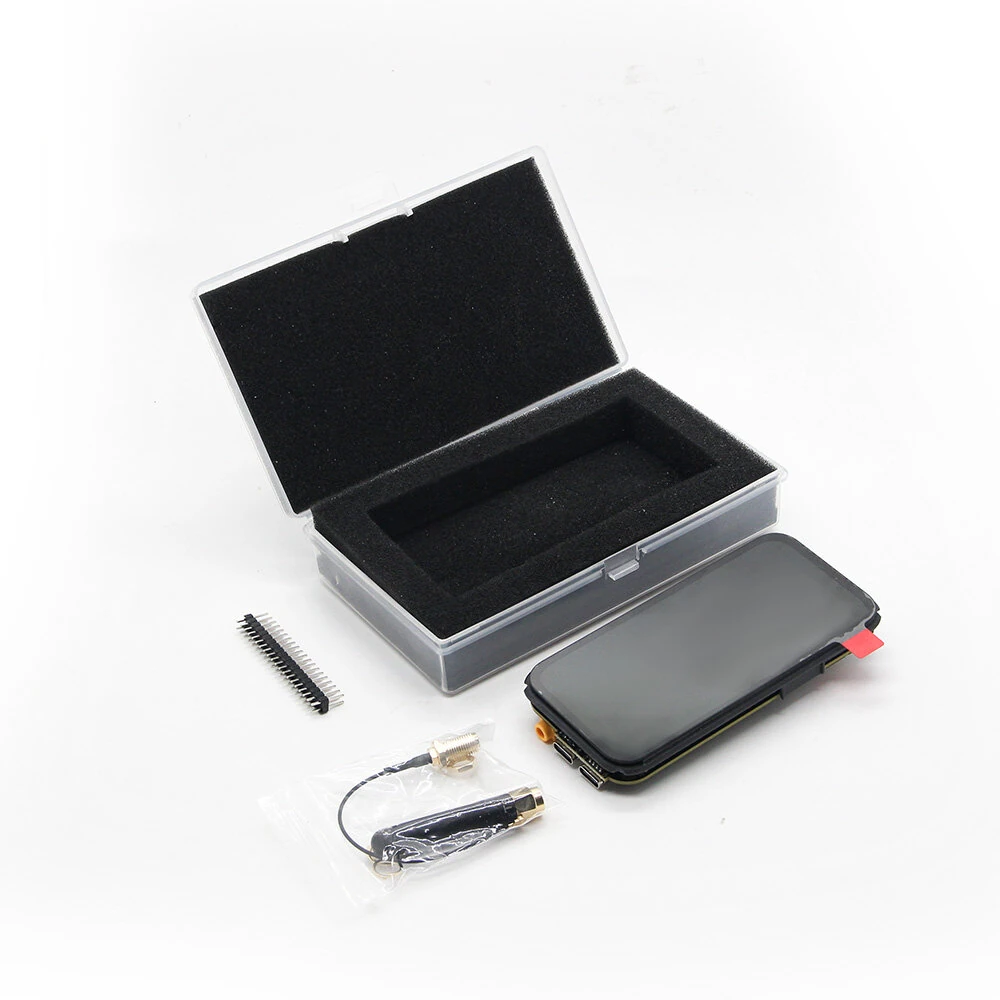

Package Included:

1 x LILYGO T-Display K230

Product Safety Information

Setup Guide

Insert memory card

Insert a Class 10 or UHS-I microSD card (up to the maximum supported capacity) before powering on.

Charge or connect power

For portable cameras, charge via USB before use. For fixed cameras, connect the power adapter.

Power on and configure

Press the power button and navigate to Settings. Set date, time, and video resolution.

Mount the camera

Use the supplied mount (suction cup, adhesive, or bracket) to position the camera. Ensure the lens has a clear, unobstructed view.

Connect to app (if applicable)

Download the companion app, enable Wi-Fi on the camera, and follow the in-app pairing process for live view and remote access.
