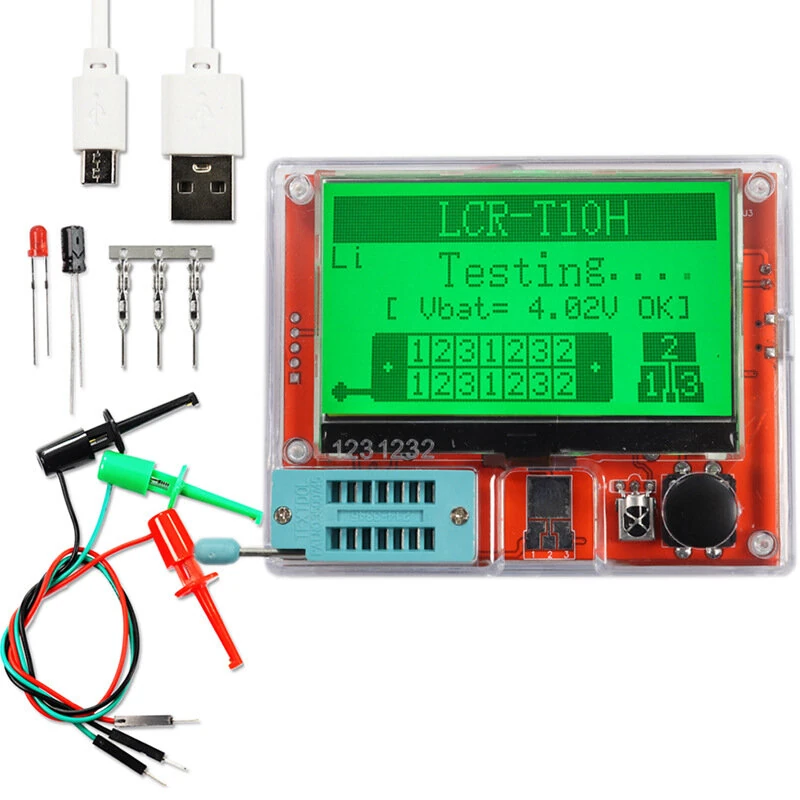

LCR-T10H TFT LCD Display Multi-meter Transistor Tester Diode Triode Battery Detector For Diode Capacitor Resistor for Testing
5.01 ratingThe LCR-T10H TFT LCD Display Multi-meter Transistor Tester Diode Triode Battery Detector For Diode Capacitor Resistor for Testing is a mid-range product designed for everyday users. Customers praise its accurate and reliable.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The LCR-T10H TFT LCD Display Multi-meter Transistor Tester Diode Triode Battery Detector For Diode Capacitor Resistor for Testing is a mid-range designed for everyday users. Customers highlight its accurate and reliable.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Model: LCR-T10H
Display: Large Graphic LCD Screen
Power Supply Options:
With Battery: 3.7V 250mAh battery
Without Battery: 2 x AAA batteries (not included)
Material: ABS
Diode Range (Forward voltage): <4.50V
Zener Diode Test Range: 0.01-4.5V
Capacitance Measurement Range: 25pF-100mF
Resistance Measurement Range: 0.01-50MΩ
Inductance Measurement Range: 0.01mH-20H
Item Size: 89 x 71 x 22 mm / 3.5 x 2.8 x 0.87 inch
Item Weight:
With Battery: 100g / 3.53oz
Without Battery: 96g / 3.39oz
Features:
1.Comprehensive Component Detection: The LCR-T10H is capable of detecting a wide range of components including NPN and PNP transistors, capacitors, resistors, diodes, double diodes, N-channel and P-channel MOSFETs, IGBTs, JFETs, triacs, and batteries. This versatile functionality makes it a valuable tool for electronic hobbyists and professionals alike.
2.Infrared Remote Control Decoding: With this feature, simply point an infrared remote control at the device and press a button. If the detector successfully decodes the signal, it will display the data code and infrared waveform on the screen. This functionality is particularly useful for verifying and troubleshooting IR remote controls.
3.User-Friendly Operation: The LCR-T10H operates with a single button, automatically detecting and shutting down after the test. Component pins can be placed into corresponding areas, and the device will test them automatically, displaying results clearly on a backlit LCD screen. The color display ensures that information is easily readable, unlike conventional black and white screens.
4.Self-Calibration Capability: Equipped with self-calibration functionality, this device ensures accurate measurements every time. Prior to testing, the instrument can be calibrated to enhance precision, particularly when testing small resistors or other delicate components.
5.Multiple Power Supply Options: This device is available in two versions: one with a built-in 3.7V 250mAh battery, and another that uses 2 AAA batteries (not included). This flexibility allows users to choose the most convenient power supply option based on their needs.
Package Included
Package With Battery:
1 x Transistor Tester
1 x Electronic Component Set
1 x Cable
3 x Test Hook
or
Package Without Battery:
1 x Transistor Tester
1 x Electronic Component Set
1 x Screwdriver
3 x Test Hook
