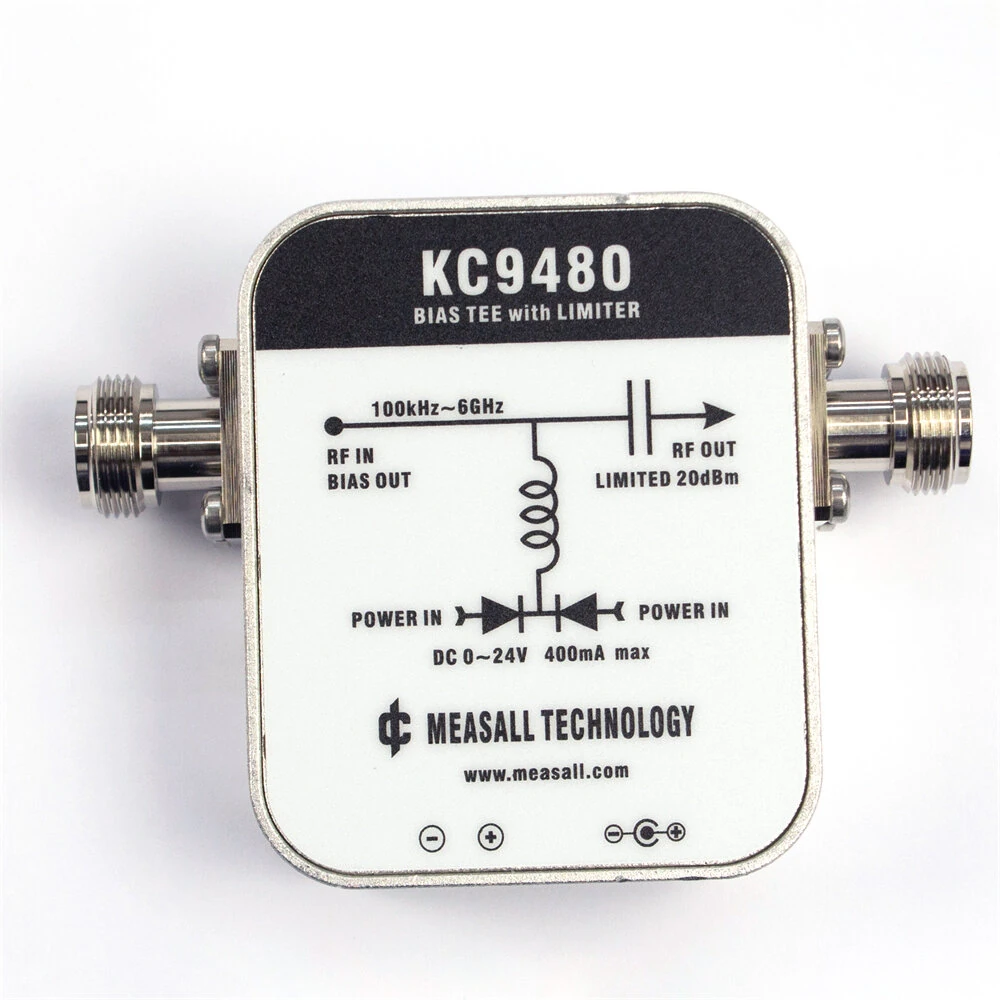

KC9480 DC Bias Injector 1MHz 6GHz Dual Power Input Integrated Limiter Protection ESD Protect Wide Frequency Range Radio Frequency Reception
The KC9480 DC Bias Injector 1MHz 6GHz Dual Power Input Integrated Limiter Protection ESD Protect Wide Frequency Range Radio Frequency Reception is a premium product designed for premium buyers.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
46% Off — you save ₹5,179 on this product!
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The KC9480 DC Bias Injector 1MHz 6GHz Dual Power Input Integrated Limiter Protection ESD Protect Wide Frequency Range Radio Frequency Reception is a premium designed for premium buyers. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Frequency Range: 1MHz–6GHz
Limiting Starting Level: 17dBm
Maximum Compressed Power: ≤20dBm
Operating Voltage: 12V (Can increase to 24V, maximum 30V)
Operating Current: 300mA (Maximum 400mA)
Power Interface: Dual 5.5/2.5mm cylindrical connectors
ESD Protection Class: CLASS 1C
Features:
1.Integrated Limiter for Signal Protection: Protect downstream equipment from power surges by compressing incoming signals above 17dBm to a maximum of 20dBm, ensuring stable operation in high-power environments.
2.Dual Power Input for Redundancy: Designed with two power connectors to ensure consistent performance, even in rigorous operational scenarios where reliability is critical.
3.Wide Frequency Range: Supports frequencies from 1MHz to 6GHz, compatible with most RF reception systems including antennas, communication stations, and astronomical observation setups.
4.ESD Protects and Short Circuit Protection: Offers Class 1C electrostatic discharge protection and built-in fuses for safety in the event of electrical disruptions or short circuits.
5.Adjustable Voltage Configuration: Standard operating voltage is 12V, with an option to increase to 24V for long cable deployments, ensuring flexibility across diverse setups.
Package Included:
1 x KC9480 DC Bias Injector
