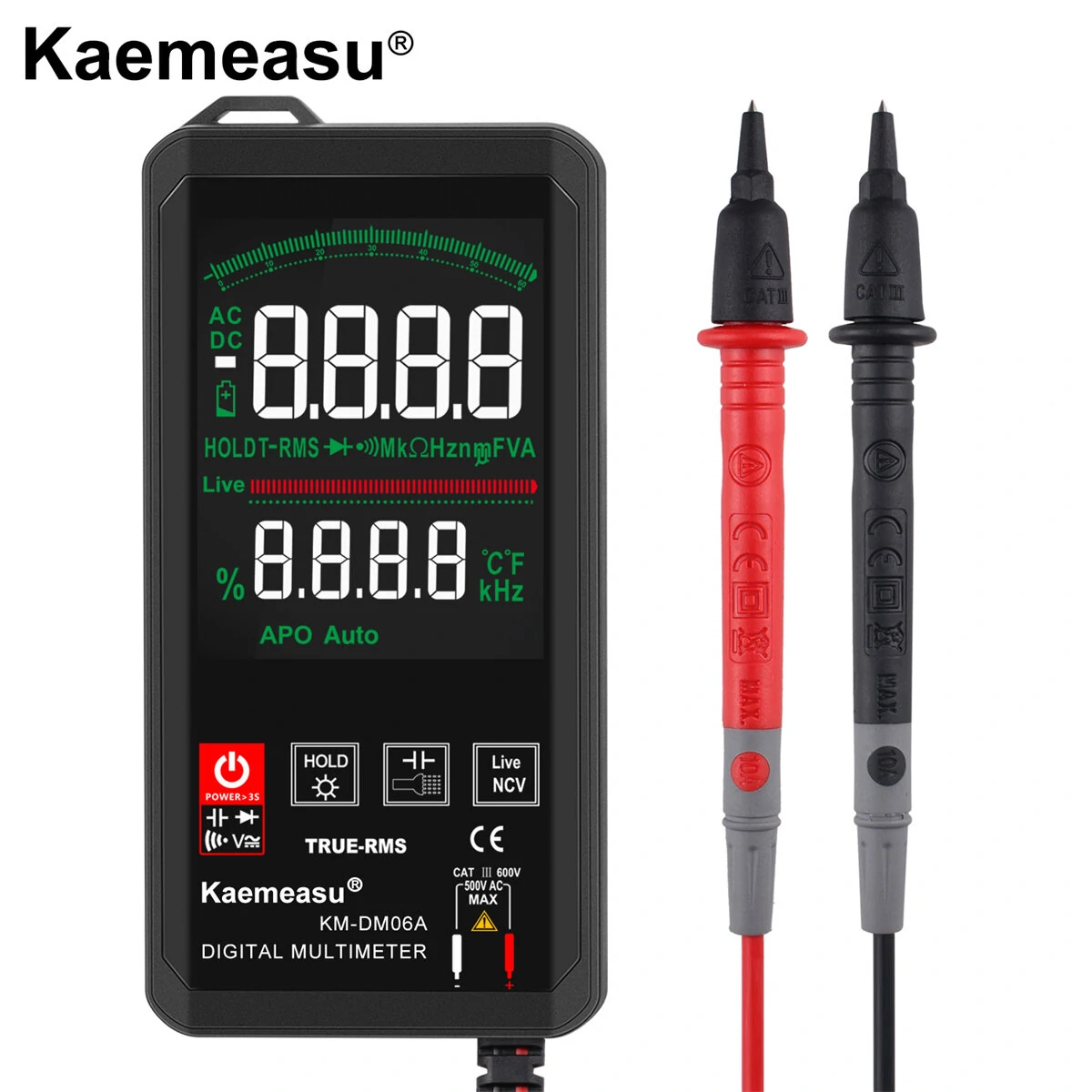

Kaemeasu KM-DM06A 6000 Counts Smart Mini Touch Digital Multimeter with Color Screen True RMS Measurement Auto Recognition Ideal for Electronic Repair

Feature:

The Kaemeasu KM-DM06A is a next-level compact digital multimeter with color screen. Designed for easy, accurate measurements and readings, this versatile tool makes an essential addition to your professional kit. Its features include:

Triple Display LCD: Our instrument provides a triple display: main, secondary, and an analog bar for precise, easy-to-understand readings.

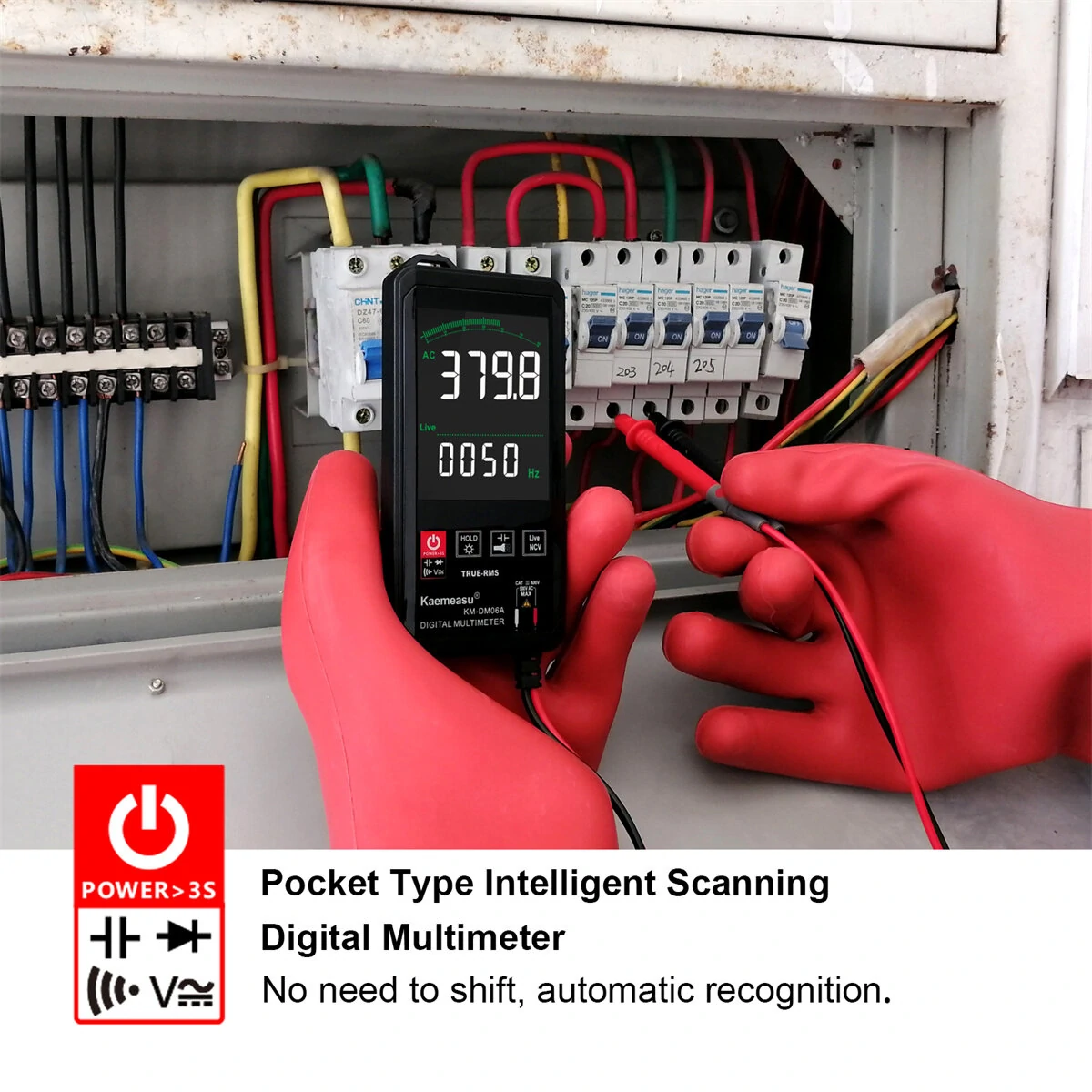

Smart Operation: Continuous power operation means there's no need to switch functions manually. The meter automatically recognizes and measures based on the input of AC or DC current or resistance.

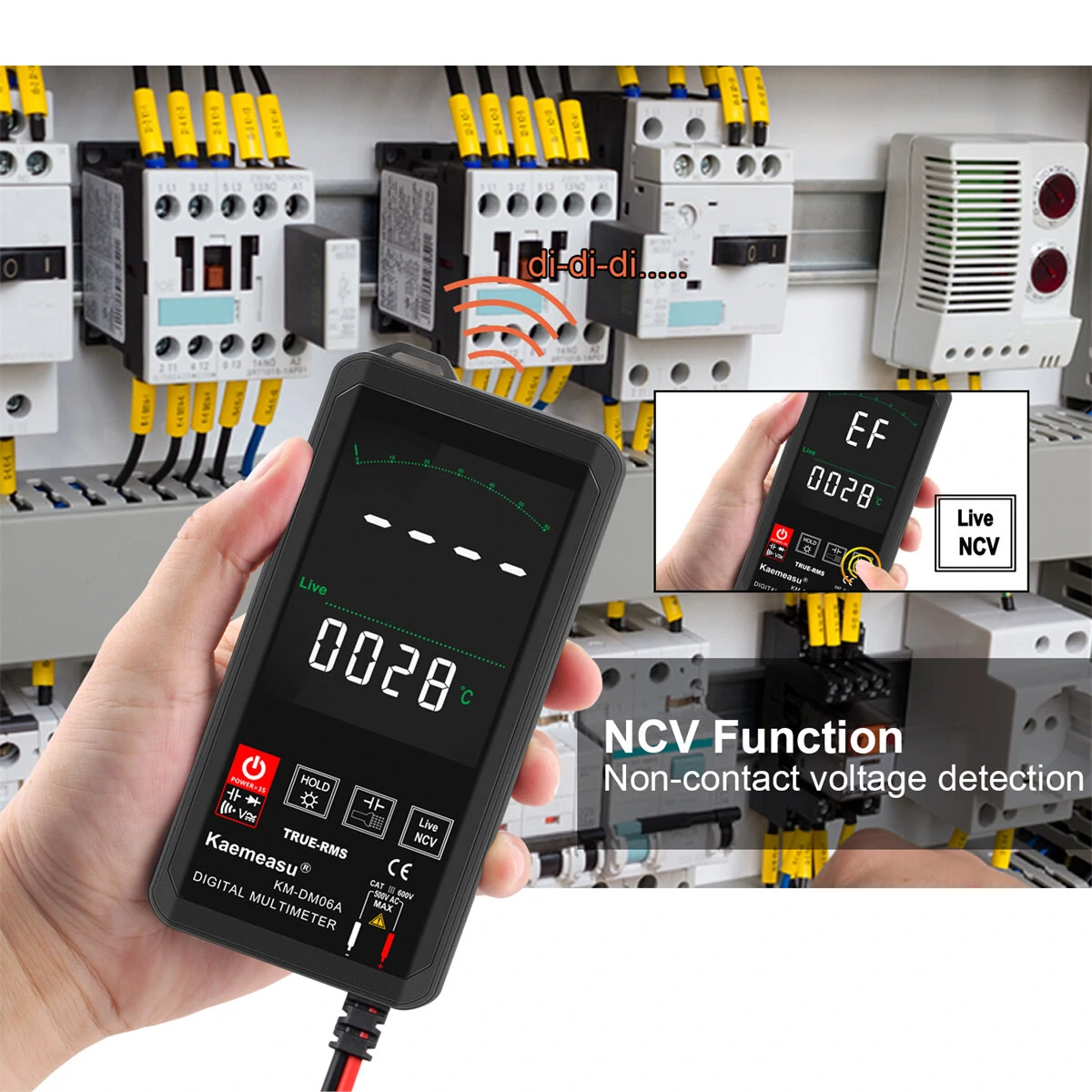

Versatile Measurement: Measure DC voltage and AC voltage, capacitance, NDV, diode, continuity test, live wire judgment, frequency measurement, and true RMS with just one device.

True RMS Measurement: This function allows for accurate and reliable measurements of non-linear loads.

Durable and Portable: Its lightweight, compact design makes it easy to carry, and it's strong enough to stand up to everyday wear and tear.

Power-Saving: Backlight manual/Auto off function saves battery when not in use.

Display Mode: Triple Display LCD; main, sub, analog bar

Maximum Display: 5999 (5 5/6) automatic polarity display

Measurement Method: Double integral A/D conversion

Sampling Rate: Approx. 3 times per second

Over Range Display: The highest position shows “OL”

Working Environment: (0～40)℃，relative humidity＜80%

Power: AAA 2* 1.5V battery (Not included)

Size: 1396818mm (L×W×H)

Weight: About 175g (not including 1.5V battery)

Measurement Ranges:

DC Voltage: 6V/60V/600V/1000V

AC Voltage: 6V/60V/600V/750V

Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

Capacitance: 10nF/100nF/1uF/10uF/100uF/1mF/10mF/60Mf

Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/8MHz

Package Included:

1 x Kaemeasu KM-DM06A Multimeter

1 x English User Manual

(Note: AAA 1.5V Battery is not included in the package)
