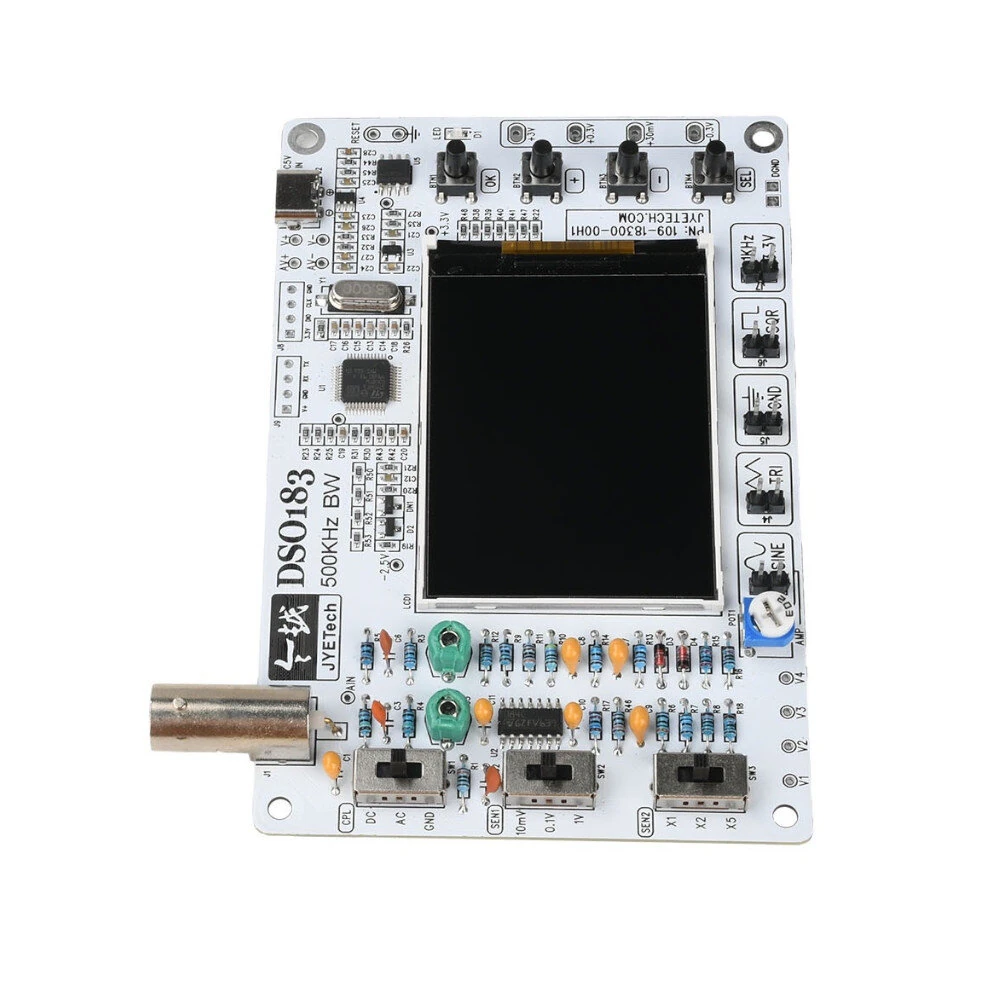

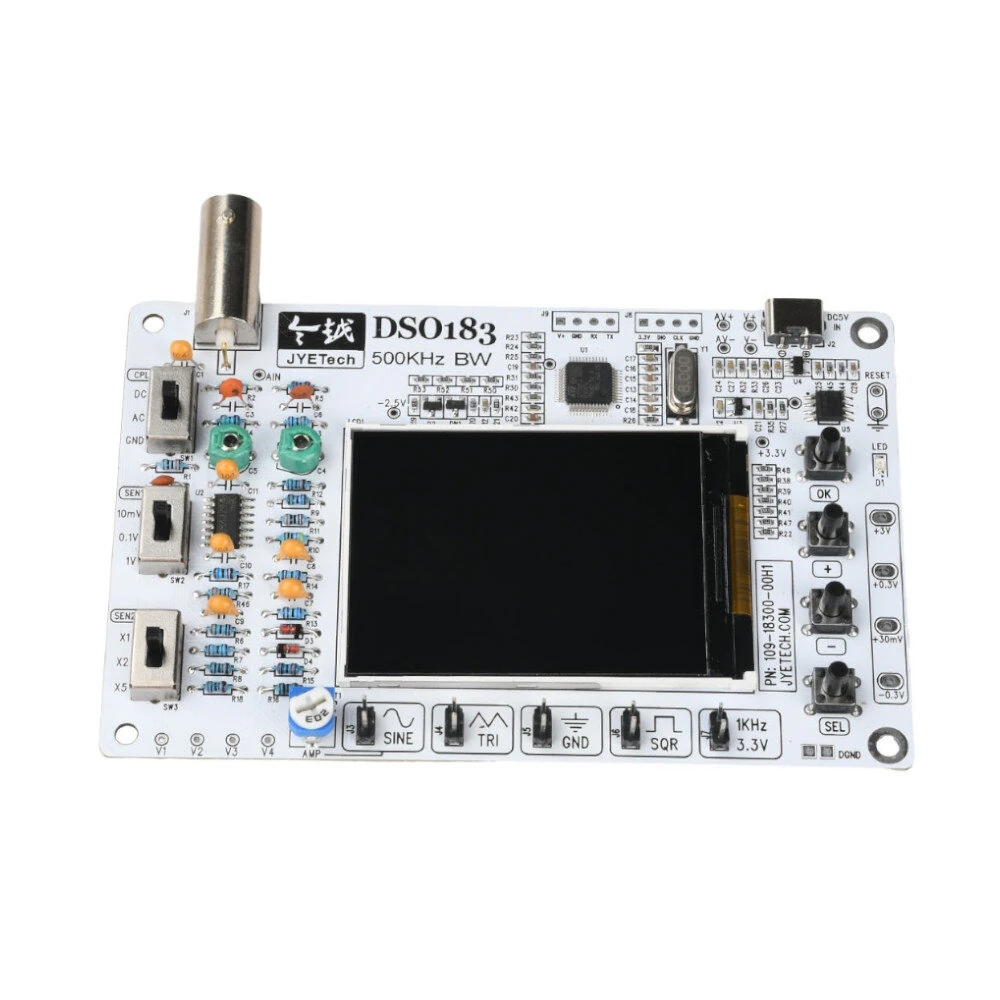

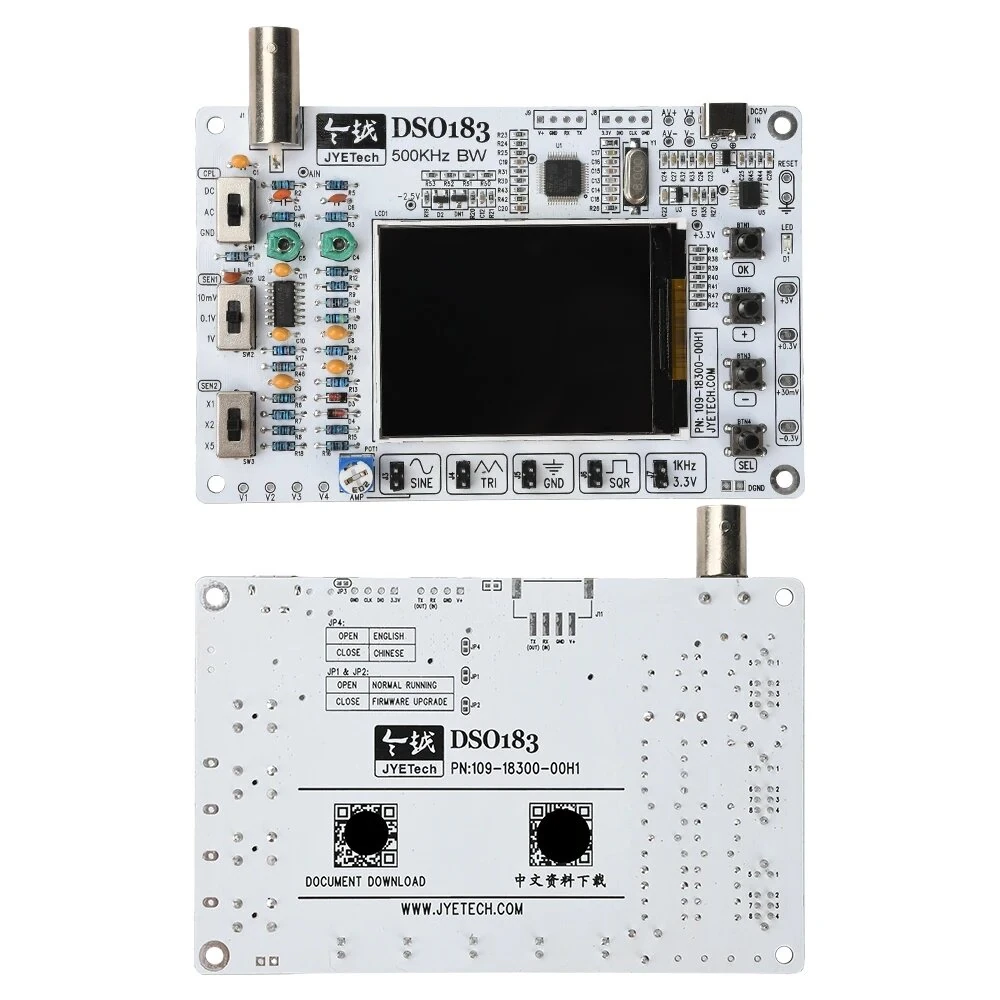

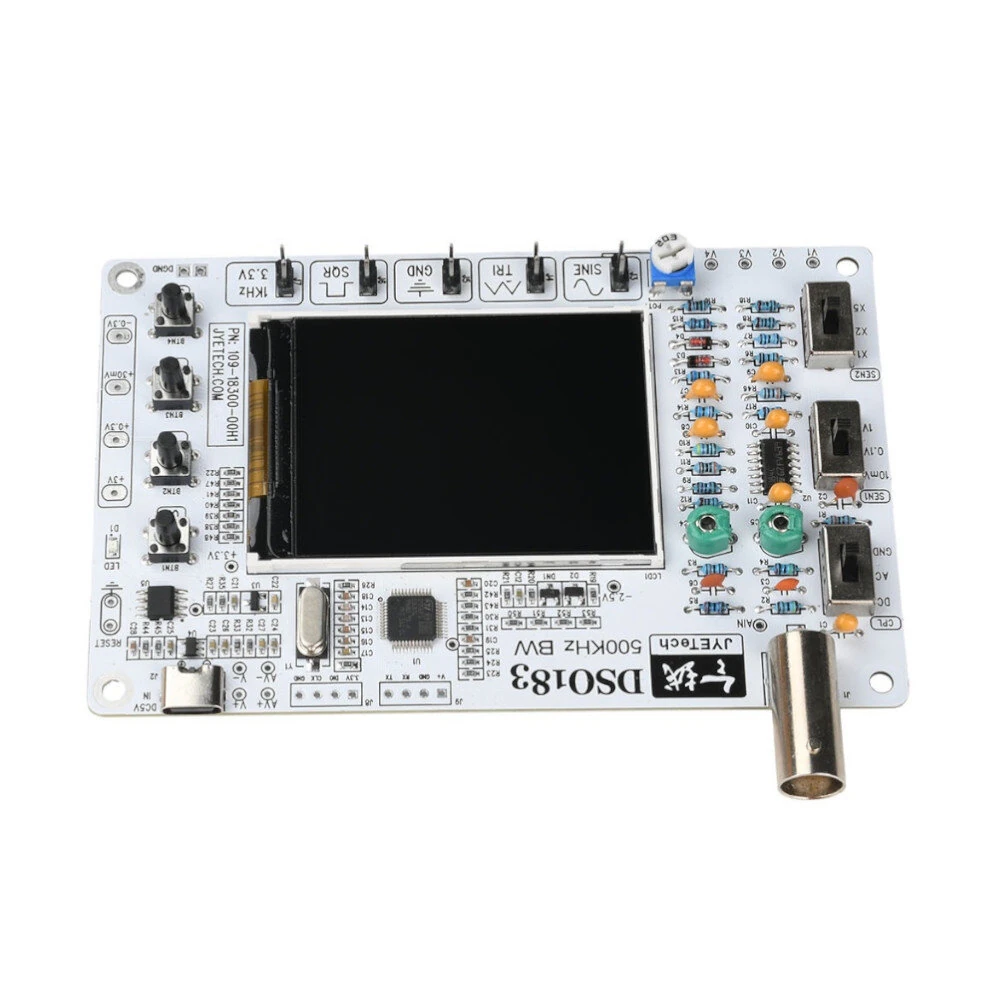

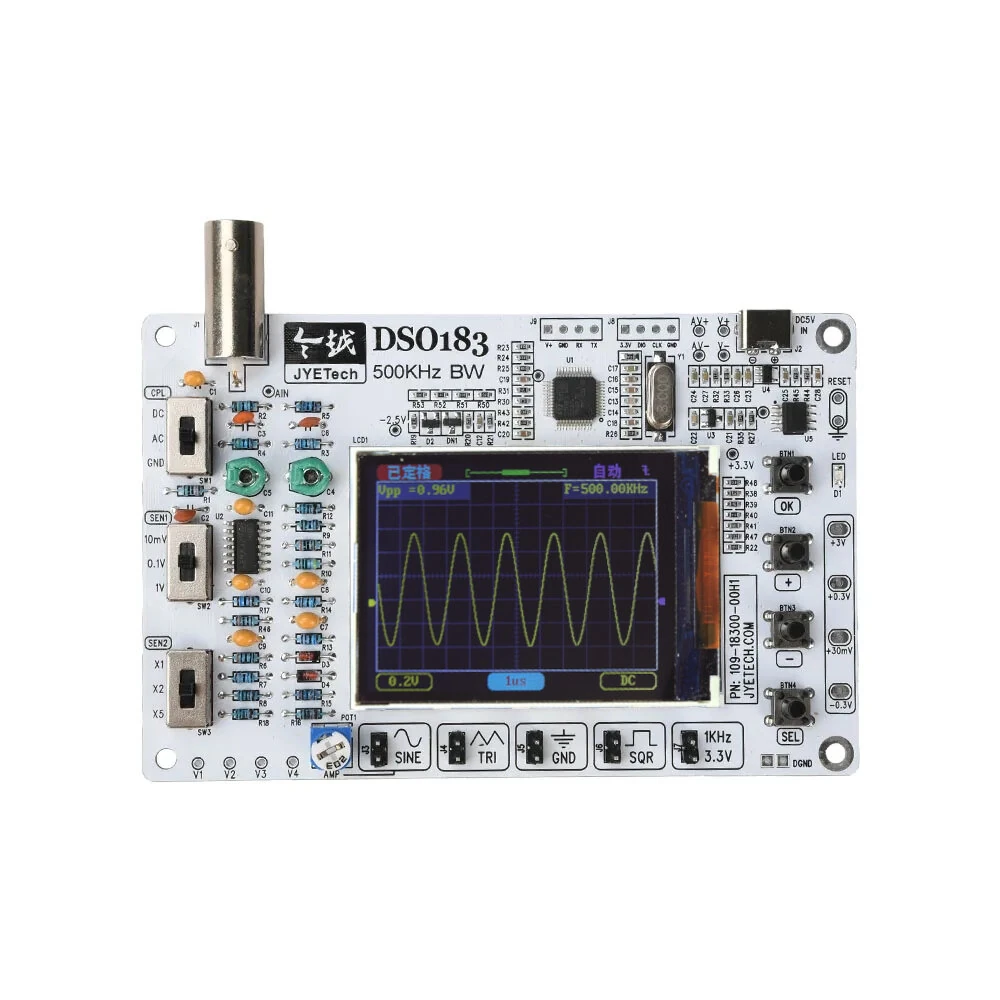

JYETech DSO183 DIY Oscilloscope Kit 500KHz ADC Built in Signal Generator Waveform Display for Electronic Competition Training
5.012 ratingsThe JYETech DSO183 DIY Oscilloscope Kit 500KHz ADC Built in Signal Generator Waveform Display for Electronic Competition Training is a mid-range product designed for DIY enthusiasts and makers. Customers praise its easy to set up and use and excellent build quality. 100% of buyers rate it 4★ or above.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
29% Off — you save ₹993 on this product!
Price: ₹2,390
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The JYETech DSO183 DIY Oscilloscope Kit 500KHz ADC Built in Signal Generator Waveform Display for Electronic Competition Training is a mid-range designed for DIY enthusiasts and makers. Customers highlight its easy to set up and use and excellent build quality.
Customer Verdict
100% of buyers rated this product 4 stars or above. The most appreciated qualities are: easy to set up and use, excellent build quality, fast and responsive, compact and portable.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification:
Model: DSO183
Bandwidth: 500KHz
ADC Precision: 12Bit
Real-time Sampling Rate: 1.5Msps
Waveform Memory Depth: 1024 points
Vertical Sensitivity Range: 10mV/div – 5V/div
Input Impedance: 1MΩ
Maximum Input Voltage: 50Vpk
Coupling Modes: DC, AC, GND
Horizontal Base Range: 1us/div – 500s/div
Trigger Modes: Auto, Normal, Single
Trigger Edge: 1us/div – 500s/div
Waveform Retention Function: Yes
1KHz/3.3V Test Signal: Yes
Square Waves Signal Generation: Yes
Sine Wave Signal Generation: Yes
Waveform Storage/Output Function: Yes
Waveform Parameter Digital Display: Yes, supports display of maximum value, minimum value, peak value, average value, RMS value, frequency, period, and duty cycle
Waveform Retention/Output Function: Yes
Power Supply: DC 5V, USB Type-C interface input
Power Consumption: <100mA

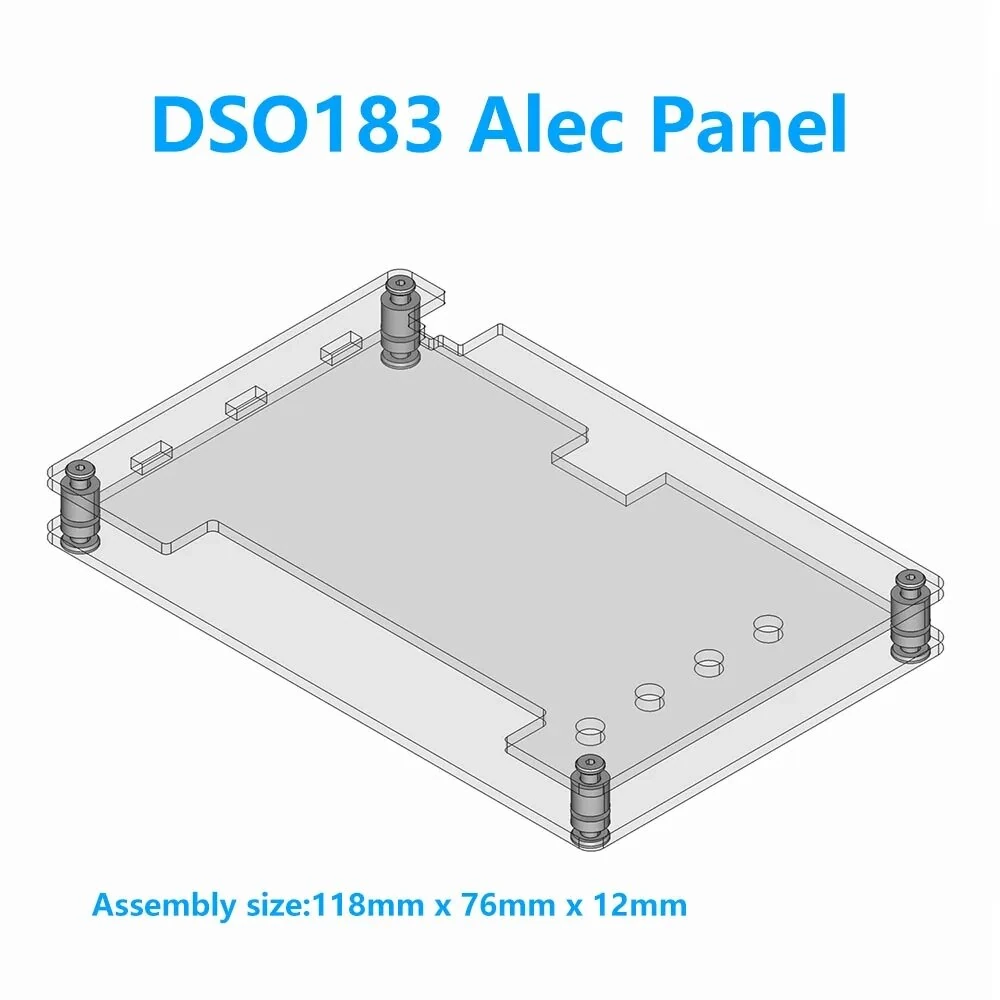

Dimensions: 118 x 76 x 12 mm (excluding front panel)
Weight: 45g (excluding front panel and probe cable)
Display Language: English/Chinese optional

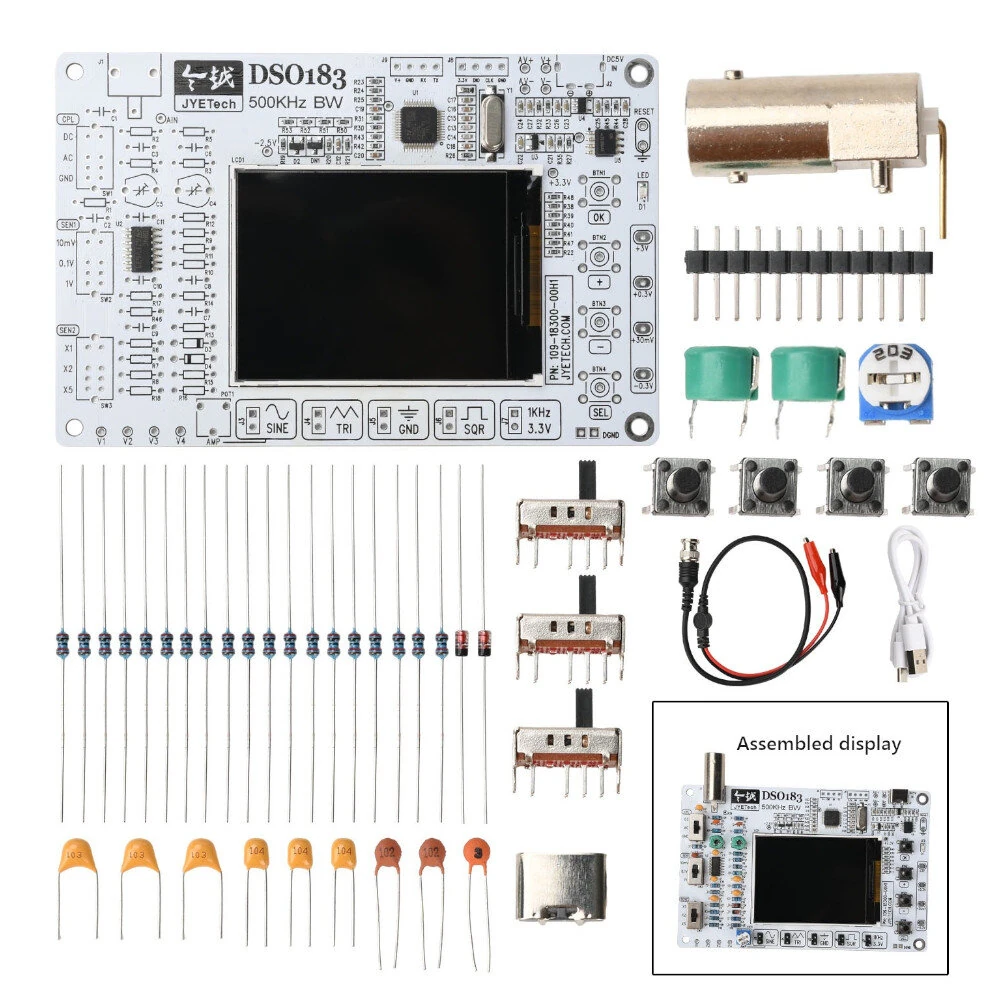

NOTE: This is a DIY kit, you will need to solder and assemble.
Features:
1. Improved Bandwidth: Enhanced from 200 kHz (previous model DSO138) to 500 kHz for reliable signal capturing.
2. Built-in Signal Generator: Includes functionality to generate sine, triangle, and square waves signals for testing purposes.
3. LCD Display: Supports both English and Chinese menus for enhanced usability across different regions.
4. Power Convenience: Operates via USB Type-C input, eliminating the need for additional adapters.

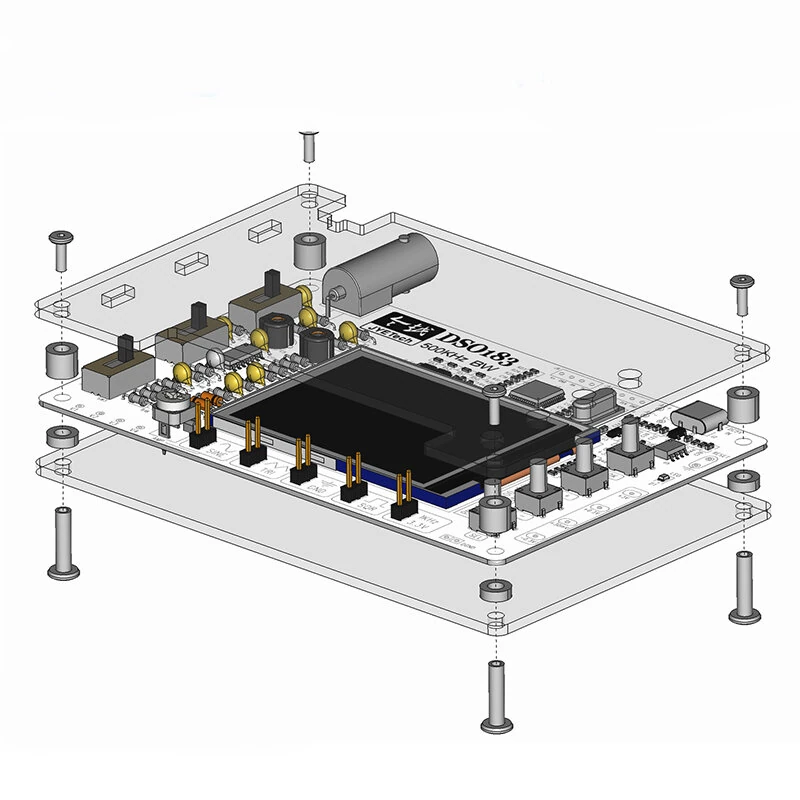

5. Compact and Stable Design: Single-board structure simplifies assembly and reduces the risk of connection issues.
Package Includes:
1x DSO183 Digital Oscilloscope DIY Kit
