JD-6855B 3-in-1 Digital Oscilloscope Multimeter Signal Generator Dual Channel 100M Bandwidth 1GSa/S Sampling Multifunction Tester — image 1
Hover to zoom

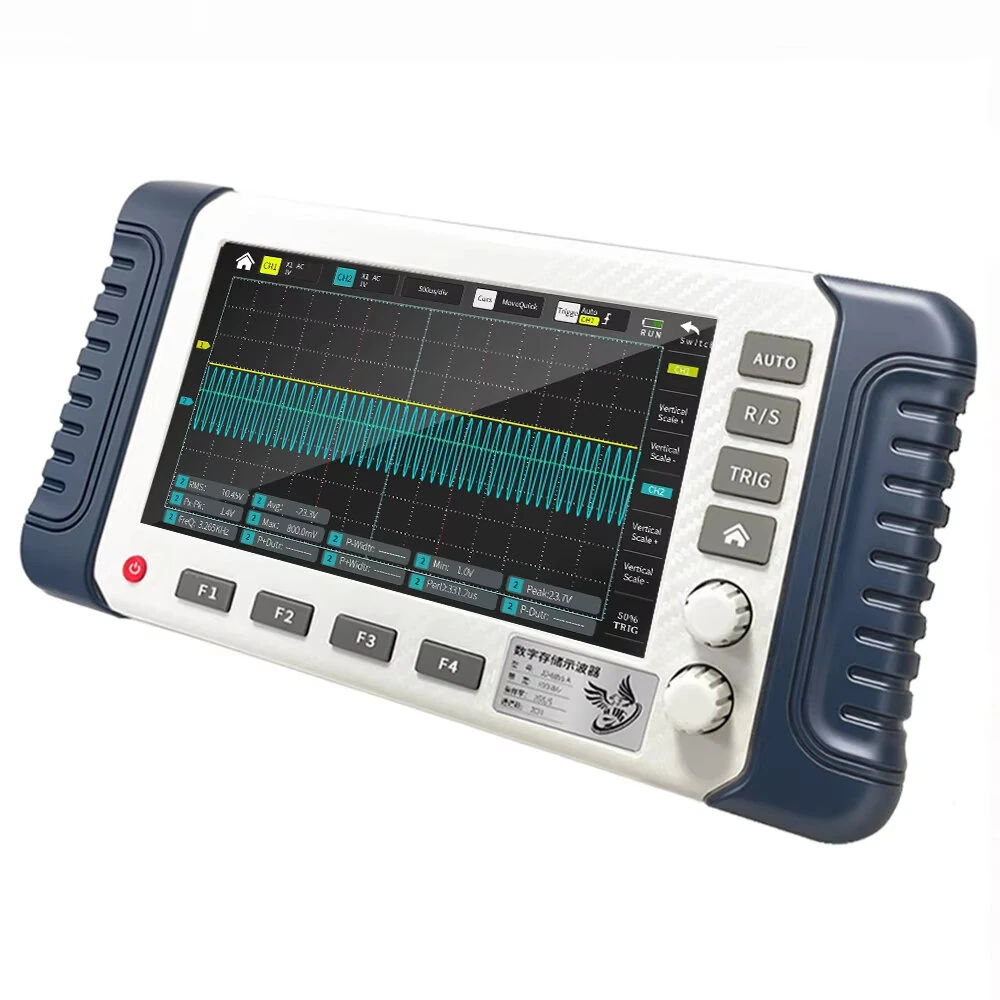

JD-6855B 3-in-1 Digital Oscilloscope Multimeter Signal Generator Dual Channel 100M Bandwidth 1GSa/S Sampling Multifunction Tester

36+ bought in last month
AI Summary
product for premium buyers

The JD-6855B 3-in-1 Digital Oscilloscope Multimeter Signal Generator Dual Channel 100M Bandwidth 1GSa/S Sampling Multifunction Tester is a premium product designed for premium buyers.

₹21,127-2%
MRP:₹21,526Save ₹399
Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

Total: ₹21,127
Buying tip: A top-tier option — the best features and quality available in this category.
Estimated delivery: 27 Aug – 10 Sept
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience
Share:
SKU: bg-2051282

About This Product

The JD-6855B 3-in-1 Digital Oscilloscope Multimeter Signal Generator Dual Channel 100M Bandwidth 1GSa/S Sampling Multifunction Tester is a premium designed for premium buyers. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:
Product Model: JD-6855B
Function: Oscilloscope + Multimeter + Signal generator

Oscilloscope
Channels: Dual Channel
Sampling Rate: 1GSa/S
Bandwidth: 100M
Sensitivity: 10mv---100v
Time Base: 10ns ---200ms
Coupling: AC, DC
Trigger Method: Rising edge, falling edge
Voltage: ±5%
Trigger Mode: Automatic, single, regular
Frequency Accuracy: 8 bit
Storage Depth: ±0.01%
Measurement Parameters: Max, Min, Pk-Pk, Peak, RMS, P+Duty, P-Duty, P+Width, P-Width, FreQ, PerD

Digital Multimeter:
DC Voltage: 0.1mV~1000V
AC Voltage: 1mV~750V (TRMS)
Direct Current: 10μA~10A
Alternating Current: 100μA~10A (TRMS)
Resistor: 0.01Ω~100MΩ
Capacitance: 1pF~100mF
On-off: <50Ω Trigger buzzing
Diode: 0v~1.5v

Signal Generator:
Output Waveform: Zhengxuan wave, sawtooth wave, triangular wave, sqw
Frequency: 1HZ~50KHZ 100KHZ~10MHZ
Amplitude: 0V~3.0VPP
Phase: Non-adjustable
Duty Cycle: Adjustable
Bias: Adjustable

Features:
1. 3-in-1 design combines oscilloscope, multimeter, and signal generator in one unit for repair, testing, R&D, and debugging.
2. Dual channel oscilloscope with 100M bandwidth and 1GSa/S sampling rate supports clear waveform analysis.
3. Supports AC and DC coupling, rising edge and falling edge trigger methods, plus automatic, single, and regular trigger modes.
4. Built-in multimeter covers DC voltage, AC voltage, direct current, alternating current, resistor, capacitance, on-off, and diode functions.
5. Integrated signal generator supports Zhengxuan wave, sawtooth wave, triangular wave, and square wavewith adjustable duty cycle and bias.

Package Included:
1 x JD-6855B Kit
