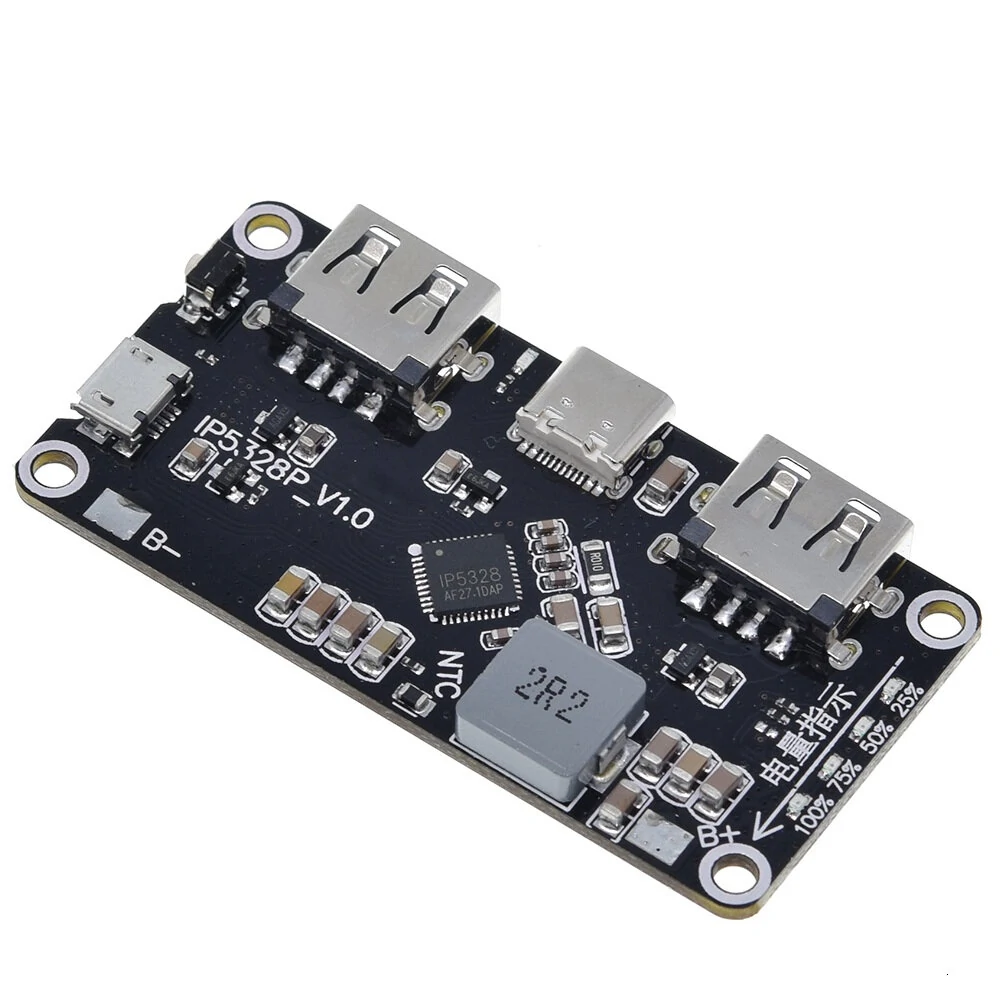

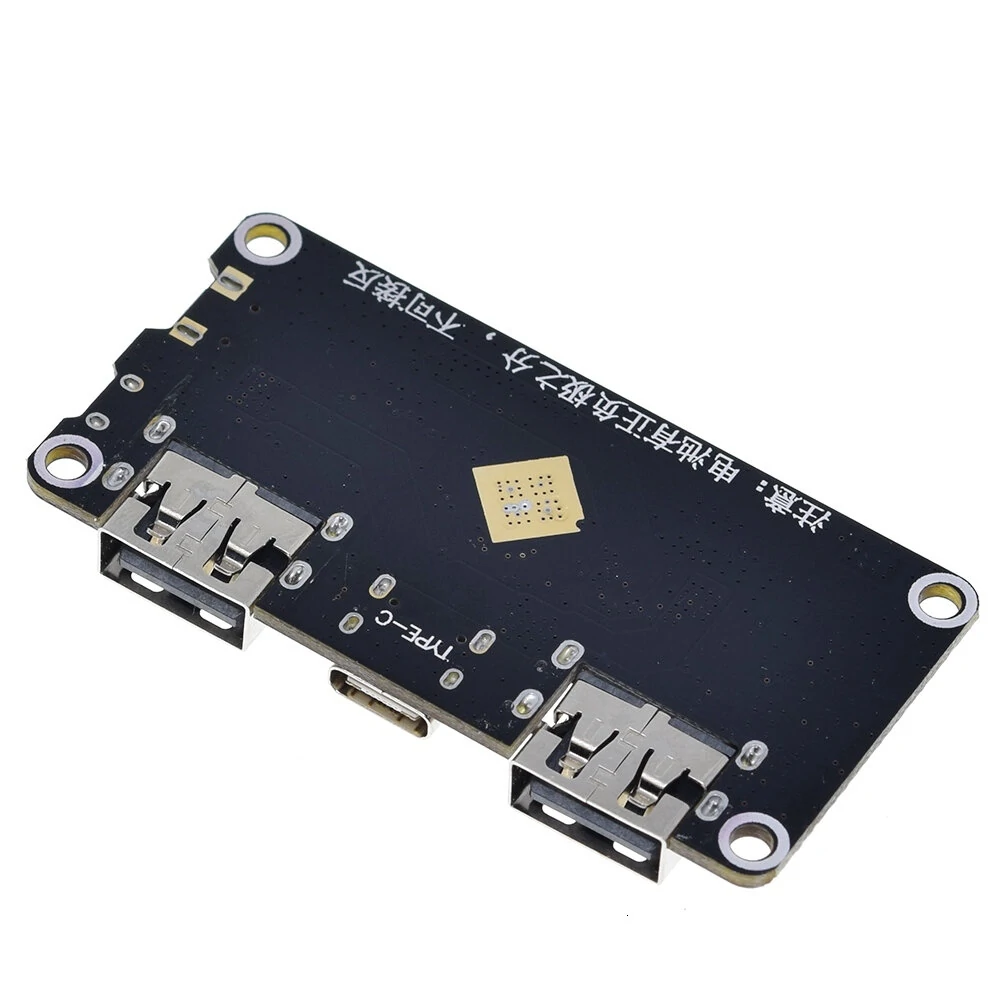

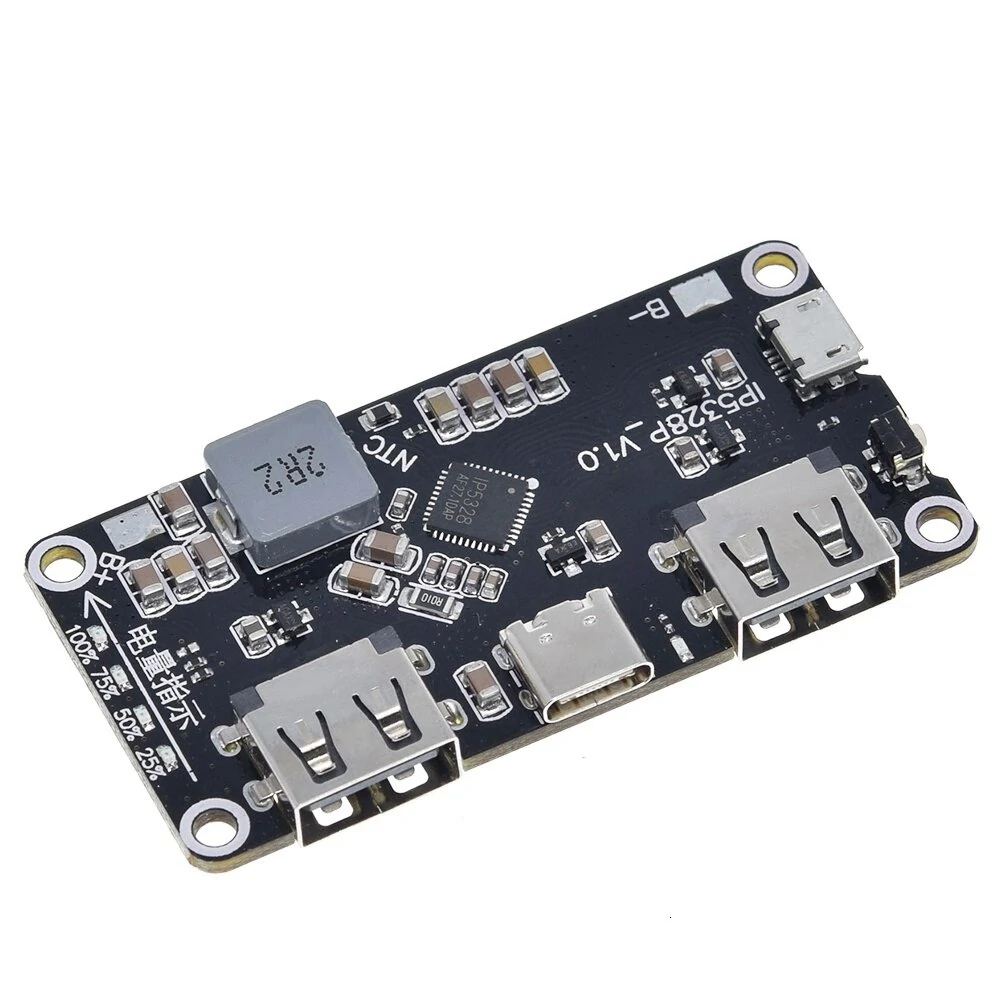

IP5328P Dual USB 18650 Battery Charger Board Mobile Power Motherboard 3.7V to 5V9V12V Step Up

Description:

Adopt Yingjixin IP5328P mobile power solution, four-layer immersion gold board, optimized layout and wiring, support multiple fast charging protocols, two-way 18W fast charging, can support a total of 4 charging ports: 2 USB-A output ports, 1 USB-C interface, 1 Micro USB interface, 4 interfaces support fast charging, of which 2 USB-A ports support QC3.0, FCP, AFC, MTK, SFCP fast charging output, power up to 18W; support Apple, for Samsung, BC1.2 protocol. The USB-C port supports USB PD two-way fast charging, and is compatible with FCP, AFC, SFCP fast charging input and QC3.0, FCP, AFC, MTK, SFCP fast charging output. MicroUSB supports FCP, AFC, SFCP fast charge input.

Size: 65mm*32.5mm ultra-thin four-corner hole diameter 3mm

Output interface: USBA+USBA+TYPE-C supports fast charging output (see the specification for the fast charging protocol)

Input interface: MICRO + TYPE-C supports fast charging input (see the specification for the fast charging protocol)

Battery type: 3.7V battery (aggregate or 18650 lithium battery) connected in parallel, the capacity is not limited, the larger the capacity, the longer the charging and discharging time, please add a protection board for the battery, the main board has positive and negative poles, the battery cannot If you connect it backwards, you will be responsible for the consequences of burning the motherboard! ! !

Fast charge indication: input and output high voltage fast charge indicator

Conversion efficiency: 95% efficiency (power efficiency varies with different voltages) For details, please refer to the specification for introduction

Press the button: If the button lasts longer than 60ms but less than 2s, it is a short press action. A short press will turn on the battery indicator light and boost output, and a super long press for 10s can reset the entire system. There will be no response to the button action of less than 30ms.

Mobile phone insertion automatic detection function:

IP5328P automatically detects the insertion of a mobile phone, wakes up from the standby state immediately, turns on the boost 5V to charge the mobile phone, saves button operation, and supports no button solution.

Function Description:

Battery Lockout and Activation

When the IP5328P is connected to the battery for the first time, no matter what the battery voltage is, the chip is in a locked state, and the lowest bit of the power indicator will flash 4 times to prompt; in the non-charging state, if the battery voltage is too low, it will trigger a low-power shutdown , IP5328P will also enter the locked state.

In the locked state, in order to reduce the static power consumption, the IP5328P does not have a mobile phone insertion detection function, nor can it be activated by pressing a button. At this time, the button action cannot activate the boost output, but the lowest position of the battery light will flash 4 times as a reminder.

In the locked state, you must enter the charging state to activate the chip function.

Charge

The IP5328P has a constant-current, constant-voltage Li-ion battery charge management system that supports synchronous switching architecture. It can automatically match different charging voltage specifications.

When the battery voltage is less than 3V, use 250mA trickle charging; when the battery voltage is greater than 3V, enter the input constant current charging, the maximum charging current of the battery terminal is 5.0A; when the battery voltage is close to the set battery voltage, enter the constant voltage charging; The charging current at the battery terminal is less than about 300mA and the

When the battery voltage is close to the constant voltage, stop charging. After the charging is completed, if the battery voltage is lower than 4.1V, restart the battery charging.

IP5328P adopts switching charging technology with a switching frequency of 500kHz. When charging with normal 5V input, the maximum input power is 10W; when charging with fast charging input, the maximum input power is 18W. The maximum charging current at the battery terminal can reach 5.0A, and the charging efficiency is as high as 94%, which can shorten the charging time by 3/4.

IP5328P will automatically adjust the charging current to adapt to adapters with different load capacities.

The IP5328P does not support simultaneous charging and discharging. In the charging state, the output discharge port will be closed to prevent the input high voltage from damaging the charged device.

Boost

IP5328P integrates a synchronous switching converter system that supports high voltage output, supports 5V~12V wide voltage range output, and the load capacity is 5V—3.1A, 7V—2.4A, 9V—2.0A, 12V—1.5A. The switching frequency is 375KHz. Built-in soft-start function to prevent failure caused by excessive inrush current at startup, integrated output over-current, short-circuit, over-voltage, over-temperature and other protection functions,

Make sure the system works stably and reliably.

The output current of the boost system can be automatically adjusted with the temperature to ensure that the IC temperature is below the set temperature.

Package Include:

1× Battery Charger Board
