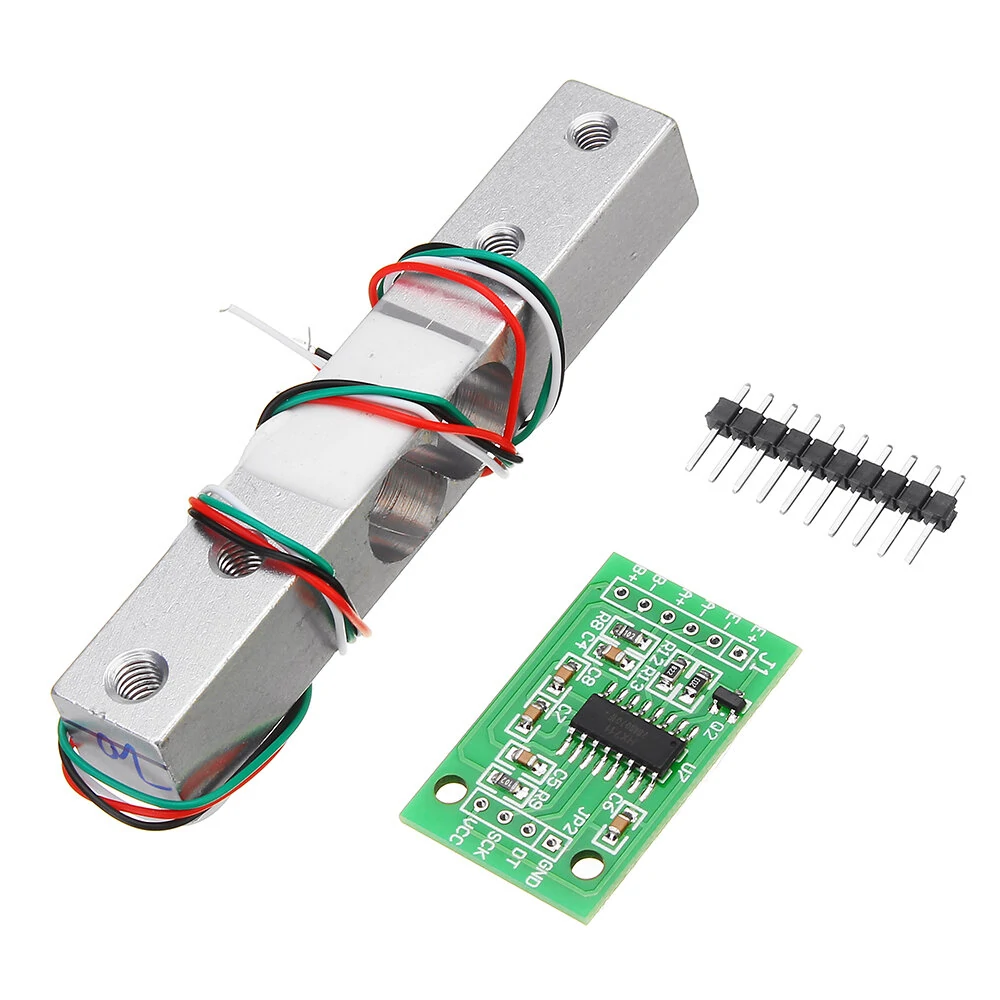

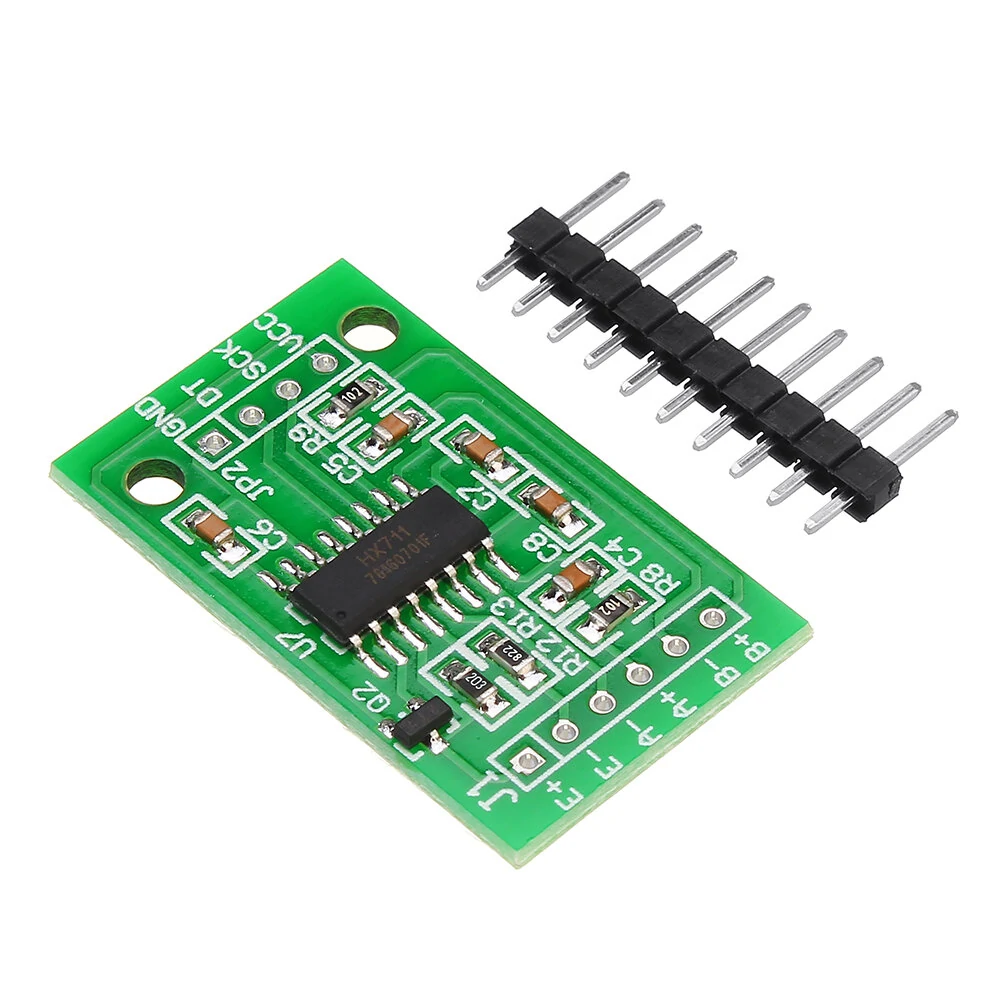

Name: HX711 24bit AD Module + 1kg Aluminum Alloy Scale Weighing Sensor Load Cell Kit Geekcreit for Arduino - products that work with official Arduino boards
Brand: HX711
SKU: bg-1124935
Price: 2000 INR
Availability: InStock
Rating: 5.0 (109 reviews)

Question 1

what is the minimum weight this cell can detect?

Accepted Answer

1g

Question 2

What is the bolt size that fits the threaded holes? I think the larger is 10-32 but what is the smaller?

Accepted Answer

The two holes in the front (where the charge should be apply) are for M4. The two holes in the back (where to fix the LC) are for M5. It is metrics normal M4 and M5 threads.

Question 3

What are the dimensions of the load cell? Width, height and length?

Accepted Answer

Width Is 13mm, height is 13mm length is 80mm. Holes positions : Charge side: 5mm, M4, 15mm, M4, 40mm,  M5, 15mm, M5, 5mm : Fix side

Question 4

I want to read and store the values (Vcc or amp) in output from a measuring instrument of a continuously variable weight.What instrument (with USB interface and Win processing software) do you suggest to me?Thank you

Accepted Answer

not sure for that

Question 5

Not working and trying to check. If I feed +5V and GND to VCC and GND should I get +5V and GND on E+ and E-?.  I received and answer is Spanish.  Can someone answer in English?

Accepted Answer

E+ and E- are not necessarily the same as the input voltage, because E+ and E- are determined by the output of the ADC, not E+ determined by the input voltage, E+, E- is the excitation voltage of the sensor,
                                                                                                                    and the requirements are stricter. So the voltage value is generally different between the input and output voltage
                                                            ...
                                                            see more
                                                            see less

Question 6

Not working and trying to check.  If I feed +5V and GND to VCC and GND should I get +5V and GND on E+ and E-?

Accepted Answer

E' passato tanto tempo da quando lo ho comperato e quindi vado a memoria: mi pare che sui due E appaia una tensione diversa che varia con la sollecitazione del sensore, prova a vedere su youtube qualche tutorial, probabilmente senza
                                                                                                                    sollecitazioni ottieni un valore che poi dovrai far riconoscere al circuito di analisi durante la taratura, sempre che con i 5 volt tu non abbia bruciato il sensore. Purtroppo non riesco a ricordarmi di più perchè ho visto i tutorial ma non ho ancora realizzato il progetto
                                                            ...
                                                            see more
                                                            see less

Question 7

what is its exact dimensions?

Accepted Answer

Size: 3.3x2cm / 1.29 x0.78

Question 8

What is the accuracy of this cell ?

Accepted Answer

1g

Question 9

I see in bangood many (I think) good and intersting  electronic goods - I think should be good to give describes of connectors. Not ever is electonic hobbyst with experience.

Accepted Answer

Please contact us for more information.

Question 10

Has anyone ever used this to sense sudden loss of tension in a steel wire (fencing wire)?  I am not trying to measure the amount of tension accurately just whether the wire has broken.

Accepted Answer

That might very well work.
