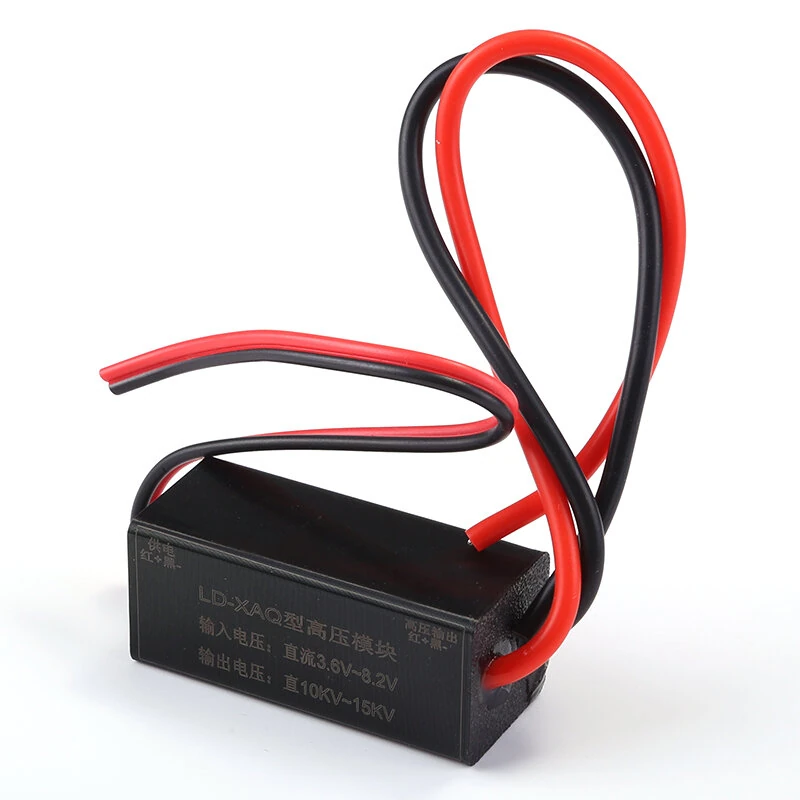

High Voltage Boost Module DC3-9V to 15KV Pulse Arc Generator High Efficiency Energy Conversion Static Charge Experiment DIY Electronics

AI Summary
ZVS Heating Module for DIY enthusiasts and makers

The High Voltage Boost Module DC3-9V to 15KV Pulse Arc Generator High Efficiency Energy Conversion Static Charge Experiment DIY Electronics by Pricio is a mid-range zvs heating module designed for DIY enthusiasts and makers.

₹2,000
Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

Color: Black

Black
Total: ₹2,000
Buying tip: A well-rounded choice at a fair price. Recommended for most buyers.
Estimated delivery: 4 Aug – 18 Aug
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Hobbyist flyingOutdoor recreationKids entertainment
Share:
SKU: bg-2044948Category: ZVS Heating Module

About This Product

The High Voltage Boost Module DC3-9V to 15KV Pulse Arc Generator High Efficiency Energy Conversion Static Charge Experiment DIY Electronics by Pricio is a mid-range zvs heating module designed for DIY enthusiasts and makers. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Product Overview:
This is a professional high-voltage boost module that efficiently converts low-voltage DC power (3V to 9V) into pulsed high voltage up to 15,000 volts. It is specifically designed for applications requiring powerful electric arcs and high-voltage discharges. Key features include high energy conversion efficiency, high arc intensity, compact size, and support for continuous and stable operation.

Specifications:
Input Voltage Range: 3V - 9V DC
Recommended Power Voltage: 7.4V - 8.4V (dual 18650 batteries in series)
Input Current Range: 0.3A - 1.5A (varies with input voltage and load)
Output Voltage Range: 5KV - 15KV (higher input voltage generates higher output voltage)
Pulse Frequency: 3 - 20 pulses per second
Maximum Arc Distance: 1cm - 1.5cm
Built-in Storage Capacitor: 1000pF / 20KV
Continuous Working Time: ≤10 minutes

Features:
1. High-Intensity Pulse Arc Generation: Achieves strong white sparks accompanied by arc sound. Effective air penetration with arc distance ranging from 1cm to 1.5cm.
2. Wide Voltage Compatibility: Operates within a 3V-9V input range. Optimized for 7.4V-8.4V input to maximize output efficiency and performance.
3. Compact Design & Power Efficiency: Pulse mode operation significantly reduces power consumption while maintaining high output, enabling effective integration into portable devices and DIY projects.
4. Reliable Performance: Designed with high-grade insulating materials and robust internal structure, ensuring stable operation even under challenging conditions.
5. Suitable for Multi-Purpose Applications: Ideal for applications like mosquito zappers, gas ignition systems, static charge experiments, or creative DIY electronics.

Package Included:
1 x High Voltage Boost Module

Main Application Areas:
Household and Agricultural Use: Manufacturing electric mosquito killers and pest control devices.
Scientific Research and Education: Used for high-voltage discharge experiments, demonstrations of electrostatic phenomena, and as teaching aids for physics.
Industrial and Security Applications: Gas ignition, static electricity elimination, and security system integration.
Creative DIY: Driving Tesla coils, creating special effects props, etc.

Precautions for Use:
Safety Warning: Even after the module is powered off, the output capacitor may still store high-voltage charge! Always short-circuit the output terminal to completely discharge it before operation to prevent electric shock.
Do not short-circuit the output terminal for extended periods to avoid overloading and damaging the module.
High-voltage arcs have ignition capabilities; please use in a safe environment away from flammable and explosive materials.
