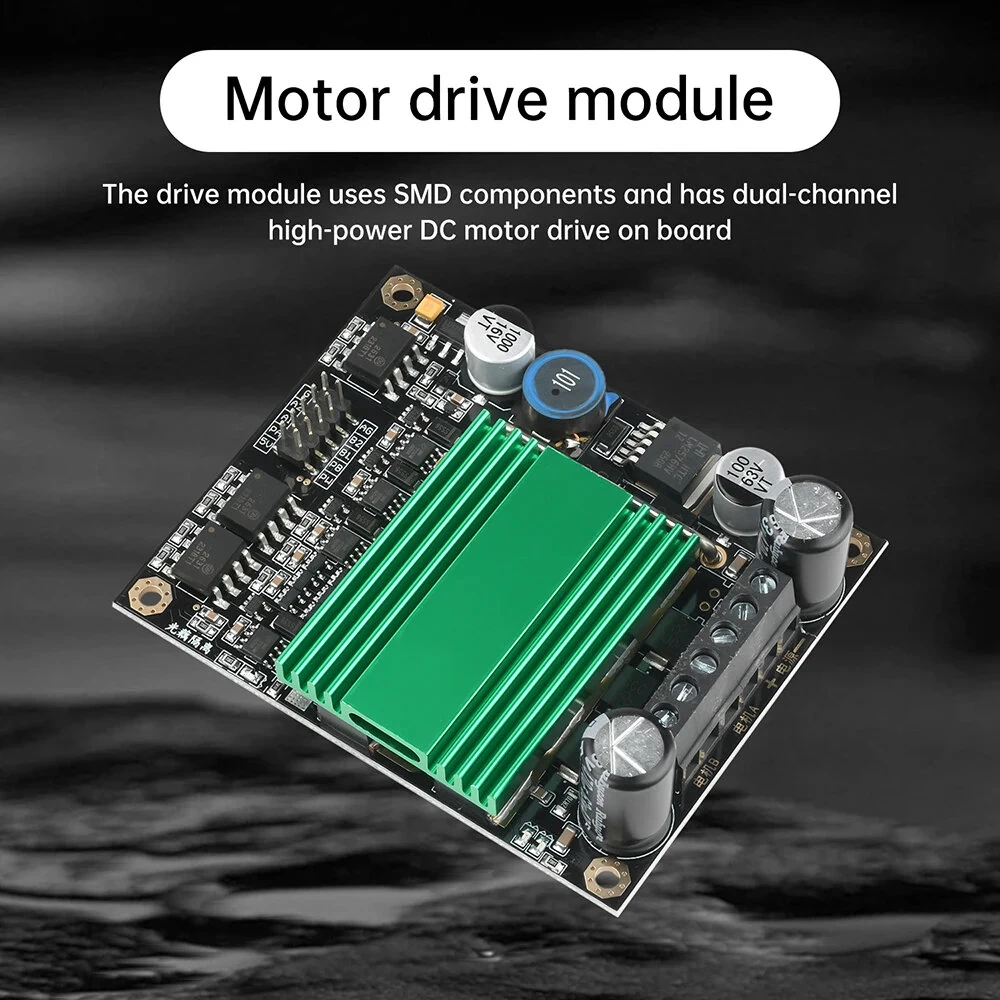

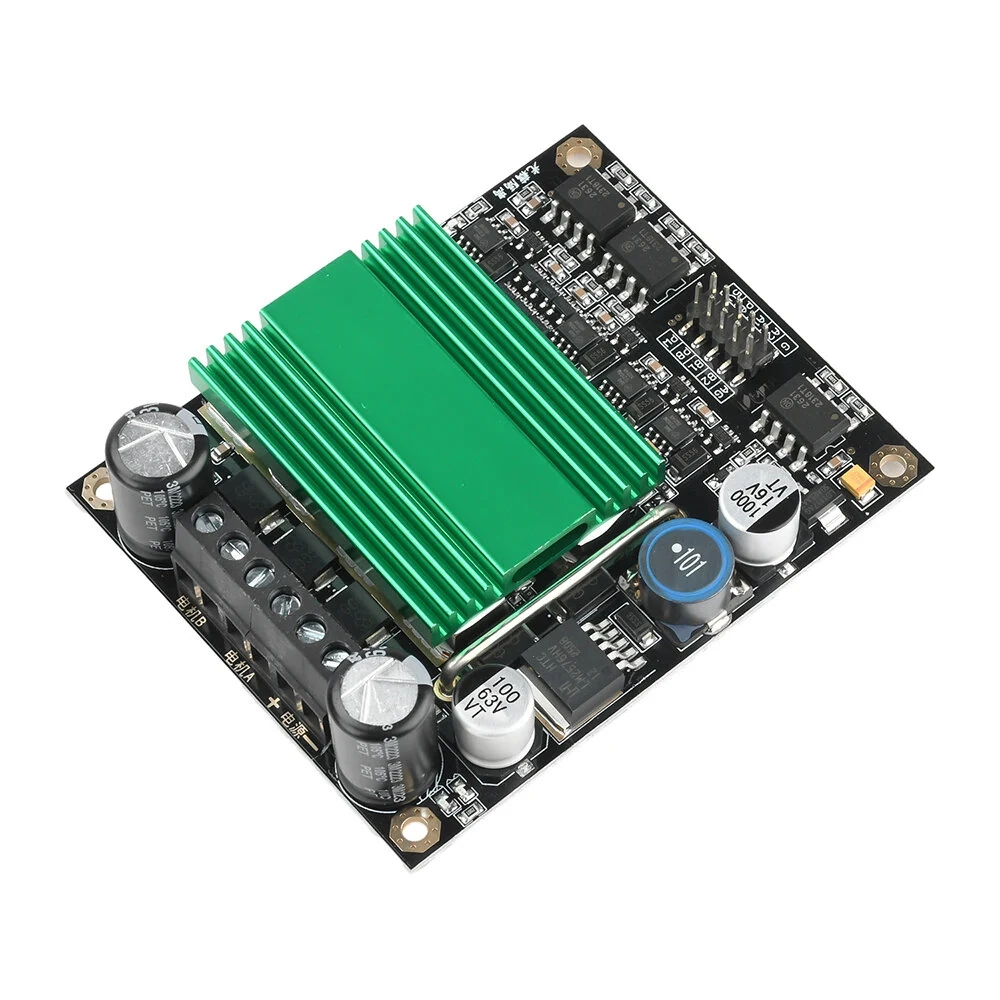

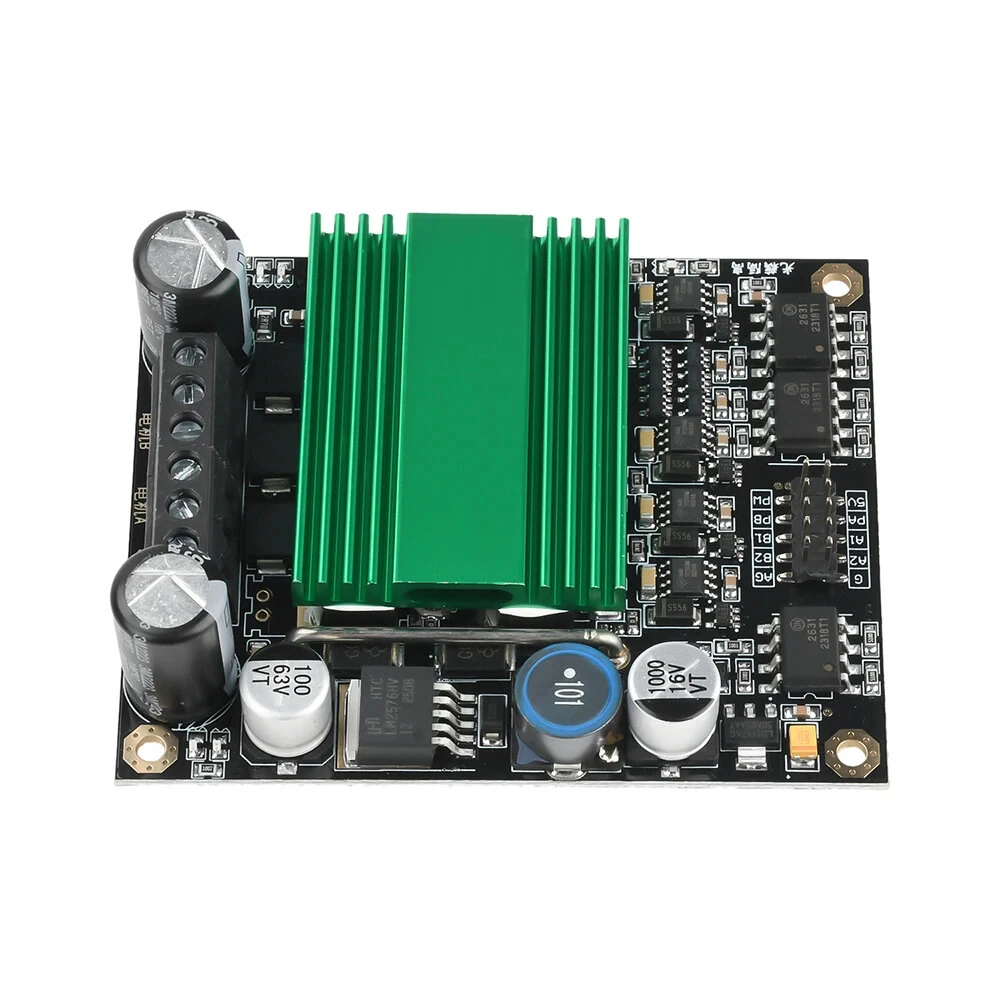

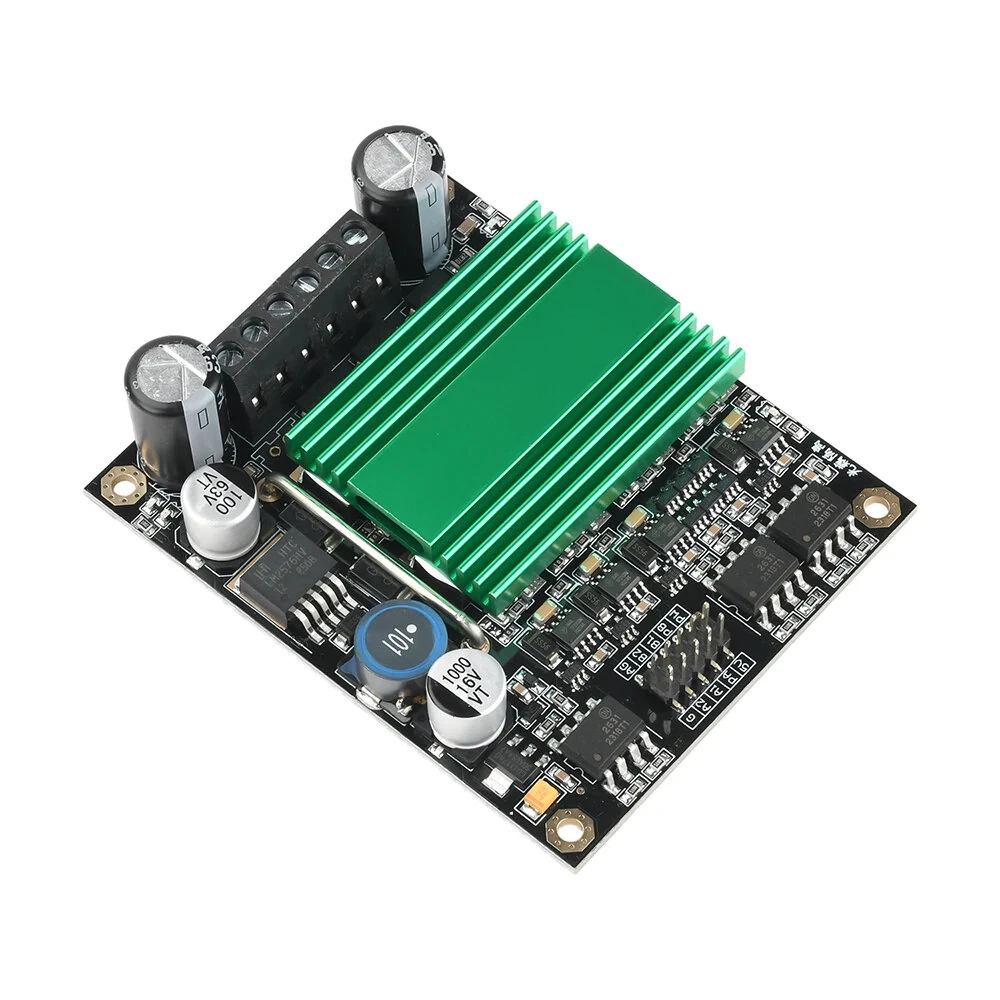

High Power H-bridge DC Motor Controller Drive Module 12V 48V Dual Channel Motor Driver PWM Control Heat Dissipation Signal Isolation High Frequency

35+ bought in last month
AI Summary
product for everyday users

The High Power H-bridge DC Motor Controller Drive Module 12V 48V Dual Channel Motor Driver PWM Control Heat Dissipation Signal Isolation High Frequency is a premium product designed for everyday users.

₹5,642-25%
MRP:₹7,519Save ₹1,877
Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

25% Off — you save ₹1,877 on this product!

Quantity: 1pc

1pc
Total: ₹5,642
Buying tip: A quality investment for dependable performance and premium build quality.
Estimated delivery: 25 Aug – 8 Sept
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience
Share:
SKU: bg-2045047

About This Product

The High Power H-bridge DC Motor Controller Drive Module 12V 48V Dual Channel Motor Driver PWM Control Heat Dissipation Signal Isolation High Frequency is a premium designed for everyday users. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:

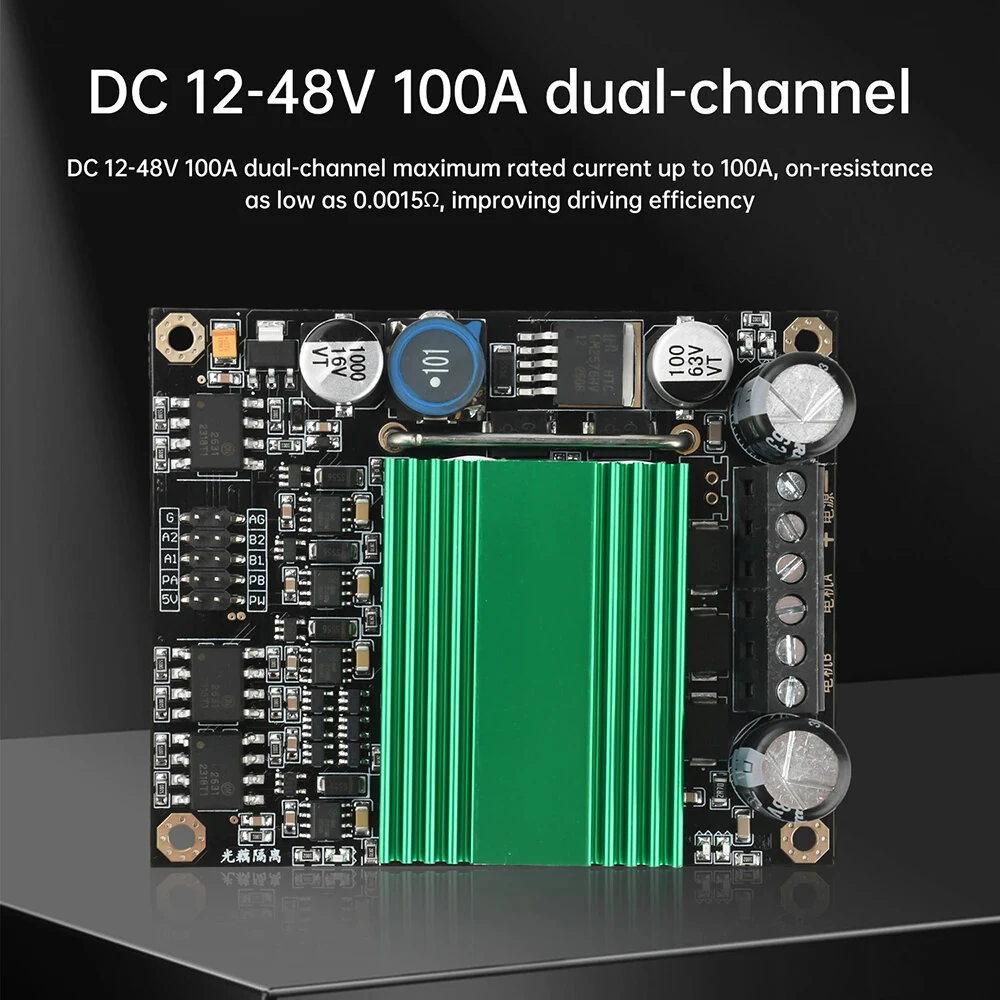

Input Voltage: DC 12V-48V
Maximum Current: 100A
Switching Frequency: Up to 60kHz
Signal Isolation: 10M high-speed optocoupler
On Resistance: As low as 0.0015 Ω
Compatibility: Compatible with 3.3V and 5V microcontrollers

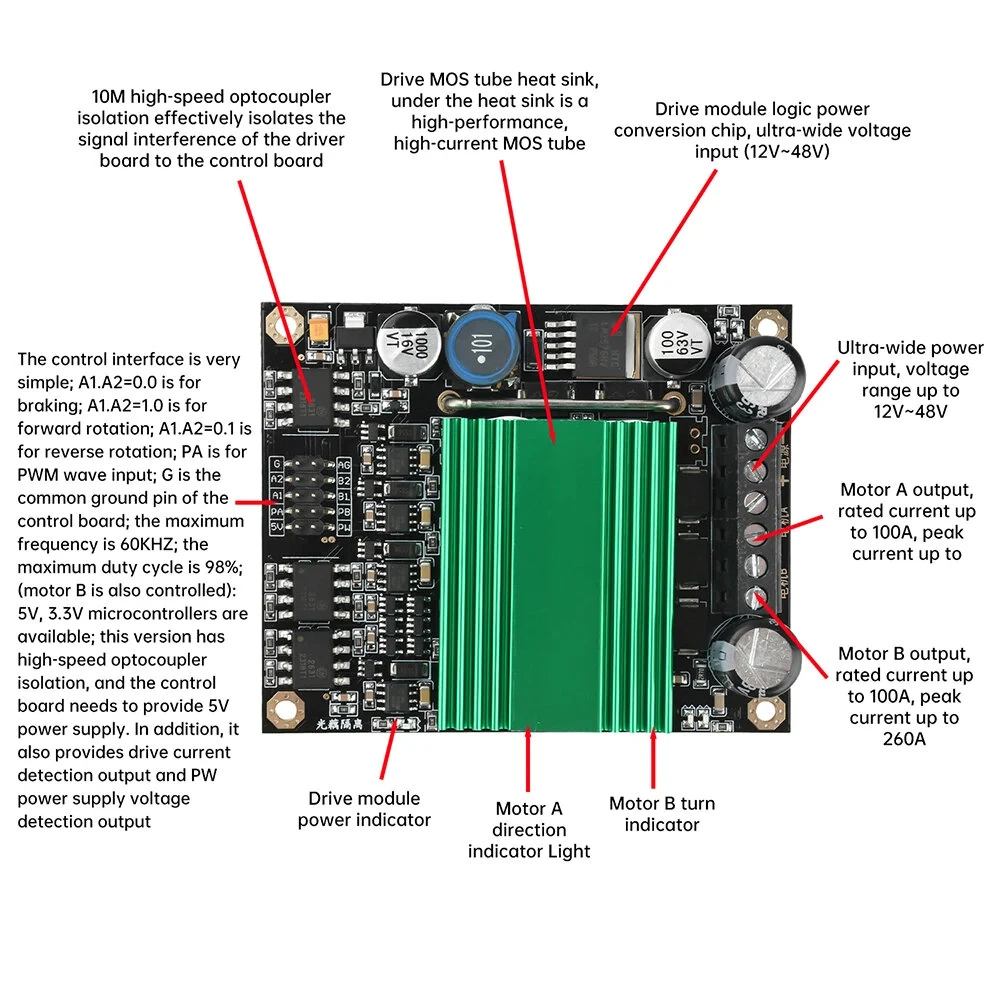

Control interface:
When A1.A2=0.0, it is the brake
When A1 and A2 are equal to 1.0, it is a forward rotation
When A1 and A2=0.1, it is reversed
PA is PWM wave input (motor speed regulation)
G is the common ground pin with the control board (B is the same control)

Features:
1. High Power Output: Capable of handling a maximum current of 100A, this module ensures reliable performance for high-power DC motors in demanding applications.
2. Wide Voltage Range: Supports input voltages from 12V to 48V, meeting various power needs for different setups.
3. Optimized Heat Dissipation: Equipped with large heat sinks to efficiently control temperatures during high-current operations, maintaining stable performance.
4. Advanced Signal Isolation: Features 10M high-speed optocoupler isolation to reduce interference and enhance control system reliability.
5. High Switching Frequency: Operates at up to 60kHz for precise motor control, avoiding noise and improving functionality in key motor control tasks.

Package Included:
1 x High Power H-Bridge Motor Driver Module
