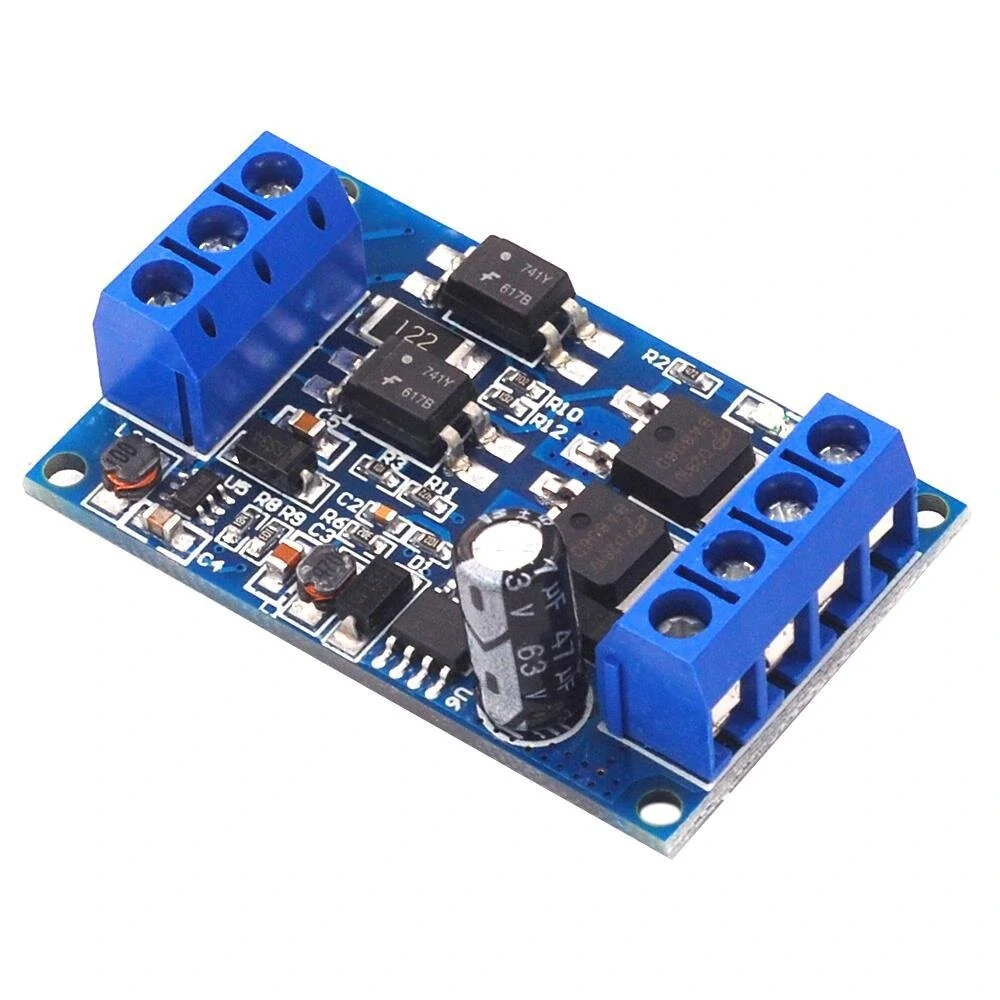

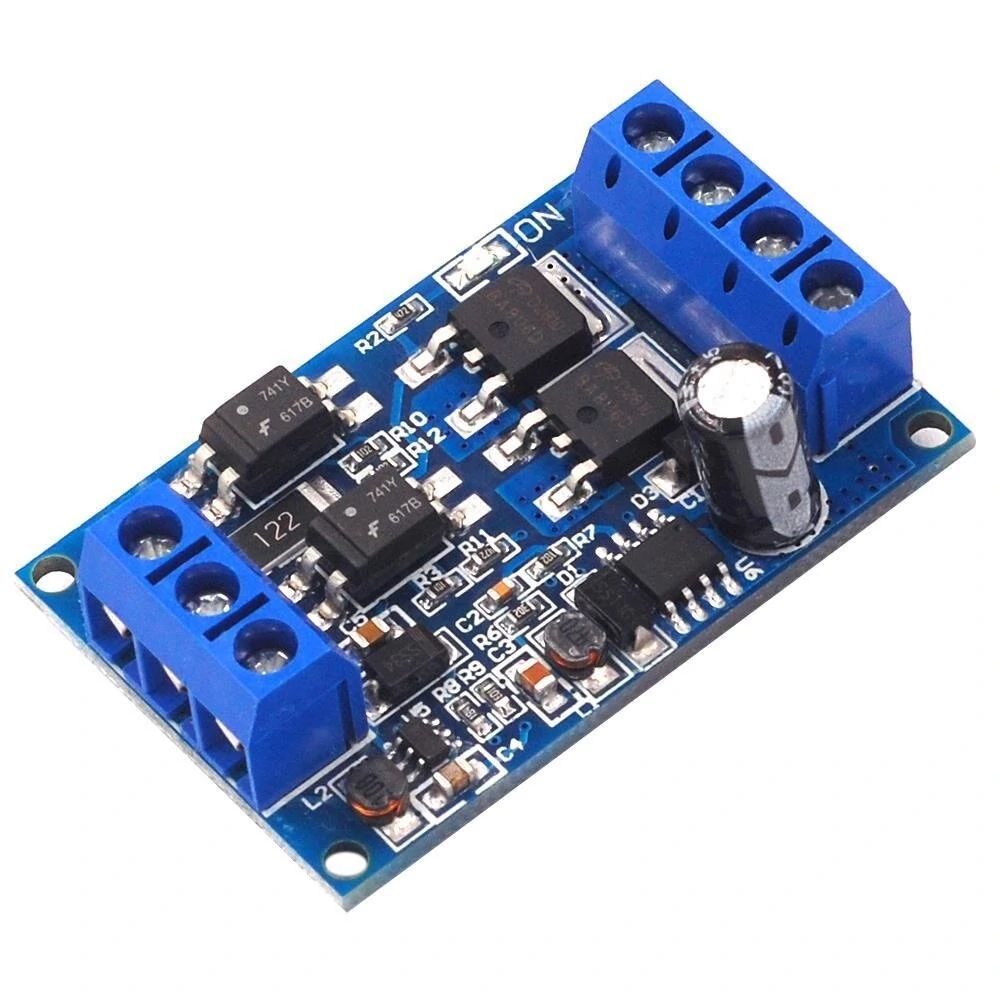

High Power 600W MOS FET Trigger Switch Driver Module PWM Regulation Electronic Switch Control Board

5.04 ratings
591+ bought in last month
AI Summary
product for everyday users

The High Power 600W MOS FET Trigger Switch Driver Module PWM Regulation Electronic Switch Control Board is a value-for-money product designed for everyday users. Customers praise its fast and responsive and accurate and reliable.

✓ fast and responsive✓ accurate and reliable
₹723-30%
MRP:₹1,033Save ₹310
Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

30% Off — you save ₹310 on this product!

Total: ₹723
Buying tip: A smart budget buy — solid performance without breaking the bank.
Estimated delivery: 27 Aug – 10 Sept
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience
Share:
SKU: bg-1980289

About This Product

The High Power 600W MOS FET Trigger Switch Driver Module PWM Regulation Electronic Switch Control Board is a value-for-money designed for everyday users. Customers highlight its fast and responsive and accurate and reliable.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.


Specification:
Working voltage: DC 4V--60V

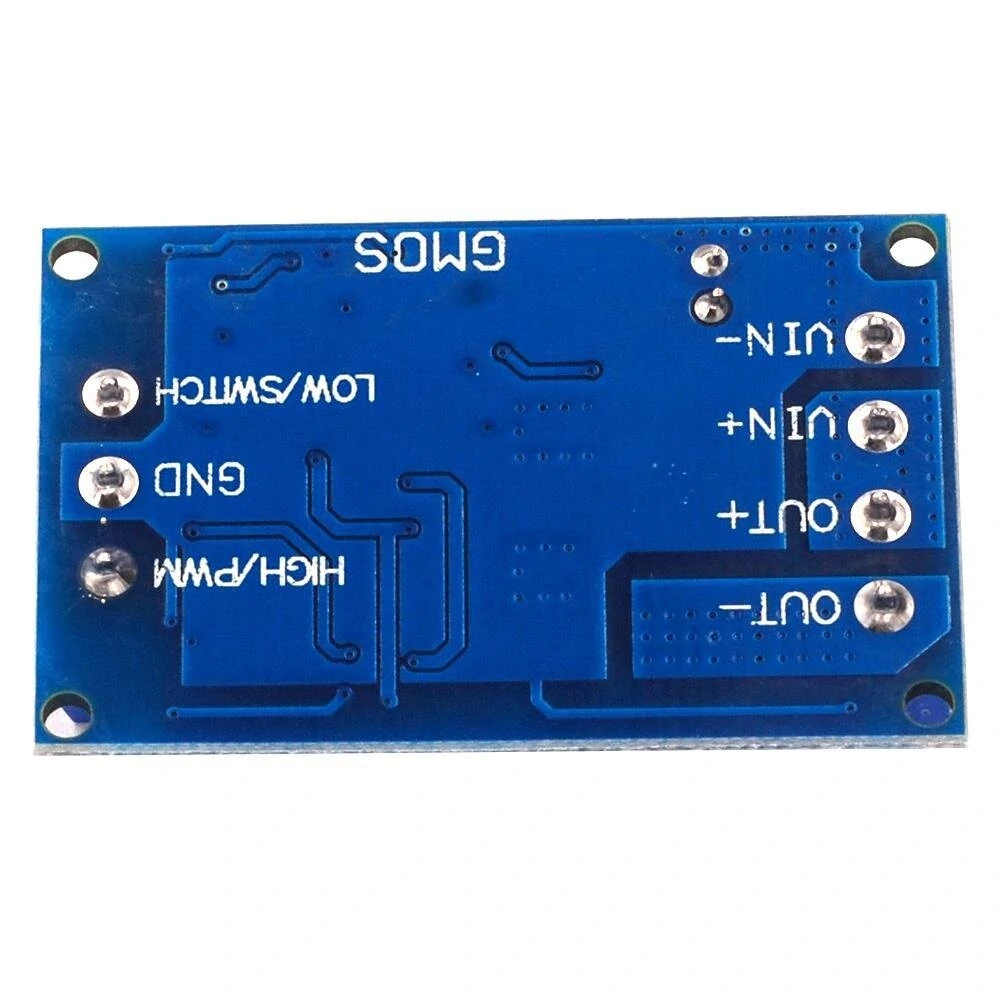

Trigger signal source: high-level trigger (DC3.0V-24V), low-level trigger (DC 0.0V~0.6V), switching value control, can be connected to single-chip IO port, PLC interface, DC power supply, etc., can be connected to PWM signal , signal frequency 0−−2.5KHZ perfect support
Output capacity: DC4V-60V, continuous current 10A at room temperature, power 600W. Under the condition of auxiliary heat dissipation, the current can reach 15A
Application: The output terminal can control high-power equipment, motors, light bulbs, LED light strips, DC motors, micro pumps, solenoid valves, etc., and can input PWM to control the motor speed and the brightness of the lights, etc.
Service life: unlimited switch
Working temperature: -40~85℃
Size: 4.6*2.9*1.5CM

Features:
1. This module supports high-level trigger, low-level trigger, switching value control, PWM control system

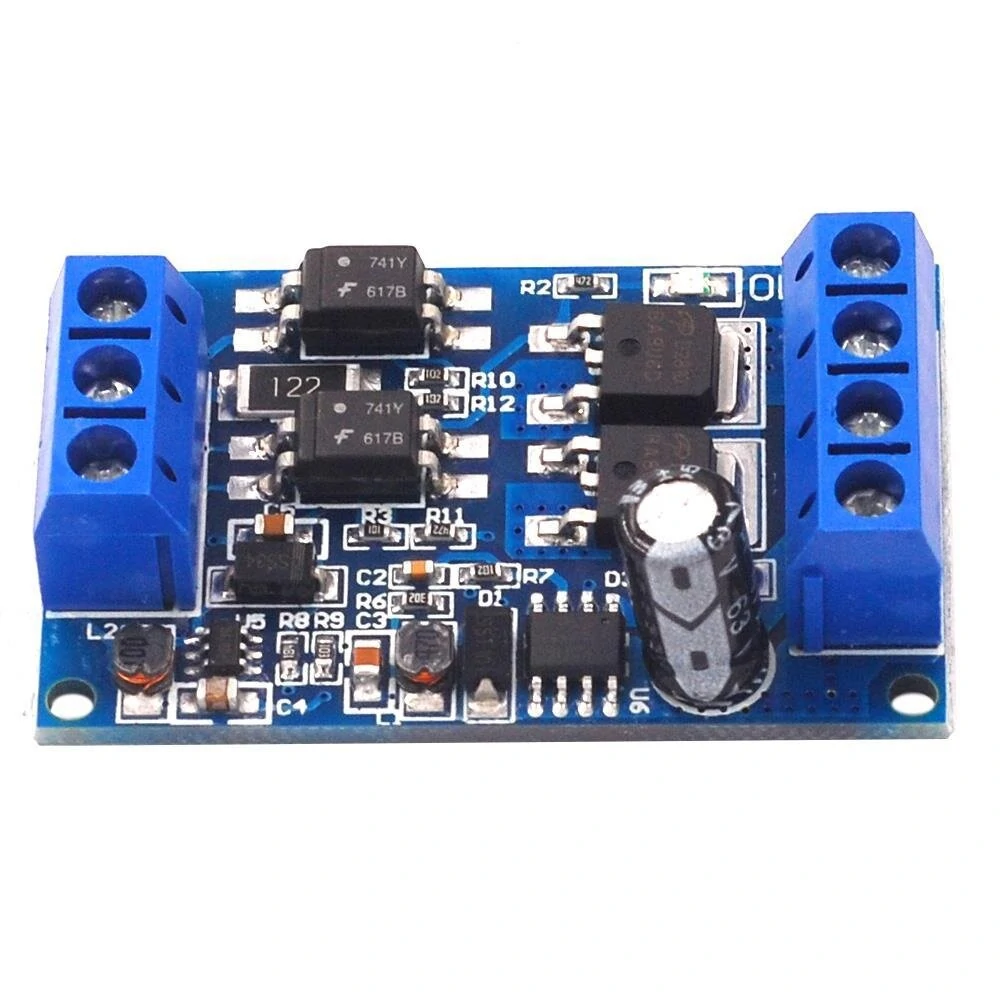

2. Adopt imported dual MOS parallel active output, lower internal resistance, larger current, strong power, 10A, 600W at room temperature, which meets the needs of most equipment
3. Support ultra-wide voltage: DC 4V~60V
4. Easily realize the control of high-power equipment

Package Include:
1× Module Board
