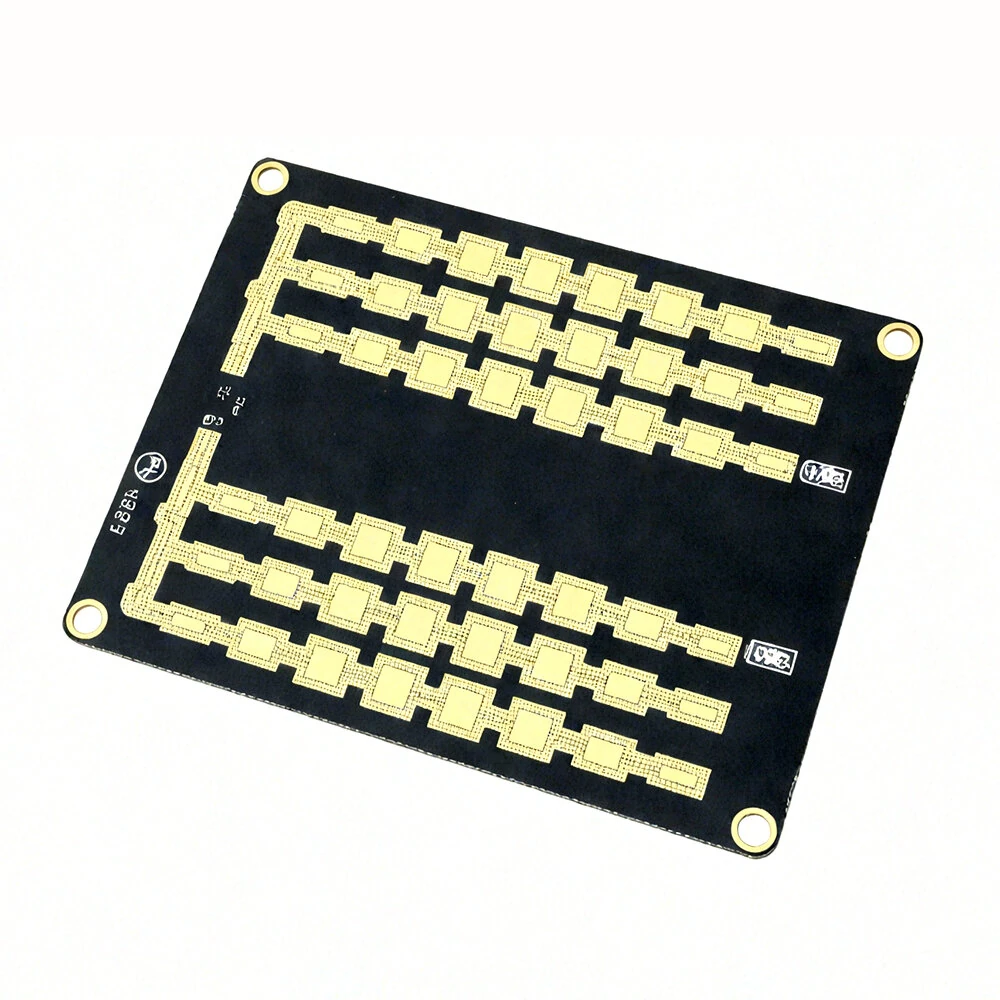

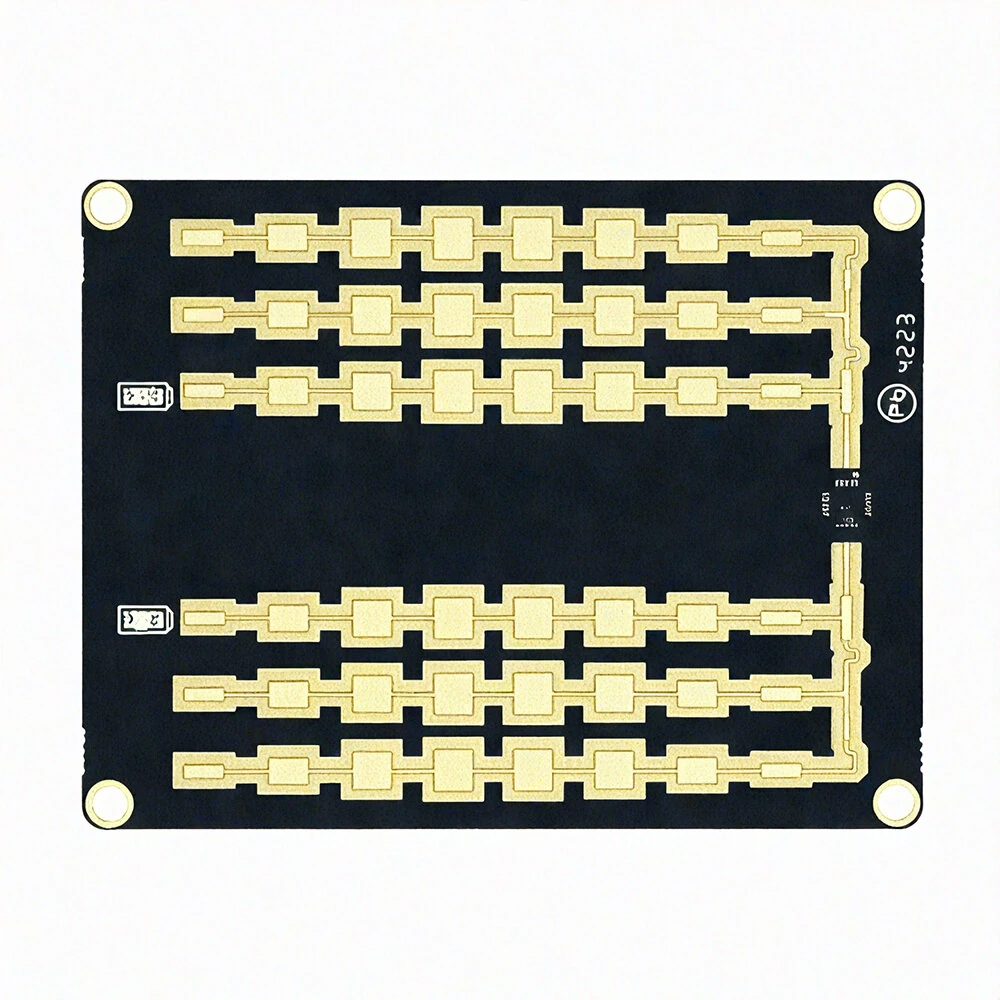

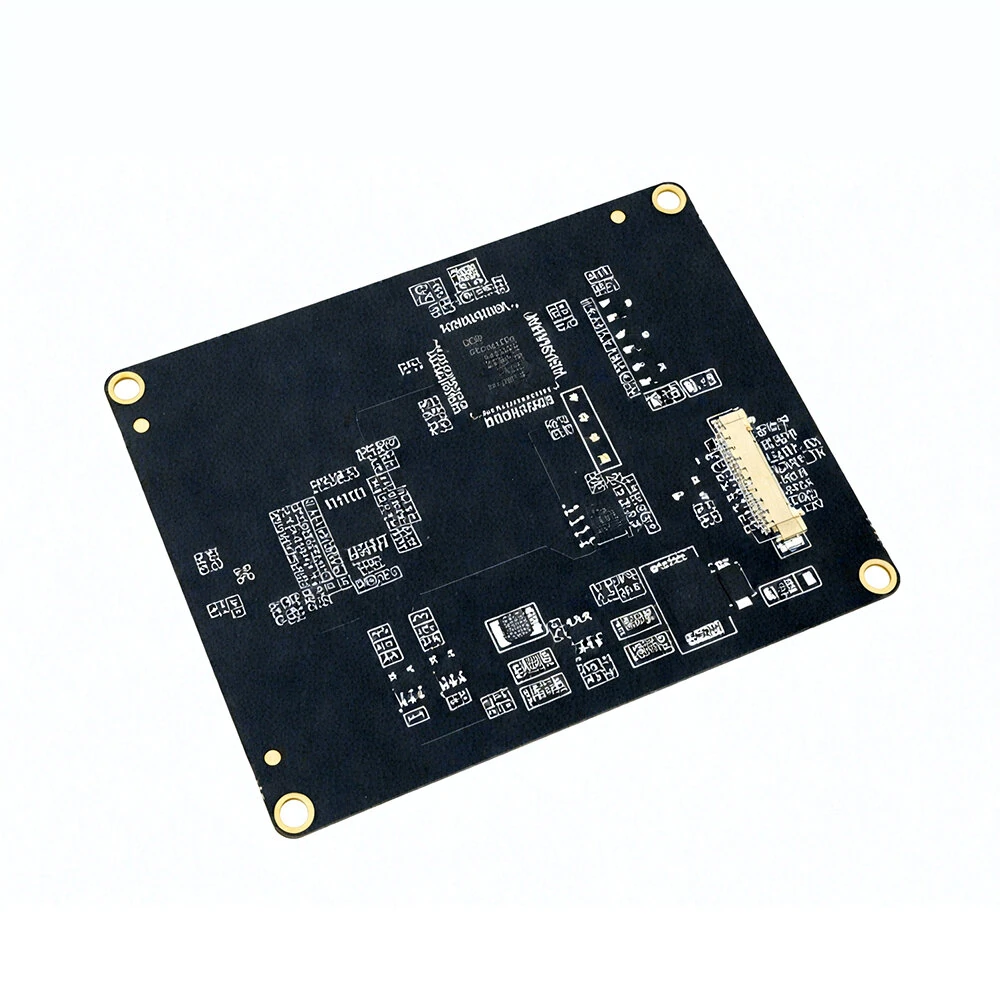

Hi-Link LD2415H Millimeter Wave Vehicle Speed Radar Module 24G Long Range Speed Measurement RS485 TTL Port Sensor Module

25+ bought in last month
AI Summary
product for everyday users

The Hi-Link LD2415H Millimeter Wave Vehicle Speed Radar Module 24G Long Range Speed Measurement RS485 TTL Port Sensor Module is a mid-range product designed for everyday users.

₹4,946-31%
MRP:₹7,143Save ₹2,197
Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

31% Off — you save ₹2,197 on this product!

Price: ₹4,946

Total: ₹4,946
Buying tip: A quality investment for dependable performance and premium build quality.
Estimated delivery: 27 Aug – 10 Sept
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience
Share:
SKU: bg-2047058

About This Product

The Hi-Link LD2415H Millimeter Wave Vehicle Speed Radar Module 24G Long Range Speed Measurement RS485 TTL Port Sensor Module is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:
Frequency: 24.125GHz (adjustable frequency available)
Output Power: 18dBm (Typical)
Modulation Type: CW
Antenna Gain: Emission 16dBi / Reception 18.4dBi
Measuring Range: 1–240km/h
Accuracy: ±1km/h
Detection Angle: Horizontal 40° / Vertical 16°
Detection Distance: >180m
Output Rate (EIRP): 20dBm
Operating Voltage: 9-24V / <50mA at 12V
Dimensions: 69 x 53mm
Operating Temperature: -20°C to +85°C
Storage Temperature: -40°C to +125°C
Communication Ports: RS485 / TTL

Features:
1. Wide Speed Range Measurement: Covers vehicle speeds from 1 km/h to 240 km/h with high accuracy.
2. Long-Range Capability: Detects objects beyond 180 meters, offering extended coverage for road applications.
3. Compact Design: Small size (69 x 53mm), suitable for flexible installation in limited spaces.
4. Stable Performance: Operates reliably in extreme conditions (-20°C to +85°C).
5. Smooth Integration: RS485 and TTL communication ports ensure easy connectivity with various systems.

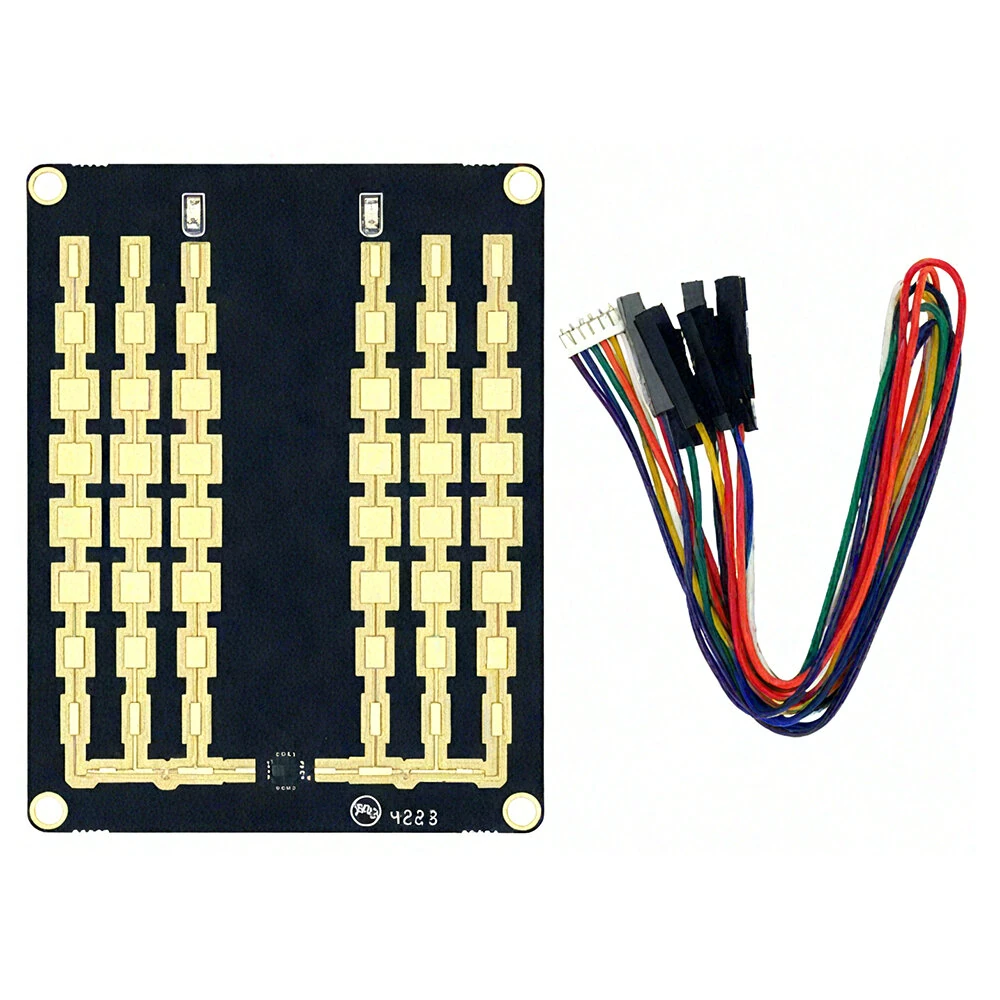

Package Included:

Set 1:
1 x LD2410H Single-Module
1 x 1.25mm to 2.54mm 8-Pin Dupont Cables

or

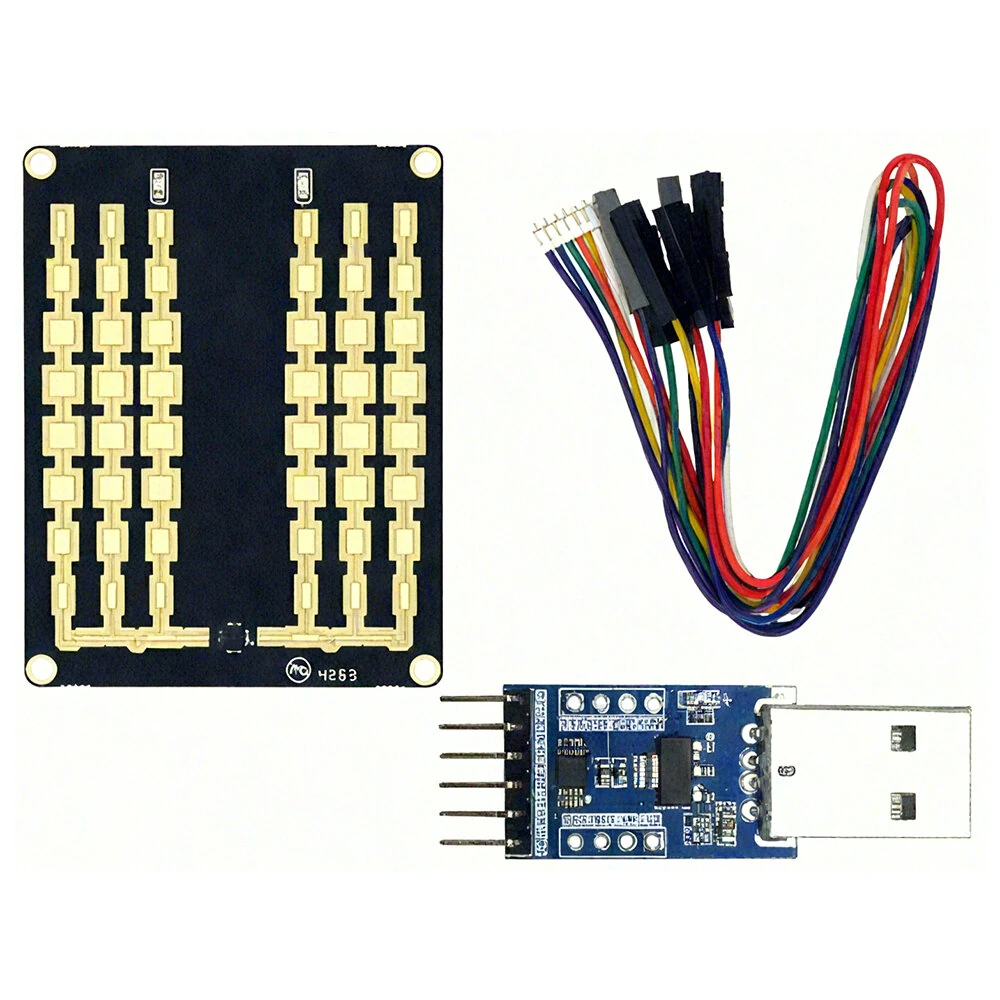

Set 2:
1 x LD2410H Single-Module
1 x 1.25mm to 2.54mm 8-Pin Dupont Cables
1 x CH340 Serial Interface Board




Product Safety Information
Product Safety Information
Manufacturer
Shenzhen Yuner Yipu Trading Co., Ltd
Address
East 1087, Building 4, SEG Science and Technology Park, No. 3012 Huaqiang North Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong, CN
European agent
VISHTEC ltd
Email
compliance@vish-tec.com
Address
3 rd floor office 5, Plovdiv 2 Liuben Karavelov bul, 4002 Bulgaria
UK agent
CET Product Service Ltd.
Email
info@cetproduct.com
Address
Beacon House Stokenchurch Business Park, Ibstone Rd, Stokenchurch, High Wycombe, Buckinghamshire, UK

Setup Guide

1
Identify the pins
Locate VCC (power), GND (ground), and data pins (SDA/SCL for I2C, MOSI/MISO for SPI, or TX/RX for UART). Refer to the pinout diagram on the product page.
2
Wire to your microcontroller
Connect VCC to 3.3V or 5V (check the module spec), GND to GND, and data pins to the appropriate GPIO pins on your Arduino or Raspberry Pi.
3
Install libraries
In Arduino IDE, go to Sketch → Include Library → Manage Libraries and search for the sensor library. Install the recommended version.
4
Upload example sketch
Open File → Examples → [library name] → Basic Example. Upload to your board and open Serial Monitor to view output.
5
Calibrate if needed
Some sensors (temperature, humidity, distance) may need a short warm-up period or calibration. Run the calibration sketch if provided.
