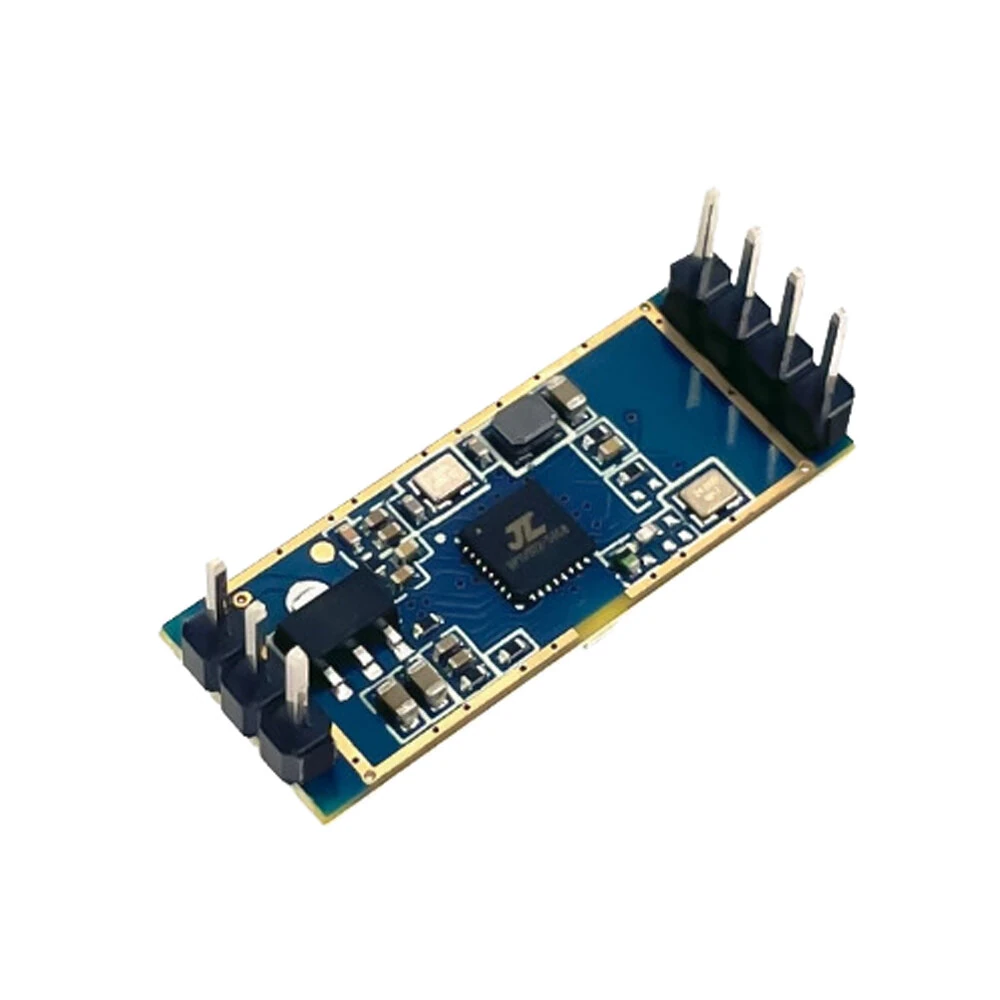

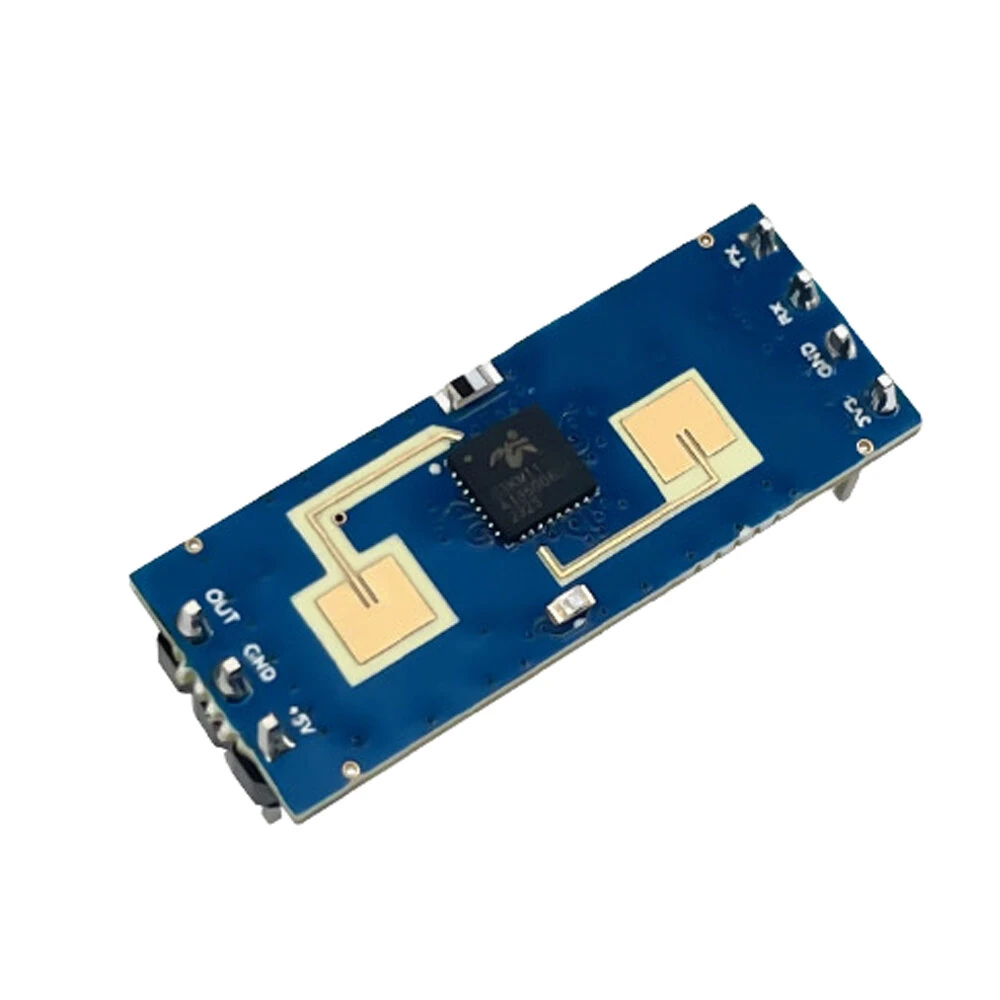

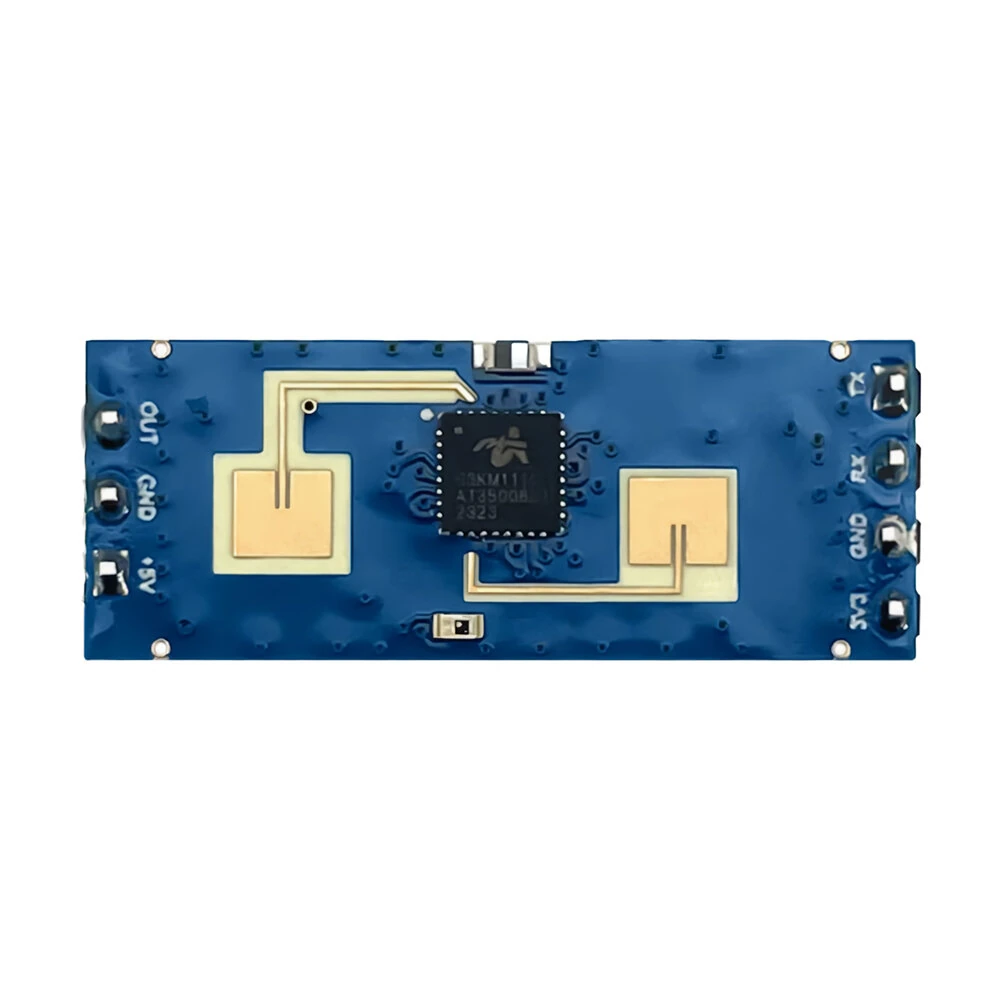

Hi-Link LD2412 Millimeter Wave Radar Module 24G FMCW Smart Human Presence Radar Module Intelligent

21+ bought in last month
AI Summary
product for everyday users

The Hi-Link LD2412 Millimeter Wave Radar Module 24G FMCW Smart Human Presence Radar Module Intelligent is a value-for-money product designed for everyday users.

₹1,198-25%
MRP:₹1,597Save ₹399
Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

25% Off — you save ₹399 on this product!

Price: ₹1,198

Total: ₹1,198
Buying tip: A well-rounded choice at a fair price. Recommended for most buyers.
Estimated delivery: 27 Aug – 10 Sept
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience
Share:
SKU: bg-2047060

About This Product

The Hi-Link LD2412 Millimeter Wave Radar Module 24G FMCW Smart Human Presence Radar Module Intelligent is a value-for-money designed for everyday users. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:
Frequency Range: 24G - 24.25GHz
Modulation Type: FMCW
Detection Range: Adjustable, 0.75m to 9m
Detection Angle: ±75°
Operating Voltage: 3.3V or 5V (minimum supply power >200mA)
Current Consumption: ~90mA (Typical)
Output Signal Voltage: 3.3V
Sweep Bandwidth: 250MHz (CE/FCC certified)
Operating Temperature: -40°C to +85°C
Dimensions: 11mm x 28mm

Features:
1. Wide range detection with adjustable distance settings, covering up to 9m for flexible applications.
2. Precise signal processing using FMCW technology to differentiate between static and moving objects.
3. Compact design enables easy integration into various smart application scenarios.
4. Wide temperature tolerance to ensure reliable performance across demanding environments (-40°C to +85°C).
5. Plug-and-play GPIO/UART interface supports rapid connectivity for diverse system setups.

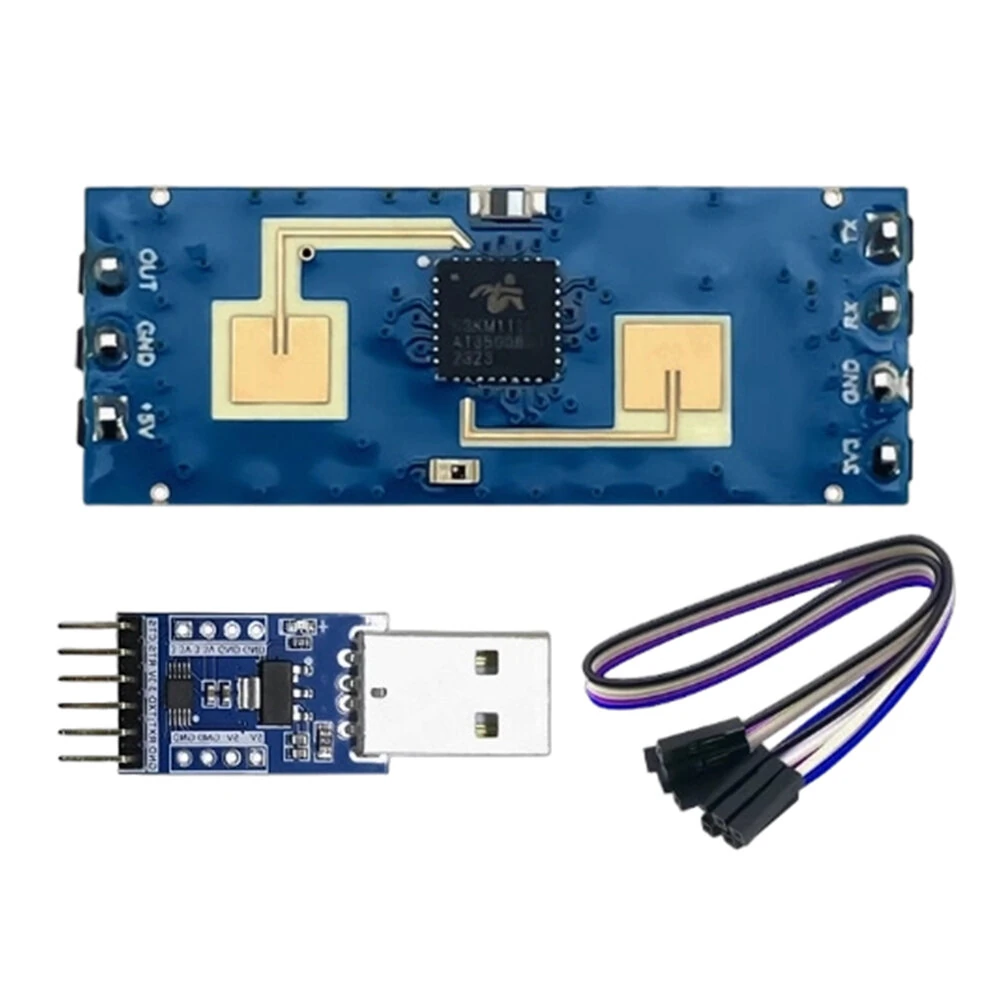

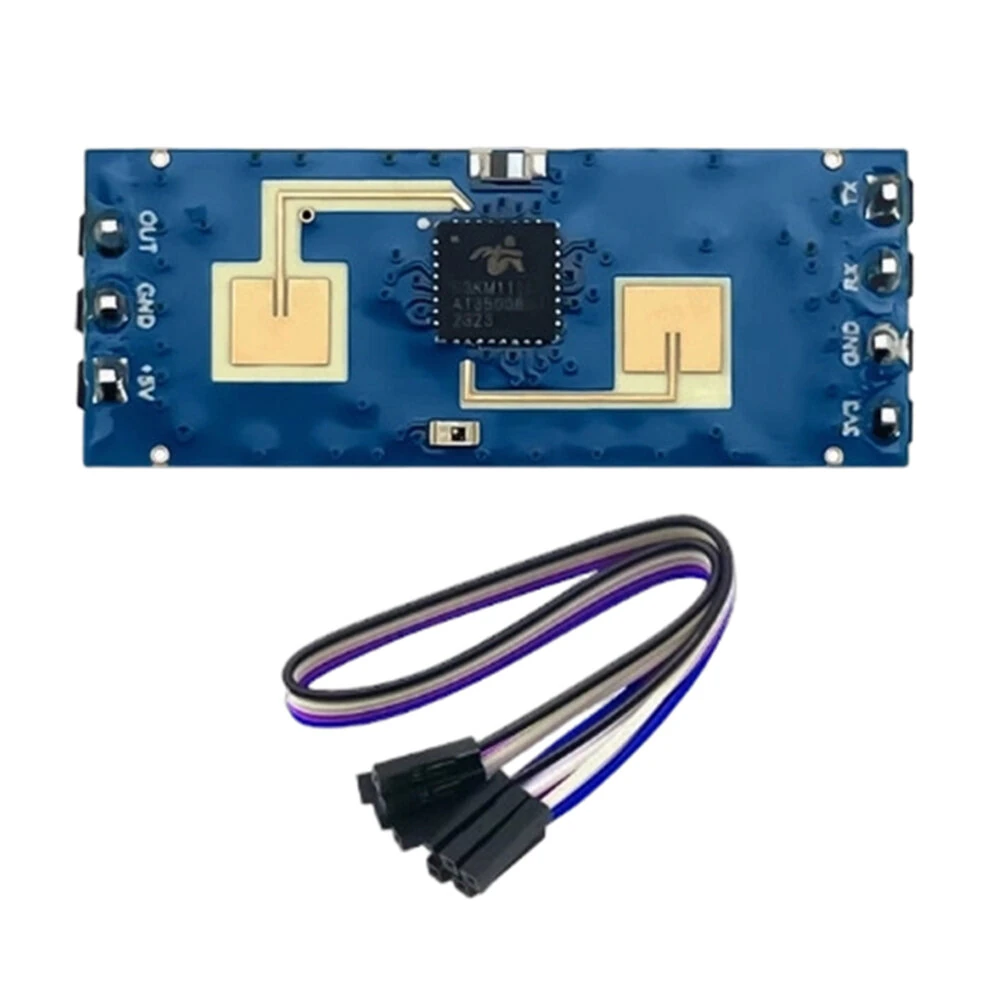

Package Included:

Set 1:
1 x LD2412S Radar Module
1 x 5-Pin DuPont Cable

or

Set 2:
1 x LD2412S Radar Module
1 x CH340 Serial Adapter Board
1 x 5-Pin DuPont Cable




Product Safety Information
Product Safety Information
Manufacturer
Shenzhen Yuner Yipu Trading Co., Ltd
Address
East 1087, Building 4, SEG Science and Technology Park, No. 3012 Huaqiang North Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong, CN
European agent
VISHTEC ltd
Email
compliance@vish-tec.com
Address
3 rd floor office 5, Plovdiv 2 Liuben Karavelov bul, 4002 Bulgaria
UK agent
CET Product Service Ltd.
Email
info@cetproduct.com
Address
Beacon House Stokenchurch Business Park, Ibstone Rd, Stokenchurch, High Wycombe, Buckinghamshire, UK

Setup Guide

1
Identify the pins
Locate VCC (power), GND (ground), and data pins (SDA/SCL for I2C, MOSI/MISO for SPI, or TX/RX for UART). Refer to the pinout diagram on the product page.
2
Wire to your microcontroller
Connect VCC to 3.3V or 5V (check the module spec), GND to GND, and data pins to the appropriate GPIO pins on your Arduino or Raspberry Pi.
3
Install libraries
In Arduino IDE, go to Sketch → Include Library → Manage Libraries and search for the sensor library. Install the recommended version.
4
Upload example sketch
Open File → Examples → [library name] → Basic Example. Upload to your board and open Serial Monitor to view output.
5
Calibrate if needed
Some sensors (temperature, humidity, distance) may need a short warm-up period or calibration. Run the calibration sketch if provided.
