Heltec Wireless Tracker V2 LoRa GNSS IoT Device ESP32-S3FN8 SX1262 UC6580 863-928 MHz Wi-Fi Bluetooth L1 GNSS Type-C USB 0.96-Inch RGB TFT LCD 868Mhz

Name: Heltec Wireless Tracker V2 LoRa GNSS IoT Device ESP32-S3FN8 SX1262 UC6580 863-928 MHz Wi-Fi Bluetooth L1 GNSS Type-C USB 0.96-Inch RGB TFT LCD 868Mhz
Brand: Pricio
SKU: 2050259
Price: 5997 INR
Availability: InStock

30+ bought in last month

AI Summary

product for everyday users

The Heltec Wireless Tracker V2 LoRa GNSS IoT Device ESP32-S3FN8 SX1262 UC6580 863-928 MHz Wi-Fi Bluetooth L1 GNSS Type-C USB 0.96-Inch RGB TFT LCD 868Mhz is a premium product designed for everyday users.

✓ wireless convenience

₹5,997-9%

MRP:₹6,579Save ₹582

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

Type: With Glue Tube Antenna

Price: ₹5,997

Quantity

Total: ₹5,997

Buying tip: A quality investment for dependable performance and premium build quality.

Estimated delivery: 27 Aug – 10 Sept

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience

SKU: bg-2050259

About This Product

The Heltec Wireless Tracker V2 LoRa GNSS IoT Device ESP32-S3FN8 SX1262 UC6580 863-928 MHz Wi-Fi Bluetooth L1 GNSS Type-C USB 0.96-Inch RGB TFT LCD 868Mhz is a premium designed for everyday users. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

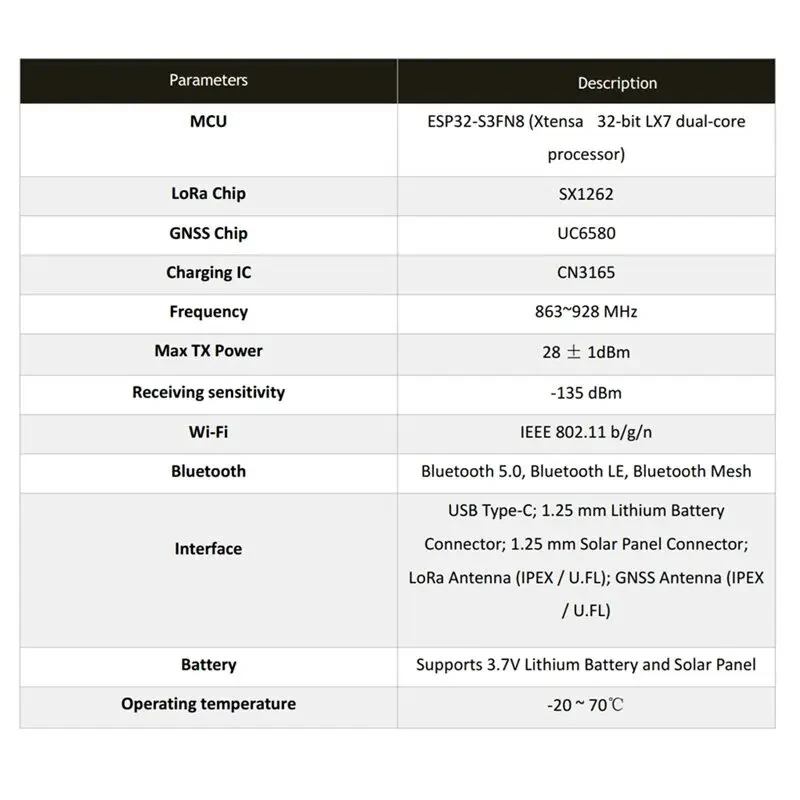

Specifications:

Model: Wireless Tracker V2

MCU: ESP32-S3FN8

LoRa Chip: SX1262

GNSS Chip: UC6580

Charging IC: CN3165

Frequency: 863~928 MHz

Max TX Power: 28 ± 1 dBm

Receiving Sensitivity: -135 dBm

Wi‑Fi: IEEE 802.11 b/g/n

Bluetooth: Bluetooth 5.0, Bluetooth LE, Bluetooth Mesh

GNSS: L1; supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS

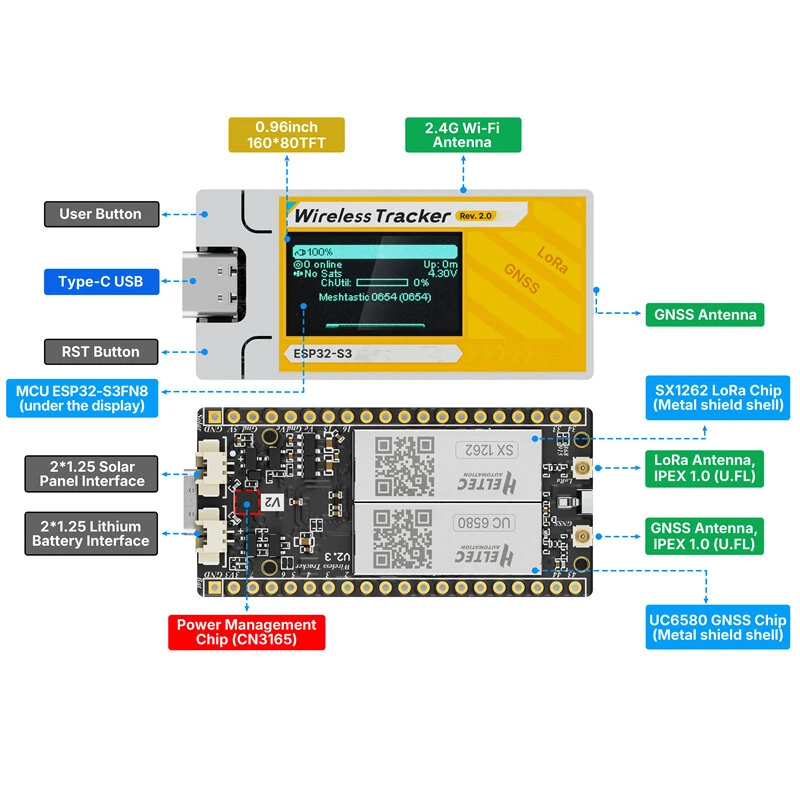

Interfaces: USB Type-C; 1.25 mm Lithium Battery Connector; 1.25 mm Solar Panel Connector; LoRa Antenna (U.FL); GNSS Antenna (U.FL)

Antennas: Onboard 2.4 GHz metal spring antenna for Wi‑Fi/Bluetooth; reserved IPEX (U.FL) for LoRa and GNSS

Display: 0.96-inch 80x160 RGB TFT-LCD

USB Port Protections: Voltage regulator, ESD protection, short‑circuit protection, RF shielding

Power Management: Integrated charging, overcharge protection, power monitoring, automatic USB/battery switching

Operating Temperature: -20 ~ 70℃

Material: PCB + Plastic

Features:

1. ESP32-S3FN8 + SX1262 + UC6580 with Wi-Fi, LoRa, Bluetooth, and GNSS for long‑range communication and high-precision positioning in a compact device.

2. 28±1 dBm LoRa TX power, upgraded RF front‑end, and optimized PCB layout for extended range, stronger signal penetration, and improved link robustness.

3. L1 GNSS with GPS, GLONASS, BDS, Galileo, NAVIC, and QZSS, plus an active antenna with upgraded LNA for stronger reception and improved positioning accuracy.

4. USB Type-C with voltage regulation, ESD and short-circuit protection, and RF shielding; battery and solar interfaces with charging management and automatic switching.

5. 0.96‑inch 80x160 RGB TFT‑LCD for status and debugging; 2.4 GHz metal spring antenna; reserved IPEX (U.FL) for LoRa and GNSS.

Package Included:

1 x Wireless Tracker with Antenna
