FNIRSI LCR-ST2 Mini Smart Tweezer LCR Meter Capacitance Inductance Resistance Diode Continuity Tool 100Hz-100kHz Frequency Sweep ±30V Voltage
5.056 ratingsThe FNIRSI LCR-ST2 Mini Smart Tweezer LCR Meter Capacitance Inductance Resistance Diode Continuity Tool 100Hz-100kHz Frequency Sweep ±30V Voltage is a premium product designed for DIY enthusiasts and makers. Customers praise its easy to set up and use and excellent build quality. 100% of buyers rate it 4★ or above.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
23% Off — you save ₹1,553 on this product!
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The FNIRSI LCR-ST2 Mini Smart Tweezer LCR Meter Capacitance Inductance Resistance Diode Continuity Tool 100Hz-100kHz Frequency Sweep ±30V Voltage is a premium designed for DIY enthusiasts and makers. Customers highlight its easy to set up and use and excellent build quality.
Customer Verdict
100% of buyers rated this product 4 stars or above. The most appreciated qualities are: easy to set up and use, excellent build quality, fast and responsive, clear and bright display.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Multi-frequency testing and dual-parameter simultaneous display
Specifications:
Model: LCR-ST2
Display: 1.47-inch HD color screen
Battery: 300mAh lithium battery, approx. 3 hours of operating time
Charging Port: Type-C
Test Frequencies: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
Measurement Ranges:
Capacitance: 1pF–22mF
Inductance: 1µH–10H
Resistance: 10mΩ–10MΩ
Voltage Range: ±30V
Diode Forward Voltage Measurement: ≤0.7V
Operating Temperature: 0℃–50℃ (≤75%RH)
Storage Temperature: -20℃–60℃ (≤75%RH)
Dimensions: 31 × 170.7 × 20.3 mm
Net Weight: Approx. 60.8g
Calibration Modes: Open / Short / Multiple resistor calibration
Auto Power-Off Options: Never / 5 min / 15 min / 30 min
Features:
1.Advanced Multi-frequency Testing:
Supports five test frequencies (100Hz–100kHz), ideal for precise characterization of components across different conditions.
2.Dual-mode Display for Intuitive Analysis:
Simultaneously shows measurements in two modes (e.g., resistance and capacitance) on one screen, enabling quick and easy comparisons.
3.Compact Tweezer Design:
Specially designed for testing electronic components in small, tight spaces, ensuring optimal handling and precision during operation.
4.Intelligent Sorting Function:
Automatically identifies and categorizes components, streamlining batch testing for improved efficiency and speed.
5.Magnetic Attachment & Battery-Powered Portability:
Equipped with a magnetic design for enhanced portability, plus a 300mAh built-in rechargeable battery for extended usability without interruption.

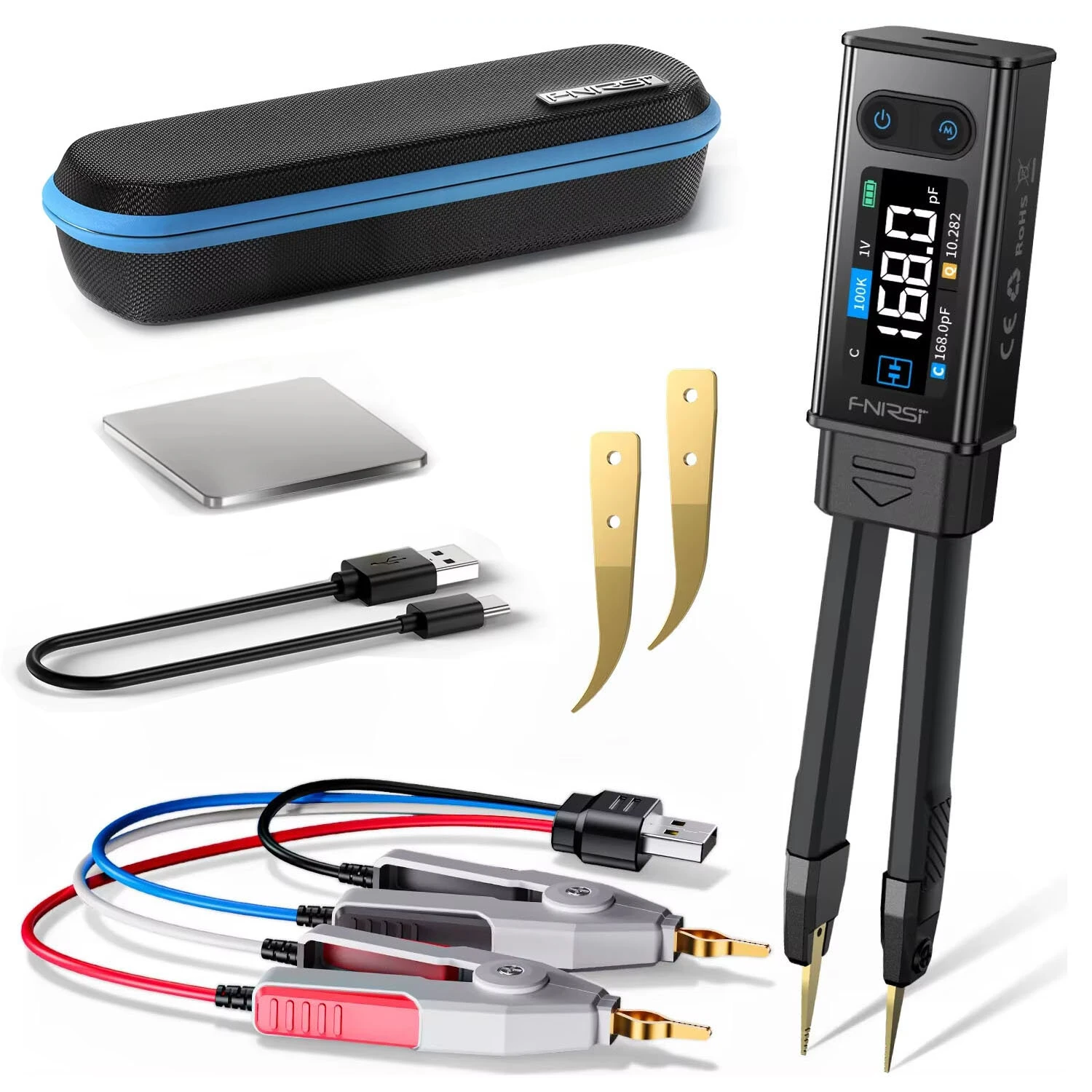

Package Included:
Basic Version:
1 x LCR-ST2 Tweezer
1 x Storage Bag
1 x Curved Tip
1 x Shorting Plate
1 x Type-C Data Cable
Pro Version:
1 x LCR-ST2 Tweezer
1 x Storage Bag
1 x Curved Tip
1 x Shorting Plate
1 x Kelvin Test Clip
1 x Type-C Data Cable
