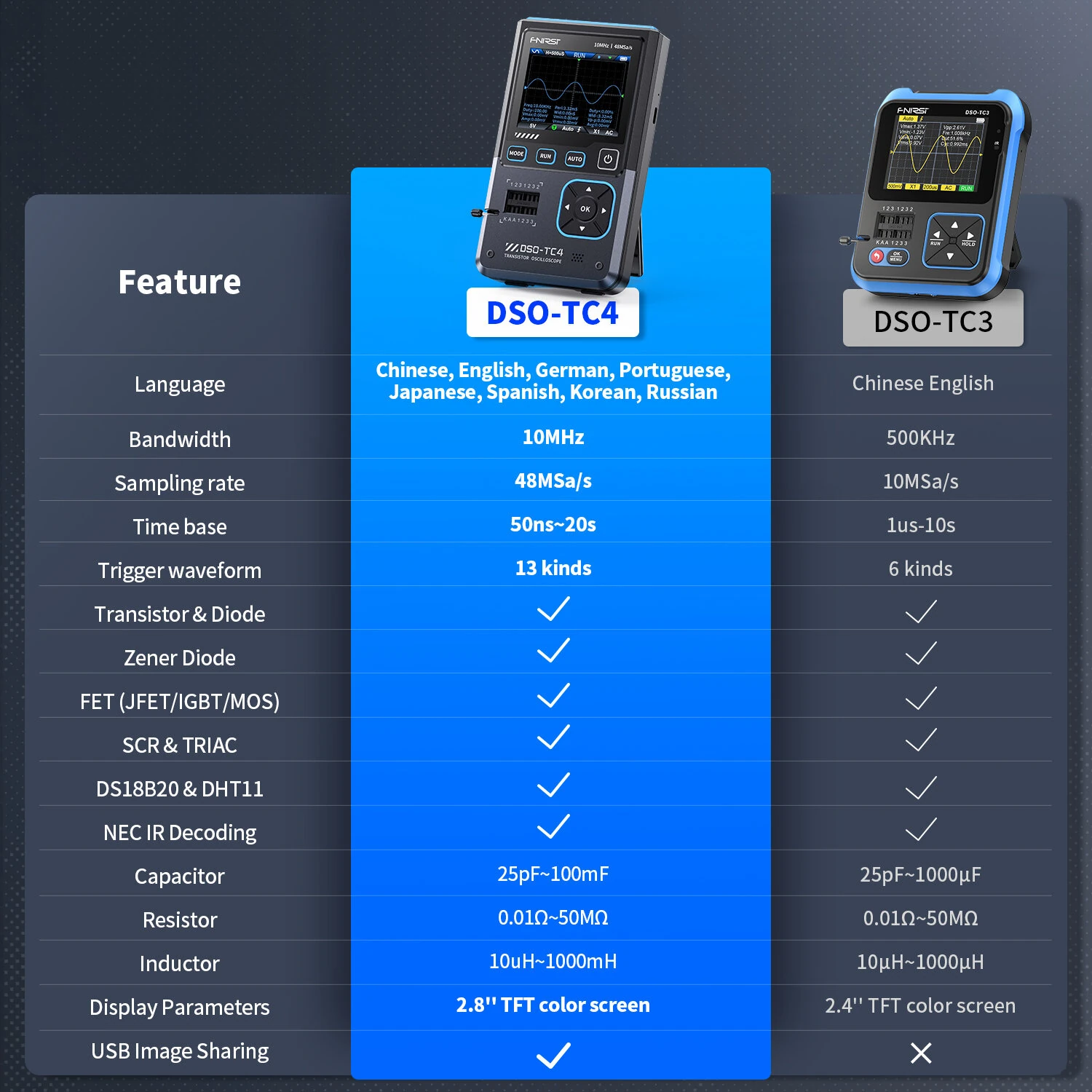

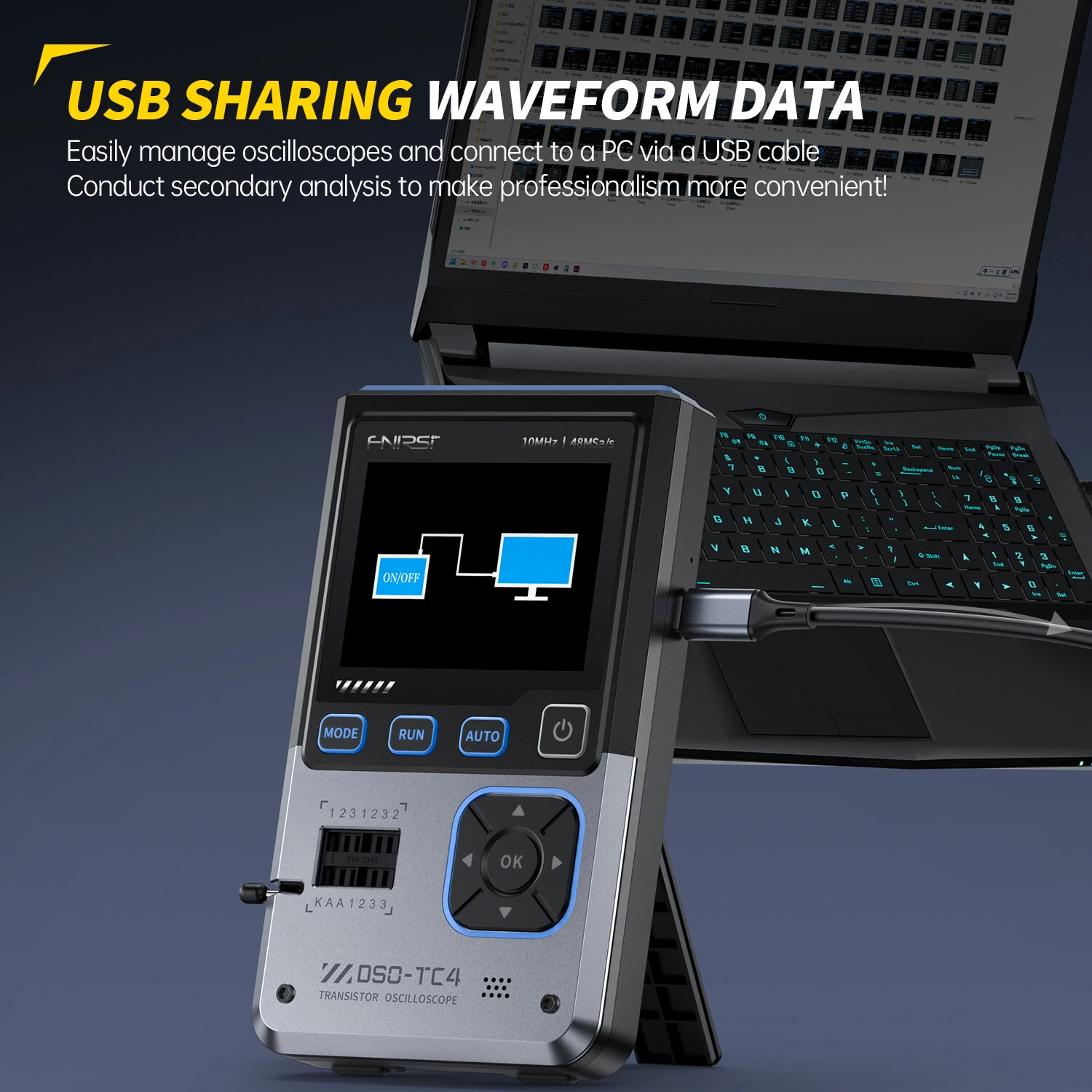

FNIRSI DSO-TC4 3-in-1 Oscilloscope Signal Generator Transistor Tester 48MSa/s 10MHz Bandwidth Portable Design Rechargeable Battery Adjustable Waveforms

- Model: DSO-TC4

- Languages: Chinese, English, German, Portuguese, Japanese, Spanish, Korean, Russian

- Screen: 2.8-inch TFT Color Screen (Brightness Adjustable)

- Power Supply: TYPE-C (5V/1A)

- Battery: 3.7V/1500mAh

- Size: 90x142x27.5mm

- Weight: 186g

Oscilloscope Parameters:

- Real-Time Sampling Rate: 48MSa/s

- Analog Bandwidth: 10MHz

- Input Impedance: 1MΩ

- Coupling Mode: AC/DC

- Test Voltage Range:

  - 1:1 Probe: 80Vpp (+40V)

  - 10:1 Probe: 800Vpp (+400V)

- Vertical Sensitivity: 10mV/div to 10V/div (X1 range)

- Vertical Displacement: Adjustable with indication

- Time Base Range: 50ns to 20s

- Trigger Mode: Auto/Normal/Single

- Trigger Type: Rising edge, Falling edge

- Trigger Level: Adjustable with indication

- Waveform Freeze: Yes (HOLD function)

- Automatic Measurement: Max, Min, For Avg, RMS, Vpp, Frequency, Cycle, Duty Cycle

Component Tester Parameters:

- Transistor Test: Supported

- Diode Test: Forward voltage drop <5V

- Zener Diode Test: 0.01 ~ 4.5V

- Field-Effect Transistor (FET) Test: JFET, IGBT, MIOSTET

- Unidirectional SCR Test: Trigger voltage <5V, Gate level

- Bidirectional SCR Test: Trigger current <6mA

- Capacitor Test: 25pF ~ 1000μF

- Resistor Test: 0.01Ω ~ 50MΩ

- Inductor Test: 10μH ~ 1000μH

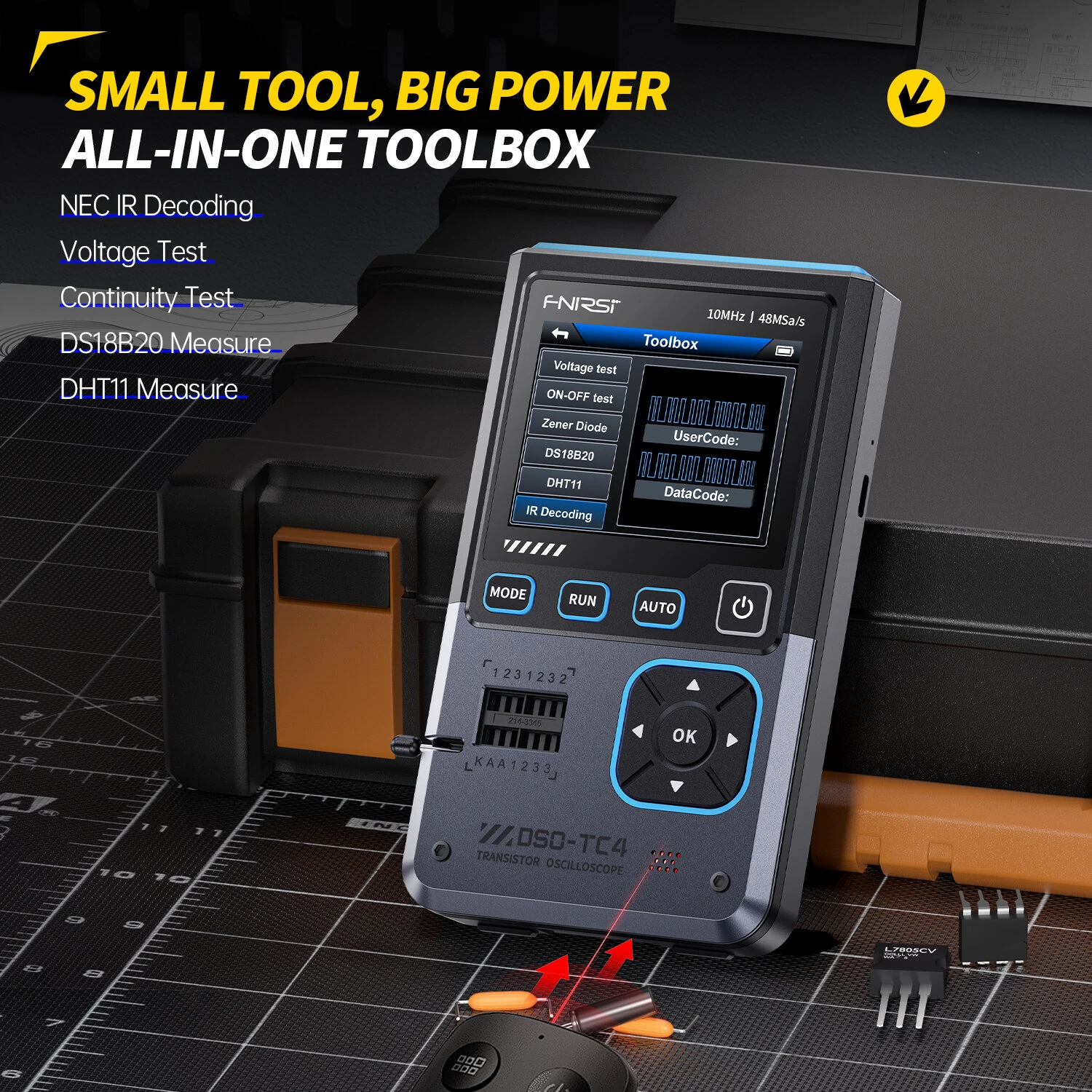

- DS18B20 Test: Supported

- DHT11 Test: Supported

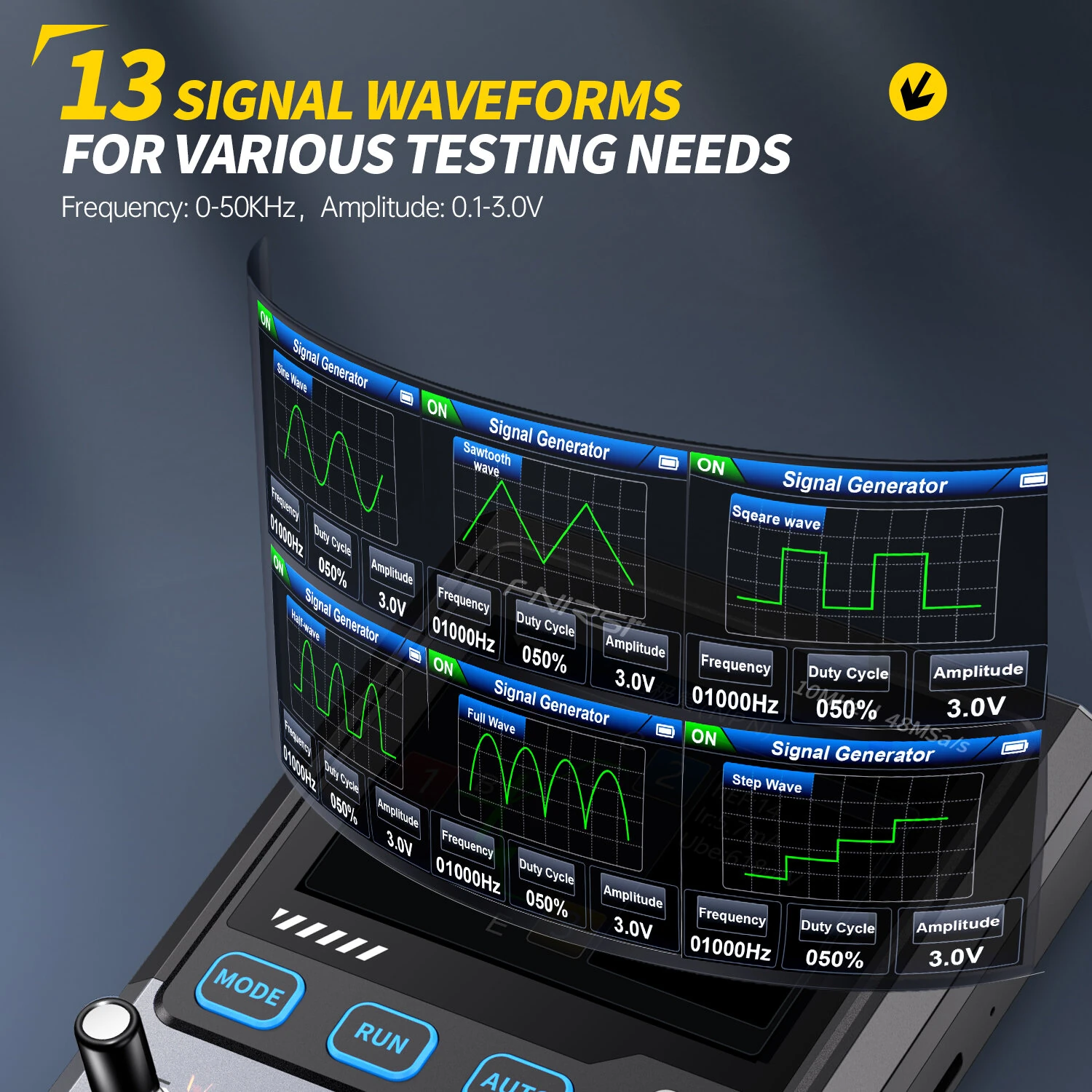

Signal Generator Parameters:

- Output Waveform: Supports 13 waveform outputs

- Waveform Frequency: 0 – 50KHz

- Square Duty Cycle: 0 – 100%

- Waveform Amplitude: 0.1V – 3.0V

Features:

1. Versatile Functionality:

   - Combines an oscilloscope, signal generator, and transistor tester in a single device, making it a comprehensive and practical tool for maintenance and R&D.

2. High-Performance Oscilloscope:

   - Features a 48MSa/s real-time sampling rate and 10MHz analog bandwidth, providing accurate and detailed signal analysis. The device supports a wide range of voltage inputs and has various automatic measurement modes to cater to different testing needs.

3. Flexible Signal Generation:

   - Provides 13 adjustable waveform outputs with a frequency range of 0 – 50KHz. Users can easily adjust output parameters, including frequency, amplitude, and duty cycle, to suit various applications.

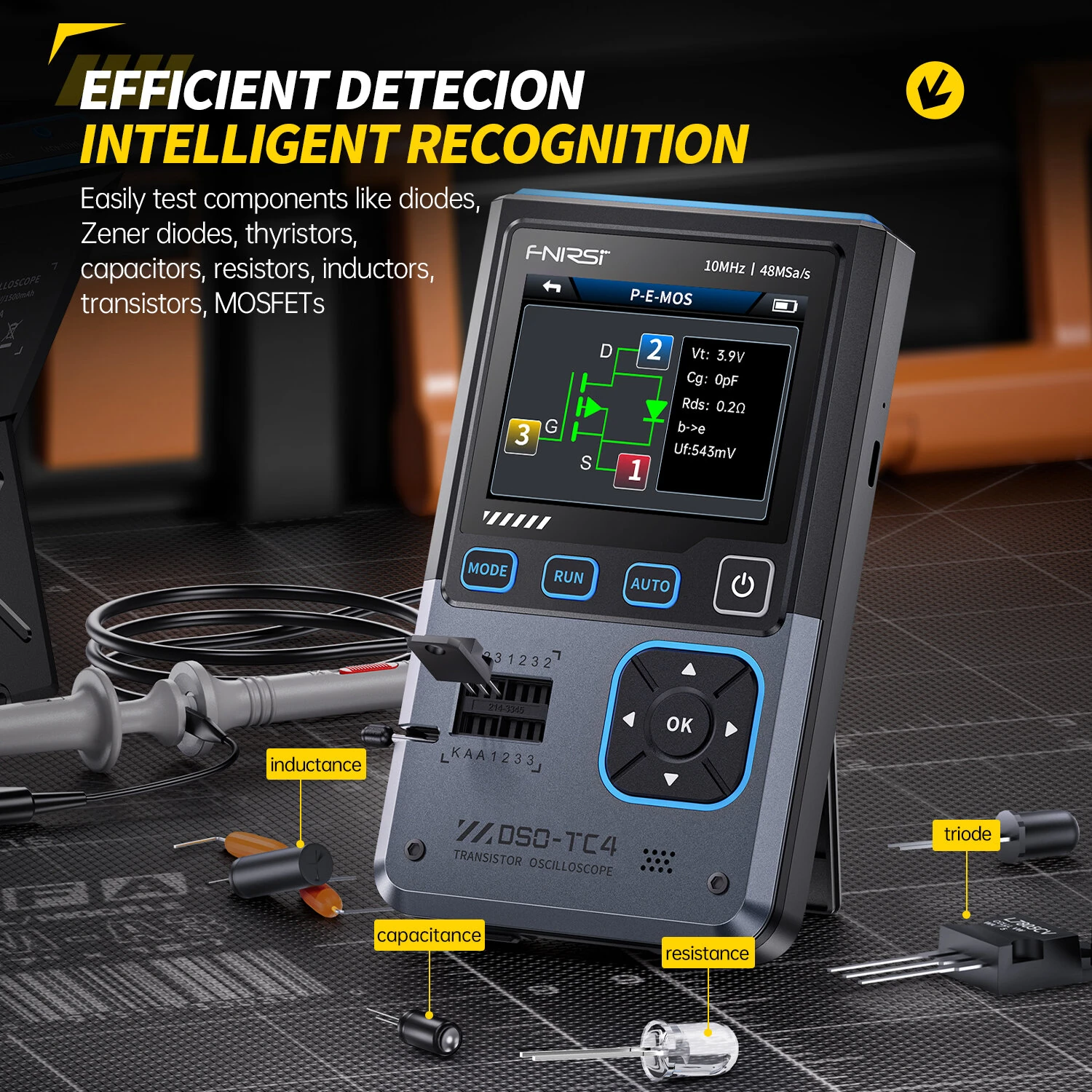

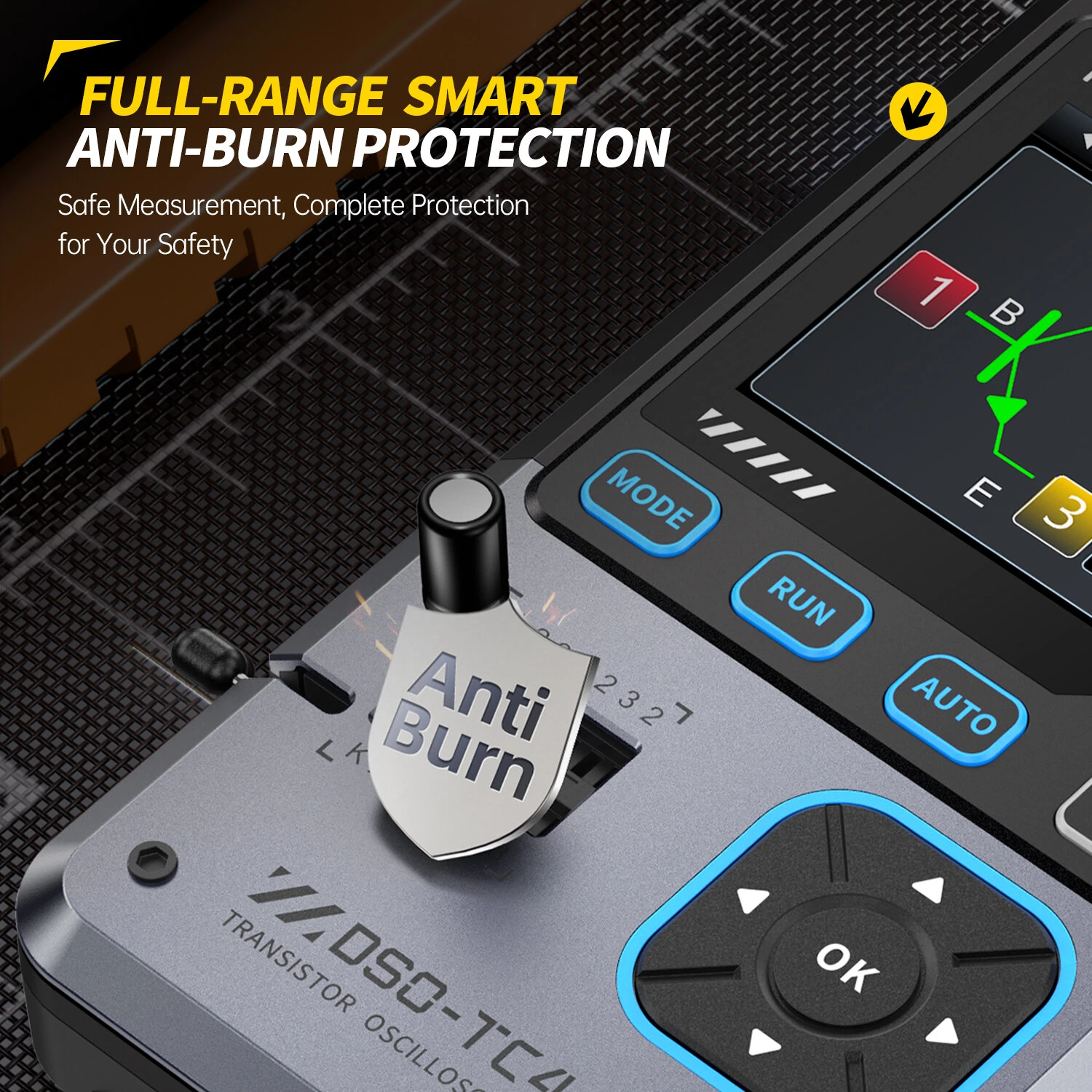

4. Efficient Component Testing:

   - Automatically identifies the type and pin arrangement of tested components, enhancing test efficiency. It can detect and analyze various semiconductor components, including transistors, diodes, and FETs.

5. Portable and User-Friendly Design:

   - Compact and lightweight, equipped with a clear 2.8-inch TFT color screen. It features a built-in high-capacity rechargeable battery that offers up to 4 hours of standby time, making it ideal for mobile use.

Package Included:

1 x DSO-TC4 Host

3 x Test Hook

1 x P6100 Probe

1 x Alligator Clip Probe

1 x USB Type-C Cable

1 x User Manual

1 x Package Box
