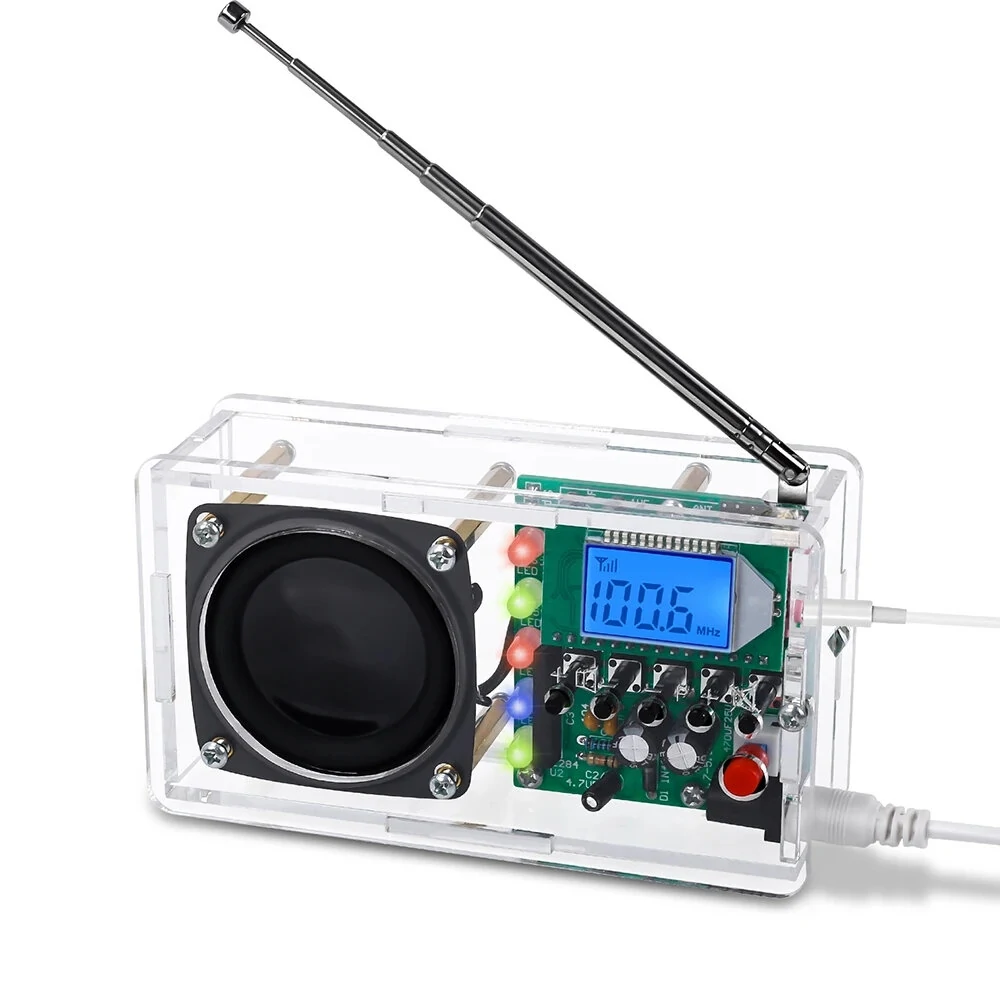

FM Radio Not Assembled DIY Kit Parts Digital Amplifier with Electric Frequency Indicator Broadcast Receiver Kit
5.022 ratingsThe FM Radio Not Assembled DIY Kit Parts Digital Amplifier with Electric Frequency Indicator Broadcast Receiver Kit is a mid-range product designed for DIY enthusiasts and makers. It features No.: Component Name and 1: LM4863 Power Amplifier. Customers praise its easy to set up and use and excellent build quality. 100% of buyers rate it 4★ or above.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
12% Off — you save ₹272 on this product!
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Quick Specs
Ideal For
About This Product
The FM Radio Not Assembled DIY Kit Parts Digital Amplifier with Electric Frequency Indicator Broadcast Receiver Kit is a mid-range designed for DIY enthusiasts and makers. Customers highlight its easy to set up and use and excellent build quality.
Key Specifications
- No.: Component Name
- 1: LM4863 Power Amplifier
- 2: Metal Film Resistor
- 3: Metal Film Resistor
- 4: Metal Film Resistor
- 5: Metal Film Resistor
- 6: 3.5mm AUX Audio Socket
- 7: KA2284 LED Driver
Customer Verdict
100% of buyers rated this product 4 stars or above. The most appreciated qualities are: easy to set up and use, excellent build quality, fast and responsive, clear and bright display.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specifications:
Product Name: FM Radio DIY Assembly Kit
PCB Board Size: 5.6cm x 5.1cm
Shell Size: 12.025cm x 6.803cm x 3.84cm
Supported Speakers: 8 Ohms / 4 ohms up to 5W, 4 Ohms 5W speaker included in the kit
Output Power: 5W
Frequency Response Range: 50Hz-18KHz
Channels: Mono for speakers, Stereo for headphones
Adjustable Reception Frequency: Without campuss radio 87.0MHz-108.0MHz, with campuss radio 76.0MHz-108.0MHz
Equivalent Noise: ≥30dB
Power Supply: 4.0V-5.5V, Current 500MA-2A
Weight: 60 grams, Speaker: 120 grams
Note: Unsoldered product, you need to assemble it yourself
Features:
1. The use of advanced digital audio signal processing technology (DSP) and FM phase-locked loop modulation technology (PLL) makes the sound quality more realistic, the performance more stable, the working frequency has no deviation for a long time, and the received signal is good.
2.LCD display is more intuitive and accurate, with extremely low power consumption and minimal noise interference.
3. It has the function of automatically searching for radio stations and storing radio stations, and is easy to operate.
4. Built-in 30-level digital volume adjustment, which can be easily completed by pressing buttons.
5. Automatically remember the data before the power outage.
6. Using quartz crystal to stabilize the frequency, the emission frequency will no longer drift when the temperature changes.
7. Full frequency band (76-108MHZ) automatically searches for signal frequency bands and stores memory.
8. Built-in rechargeable lithium battery and charging circuit, you can charge it with a mobile phone charger, the red light will turn on when charging, and the green light will turn on when full;

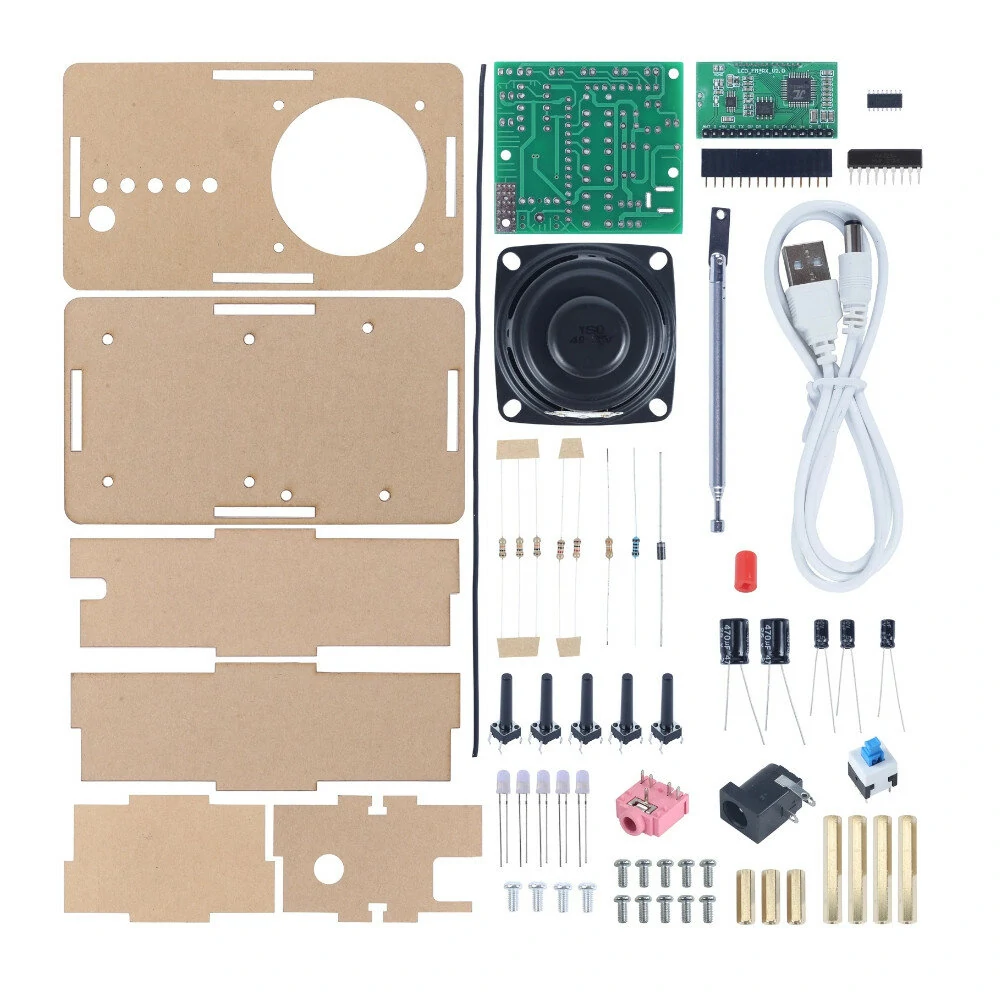

Package Include:
