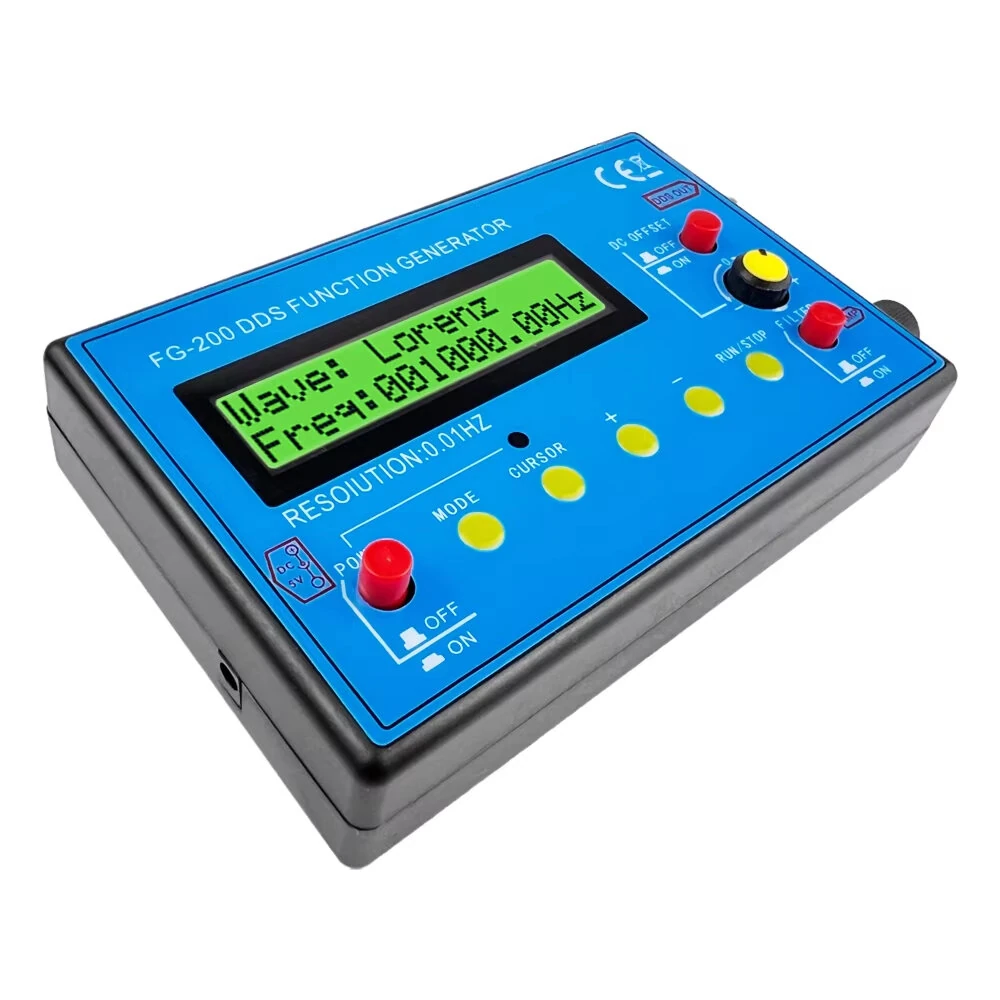

FG-200 DDS Function Signal Generator 15 Waveform Output 0.01Hz-500kHz Sine Square Triangle Schumann Wave Module

Name: FG-200 DDS Function Signal Generator 15 Waveform Output 0.01Hz-500kHz Sine Square Triangle Schumann Wave Module
Brand: Pricio
SKU: 2051854
Price: 2508 INR
Availability: InStock

32+ bought in past month

AI Summary

Test & Measuring Module for everyday users

The FG-200 DDS Function Signal Generator 15 Waveform Output 0.01Hz-500kHz Sine Square Triangle Schumann Wave Module is a mid-range test & measuring module designed for everyday users.

₹2,508-11%

MRP:₹2,819Save ₹311

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

11% Off — you save ₹311 on this product!

Type: Basic Version

Price: ₹2,508

Quantity

Total: ₹2,508

Buying tip: A quality investment for dependable performance and premium build quality.

Estimated delivery: 21 Aug – 4 Sept

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Electronics projectsArduino / Raspberry Pi buildsPrototyping

SKU: bg-2051854Category: Test & Measuring Module

About This Product

The FG-200 DDS Function Signal Generator 15 Waveform Output 0.01Hz-500kHz Sine Square Triangle Schumann Wave Module is a mid-range test & measuring module designed for everyday users. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:

Product Model: FG-200

Output Waveforms: 15 kinds: Sine, Square, Triangle, Sawtooth, Resawtooth, ECG, EXP-rise, EXP-decay, Lorenz pulse, Gaussian pulse, Sinc pulse, Half-wave, Full-wave, Schumann, Noise

Power Supply: DC 4V-9V

Recommended Power Supply: DC 5V with adapter; 3.7V lithium battery when using battery power

Power Port: 3.5mm DC port

Current: 180mA at 5V

Frequency Range - Sine Wave: 0.01Hz-500kHz

Frequency Range - Other Waveforms: 0.01Hz-100.00kHz

Resolution: 0.01Hz

Sine Wave Distortion: Below 1kHz: <1%; Above 1kHz: <0.5%

Output Amplitude: Max 10V (P-P)

Output Impedance: 50Ω

DC Offsets: Max 10V, with shutdown function

Storage Function: Can save all setting parameters

Filter Function: Can be turned on and off

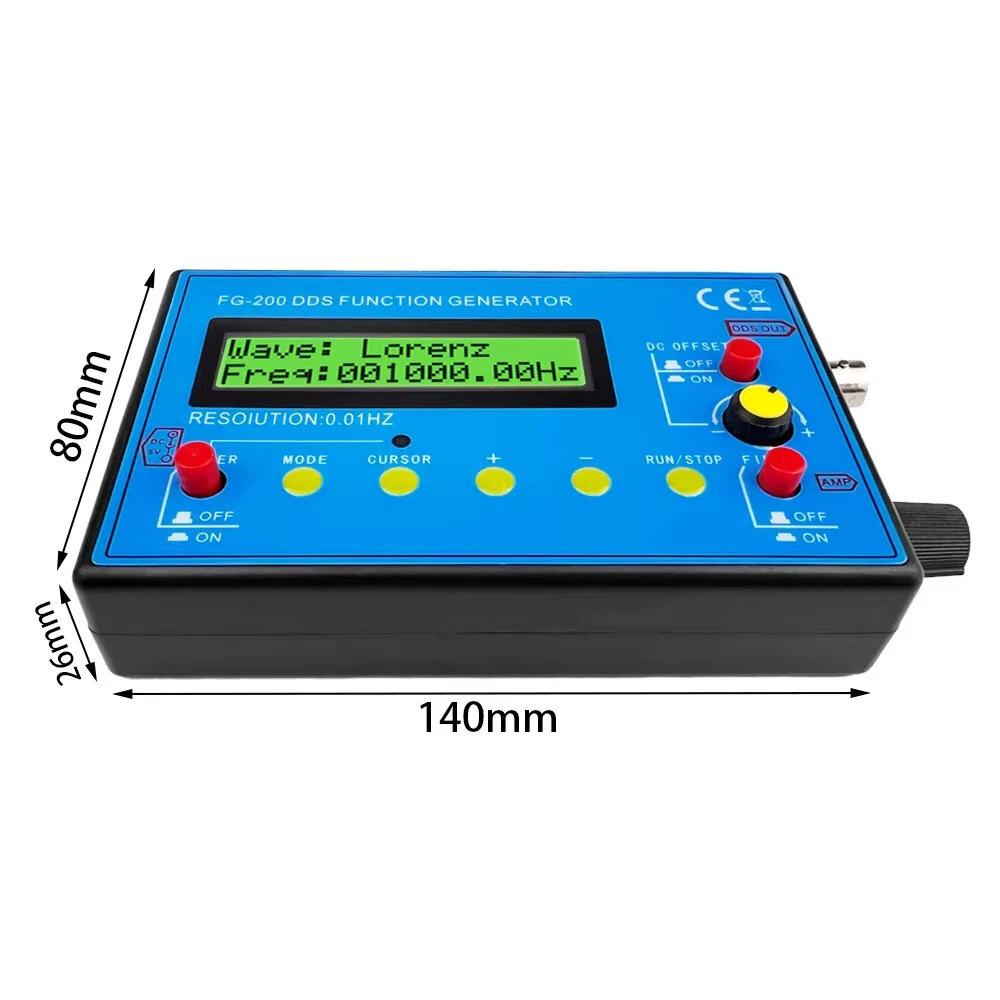

Product Size: 125 x 80 x 26.5mm

Features:

1. Supports 15 waveform outputs, including sine, square, triangle, sawtooth, ECG, pulse, Schumann, and noise waveforms.

2. Full functions and simple operation, suitable for use with an oscilloscope for electronic circuit testing and debugging.

3. Supports saving all setting parameters for convenient repeated use.

4. Compact size of 125 x 80 x 26.5mm, small and easy to carry.

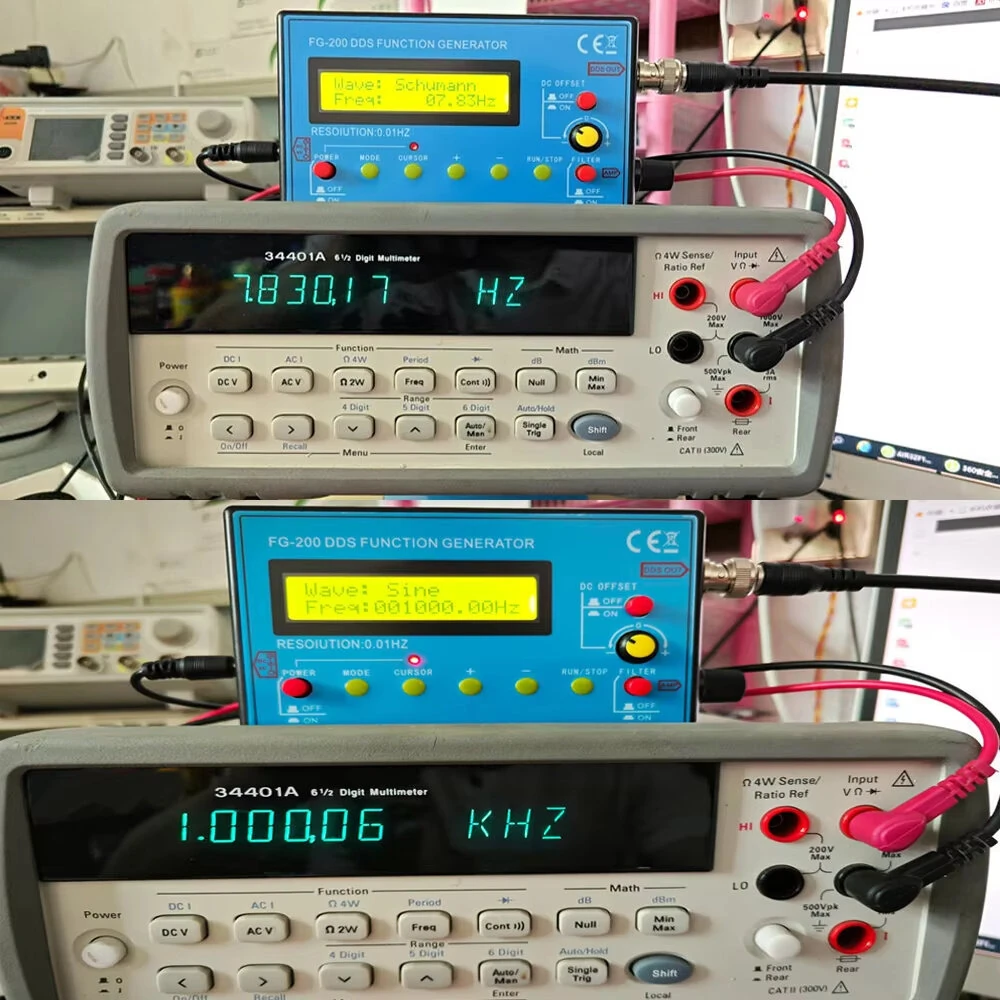

5. DDS design offers good accuracy and frequency stability, and is suitable for oscilloscope scan time factor calibration.

Package Included:

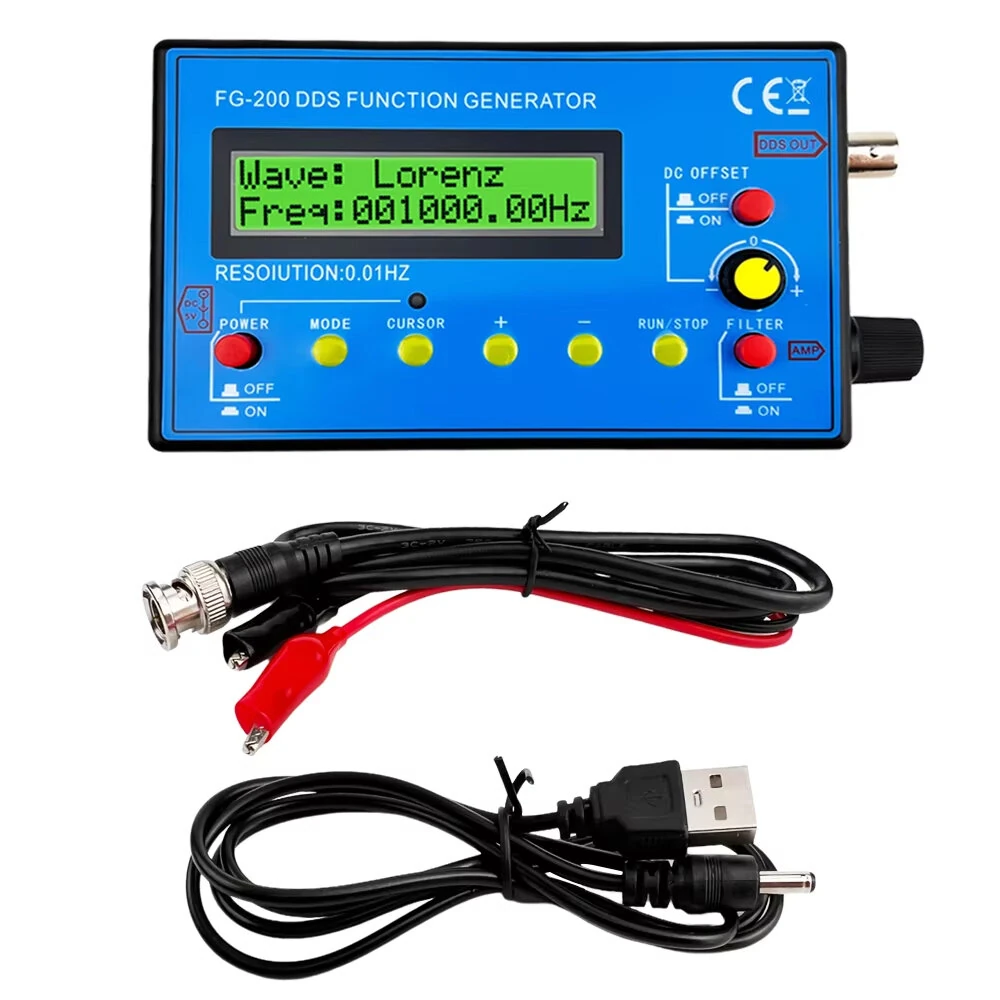

Basic version Set 1 :

1 x Main Unit

1 x USB Power Cable

1 x BNC Alligator Clip Cable

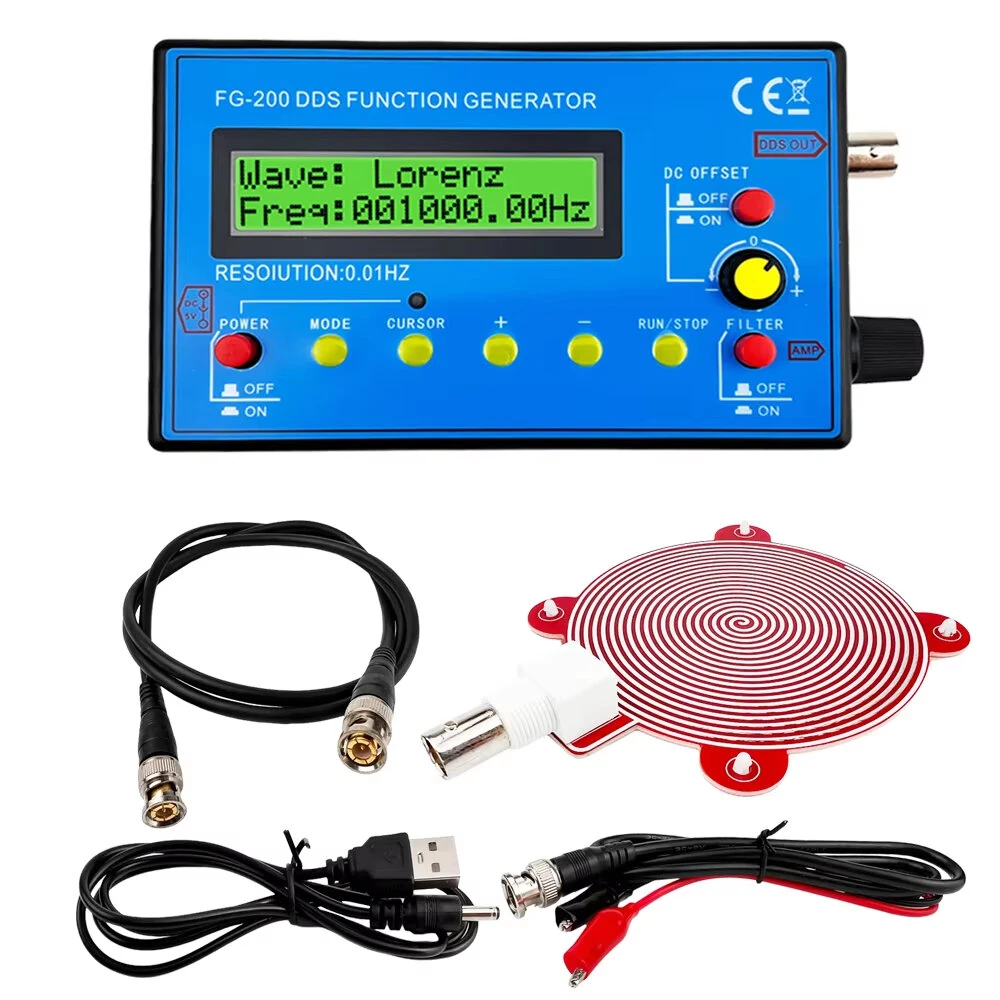

Upgraded version Set 2 :

1 x Main Unit

1 x USB Power Cable

1 x BNC Alligator Clip Cable

1 x Dual BNC Cable

1 x Schumann Wave Module Board
