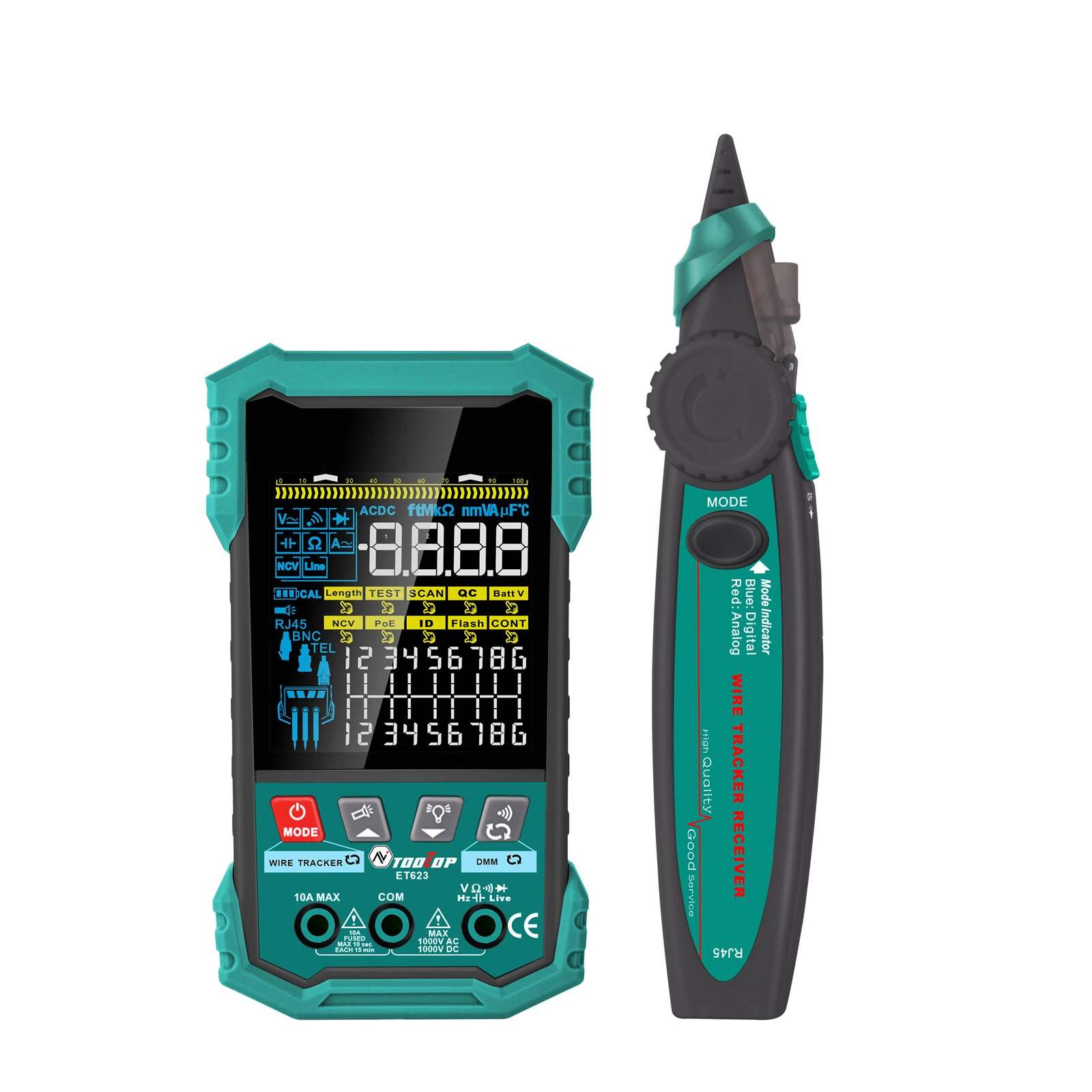

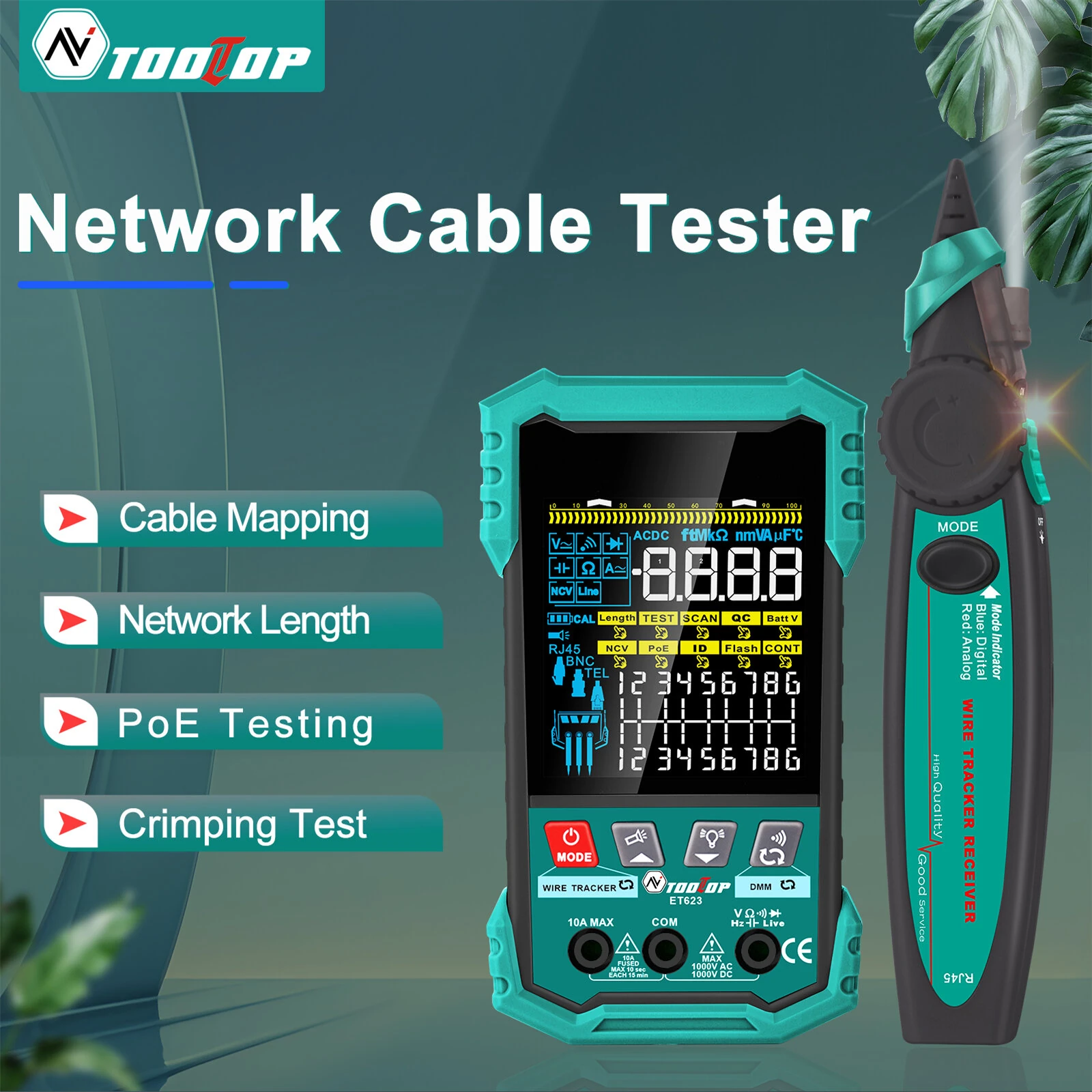

ET622 ET623 Wire Tracker Cable Tester Multimeter Adjustable NCV POE Voltage Testing 6000 Count Screen Network Cable Measurement 400m Accurate

The video can be viewed starting at 10 minutes and 35 seconds.

ET622

LCD Size: 55×57mm Color Screen

Cable Mapping: Supported

Network Cable Length: 2.5–400m

Length Accuracy: ±2% ±1m

Voltage Testing: Supported

Power Source: Main Body: 1250mA.h Rechargeable Lithium Battery | Receiver: 9V Battery

Functions:

Crystal Head Crimp Test (QC)

Enter Connection Prompt

Switch Training (W/POE)

Network Cable Short/Open Circuit Test

Network Cable Breakpoint Measurement

NCV Testing/Digital Tracing Sensitivity Adjustable

POE Voltage Value/Polarity Testing

Flashlight

Auto Power Off

ET623

Multimeter (6000 Count):

DC Voltage: 600.0mV–1000V ± (0.5%+3)

AC Voltage: 6V–600V ± (1%+3)

DC Current: 600.0mA–10A ± (1.2%+3)

AC Current: 600.0mA–10A ± (1.5%+3)

Resistance: 600.0Ω–60.00MΩ ± (1.5%+5)

Capacitance: 6.000nF–60.00mF ± (5%+6)

Continuity & Diode Testing: Supported

LCD Size: 55×57mm Color Screen

Cable Mapping: Supported

Network Cable Length: 2.5–400m

Length Accuracy: ±2% ±1m

Battery: Main Body: 1250mA.h Rechargeable Lithium Battery | Receiver: 9V Battery

Functions:

All ET622 Functions + Digital/Mechanical Multimeter

Features:

1. Advanced LCD Display

The 55×57mm color screen provides sharp and clear visual output, enabling seamless access to data and readings in real-time for a more efficient workflow.

2. Precise Network Cable Measurement

Supports cable length measurement up to 400 meters with an accuracy of ±2%, ensuring reliable performance for professional applications.

3. Versatile Connectivity Testing

Comprehensive test functionality for crystal head crimping, circuit connection, and cable mapping, simplifying troubleshooting and diagnosis tasks.

4. Integrated Multimeter Functions (ET623)

ET623 includes a 6000-count multimeter for voltage, current, resistance, and capacitance measurements, making it an all-in-one tool suitable for electrical and networking professionals.

5. User-Friendly Features

Equipped with features like auto power off, low battery indication, flashlight, and sensitivity-adjustable tracing to enhance convenience during extended usage.

Package Included:

ET622

1 x Wire Tracker Main Unit

1 x Receiver Probe

1 x RJ45 Cable

1 x Crocodile Clip

1 x Type-C Charging Cable

1 x Carrying Case

1 x User Manual

ET623

1 x Wire Tracker Main Unit

1 x Receiver Probe

1 x RJ45 Cable

1 x Crocodile Clip

1 x Type-C Charging Cable

2 x Multimeter Probe

1 x Carrying Case

1 x User Manual
