ESP32-WROOM-32U Full-Band Digital Radio 2.8 Inch IPS Screen FM SW MW LW WiFi Bluetooth Type-C 5000mAh SMA Antenna Portable Receiver
The ESP32-WROOM-32U Full-Band Digital Radio 2.8 Inch IPS Screen FM SW MW LW WiFi Bluetooth Type-C 5000mAh SMA Antenna Portable Receiver is a premium test & measuring module designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
29% Off — you save ₹2,494 on this product!
Color: Orange
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The ESP32-WROOM-32U Full-Band Digital Radio 2.8 Inch IPS Screen FM SW MW LW WiFi Bluetooth Type-C 5000mAh SMA Antenna Portable Receiver is a premium test & measuring module designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification:
Product Name: ESP32-WROOM-32U 2.8-inch IPS Full Viewing Angle Full-Band Digital Radio
Main Chip: ESP32-WROOM-32U dual-core module
Flash: 4MB
Display: 2.8-inch IPS color LCD
Resolution: 320 x 240
Touch Panel: Resistive touch screen
Supported Bands: FM / SW / MW / LW
FM Frequency Range: 65-108MHz
FM Step: 50 / 100 / 200kHz, default 100kHz
SW Frequency Range: 1700-27000kHz
SW Step: Default 5kHz
MW Frequency Range: 522-1791kHz, 9kHz step; 520-1720kHz, 10kHz step
LW Frequency Range: 144-513kHz
LW Step: Default 9kHz
OIRT Step: Default 30kHz
FM Sensitivity: ≤0.5uV, S/N = 30dB
FM Selectivity: ≥60dB, ±150kHz
SW/MW/LW Sensitivity: ≤10uV, S/N = 20dB
SW/MW/LW Selectivity: ≥60dB
Wireless Connectivity: Wi-Fi and Bluetooth dual mode
Antenna Interface: SMA external thread internal female interface
Speaker Amplifier: TI TPA6211A1
Speaker: 45 x 45mm speaker
Speaker Output Power: 4Ω / 3W
Headphone Amplifier: AD MAX97220
Headphone Jack: 3.5mm
Battery: 3.7V 5000mAh lithium battery
Battery Energy: 18.5Wh
Typical Working Current: About 350mA at 3.7V
Runtime: About 15 hours per charge
USB to Serial Chip: CH340
Charging / Upgrade Port: Type-C
Product Size: 142 x 30 x 80mm, excluding antenna connector and antenna
Weight: 300g
Features:
1) ESP32-WROOM-32U dual-core module with 4MB Flash, supporting Wi-Fi and Bluetooth dual mode.
2) Full-band coverage with FM, SW, MW, and LW reception for multi-region listening needs.
3) 2.8-inch IPS full viewing angle screen with 320 x 240 resolution and resistive touch control.
4) Standard SMA antenna interface supports external high-gain antennas for stronger weak-signal reception.
5) Built-in 5000mAh battery, about 15 hours runtime, with Type-C charging and firmware upgrade support.
Package Included:

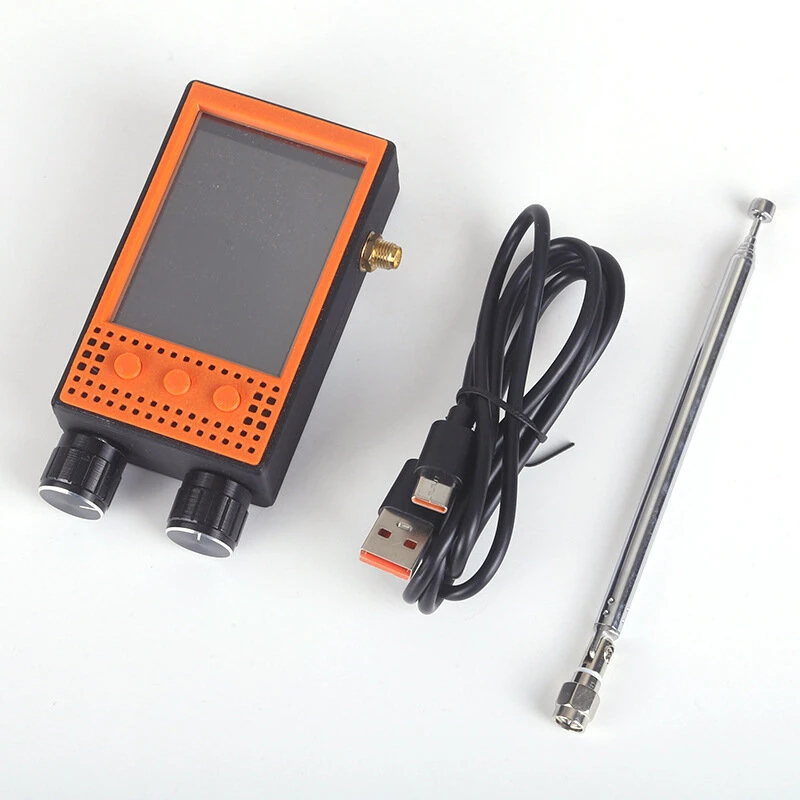

1 x Digital Radio Main Unit
1 x Telescopic Antenna
1 x Type-C Charging Data Cable
