ESP32-S3 IPS Smart Display 5 Inch TFT Capacitive Screen LVGL ESP32 HMI 8M PSRAM 16M Flash WiFi Bluetooth 800*480 RGB LCD With Demo
The ESP32-S3 IPS Smart Display 5 Inch TFT Capacitive Screen LVGL ESP32 HMI 8M PSRAM 16M Flash WiFi Bluetooth 800*480 RGB LCD With Demo is a mid-range product designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Price: ₹4,595
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The ESP32-S3 IPS Smart Display 5 Inch TFT Capacitive Screen LVGL ESP32 HMI 8M PSRAM 16M Flash WiFi Bluetooth 800*480 RGB LCD With Demo is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Description: ESP32 development board-8M PSRAM 16M Flash, standard 5.0-inch IPS TFT screen and Without shell or No shell, support one-key automatic download, provide LVGL demo and for arduino examples ESP32-8048S050 download link
Parameter: Use low-power dual-core 32-bit CPU, which can be used as an application processor. The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS Built-in 520 KB SRAM Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces Support OV2640 and OV7670 cameras, built-in flash Support picture WiFI upload Support TF card Support multiple sleep modes. Embedded Lwip and FreeRTOS Support STA/AP/STA+AP working mode Support Smart Config/AirKiss one-click network configuration Support secondary development
Support TF card, maximum support 4G IO port 9 Specifications: Working voltage: 4.75-5.25V SPIFlash default: 32Mbit RAM internal: 520KB Wi-Fi: 802.11b/g/n/e/i Bluetooth: Bluetooth 4.2BR/EDR and BLE standard
Serial port rate default 115200bps Spectrum range 2400 ~2483.5MHz Antenna form Onboard PCB antenna, gain 2dBi Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE Packaging method: DIP-16 Transmit power 802.11b: 17±2dBm (@11Mbps) 802.11g: 14±2dBm (@54Mbps) 802.11n: 13±2dBm (@MCS7) Receiving sensitivity CCK, 1Mbps: -90dBm CCK, 11Mbps: -85dBm 6Mbps(1/2BPSK): -88dBm 54Mbps (3/464-QAM): -70dBm MCS7 (65Mbps, 72.2Mbps): -67dBm Power consumption Turn off the flash: 180mA@5V Turn on the flash and adjust the brightness to the maximum: 310mA@5V Deep-sleep: The lowest power consumption can reach 6mA@5V Moderm-sleep: the lowest can reach 20mA@5V Light-sleep: the lowest can reach 6.7mA@5V Security: WPA/WPA2/WPA2-Enterprise/WPS Working temperature: -20 ℃~ 70 ℃ Storage environment: -40 ℃~ 125 ℃, <90%RH Application: Home smart device image transmission Wireless monitoring Smart agriculture QR wireless recognition Wireless positioning system signal And other IoT applications

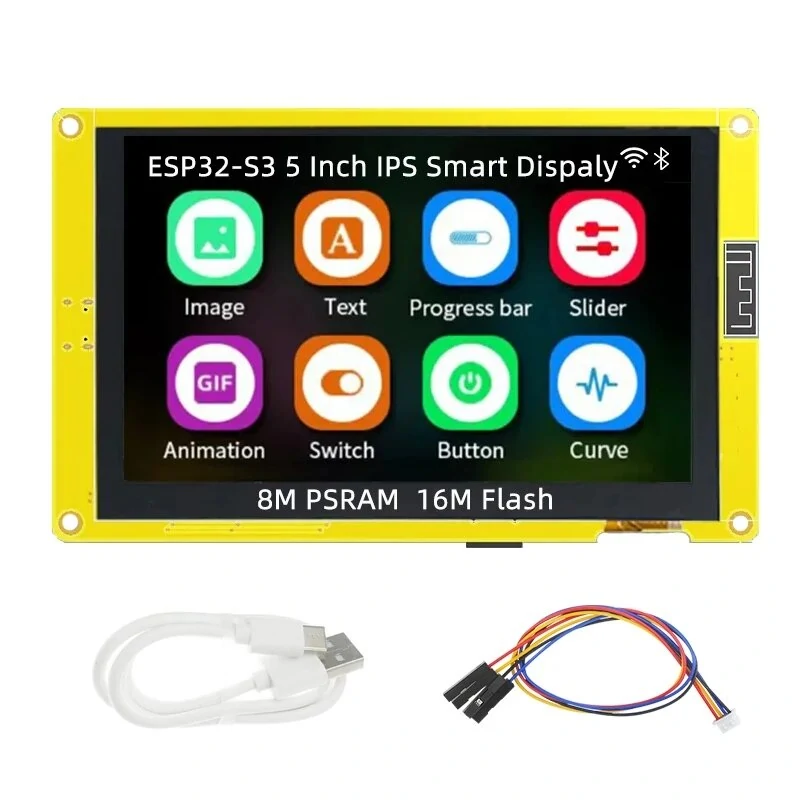

Package includes:
(optional)
#Screen only
1 x Display
#Screen + Shell
1 x Display
1 x Shell
