How to get serial monitor to work? The driver pictures in the github does not work.

I found I managed to get it working after pressing the reset button then the other button. Might also need to chase baud rate.

what's the purpose of 4-pin connector?

It should be compatible with Sparkfun's Qwiic connector series of I2C devices.

Does it support arduino. can you provide steps and driver for arduino IDE.

support arduino. check the link from the description

The github ardunio support provided did not tell which board profile to use nor how to set up the arduino application to program the board. It looks nice, but I want to do more than look at it.

You need Espressif ESP32 core for Arduino and you need the development version 2.0.2 for ESP32-C3 to work.

Anyone able to get WLED running on this board?

HiAs far as i know, as of today , it is not officially supported but it is being worked onSee.the issue 1940 in the Github repositoryAlso keep an Eye on the official WLED Discord Server...

Is it possible to power the board through an external battery?What pin should i use and what voltage should i apply?Thanks in advance.

You can apply 5V through the 2 pins 5 and G

Is the source code for the demo on the board available? I would like to see how the tilt sensor is being used.

Please contact us for more information.

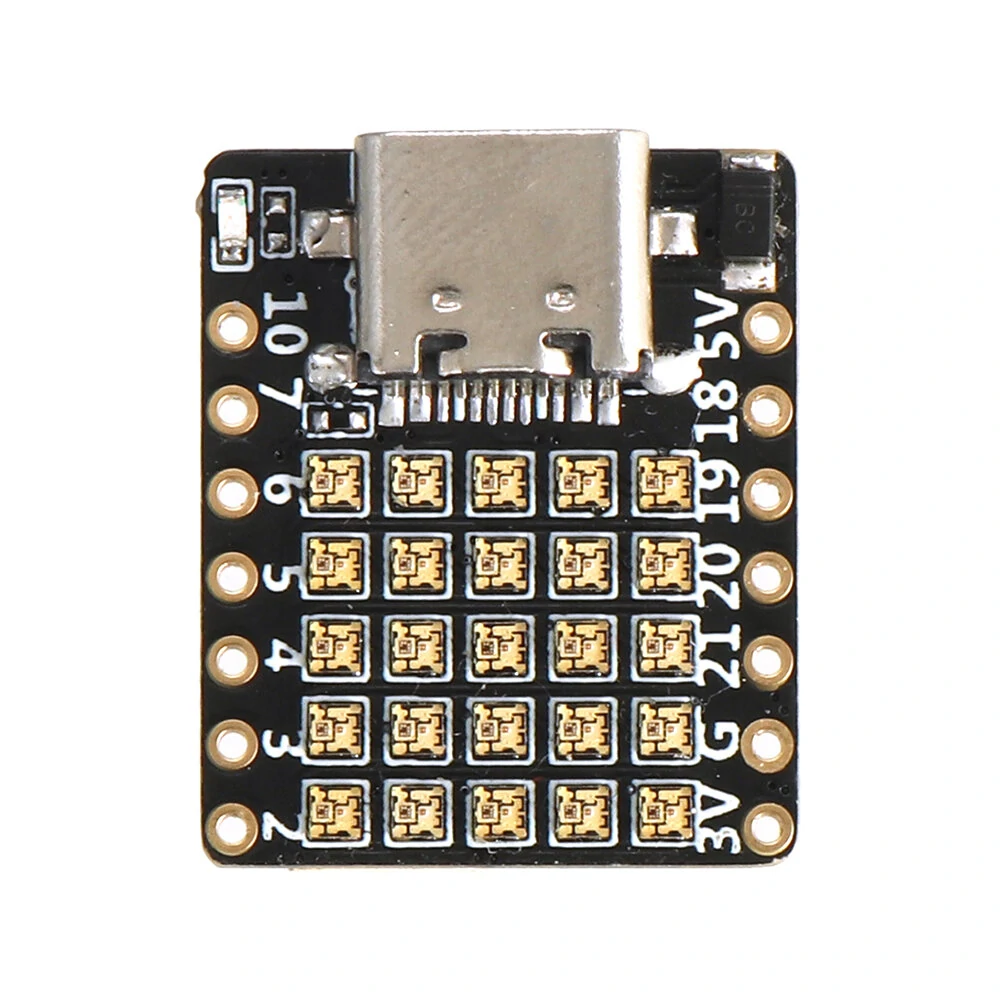

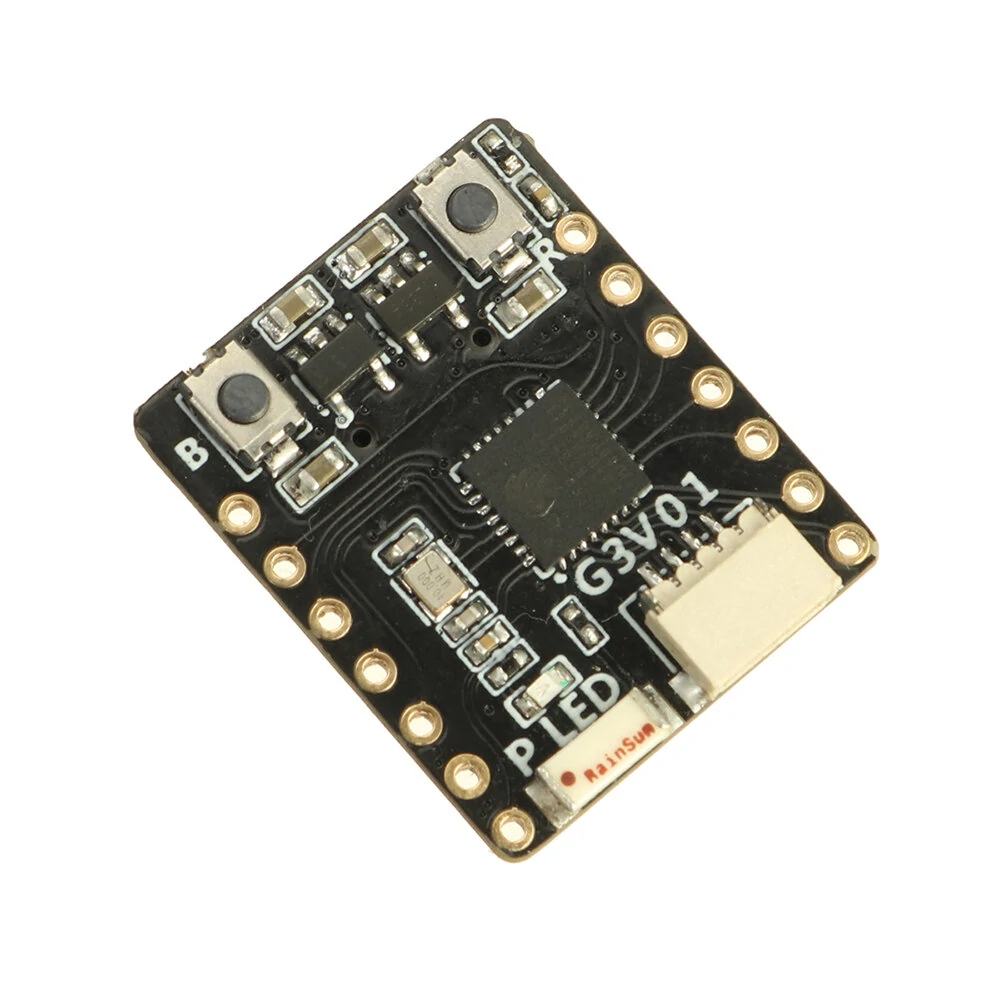

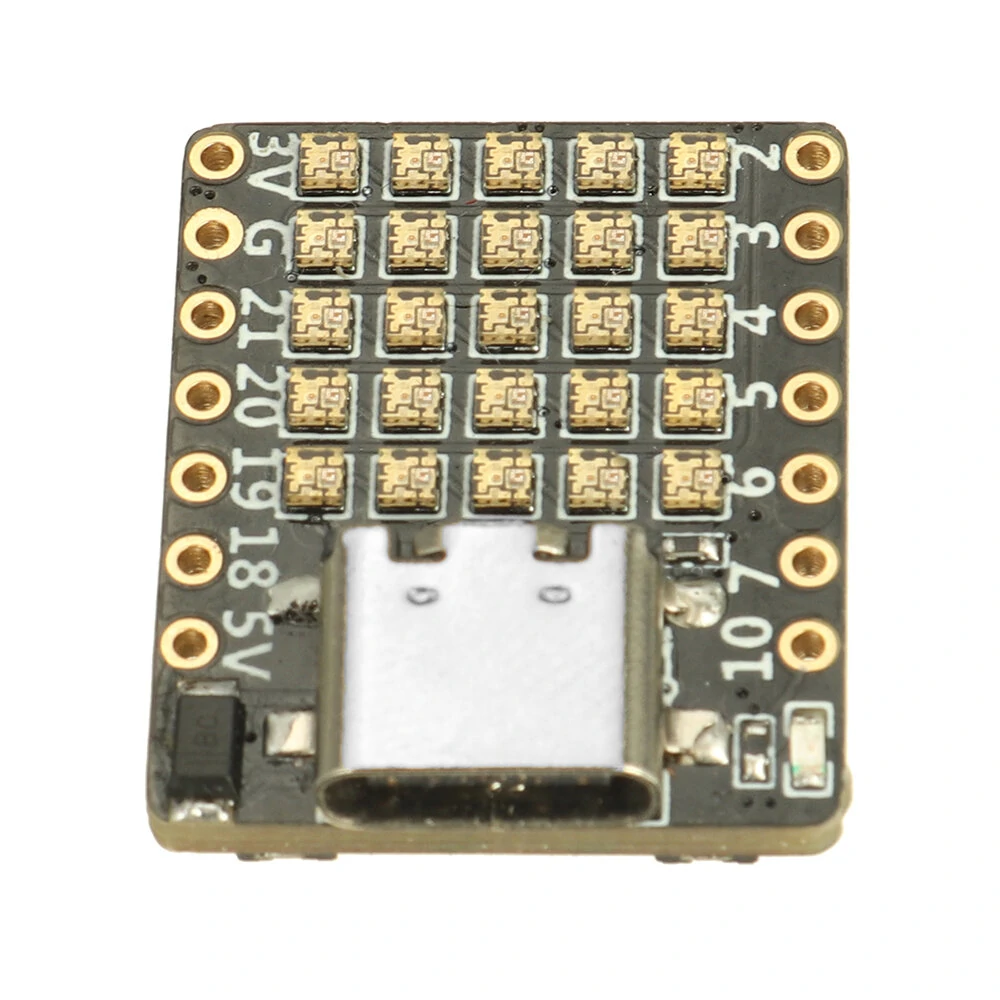

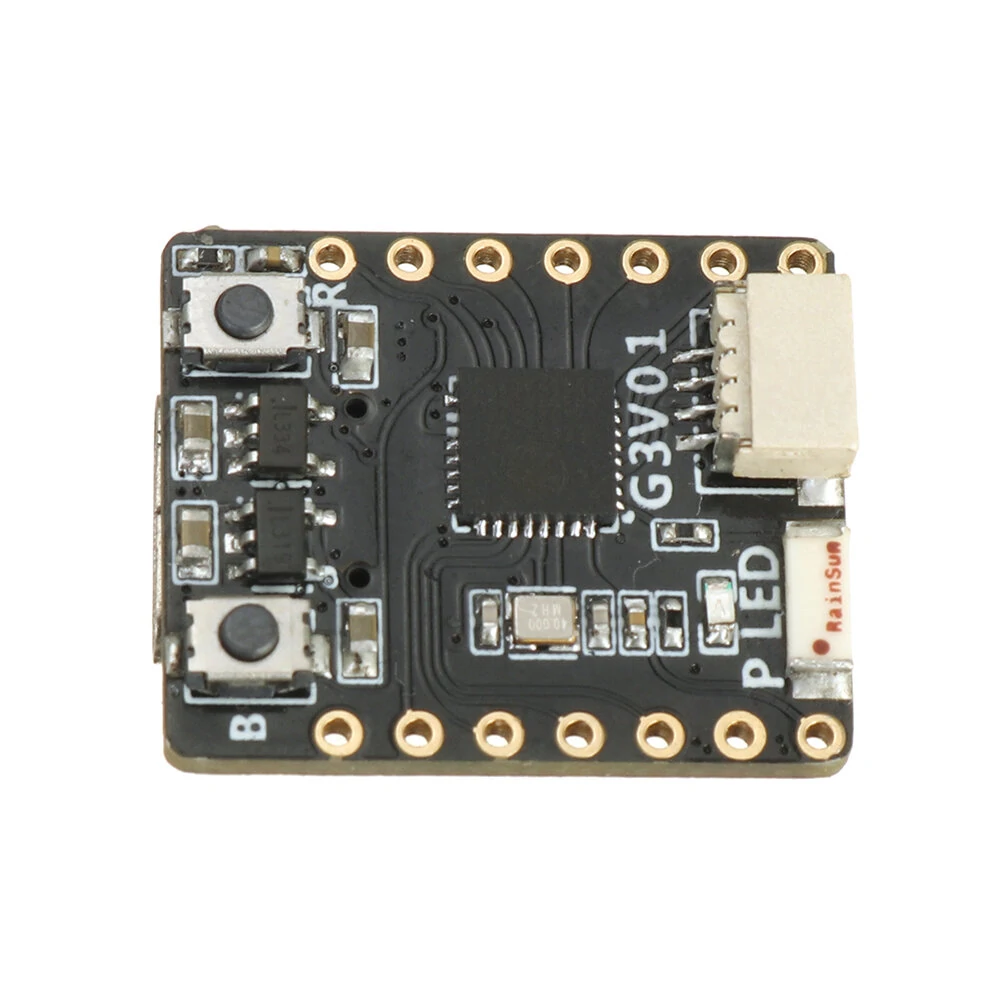

ESP32 C3 Development Board RISC-V WiFi Bluetooth IoT Development Board Compatible with Python — image 1

Hover to zoom

1 / 11 · Click to enlarge

ESP32

ESP32 C3 Development Board RISC-V WiFi Bluetooth IoT Development Board Compatible with Python

Name: ESP32 C3 Development Board RISC-V WiFi Bluetooth IoT Development Board Compatible with Python
Brand: ESP32
SKU: bg-1914005
Price: 2000 INR
Availability: InStock
Rating: 5.0 (52 reviews)

5.052 ratings

AI Summary

Electronics for everyday users

The ESP32 C3 Development Board RISC-V WiFi Bluetooth IoT Development Board Compatible with Python by ESP32 is a mid-range electronics designed for everyday users. Customers praise its fast and responsive and clear and bright display. 100% of buyers rate it 4★ or above.

✓ fast and responsive✓ clear and bright display✓ compact and portable✓ wireless convenience

₹2,000

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

Quantity

Total: ₹2,000

Buying tip: A well-rounded choice at a fair price. Recommended for most buyers.

Estimated delivery: 4 Aug – 18 Aug

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience

SKU: bg-1914005Category: Electronics

About This Product

The ESP32 C3 Development Board RISC-V WiFi Bluetooth IoT Development Board Compatible with Python by ESP32 is a mid-range electronics designed for everyday users. Customers highlight its fast and responsive and clear and bright display.

Customer Verdict

100% of buyers rated this product 4 stars or above. The most appreciated qualities are: fast and responsive, clear and bright display, compact and portable.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

What is C3FH4 RGB?

C3FH4 RGB features an ultra-compact design with one risc-v 32-bit single core processor at 160MHz on a PCB, built-in 400 KB SRAM and 4 MB Flash , integrated with 2.4 GHz Wi Fi and supporting long-distance Bluetooth 5 (LE), with industry-leading RF performance and low power consumption.By combining RSA-3072-based secure boot and the AES-128-XTS-based flash encryption, offers a more secure way to answer the Bluetooth security concerns.

With low power consumption: It is ideal for any space-constrained or battery-powered devices such as wearables, medical devices, sensors, and other IoT devices.and fully compatible with Arduin, MicroPython, ESP32-IDF, and other mainstream development platforms to quickly build various applications.

HIGH INTEGRATION: C3FH4 RGB Including 2 channels of 5V - > 3.3V DC / DC, GPIOx11, programmable RGB light x25, button x2, finely tuned RF circuit, providing stable and reliable wireless communication.

Features:

ESP32-C3FH4 (2.4GHz Wi-Fi and supporting long-distance Bluetooth 5 (LE))

built-in 400 KB SRAM and 4 MB Flash

USB Type-C(USB OnThe-Go (OTG))

Including 2 channels of 5V - > 3.3V DC / DC

Integrated 5X5 ws2812b-1515(GPIO8) and 2 buttons(GPIO9 and CHIP_EN)

3V power LED and status LED(GPIO10)

Ceramic Antenna

Size & Weight:

Size: 21 x 18 mm

Weight: 2.3g

DOCUMENTS:

https://github.com/01Space/ESP32-C3FH4-RGB

Package includes:

1 x LED board

(Note: The coin is not included)
