Electronic FM Radio DIY Hand-Soldered Kit LED Digital Display 87.5-108MHz Type-C Power STC8G1K08 + RDA5807M AXS2031 Mono 3-5W

Name: Electronic FM Radio DIY Hand-Soldered Kit LED Digital Display 87.5-108MHz Type-C Power STC8G1K08 + RDA5807M AXS2031 Mono 3-5W
Brand: Pricio
SKU: 2051408
Price: 1695 INR
Availability: InStock

26+ bought in past month

AI Summary

product for DIY enthusiasts and makers

The Electronic FM Radio DIY Hand-Soldered Kit LED Digital Display 87.5-108MHz Type-C Power STC8G1K08 + RDA5807M AXS2031 Mono 3-5W is a mid-range product designed for DIY enthusiasts and makers.

₹1,695-22%

MRP:₹2,161Save ₹466

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

22% Off — you save ₹466 on this product!

Type: Finished product

Price: ₹1,695

Quantity

Total: ₹1,695

Buying tip: A well-rounded choice at a fair price. Recommended for most buyers.

Estimated delivery: 21 Aug – 4 Sept

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience

SKU: bg-2051408

About This Product

The Electronic FM Radio DIY Hand-Soldered Kit LED Digital Display 87.5-108MHz Type-C Power STC8G1K08 + RDA5807M AXS2031 Mono 3-5W is a mid-range designed for DIY enthusiasts and makers. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

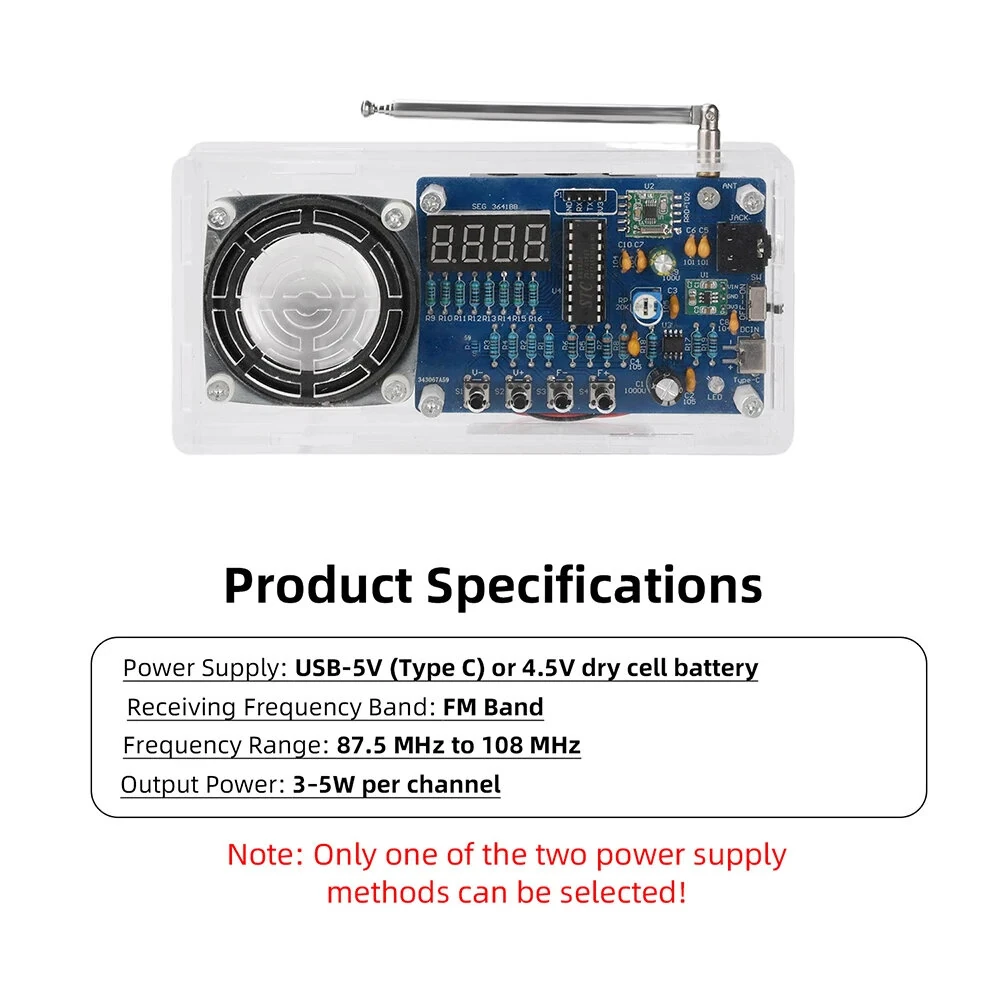

Specifications:

Kit Type: DIY hand-soldered radio kit

Main Control Chip: STC8G1K08 microcontroller

FM Receiver: RDA5807M, 87.5-108 MHz, high sensitivity, low noise, strong anti-interference

Audio Amplifier: AXS2031 digital mono amplifier, 3-5 W, operates at 2.5-5.5 V

Voltage Regulation: 3.3 V buck-boost module; stable 3.3 V with 2.5-5.5 V input

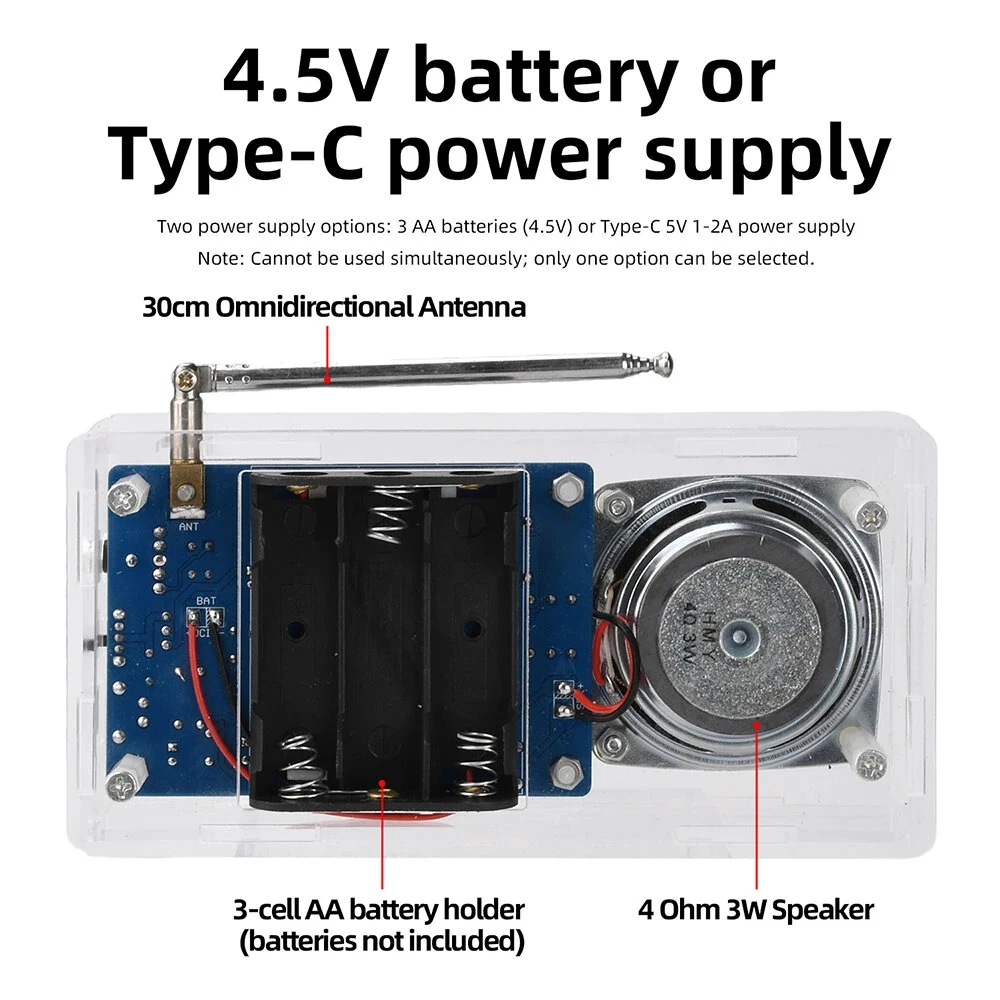

Power Supply: USB 5 V (Type-C) or 4.5 V dry cell battery (use one method at a time) (package is not includes battery)

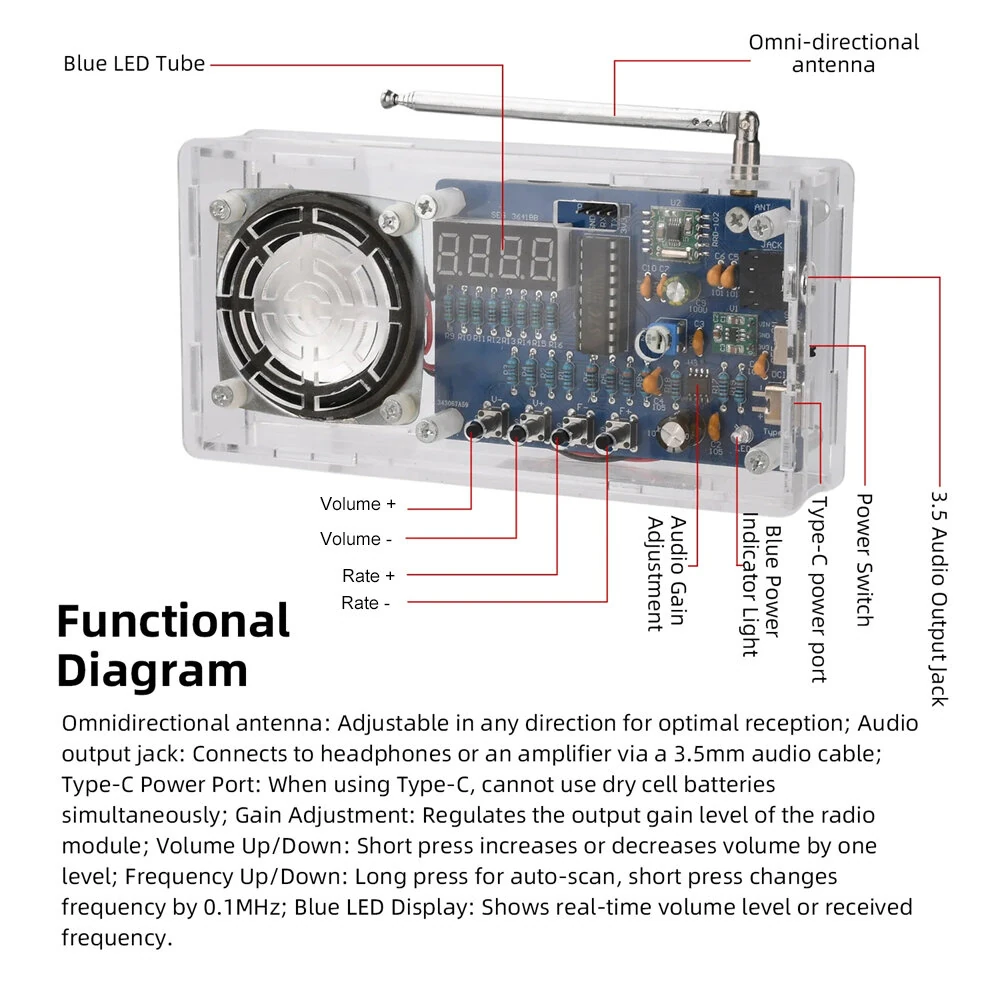

Display: LED digital display

Antenna: 30 cm omnidirectional, adjustable

Reception Band: FM band

Output Power: Mono 3-5 W

Features:

1. Full 87.5-108 MHz coverage with high sensitivity and strong anti-interference for stable FM reception.

2. AXS2031 digital mono amplifier delivers 3-5 W with smooth audio, distortion-free even at 2.5 V.

3. 3.3 V buck-boost module keeps MCU and LED display stable from 2.5-5.5 V input.

4. Type-C or 4.5 V dry cell battery power options; use a single power method at a time.

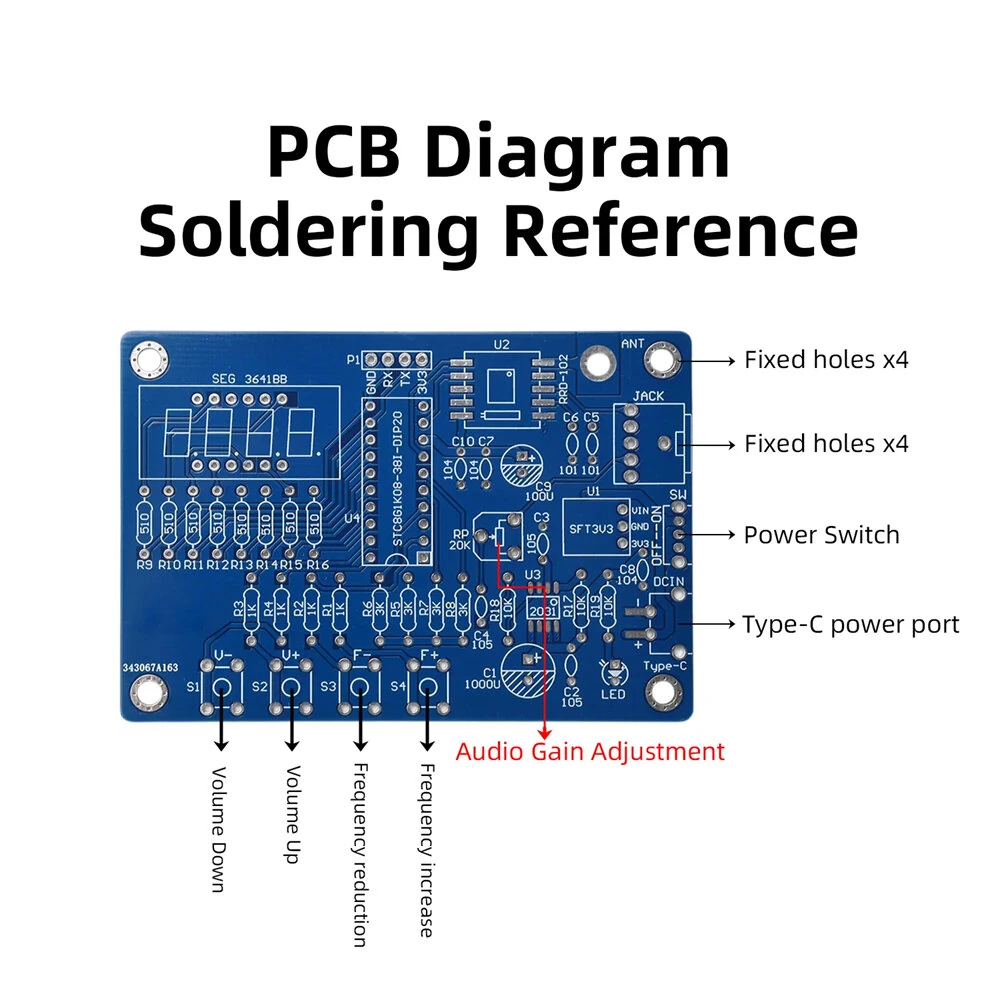

5. 30 cm adjustable antenna enhances reception; clear soldering instructions support DIY skill building.

Package included:

1 x Radio Kit
