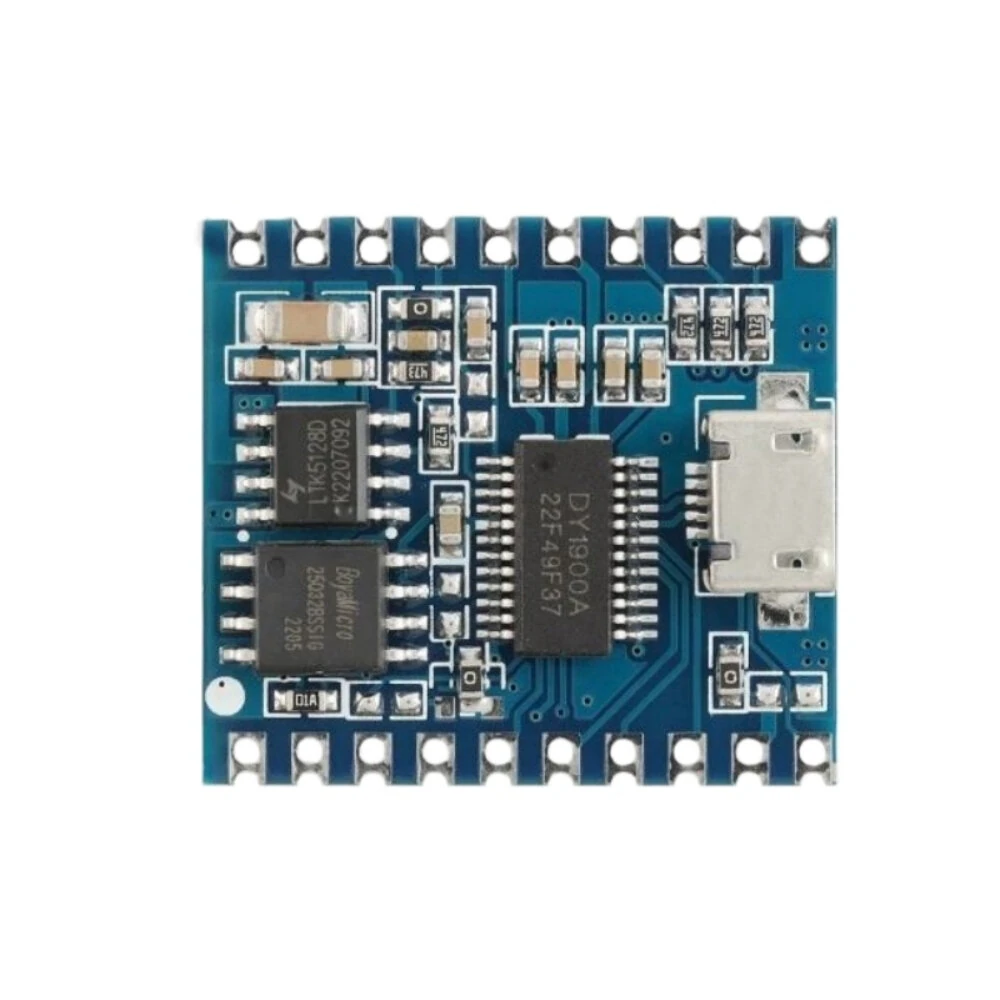

DY-SV19R 5W MP3 Player Amplifier Board USB One-for-One Control Flash Storage 32Mbit UART Playback Audio Tracks
The DY-SV19R 5W MP3 Player Amplifier Board USB One-for-One Control Flash Storage 32Mbit UART Playback Audio Tracks is a value-for-money product designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
43% Off — you save ₹648 on this product!
Color: Blue
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The DY-SV19R 5W MP3 Player Amplifier Board USB One-for-One Control Flash Storage 32Mbit UART Playback Audio Tracks is a value-for-money designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

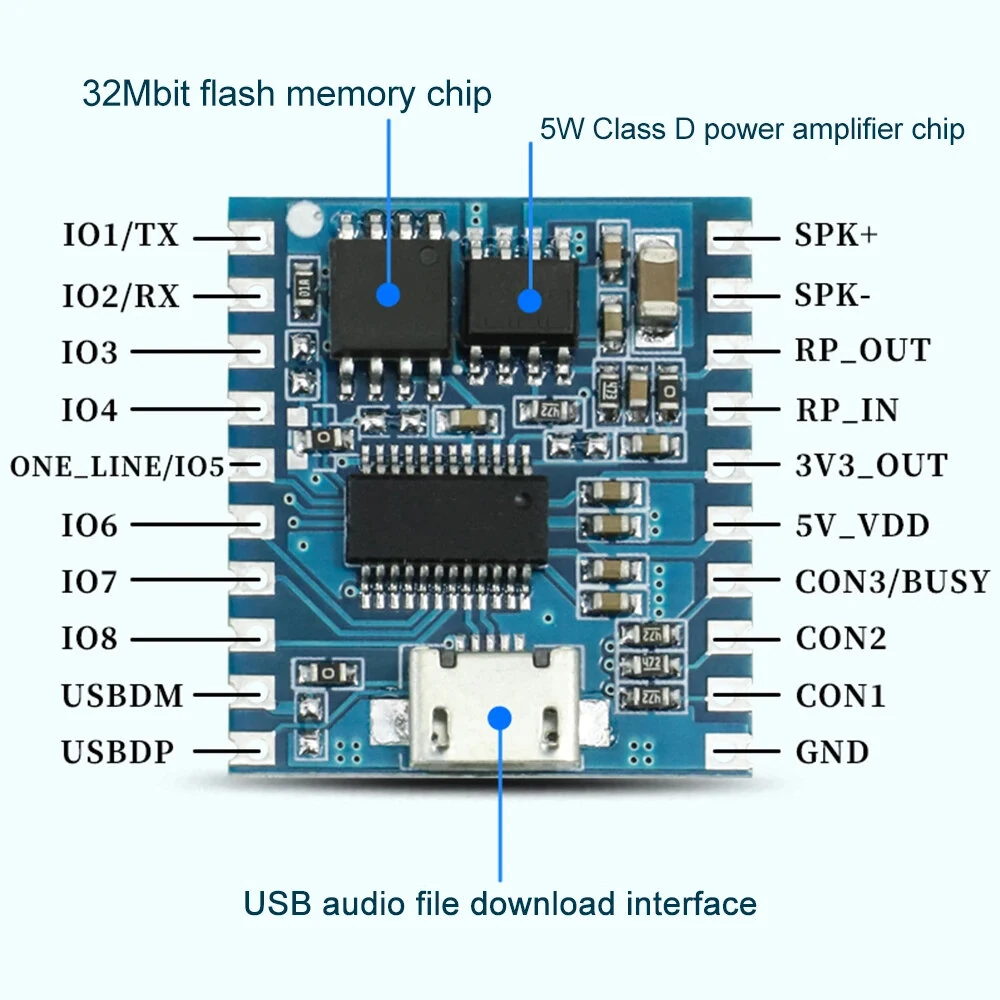

Specification:
Model: DY-SV19R

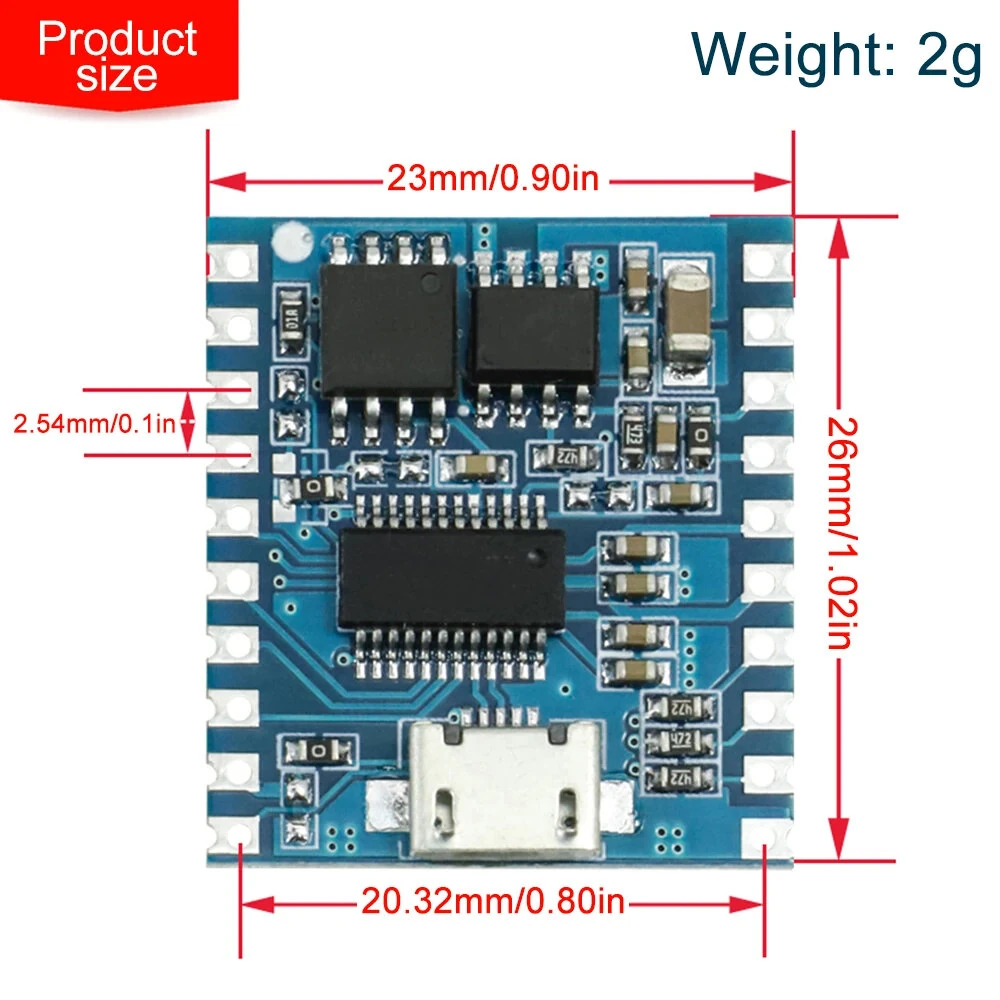

Dimensions: 26mm x 23mm x 2.54mm
Weight: 2 grams
Memory: Built-in 32Mbit (4MB) flash storage for audio files
Power Output: Onboard 5W Class D amplifier for direct 4Ω~8Ω speaker drive

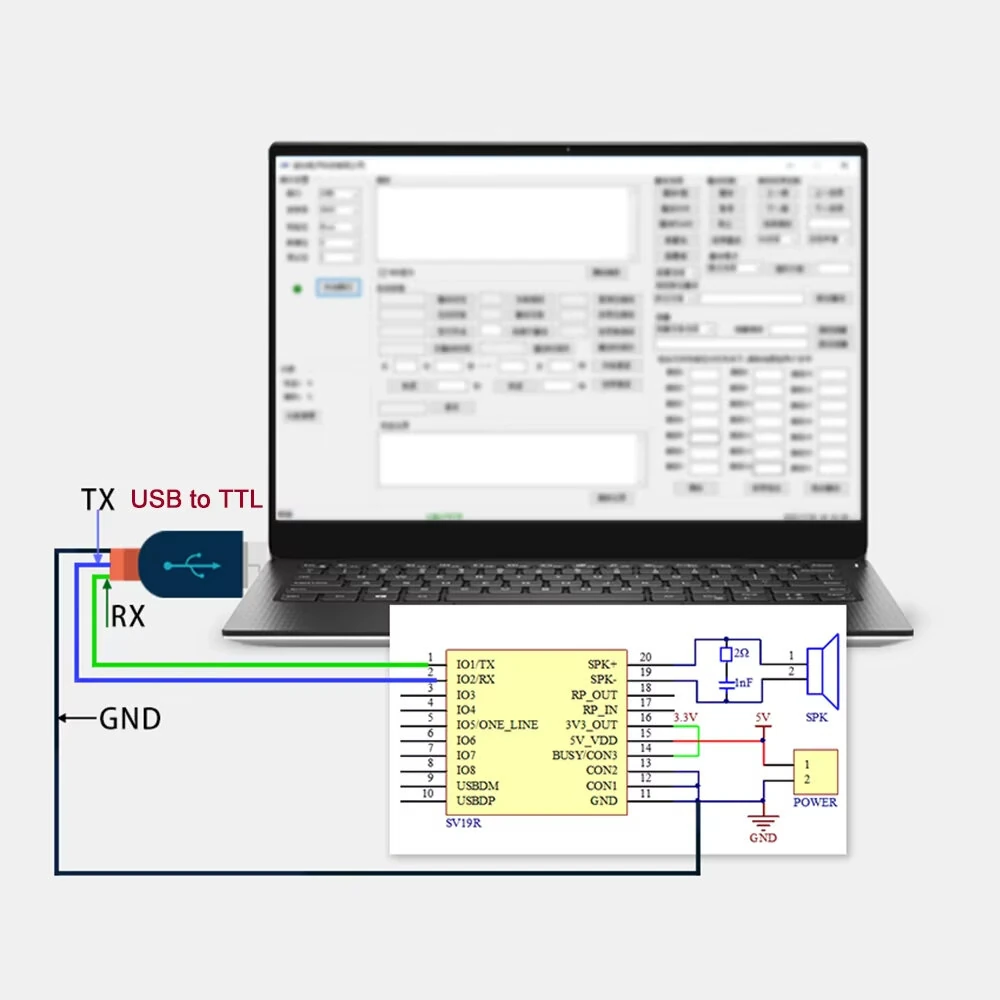

Control Modes: Supports Standard MP3 Mode, UART Serial, Single-Bus Trigger, and IO combination modes.
Audio Playback Capacity: Can up to 65535 tracks through UART control and up to 255 tracks with IO combination triggers.
Interface: USB port for direct audio file transfer.
Features:
1. Multiple Audio Control Options: Provides integrated one-on-one trigger, IO combination for multiple tracks, and UART-based advanced playback control.
2. High Playback Capacity: Supports playback of up to 65535 audio files in UART mode and 8 tracks directly via independent IO.
3. Built-in Flash Storage: Equipped with internal 32Mbit flash for reliable storage of audio files without the need for external memory.
4. Direct Speaker Connection: Includes a built-in 5W amplifier for direct connection to speakers with 4Ω~8Ω impedance.

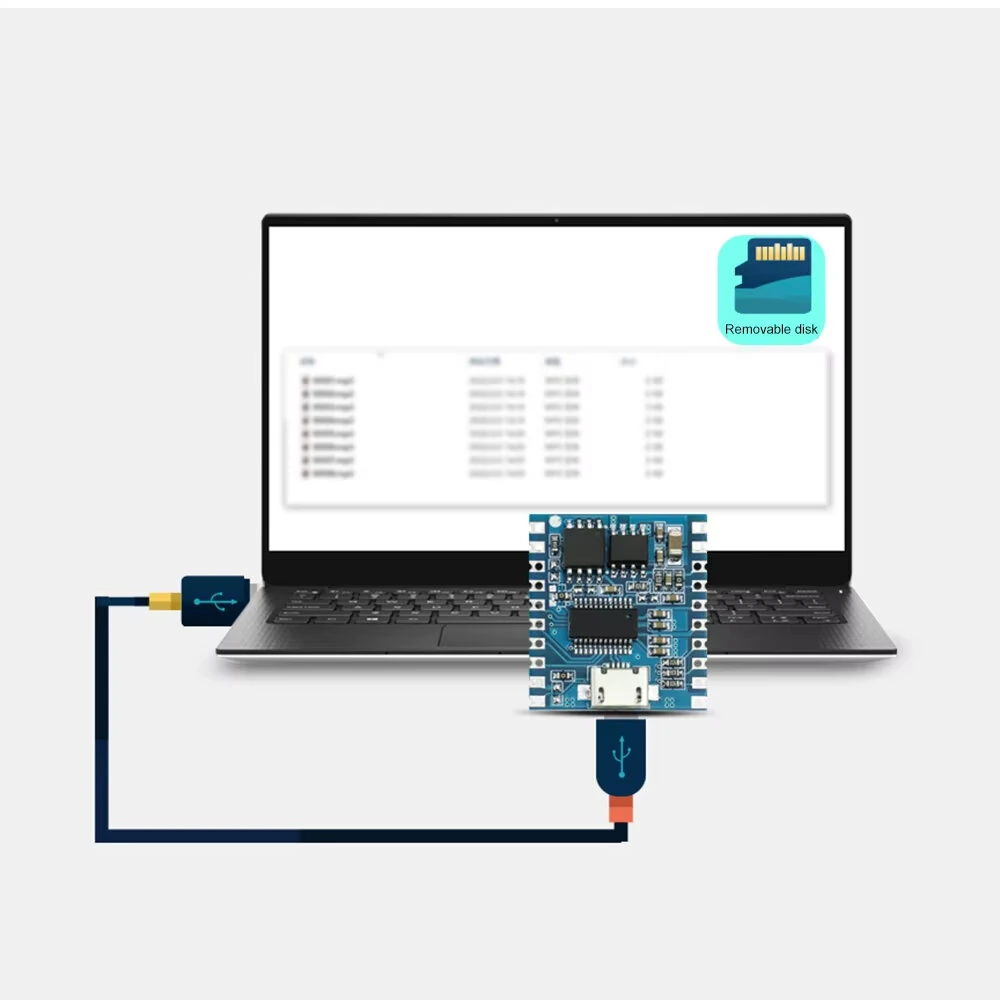

5. USB Audio Transfer: Allows direct connection to a computer via USB for convenient audio file management.

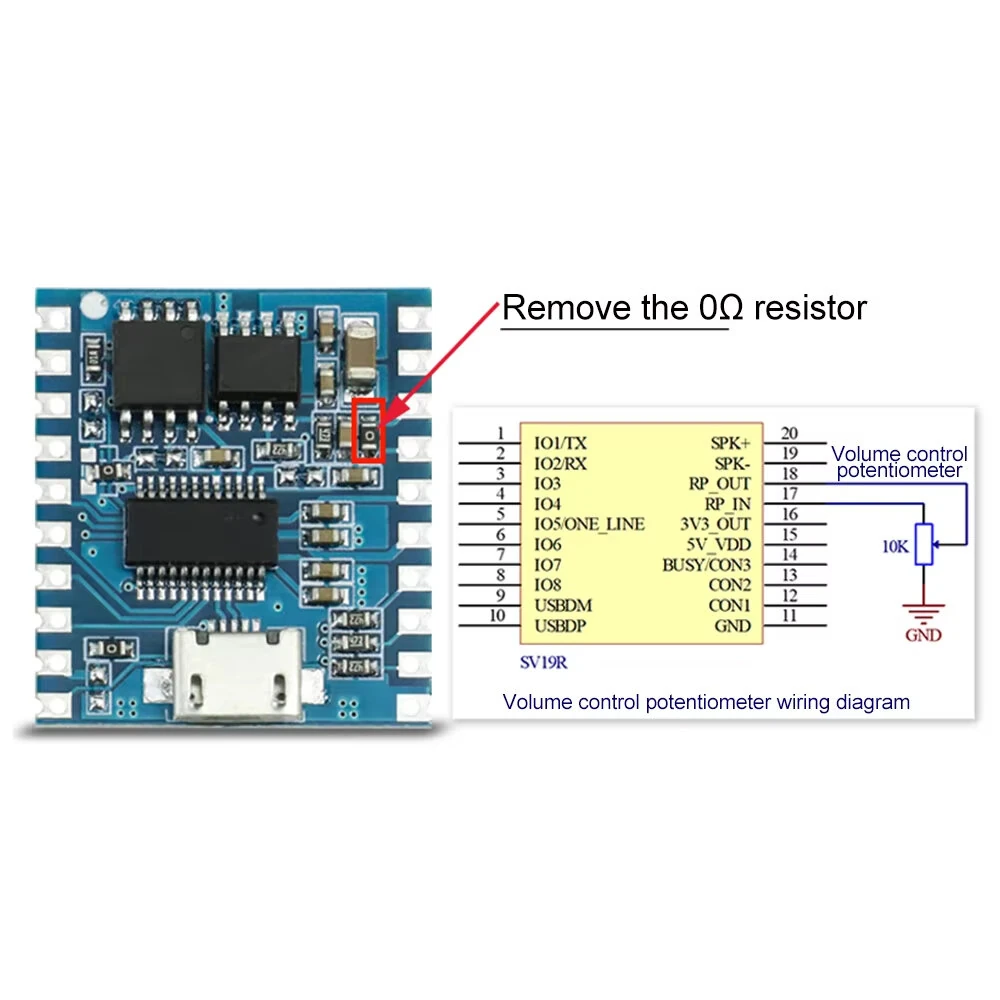

6. Adjustable Volume Control: Supports external volume control through a potentiometer connection.
Package Includes:
1 x DY-SV19R Voice Playing Module
