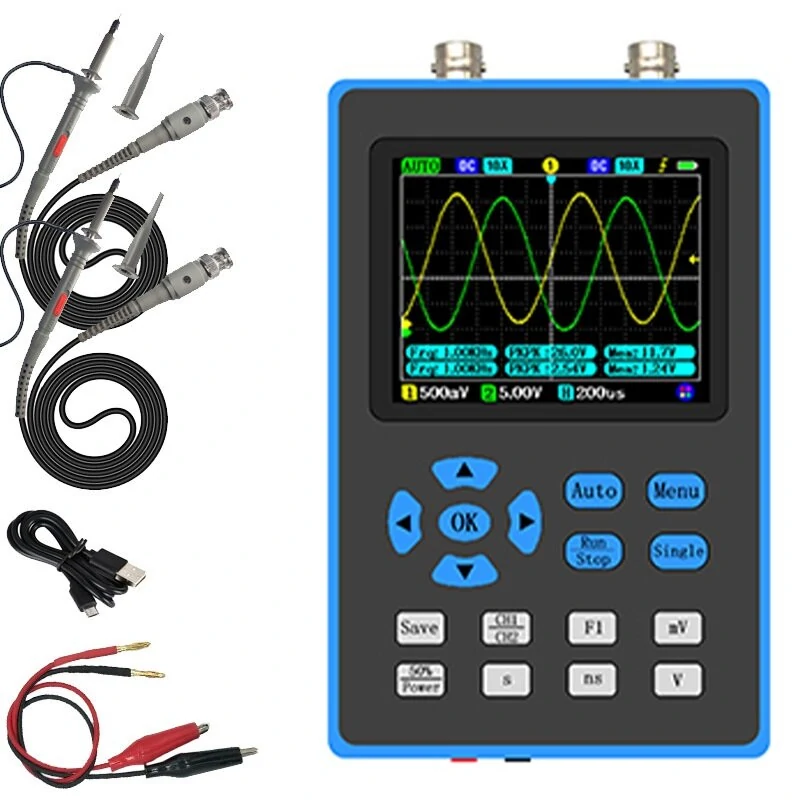

DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes

Name: DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes
Brand: Pricio
SKU: 1922928
Price: 15663 INR
Availability: InStock
Rating: 5.0 (2 reviews)

5.02 ratings

547+ bought in last month

AI Summary

product for premium buyers

The DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes is a premium product designed for premium buyers.

₹15,663

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

Quantity

Total: ₹15,663

Buying tip: A top-tier option — the best features and quality available in this category.

Estimated delivery: 27 Aug – 10 Sept

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience

SKU: bg-1922928

About This Product

The DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes is a premium designed for premium buyers. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Features:

1. Adopts ARM and FPGA chip collocation, provides high-speed signal acquisition and high-speed data processing to give you a smooth use experience and rich functions.

2. Wide applications: can be used for such as sin-gle-chip debugging, car maintenance, home appliance maintenance,DIY debugging, electronic competition, power supplys debugging, frequency converter and so on.

3. Cursor measurement. For some special signals such as non-periodic signals, noisy signals, or narrow pulses, you can also manually adjust the cursor to measure.

4. FFT spectrum analysis. It can convert time domain waveforms into frequency domain artifacts, which are widely used in harmonic analysis and other fields.

5. Abundant trigger functions. Support automatic trigger, normal trigger, single trigger.

6. Save and preview the waveform. One-key to save the screen waveform, enter the waveform preview page, click the thumbnail to observe in full screen, up to 250 waveforms can be kept, and redundant waveforms can also be deleted.

7. Export the waveform to the computer. Through the USB cable connection, the waveform diagram stored by the user can be exported to the computer, which is convenient and easy to operate.

8. Support zoom waveform after stopping. After stopping, you can drag the waveform left and right to find the desired place to expand and observe the details, and analyze the cause of the problem.

9. There are 14 measurement options available: Frequency, P-eak to P-eak, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle.

Specifications:

Model: DSO2512G
Channel coupling: AC/DC
Number of channels: 2
One-click automatic: support
Screen size: 2.8 inches
Waveform measurement: 14 types
Screen resolution: 320*240
Measurement accuracy: ±2%
Analog bandwidth: 120M (single CH1), 60M (CH1+CH2)
XY mode: support
Sampling rate: 500M
Waveform save: support
Rise time: <3ns
Frequency accuracy: ±0.01%
Storage depth: 128Kb
Single trigger: support
Input impedance: 1M2
FFT: support
Time base range: 5ns-10s
Signal source amplitude: 2.5V
Vertical sensitivity: 10mV/div-100V/div
Signal source frequency: sine 0-10M, other 0-2M
Maximum measuring voltage: ±40V (probe 1x file) ±400V (probe 10x file)
Appearance size: Width * Height * Thickness 82 mm *137 mm *38mm
Trigger mode: Auto/Normal
Language: Chinese/English
Trigger type: Rising edge/falling edge
Battery capacity: 3000mA
Display mode: YT/XY/scroll
Charging plug: MicroUSB-5V
Afterglow time: none/1s/0
Charging equipment: computer or mobile phone charging first class

Package Included:

1 x Digital Oscilloscope

2 x Probes

1 x USB Cable

Notes:

1. Scratches on the screen are normal. The scratches on the lens are caused by friction during production, packaging, transportation, etc. The scratches are on the protective film and can be torn off by yourself.

2. In addition, the silicone sheath will deform to varying degrees when squeezed. The characteristic of flexible silicone has the advantage that Shougang is very good.
