DPA1698 Dual-Channel DDS Signal Source Function Signal Generator High Power Audio Amplifier 40Vpp Output 100KHz Bandwidth 6dB Gain

Name: DPA1698 Dual-Channel DDS Signal Source Function Signal Generator High Power Audio Amplifier 40Vpp Output 100KHz Bandwidth 6dB Gain
Brand: Pricio
SKU: 2048805
Price: 6223 INR
Availability: InStock

34+ bought in past month

AI Summary

product for premium buyers

The DPA1698 Dual-Channel DDS Signal Source Function Signal Generator High Power Audio Amplifier 40Vpp Output 100KHz Bandwidth 6dB Gain is a premium product designed for premium buyers.

₹6,223-26%

MRP:₹8,459Save ₹2,236

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

26% Off — you save ₹2,236 on this product!

Color: Black

Black

Quantity

Total: ₹6,223

Buying tip: A quality investment for dependable performance and premium build quality.

Estimated delivery: 21 Aug – 4 Sept

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Hobbyist flyingOutdoor recreationKids entertainment

SKU: bg-2048805

About This Product

The DPA1698 Dual-Channel DDS Signal Source Function Signal Generator High Power Audio Amplifier 40Vpp Output 100KHz Bandwidth 6dB Gain is a premium designed for premium buyers. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:

Signal Bandwidth: 0–100KHz

Input Voltage Range: 0–20Vpp

Output Voltage Range: 0–40Vpp

Voltage Gain: 6dB (2x Amplification)

Maximum Output Current: 1A

Output Maximum Power: 10W x 2

Output Impedance: ≤1Ω

Phase Consistency: Aligned with Input

Dimensions: 139mm x 80mm x 37.5mm

Weight: 351g

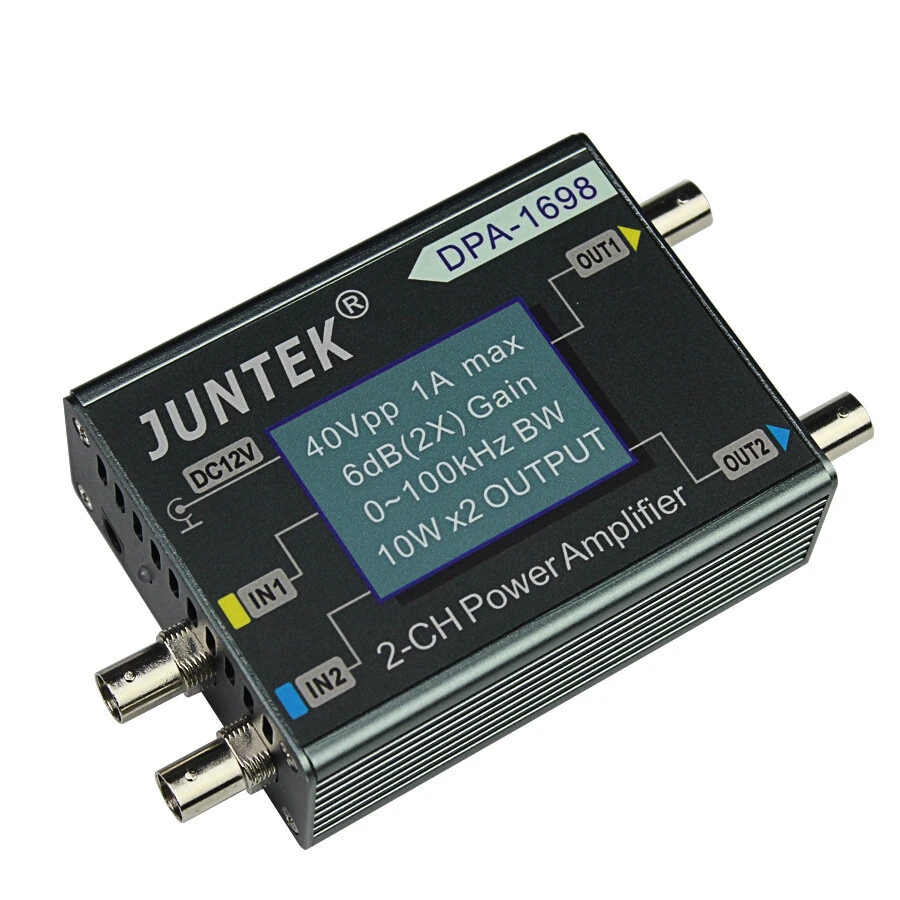

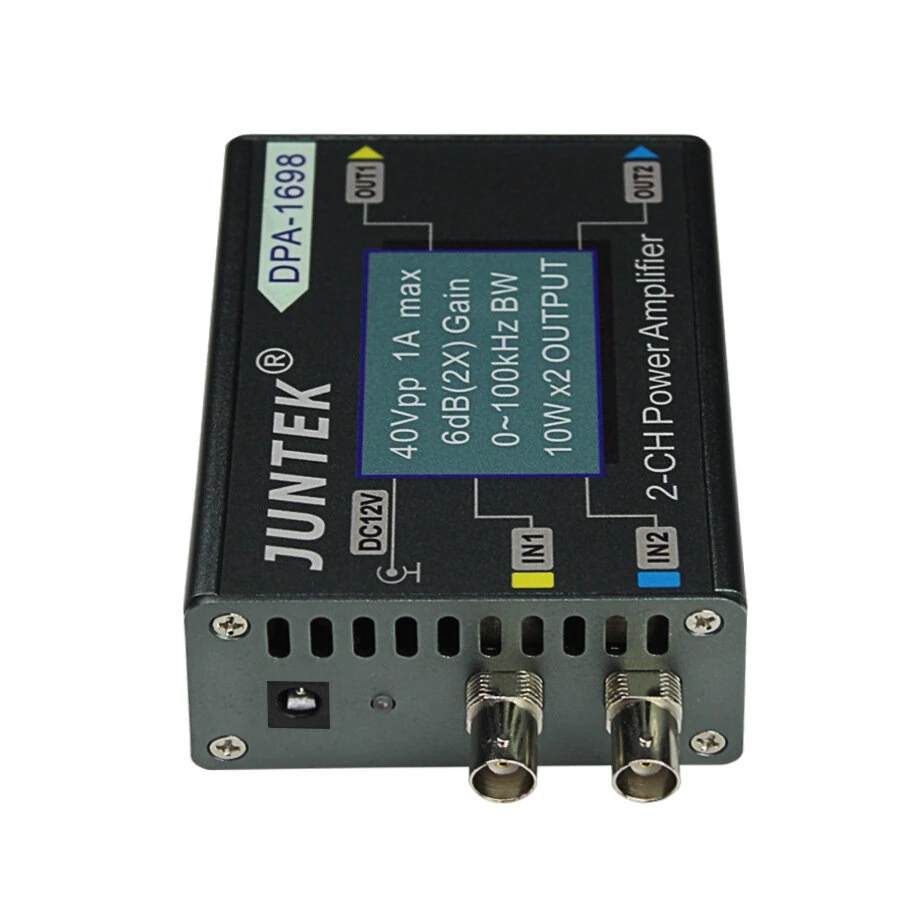

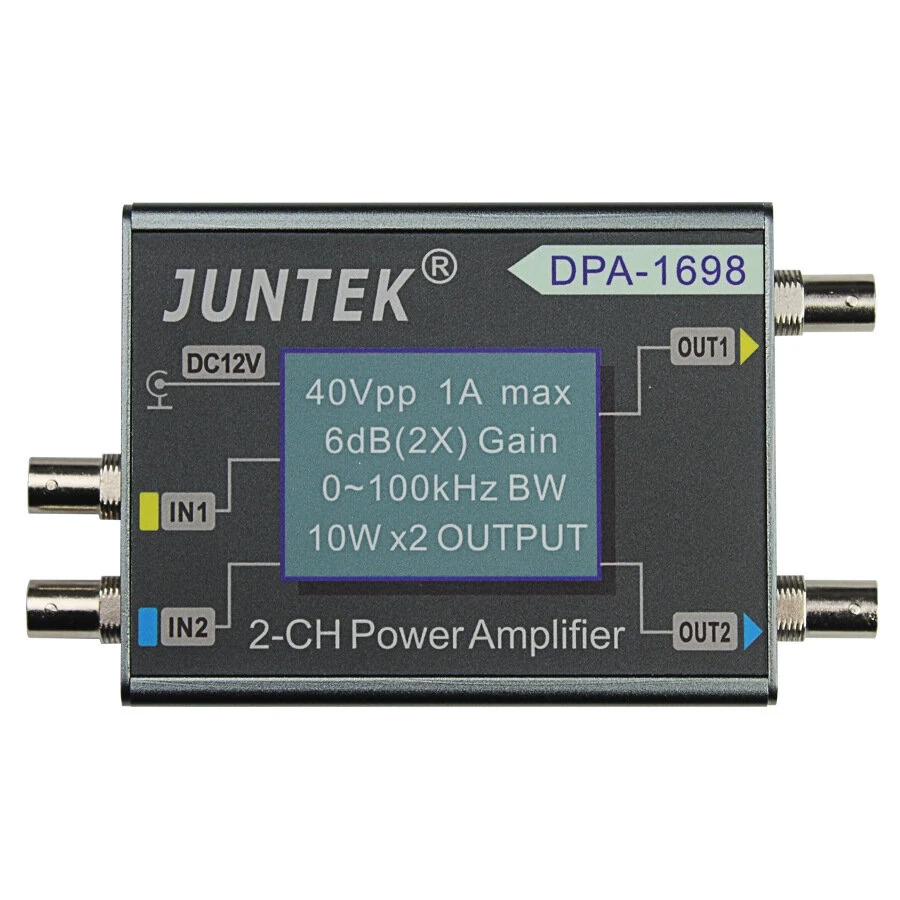

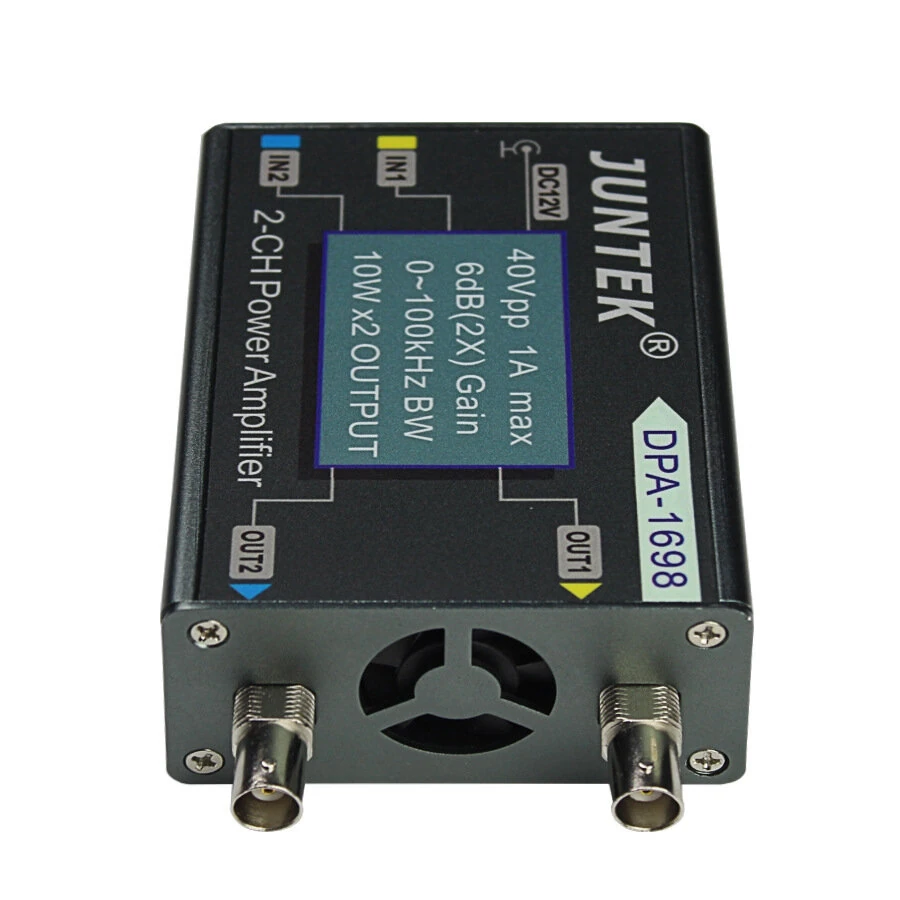

Instrument Introduction: The DPA-1698 dual-channel power signal amplifier features a high-strength aluminum alloy casing, ensuring durability and efficient heat dissipation. It amplifies the input signal voltage amplitude by 2 times, with a maximum single-channel current of up to 1A and a frequency range of 0-100KHz. Compatible with all signal generators produced by our company, it can also be used independently as a power amplifier with signal sources from other manufacturers. This amplifier is ideal for applications in educational instruments, industrial control, production line testing, metal detection, medical therapy, medical aesthetics, ultrasonic equipment driving, and more.

Features:

1. High Voltage Output: Achieves up to 40Vpp output for robust signal amplification.

2. Dual Channel System: Operates simultaneously with two independent channels, providing versatile functionality.

3. 6dB Gain: Ensures precise amplification for optimal performance in diverse applications.

4. Compact and Lightweight: Portable size with a weight of only 351g, ideal for fieldwork.

5. Wide Signal Bandwidth: Handles frequencies from 0–100KHz, suitable for multiple signal types.

Package Included:

1 x DPA-1698 Dual-Channel Power Amplifier

1 x 12V5A Power Adapter (US Plug)

1 x Q9–Q9 Connection Cable
