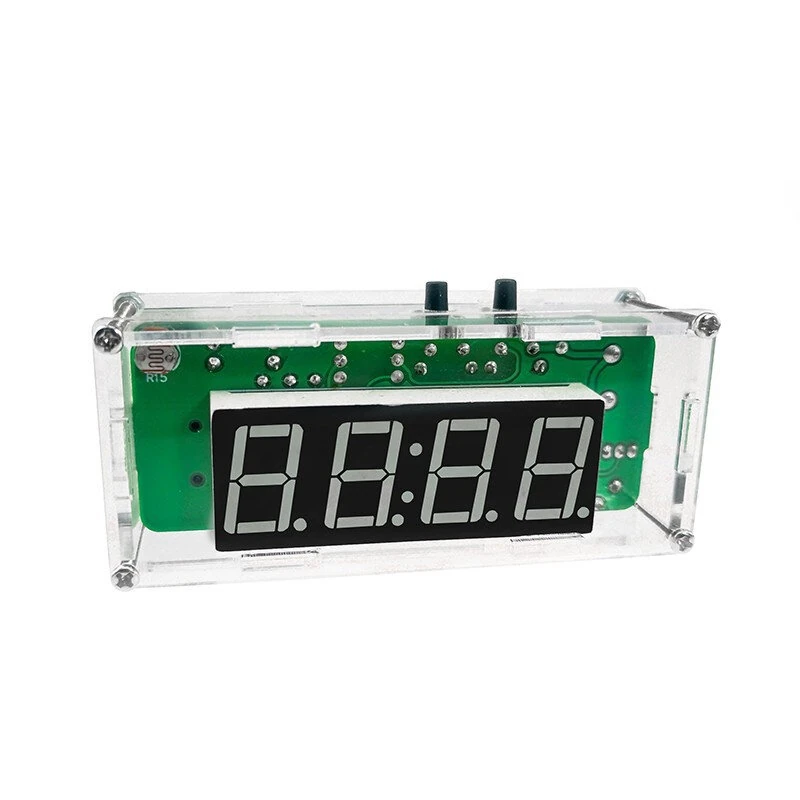

DIY Digital Clock Kit Multifunctional DS1302 USB Nixie Tube Display with Alarm Temperature Memory Brightness
The DIY Digital Clock Kit Multifunctional DS1302 USB Nixie Tube Display with Alarm Temperature Memory Brightness is a value-for-money product designed for DIY enthusiasts and makers.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
37% Off — you save ₹502 on this product!
Price: ₹837
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The DIY Digital Clock Kit Multifunctional DS1302 USB Nixie Tube Display with Alarm Temperature Memory Brightness is a value-for-money designed for DIY enthusiasts and makers. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Features:

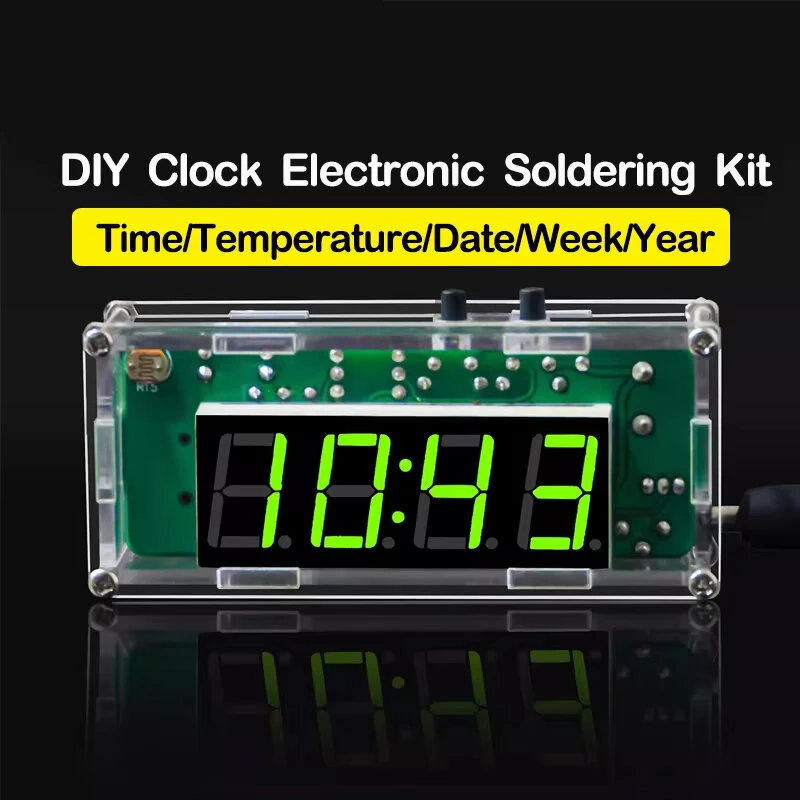

1. Multi functional Electric clock, which can set date/week/time/alarm clock/temperature;
2. A digital clock controlled by a microcontroller with a supply voltage of 5V DC;
3. Using a dedicated timing chip DS1302, it can display hours, minutes, seconds, months, days, and weeks. With temperature measurement, music alarm clock, hour reminder, and brightness control;

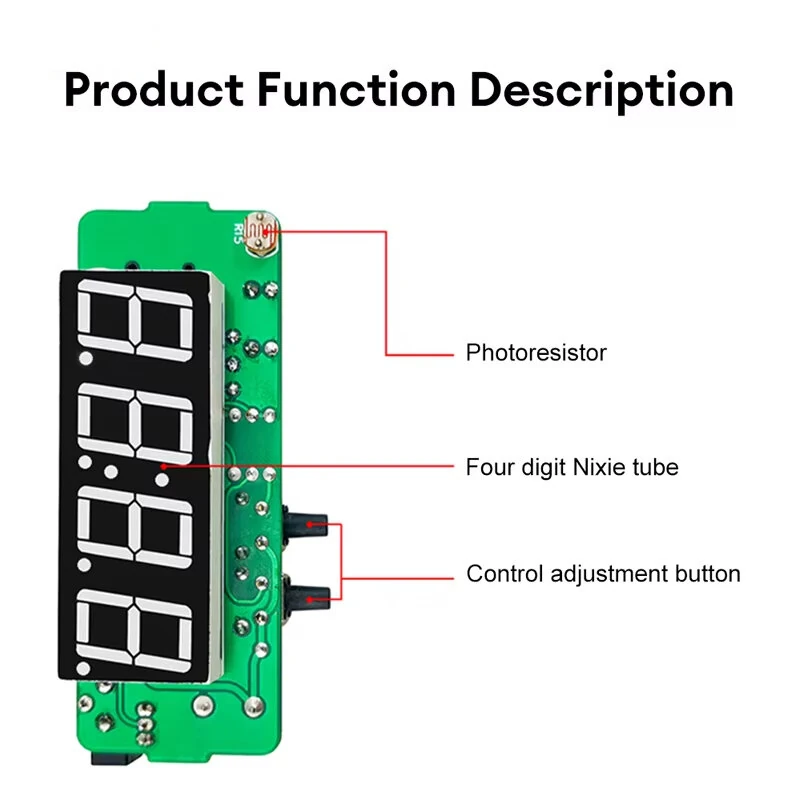

4. Four digit Nixie tube, control adjustment button, memory battery, all functions are realized by two user keys;
5. Paired with a USB to DC power cord, it is easy to use and installation instructions. There are four melodies to choose from for alarm music.
Note: This is an unassembled kit, you need to assemble and solder.
Specification:
Name: Multifunctional Digital Clock
Circuit board size 73 * 26mm
Power supply voltage: DC 5V

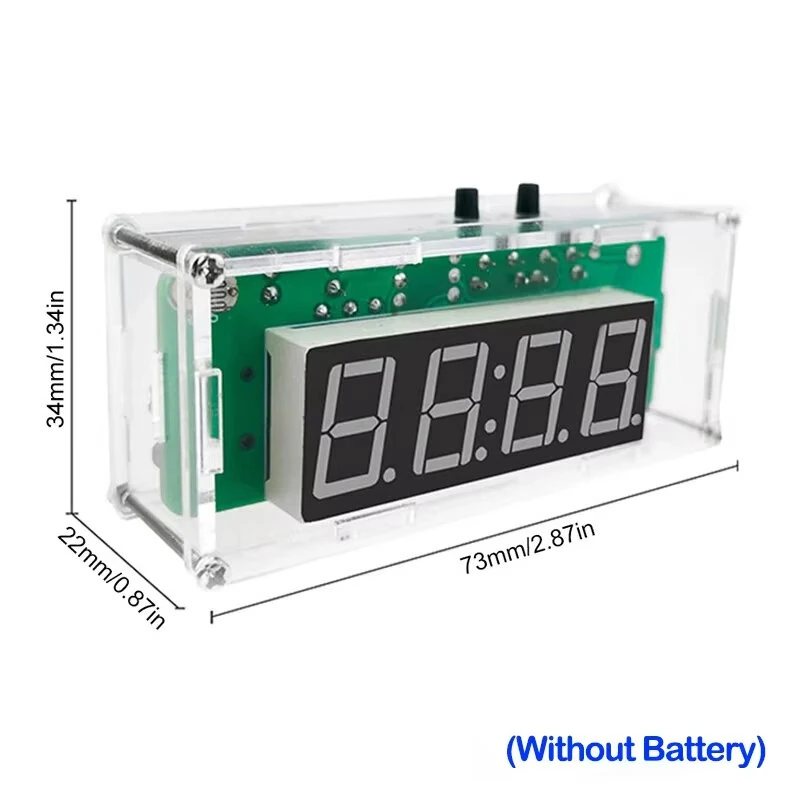

Shell size: 73 * 34 * 22mm
MCU program: The program has been burned into the microcontroller

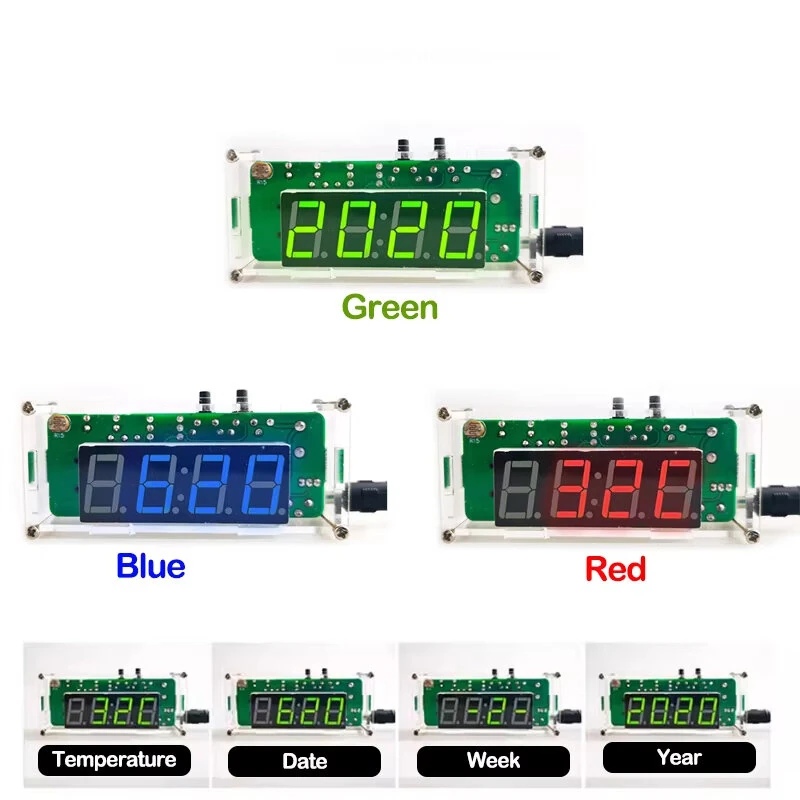

Function: Display of time on month, day, and week, alarm function, temperature measurement, hour reminder, brightness control, power outage memory
Usage: Desktop art accessories for home, school, and company use. Loose parts are used for electronic enthusiasts and practical training kits in universities and colleges.

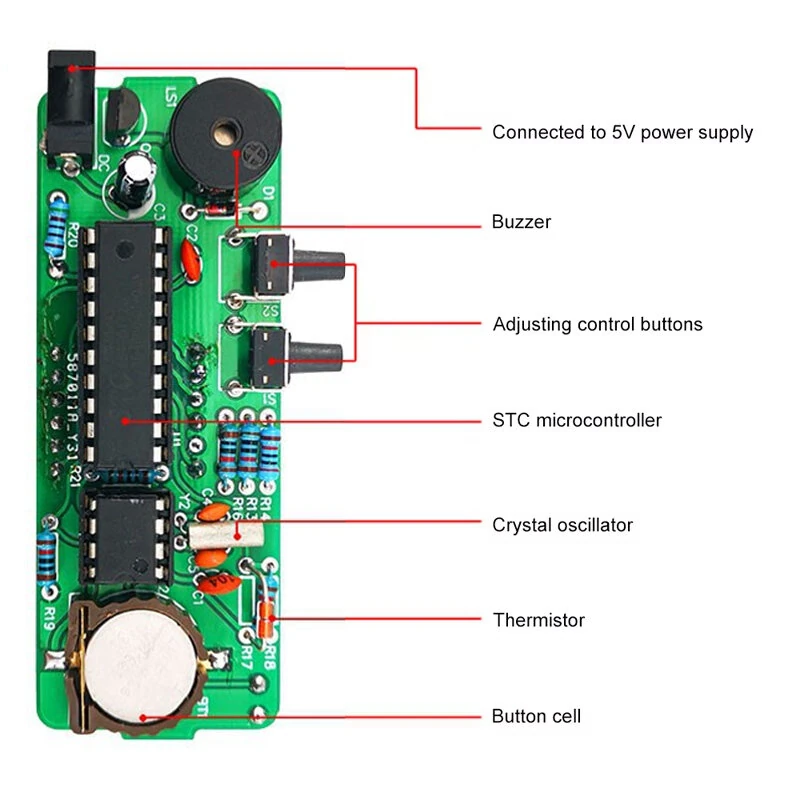

Package Included:
5 x Color Ring Resistance 10K
1 x Color Ring Resistance 20K
1 x Color Ring Resistor 510
2 x Ceramic Capacitor 104
2 x Ceramic Capacitor 5P
1 x In-Line Electrolytic Capacitor 100uF
1 x Photoresistor 5516
1 x Thermistor 10K NTC Glass Seal
1 x In-Line Transistor 8550
1 x Passive Buzzer
1 x Four-Digit Nixie Tube with Second Point 0.56 Inch Gongyang
1 x In-Line Diode 1N4148
1 x DC Power Socket 3.5 x 1.2
1 x Button Battery Holder CR1220
1 x Button Battery CR1220
2 x Tap the Button Side Press 6x6x5
1 x Integrated Circuit STC15W404AS DIP20
1 x Integrated Circuit DS1302 DIP8
1 x IC Seat 20P
1 x IC Holder 8P
1 x Cylindrical Crystal Oscillator 32768
1 x PCB PF-TJ-56-428
Attention:
Due to the variety of component styles and batch issues, the color of the components may not be the same, which does not affect their use. Mind taking photos with caution!
