DEMOKE 250 Series Quick Change Tool Post System Compatible Holders High Precision Rigidity 1/4-5/8 Tool Bit Range

Features:

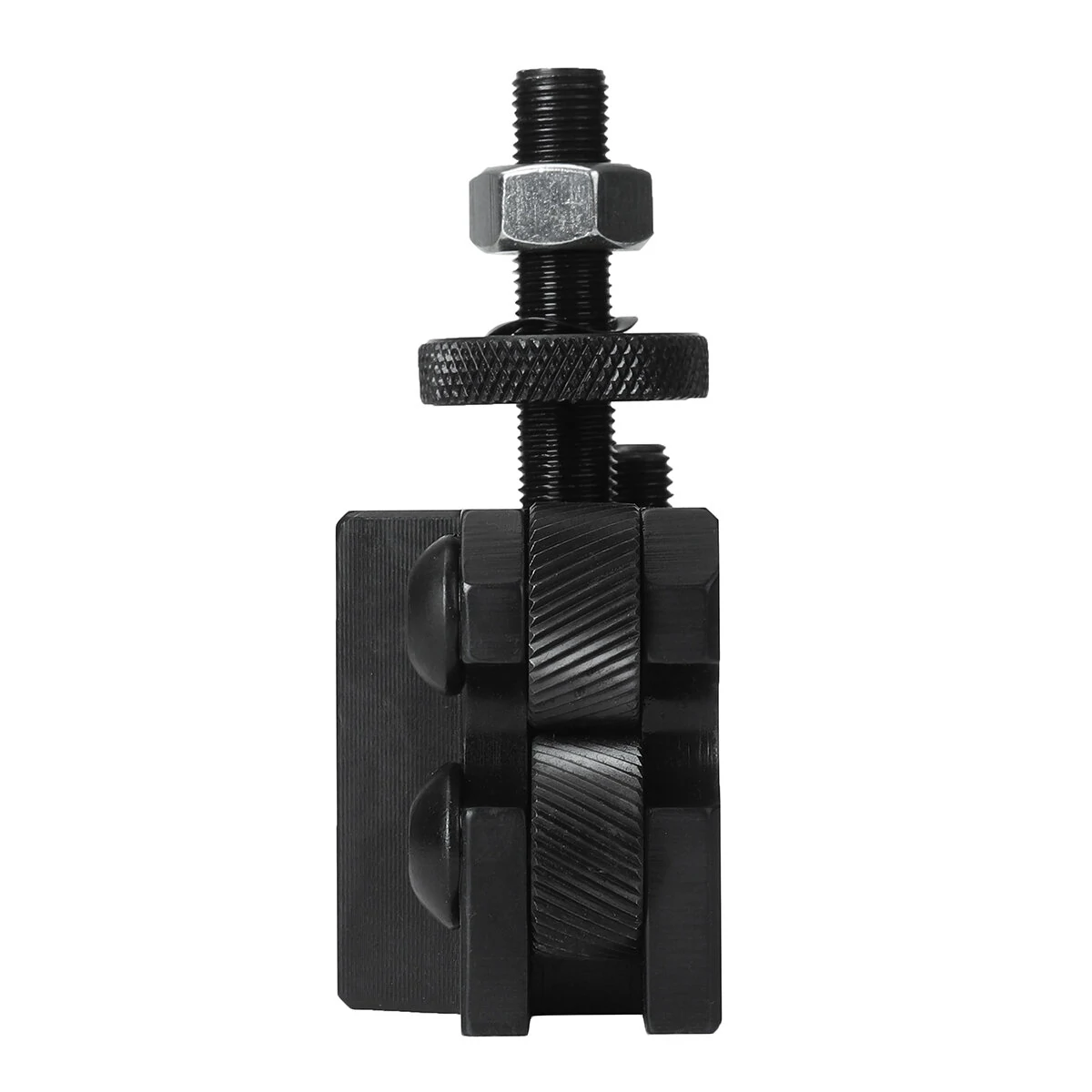

Comprehensive Quick-Change Tool Post System: The quick-change tool post system is an invaluable accessory for standard lathes, comprising a robust tool post and a variety of compatible tool holders. Suitable for diverse machining tasks—cylindrical and end facing, cutting, grooving, knurling, drilling, reaming, and boring—it offers unparalleled versatility. The tool holders fit seamlessly into the dovetail slots of the tool post, facilitating efficient and rapid tool changes, thus enhancing productivity.

Precision and Rigidity Enhancements: The system's dovetail installation mechanism ensures precision in positioning and exceptional rigidity during operations. This is a superior alternative to traditional square turrets, allowing for quick tool mounting outside the machine. The sturdy build guarantees high precision and stability, essential for achieving fine workmanship and efficient machining processes.

Wide Range of Tool Bit Compatibility: Catering to a comprehensive range of tool bit sizes, our tool holders are designed to accommodate various machining needs. Specific models such as the 250-201, 250-202, and 250-204 support tool bit ranges from 1/4" to 5/8". Additionally, models like the 250-207 accommodate distinctive blade heights, while the 250-210 and 250-222 models support extended clamping ranges, enabling meticulous adaptation to specific machining tasks.

Rugged Construction for Diverse Applications: Constructed to withstand rigorous use, the tool holders vary in size and weight to match different operational demands. From the compact models weighing 0.70 kg to the heavy-duty 4.00 kg 250-222, each tool holder is tailored to meet specific machining intensities. This robustness allows for extensive applications, ensuring reliable performance across all types of machining operations.

User-Friendly Design for Swift Installation and Operation: The ergonomic design of the quick-change tool post system enables effortless tool changes, significantly minimizing setup time and increasing operational efficiency. Each component, from the tool holders to the post, is designed for straightforward installation. The comprehensive user manual provides clear instructions, ensuring that users can quickly and easily set up and operate the system, regardless of their technical expertise.

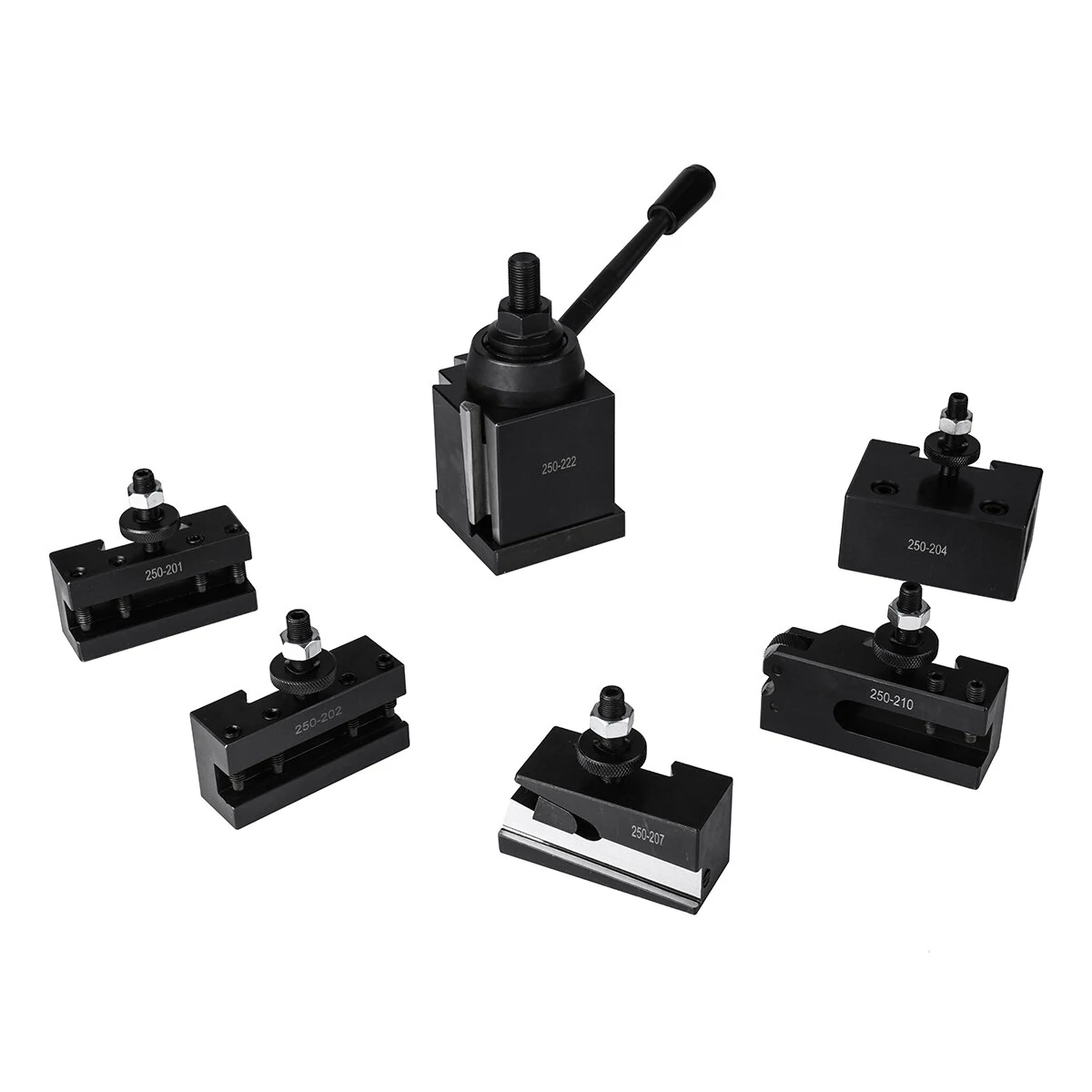

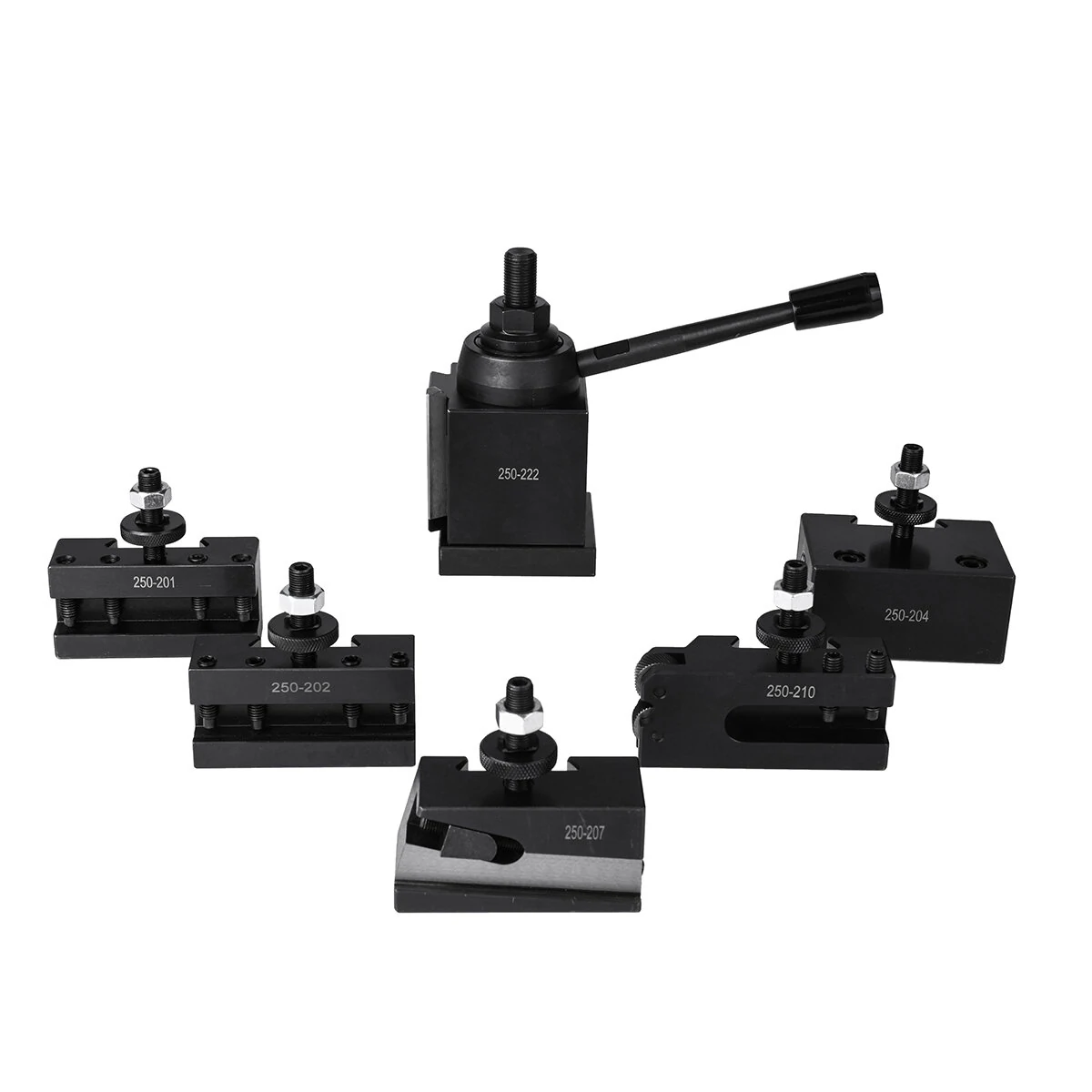

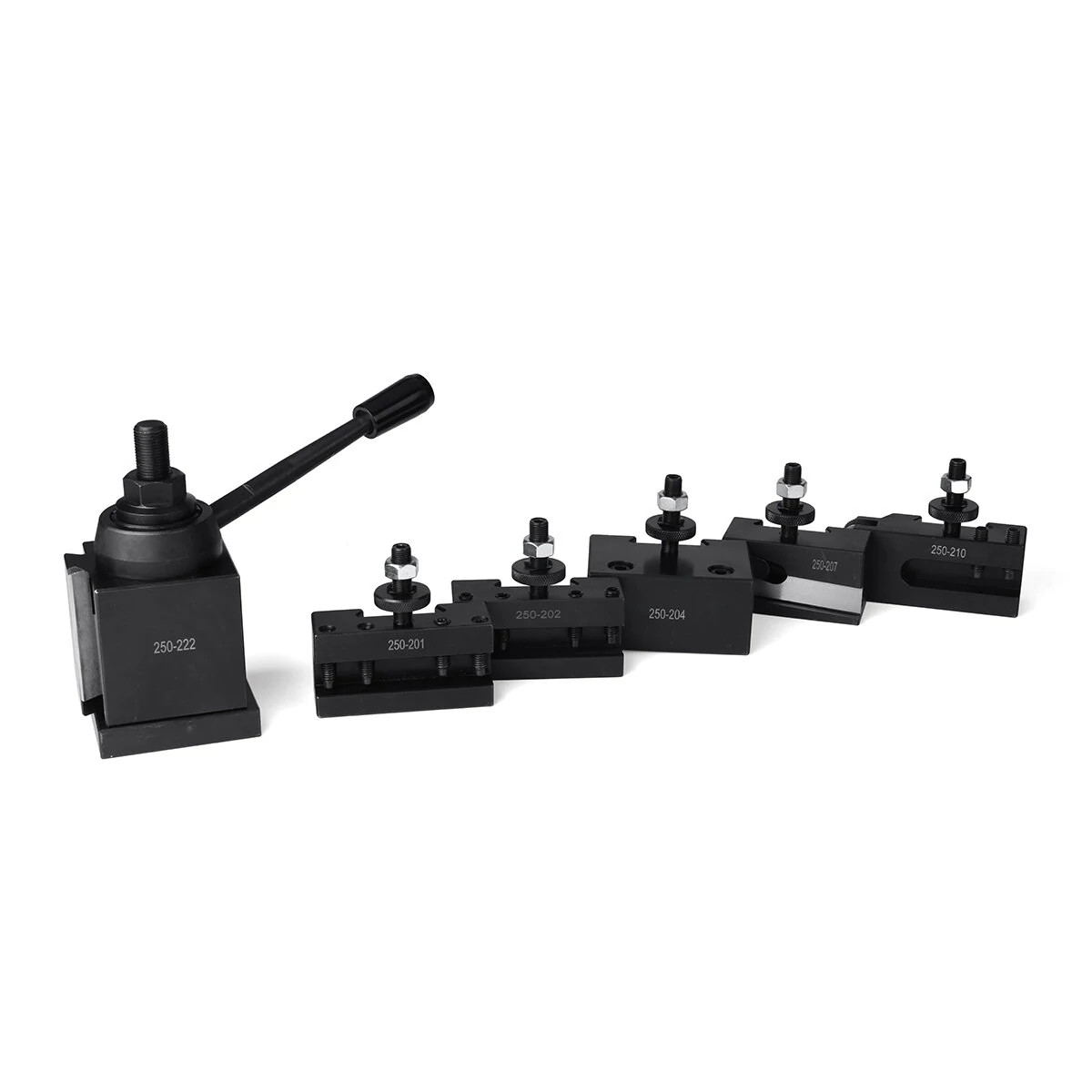

Model: 250-201, 250-202, 250-204, 250-207, 250-210, 250-222

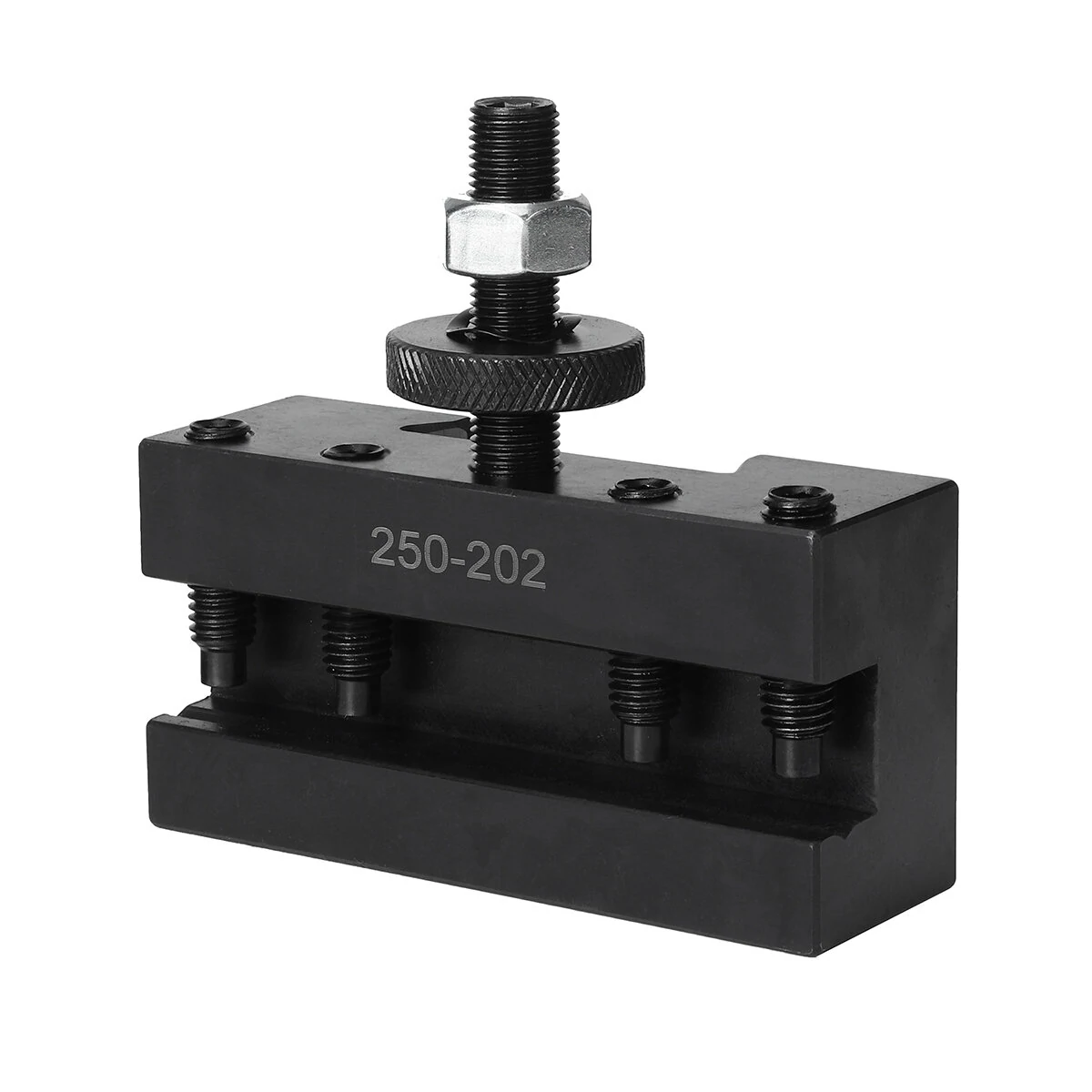

For Models 250-201 and 250-202:

A (in): 1-1/8

B (in): 5/8

C (in): 1/2

D (in): 1-3/4

Tool Bit Range (in): 1/4-5/8

Weight (kg): 0.70

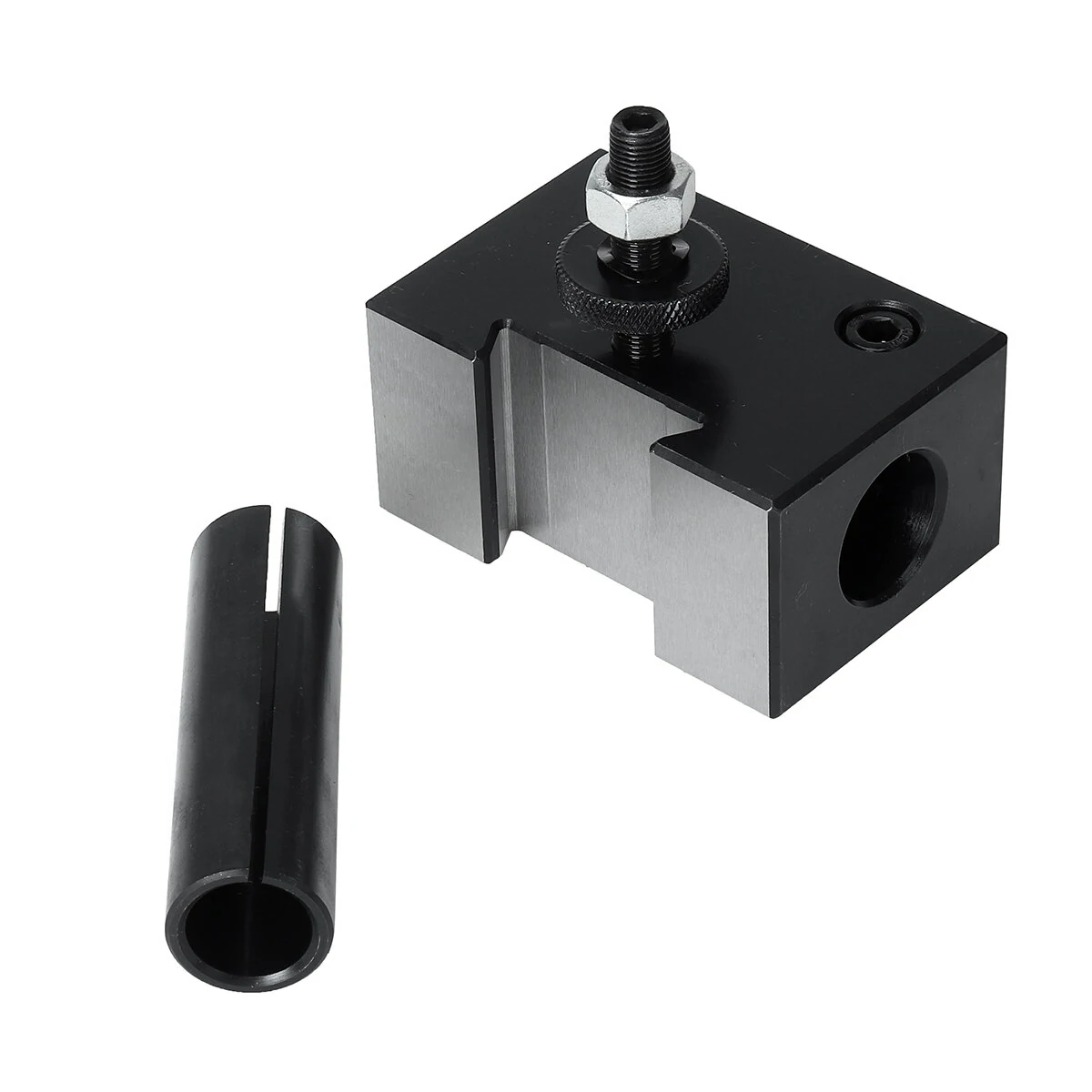

For Model 250-204:

A (in): 7/8

B (in): 1-3/4

C (in): 3/4

D (in): 1

Weight (kg): 1.52

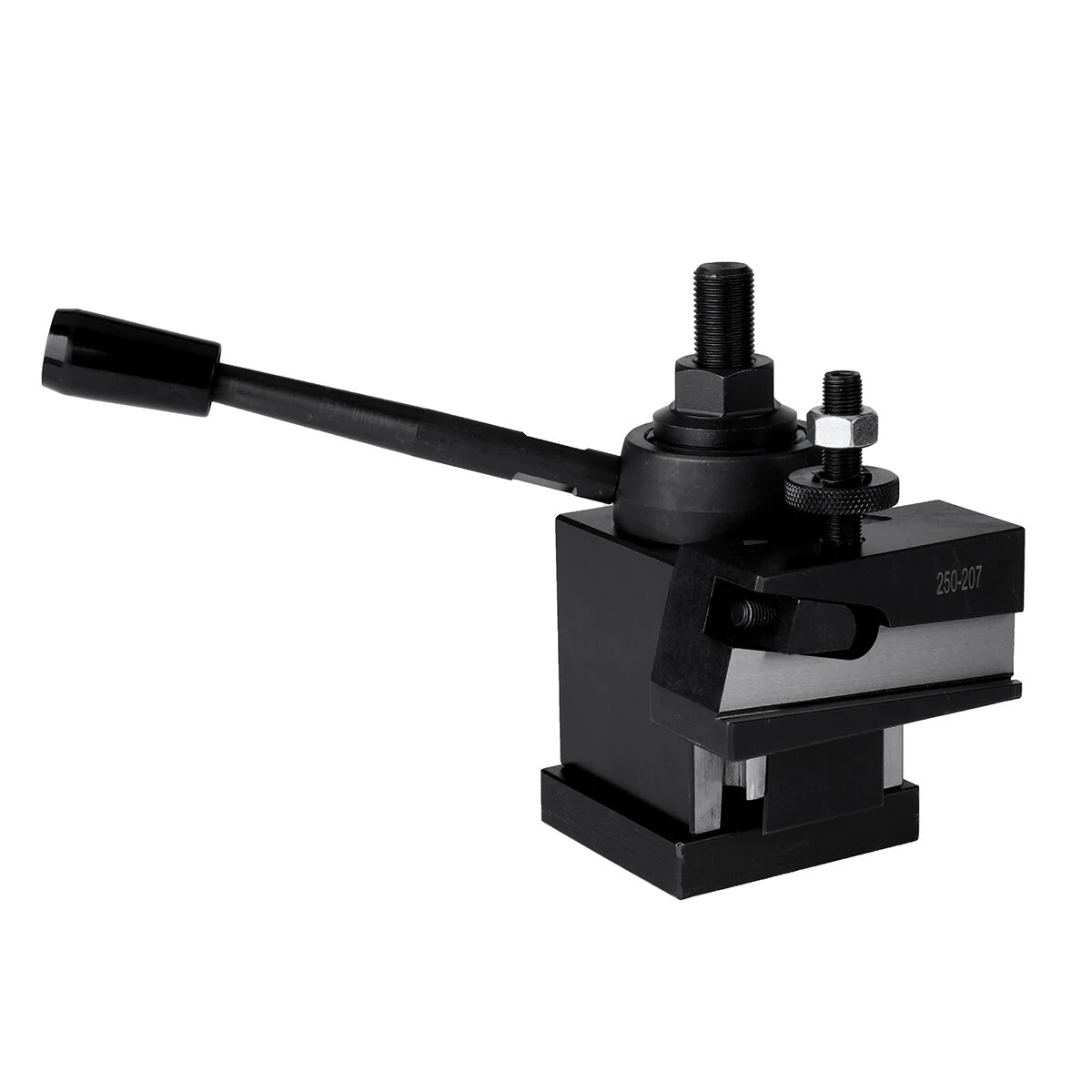

For Model 250-207:

A (in): 3/16

B (in): 11/16

C (in): 1-3/4

Blade Height (in): 11/16

Weight (kg): 0.90

For Model 250-210:

A (in): 1

B (in): 2-5/8

C (in): 1-3/4

Clamping Range (in): 1/4-5/8

Tool Bit Range (in): 3/4x3/8x1/4

Weight (kg): 0.85

For Model 250-222:

A (in): 3

B (in): 4-5/8

C (in): 2-3/4

D (in): 5/8

Swing Diameter (in): 10-15

Weight (kg): 4.00

Package Included:

Type A:

1 x 250-201 Tool Holder

Type B:

1 x 250-202 Tool Holder

Type C:

1 x 250-204 Tool Holder

Type D:

1 x 250-207 Tool Holder

Type E:

1 x 250-210 Tool Holder

Type F:

1 x 250-222 Tool Holder
