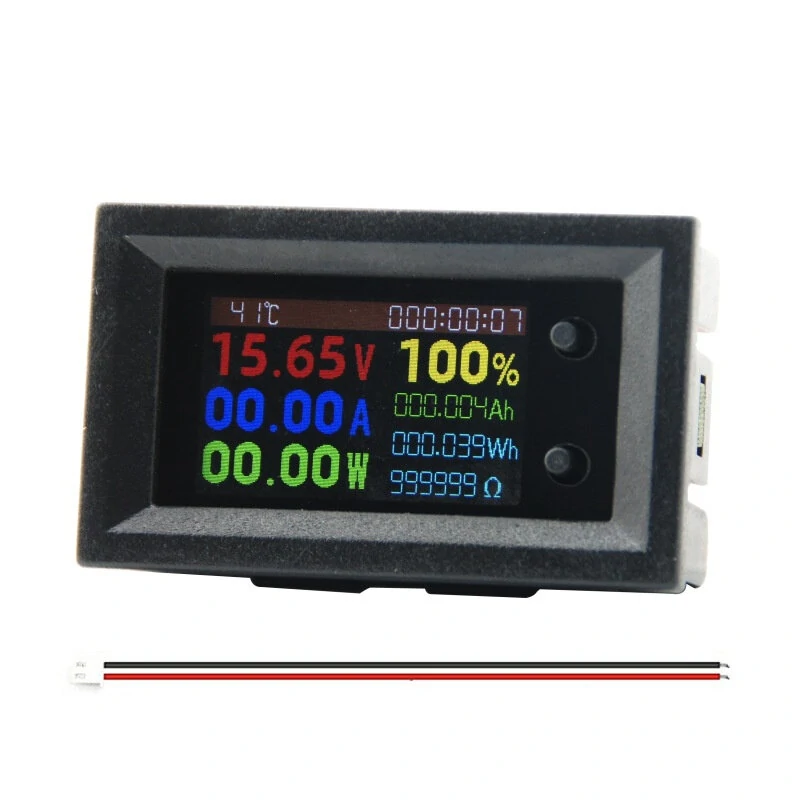

DC7200 7-200V 20A Digital Power Energy Voltmeter Ammeter Voltage Wattmeter Temperature Meter Electric Energy Frequency Meter
5.05 ratingsThe DC7200 7-200V 20A Digital Power Energy Voltmeter Ammeter Voltage Wattmeter Temperature Meter Electric Energy Frequency Meter is a value-for-money product designed for everyday users. Customers praise its excellent build quality and great value for money. 100% of buyers rate it 4★ or above.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Color: Black
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The DC7200 7-200V 20A Digital Power Energy Voltmeter Ammeter Voltage Wattmeter Temperature Meter Electric Energy Frequency Meter is a value-for-money designed for everyday users. Customers highlight its excellent build quality and great value for money.
Customer Verdict
100% of buyers rated this product 4 stars or above. The most appreciated qualities are: excellent build quality, great value for money, fast and responsive.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Parameter:

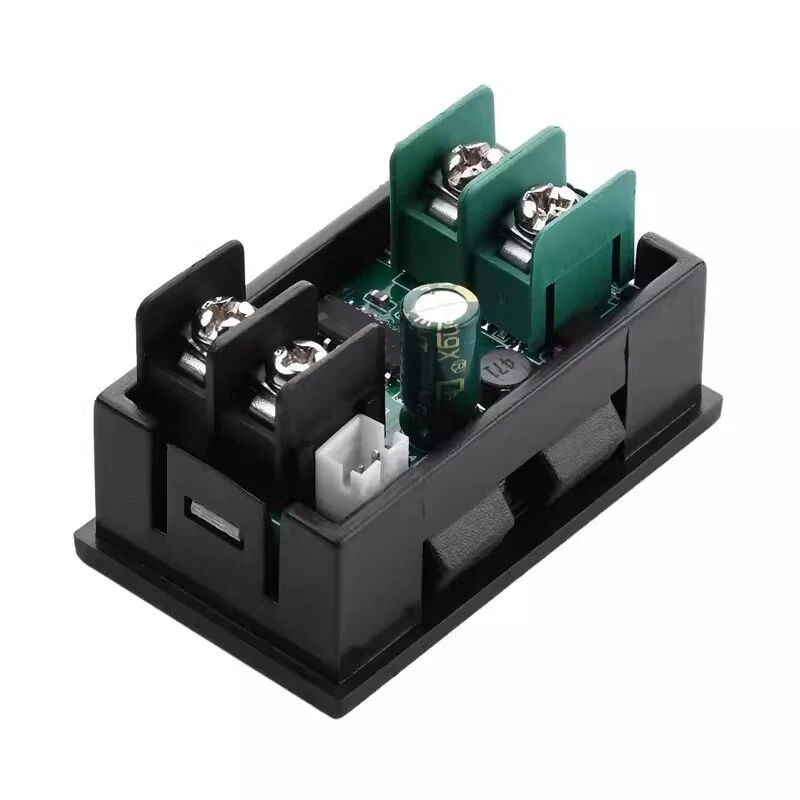

Input/output interface: 20A high current 2P terminal
Instrument working voltage: ①XH-2.54-2P red and black wires, independent power supply DC6~30V ②Common power supply DC6~120V
Voltage measurement range: DC0~120V
Current measurement range: 0.00A~20.00A
Capacity measurement range: 0~9999.99Ah
Electricity metering range: 0~9999.99Wh
Impedance measurement range: 0~9999.99Ω
Temperature measurement range: 0~99℃
Time measurement range: 0~999:59:59 (hour:minute:second)
Data reset: support
No-load return to zero: support
Voltage fine-tuning: support
Current trimming: support
Percentage power display: Supports percentage power based on voltage reference (full power and no power voltage need to be manually set)

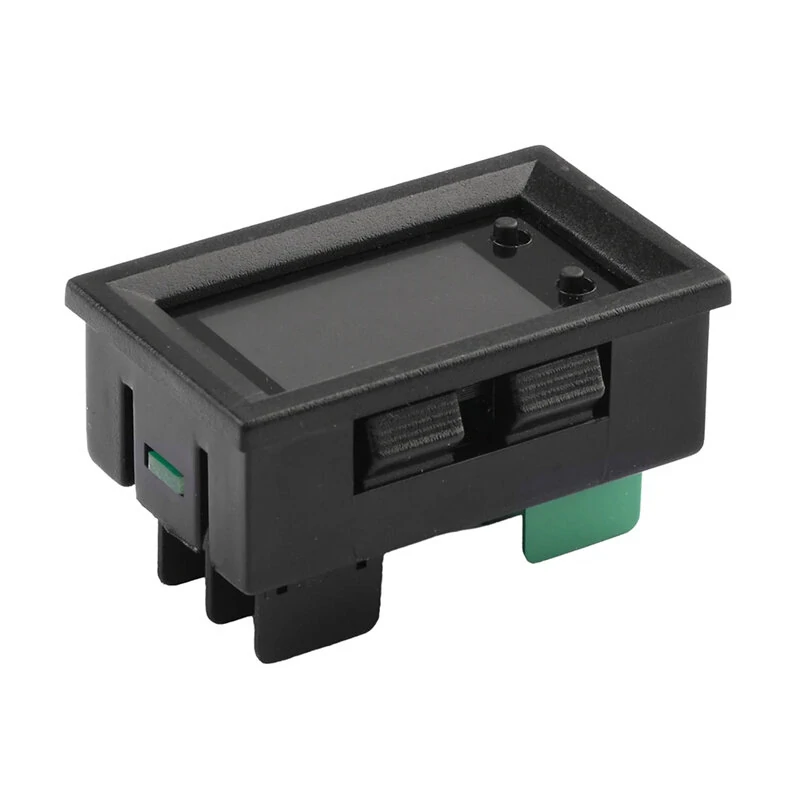

Product size: 47.59 × 28.67 × 25.33mm
Installation hole: 45×26mm
Product weight: 26g
XH-2.54-2P red and black wires:
Thin red wire: positive power supply
Thin black wire: Negative, and thick black wire construction site, do not need to connect when measuring loop current
This wire is only used as an independent power supply when measuring voltages below 6V, and it is not necessary to connect this wire when measuring voltages above 6V.
Features:
1. Multifunctional measuring instrument for high voltage operation

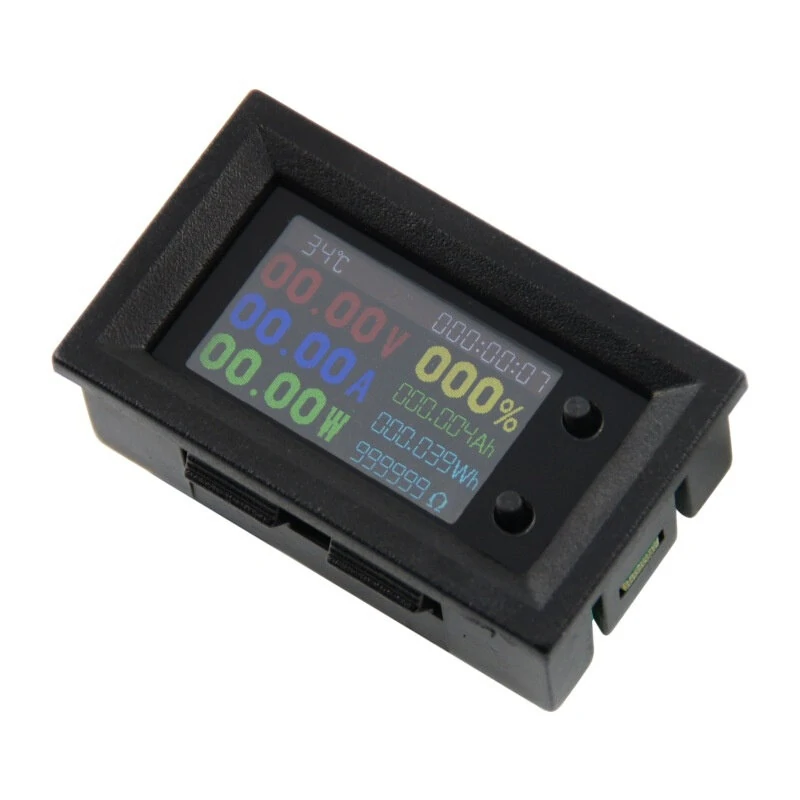

2. 1.14-inch high-definition IPS LCD color screen, 135*240 resolution
3. Maximum current measurement 20A
4. Support data clearing, no-load zeroing, voltage fine-tuning, current fine-tuning
5. Measurement and display of real-time voltage, current, power, -percentage of electricity and internal resistance and instrument temperature, cumulative capacity, energy,peration
Package Include:

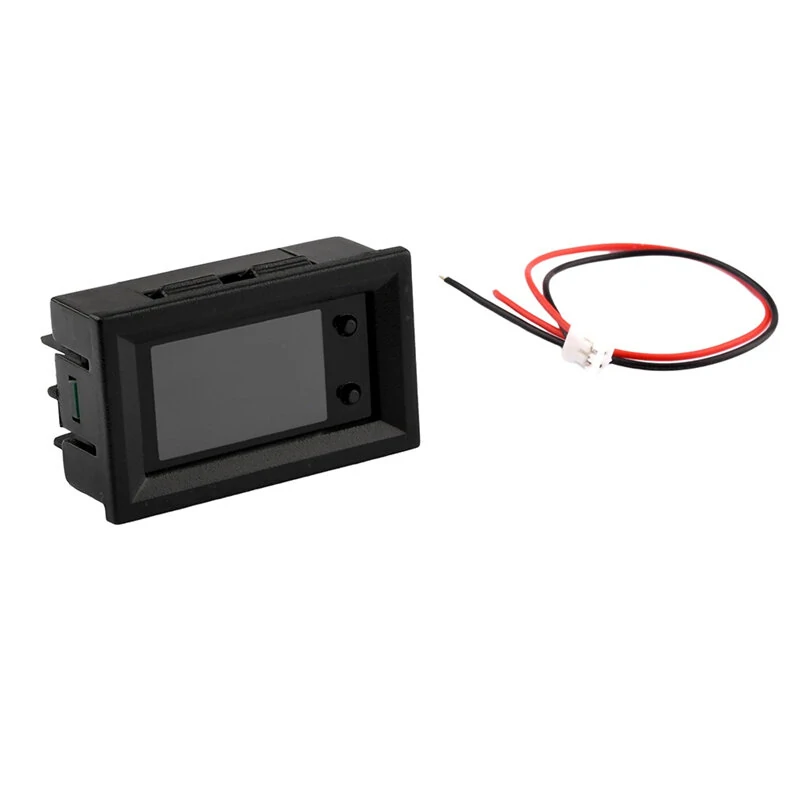

1x DC7200 Multifuncation Meter Module
1x XH-2.54-2P Red and Black Wire
