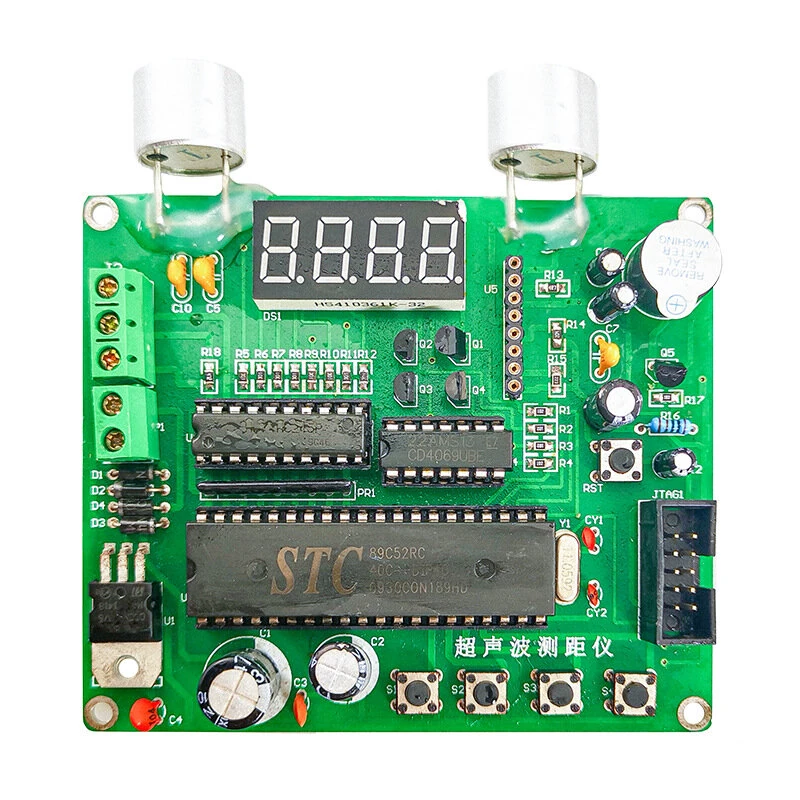

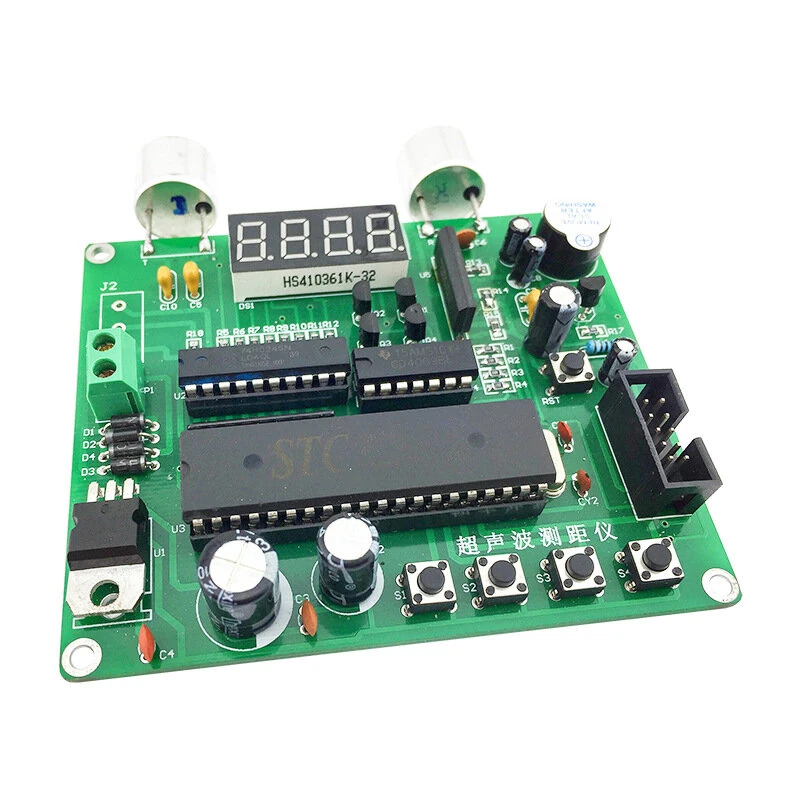

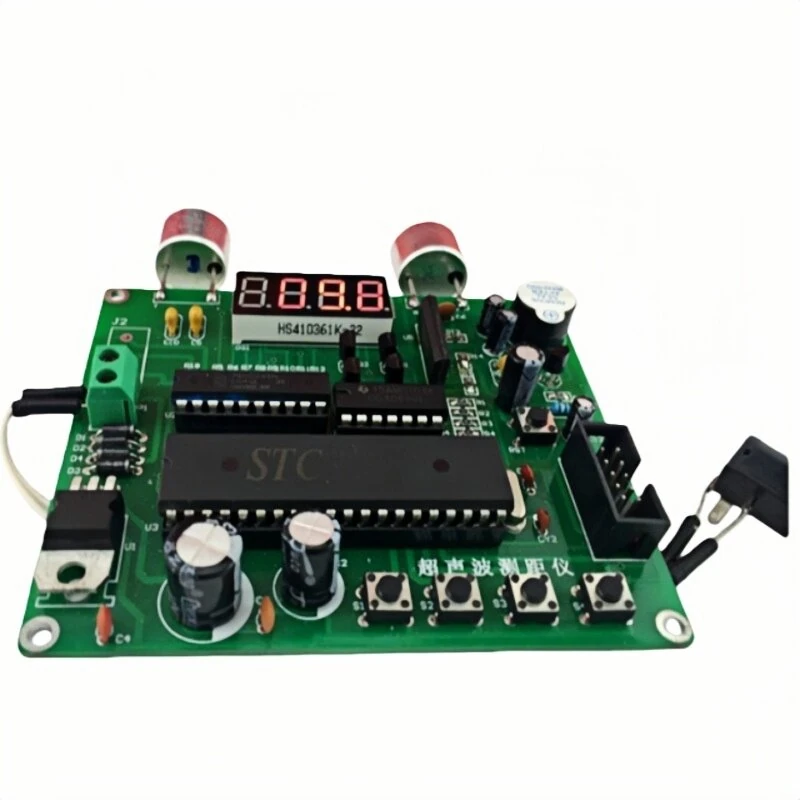

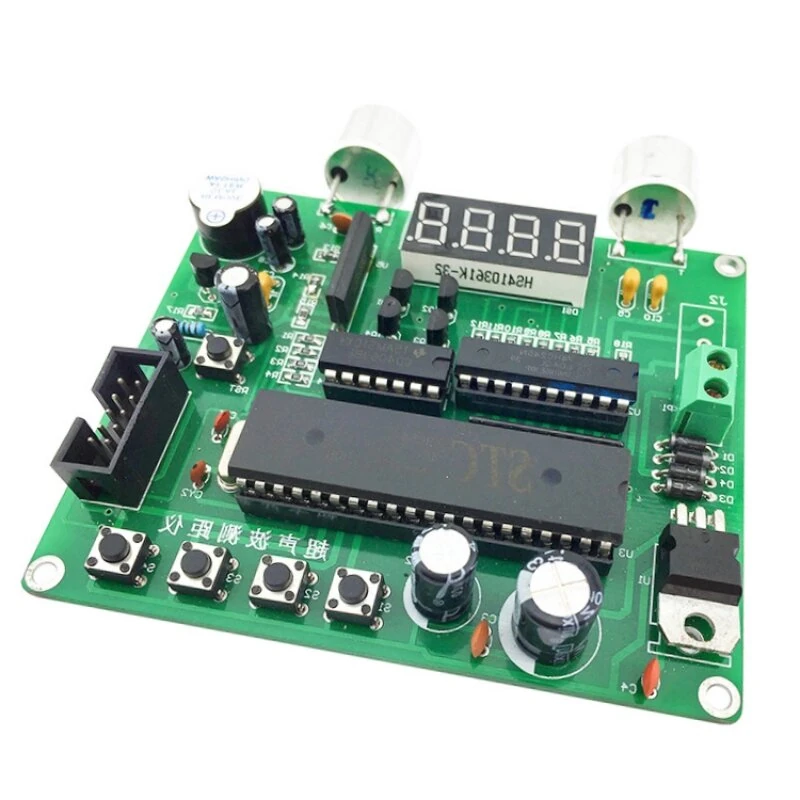

DC 9-12V DIY Ultrasonic Measuring Kit Multi-function Soldering Practice Training Assembly Electronic Distance Meter Components Kit
The DC 9-12V DIY Ultrasonic Measuring Kit Multi-function Soldering Practice Training Assembly Electronic Distance Meter Components Kit is a mid-range product designed for DIY enthusiasts and makers.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
22% Off — you save ₹714 on this product!
Type: DIY Kit
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The DC 9-12V DIY Ultrasonic Measuring Kit Multi-function Soldering Practice Training Assembly Electronic Distance Meter Components Kit is a mid-range designed for DIY enthusiasts and makers. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specifications:
Type: Ultrasonic Distance Measurement Kit
Power Supply: AC 9~12V

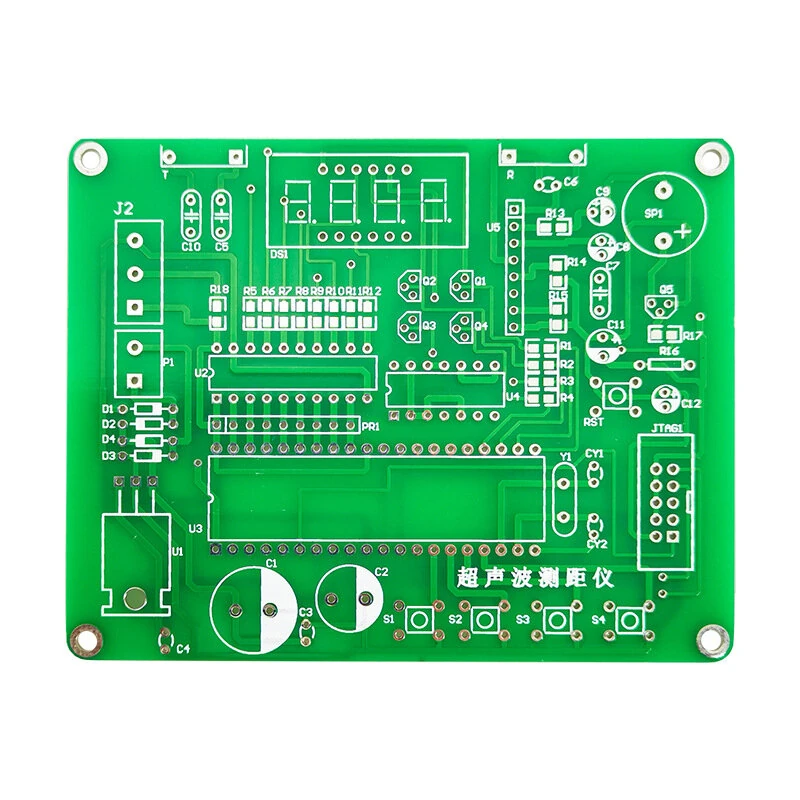

Board Size: 94mm x 80mm
Measurement Range: 0.2 - 3 meters, with a precision to 1cm
Difficulty Level: Intermediate (DIY soldering)
Application: Electronics assembly and hands-on training

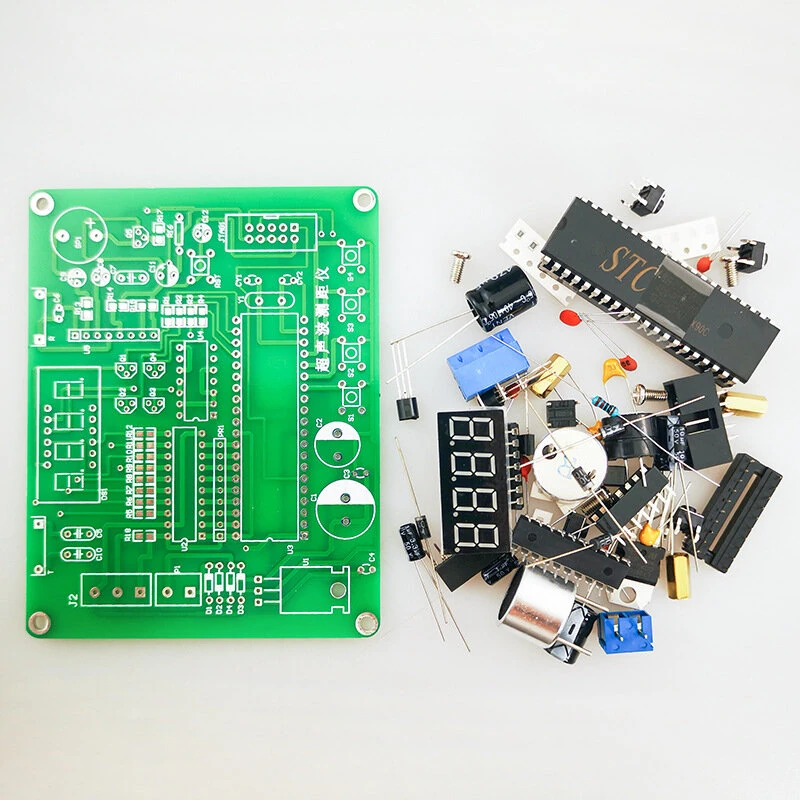

Note: This is an unassembled kit; you will need to solder it.
Function Description:
1. This ultrasonic rangefinder is used for ultrasonic distance measurement. The measurement range is 0.2-3 meters, with an error of 1cm.
2. To ensure measurement accuracy, the ultrasonic probe must be kept on a horizontal line and not tilted.
3. The board uses some surface-mount components. This is for practicing soldering surface-mount components. When soldering surface-mount components, the soldering iron tip should not be too hot; it should be done lightly and quickly, otherwise the surface-mount components may overheat and be damaged.
4. There are four function buttons:
S1: Press and hold S1, the digital display will freeze,indicating that a distance L1 has been determined. Release S1 to continue measuring.
S2: Press and hold S2, the digital display will freeze, indicating that a distance L2 has been determined. Release S2 to continue measuring.
S3: The result of multiplying distance L1 and distance L2.(Note:Due to the limited display capacity of the digital tube, only 4 digits can be displayed. Therefore, the multiplication result is only correct when L1 and L2 are two digits.)
S4: Press S4. The buzzer will sound after 10 seconds. Press the reset button to return to normal.
Features:
1. Ultrasonic sensor for precise distance measurement applications.
2. Digital display module provides clear readings during use.
3. Designed for soldering practice (includes surface-mount component setup).
4. Suitable for robotics, electronics projects, and educational activities.
5. Powered by a stable AC voltage input (9-12V).
6. Multi-function operation with intuitive button controls for freezing measurements and calculations.
Package Includes:
1 x Ultrasonic Measurement Kit
