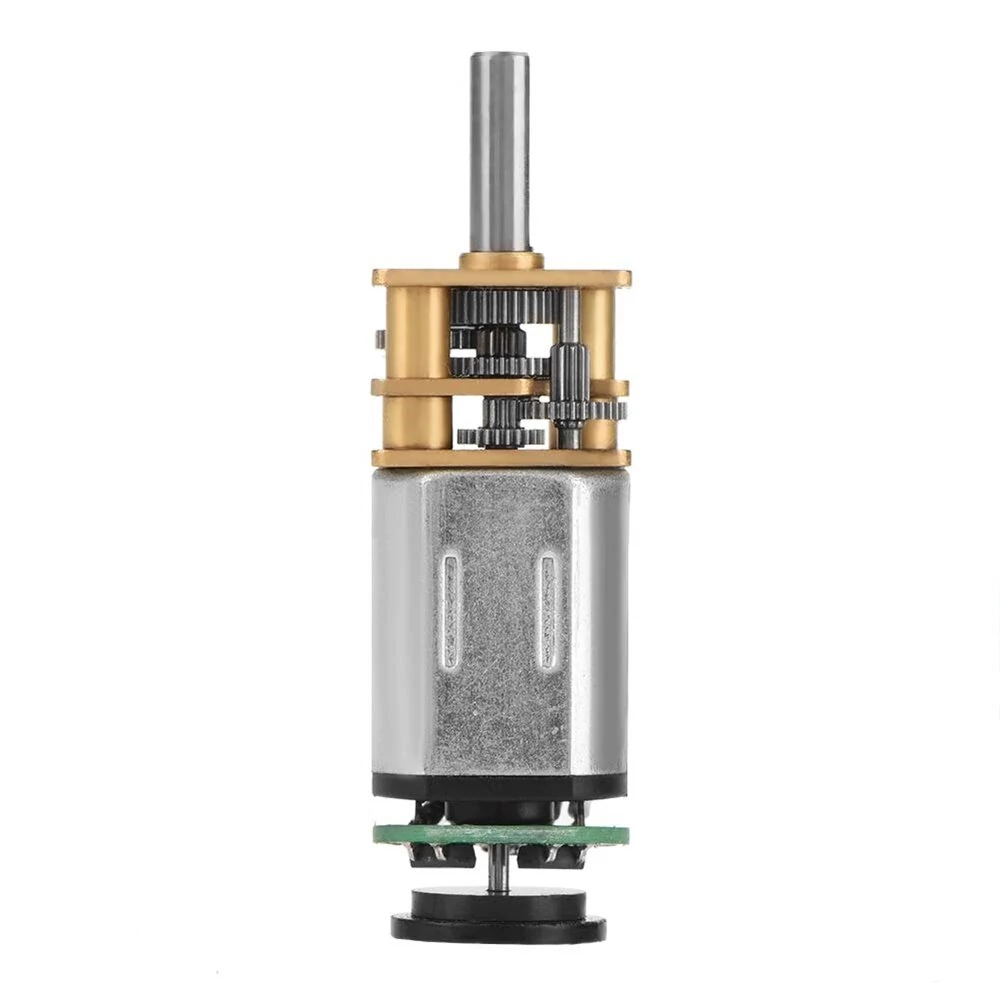

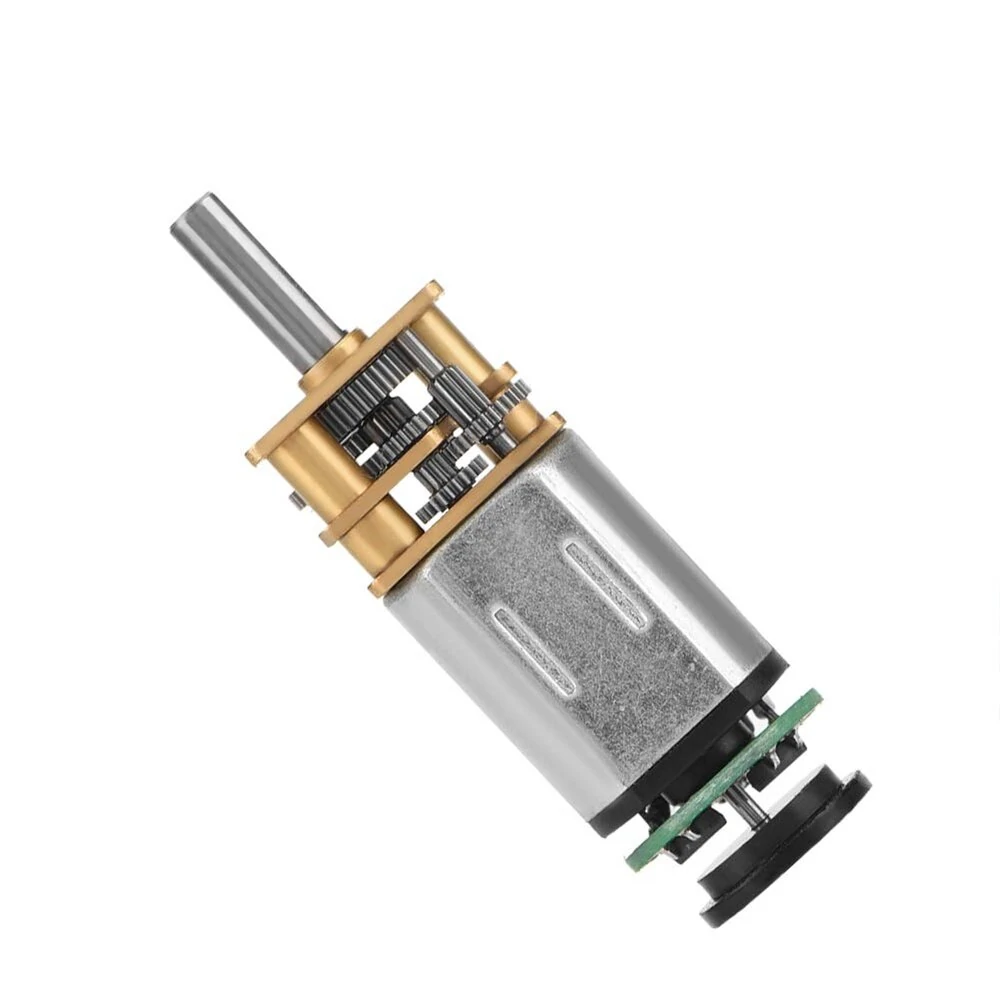

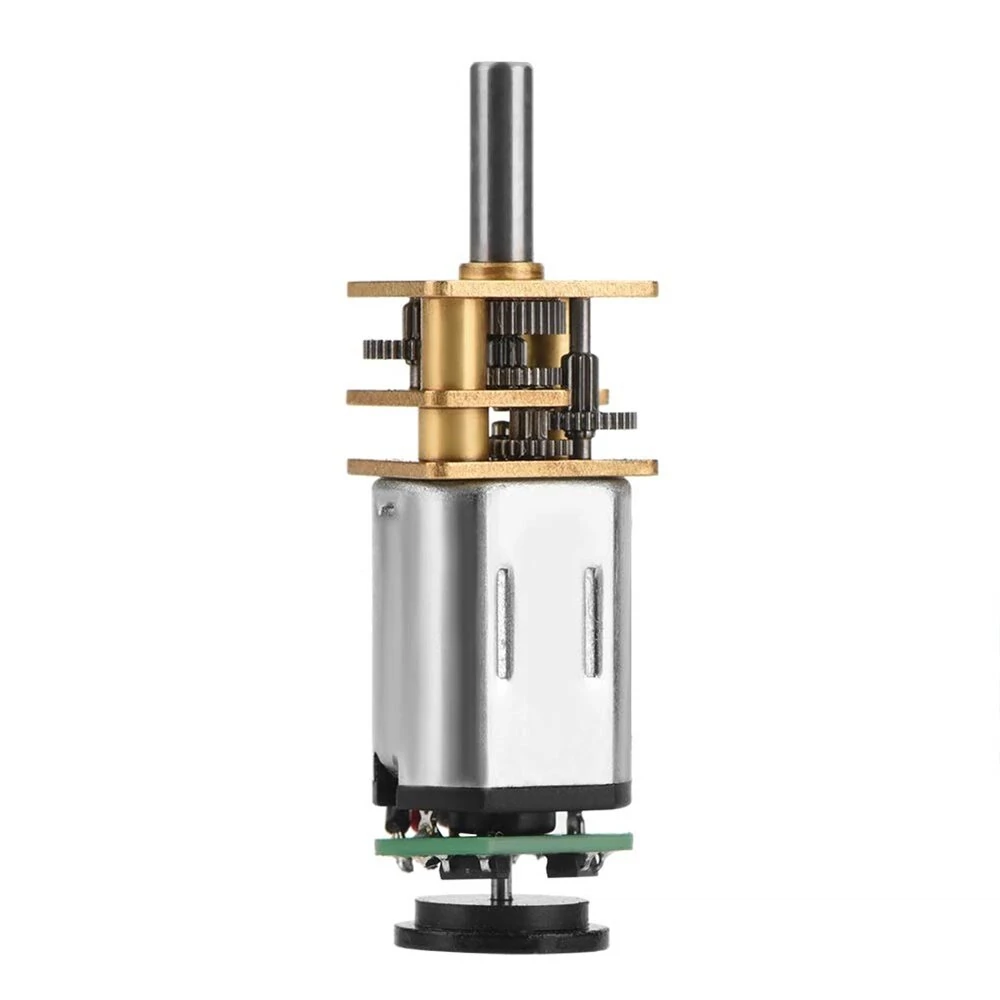

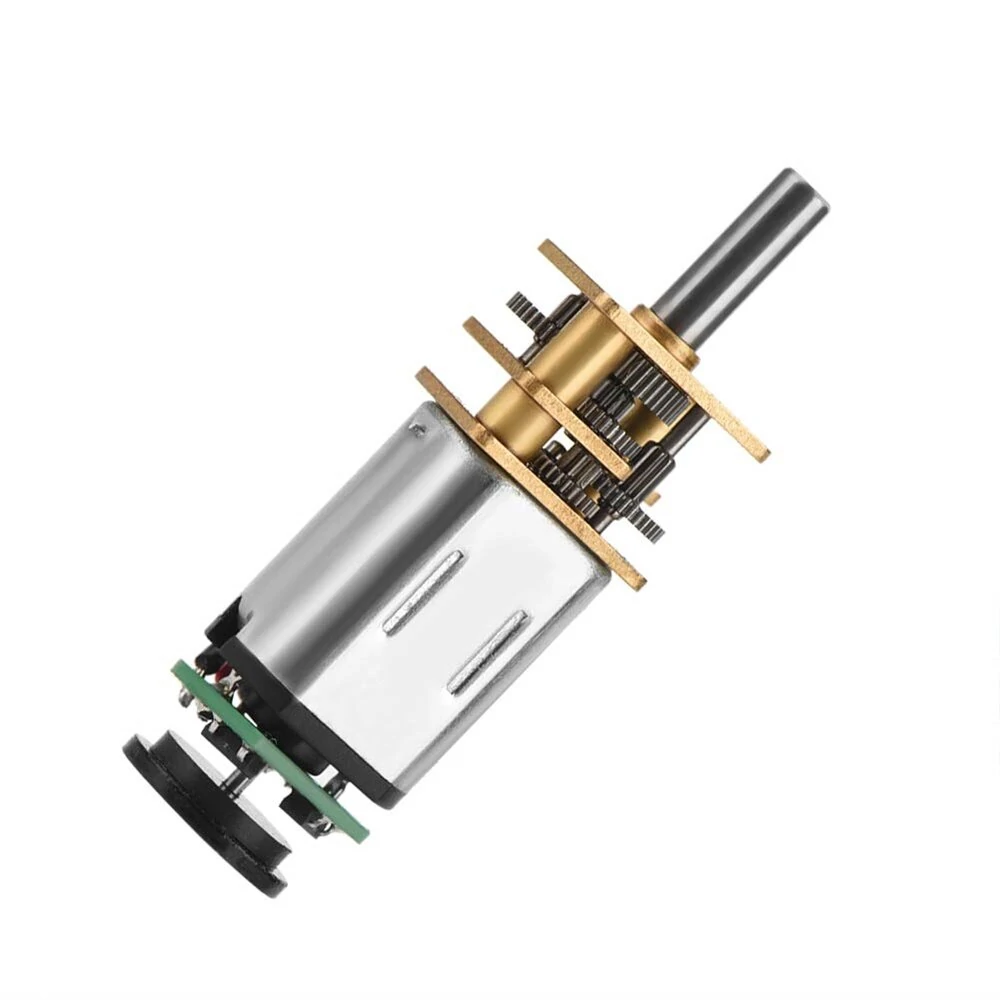

DC 6V N20 Gear Motor Encoder Speed Reduction Gearbox 30/50/70/200/500RPM Reducer Replacement Motor
5.09 ratingsThe DC 6V N20 Gear Motor Encoder Speed Reduction Gearbox 30/50/70/200/500RPM Reducer Replacement Motor is a value-for-money product designed for everyday users. It features Produce type: Brushed DC motor and Model: GM12N20. Customers praise its fast and responsive and compact and portable. 100% of buyers rate it 4★ or above.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Price: ₹1,240
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Quick Specs
Ideal For
About This Product
The DC 6V N20 Gear Motor Encoder Speed Reduction Gearbox 30/50/70/200/500RPM Reducer Replacement Motor is a value-for-money designed for everyday users. Customers highlight its fast and responsive and compact and portable.
Key Specifications
- Produce type: Brushed DC motor
- Model: GM12N20
- Voltage: DC 6V — works with standard household power
- Power: 2W
- Shaft type: D-shaped shaft
- Shaft thickness: 2.5mm
- Shaft length: 10mm / 0.4in
- Shaft diameter: 3mm / 0.1in
Customer Verdict
100% of buyers rated this product 4 stars or above. The most appreciated qualities are: fast and responsive, compact and portable.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Features:
- [Widely Used]: Gear motors can be found in many different applications, and are probably used in smart toy car, robot, printer, etc.
- [Multiple Speed Options]: There are five reduction gear motors of different speed and you can choose the one you need, Speed: 30RPM, 50RPM, 70RPM, 200RPM, 500RPM.
- [Full Metal Gears]: The metal gear in the gear box has a strong carrying capacity, high temperature resistance, wear resistance, ruggedness and other characteristics effectively protect the main body of the worm gearbox motor.
- [High Torque]: Gear motors are primarily used to reduce speed in a series of gears, which in turn creates more torque.
- [Specifications]: Voltage: DC 6V | Power: 2W | Output signal: AB phase | Shaft length: 10mm/0.4in | Shaft diameter: 3mm/0.1in | Hall response frequency: 100KHz.
Specification:
【General parameters】:
【Encoder details】:
Specification:
1. Two-channel Hall encoder
2. Maximum response frequency 100KHz
3. Number of output pulses 3PPr
4. Temperature range -30℃-110℃

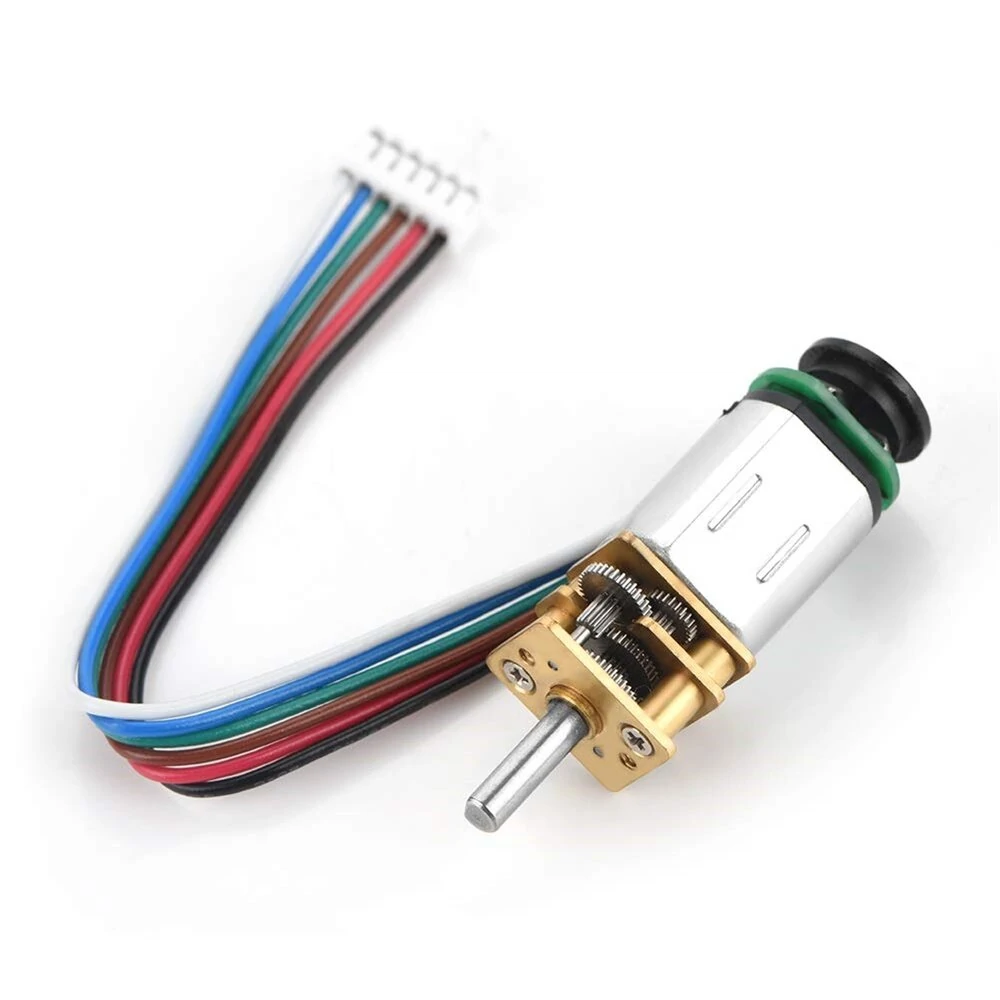

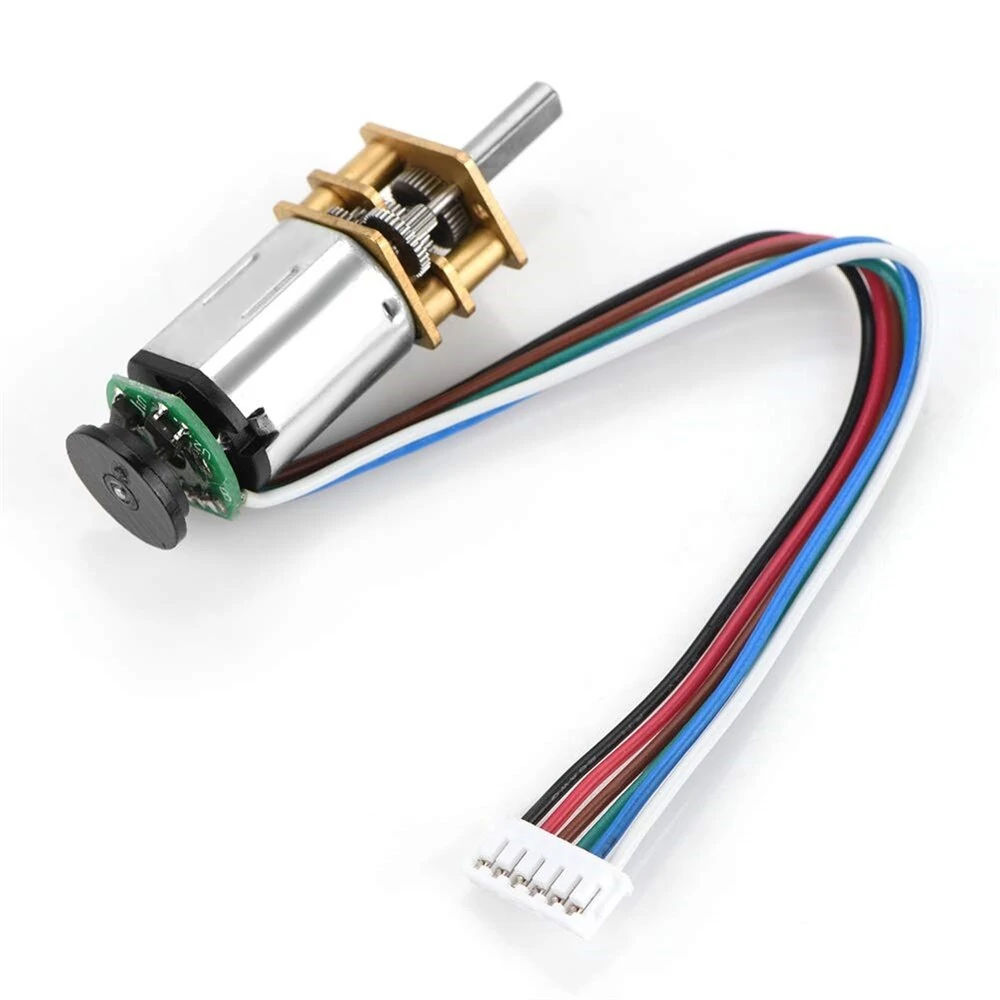

Wiring method:
Socket type: JST ZHP-6 P=1.5-6P
Cable specification: UL1007 26AWG
- Black lead: Motor power input negative "-"
- Red lead: Motor power input positive "+"
- Brown lead: Encoder power input positive "+"
- Green lead: Encoder power input negative "-"
- Blue lead: Encoder signal output phase A
- White lead: Encoder signal output phase B
Produce Included:
